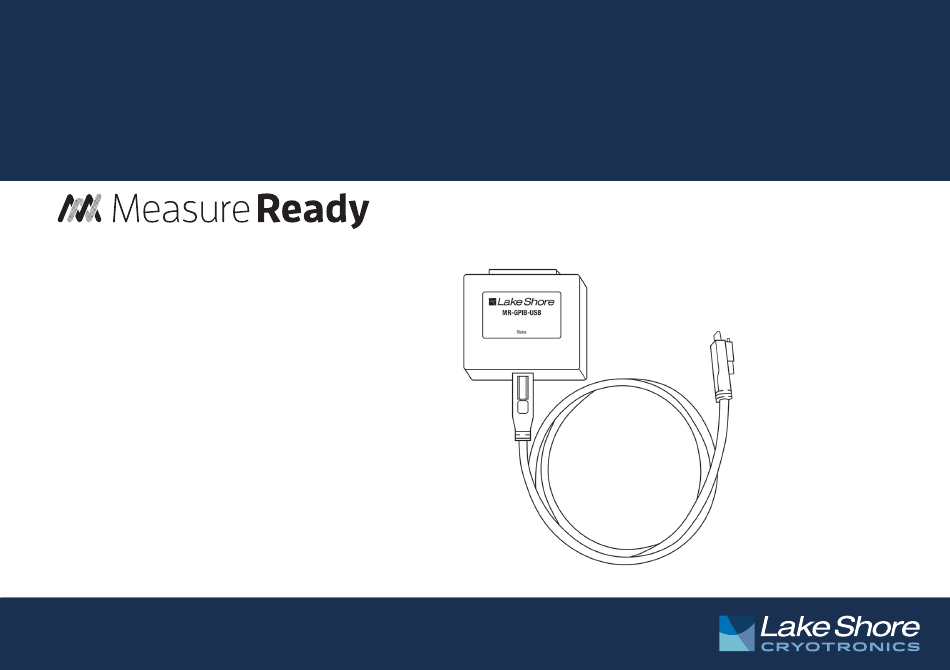

- Page 1 Quick Start Guide ™ GPIB Adapter MeasureReady™ GPIB Adapter Quick Start Guide https://www.lakeshore.com/measureready/...
- Page 2 MeasureReady™ GPIB Adapter Quick Start Guide Safety Precautions Do Not Substitute Parts or Modify Instrument Observe these general safety precautions during all phases Do not install substitute parts or perform any unauthorized of adapter operation, service, and repair. Failure to comply modification to the adapter.
- Page 3 USB Type-C™ connector contents have been accounted for. „ Configurable through screen input Check off each item on the packing list as it is „ Includes an LED status indicator unpacked. 2-year standard warranty „ MeasureReady™ GPIB Adapter Quick Start Guide https://www.lakeshore.com/measureready/...
- Page 4 CAUTION: This device is not intended to be connected to a personal The GPIB adapter includes a USB computer. It should only be connected to MeasureReady™ instruments Type-C™ connector with locking via the USB Type-C™ connector on the rear panel.
- Page 5 LED indicator Configuring the adapter The adapter includes a status indicator to determine its The System settings menu of the MeasureReady™ current state: instrument is provided to view and set/reset general instrument settings. To find these settings: Solid LED: power has been applied and initialization is complete with the host instrument.
- Page 6 MeasureReady™ GPIB Adapter Quick Start Guide Within the GPIB setting, tap the information icon to Tap anywhere else on the GPIB setting to change the see information about terminators, as shown in the address. Acceptable address values range from 0 to 30.
- Page 7 GPIB modes When paired with the adapter, the MeasureReady™ instrument will support the following GPIB modes: Local: the GPIB host controller is not controlling the instrument remotely. The front panel can be used to control the instrument. Remote: the GPIB host controller is actively controlling the instrument.
- Page 8 For further documentation and information, please see: https://www.lakeshore.com/products/MeasureReady/Pages/MeasureReady-models.aspx. Lake Shore Service Lake Shore Cryotronics Instrument Service Department 575 McCorkle Blvd. Westerville, Ohio USA 43082-8888 Phone: 614-891-2244 Email: service@lakeshore.com Web: www.lakeshore.com Rev. 1.1 P/N 119-900 25 June 2021 MeasureReady™ GPIB Adapter Quick Start Guide https://www.lakeshore.com/measureready/...
