Cosuper SCH300 Instructions Manual

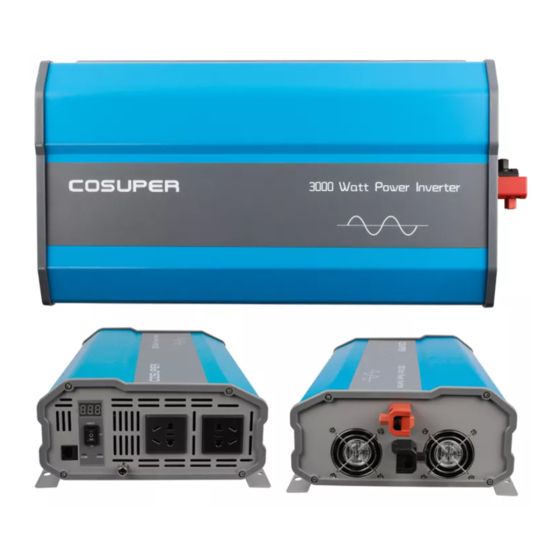

INSTRUCTIONS FOR:
PURE SINE WAVE INVERTER
12V/ 24V/ 48V DC INPUT, 300-3000 WATT
MODEL NO's: SCH300, SCH600, SCH1000,
SCH1500, SCH2000, SCH3000
Thank you for purchasing a Cosuper product. Manufactured to a high standard, this product will, if used according to these instructions
and maintained properly, give you years of trouble free performance.
IMPORTANT: SPECIFICALLY, PLEASE NOTE THAT THE GLOBAL HF INVERTER SHOULD NOT BE USED IN CONNECTION WITH THE LIFE SUPPORT SYSTEM OR
OTHER PRECISE MEDICAL EQUIPMENT OR DEVICES.
BEFORE USING THE INVERTER, YOU NEED READ AND SAVE THE SAFETY INSTRUCTIONS.
Refer to Instruction
Manual
1. SAFETY
Battery
DANGER! - Beware, lead-acid batteries generate explosive gases during normal battery operation.
Wash with soap and water immediately if battery acid contacts skin or clothing. If acid enters eye, flush immediately with cool,clean running
water for at least 15 minutes and seek immediate medical attention.
DO NOT smoke or allow a spark or flame in the vicinity of the battery or engine.
If the battery terminals are corroded or dirty, clean them before attaching the leads.
WARNING! To prevent the risk of sparking, short circuit and possible explosion DO NOT drop metal tools in the battery area, or allow them to
touch the battery terminals.
Before attaching to battery, remove personal metallic items such as rings, bracelets, necklaces and watches. A lead acid battery can produce
a short-circuit current which is high enough to weld such items and cause severe burns.
Inverter
DO NOT expose inverter to rain, snow, spray, bilge or dust. DO NOT cover or obstruct ventilations.
MAKE SURE at least 10CM of clearance around inverter for air flow. Minimum air flow of 145CFM is required.
MAKE SURE existing wiring is in good electrical condition. DO NOT operate inverter with damaged or substandard wiring.
DO NOT install in compartments containing batteries or flammable materials or in locations which require ignition protected equipment.
DO NOT disassemble this inverter charger. Internal capacitors remain charged after all power is disconnected. Attempting to service this inverter
by yourself may cause electrical shock or fire.
WARNING! Disconnect both AC output and DC power from the SCH inverter before any maintenance. Turning off controls will not reduce risk.
DANGER! The output side of inverter's AC wiring at no time be no connected to public power or a generator. Beware the wiring connection.
2. INTRODUCTION
General Information
SCH series inverters are all pure sine wave inverter. Pure sine wave inverters are best for use on medical equipment and sensitive electrical
appliances.
Unlike the modified sine wave inverter, pure sine wave allows you to watch television without static, play your games on an XBox
or Wii and run a fluorescent, all of which may not operate properly on a modified sine wave inverters.
TM
Safety is paramount and in particular with inverters which is why COSUPER fully electrically isolates the DC (and therefore battery posts, vehicle
chassis, etc) from the 110V or 230V AC circuit.
SPECIFICATION
Applications
Power tools- circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers, air compressor and etc.
Office equipment- computers, printers, monitors, facsimile machines, scanners and etc.
Household appliances- vacuum, fans, lights, TV, refrigerator, microwave, coffee machine, toaster, blender and etc.
Industrial equipment- metal halide lamp, high pressure sodium lamp and etc.
NOTE, The inverter working time with 100% loads cannot over 90 minutes.
Model Information
© COSUPER ENERGY LIMITED
SCH
COSUPER SCH series inverter
Power range
600=600W 1000=1000W 1500=1500W 2000=2000W
3000=3000W
Rated AC input& Output voltage
2=230VAC 1=120VAC
INSTRUCTIONS FOR:
PURE SINE WAVE INVERTER
12V/ 24V/ 48V DC INPUT, 300-3000 WATT
MODEL NO's: SCH300, SCH600, SCH1000,
SCH1500, SCH2000, SCH3000
DC range
12=12V
24=24V
48=48V
, Playstation
TM
SCH series Issue: 1 - 07/11/16
