Summary of Contents for ESS HVP-2100

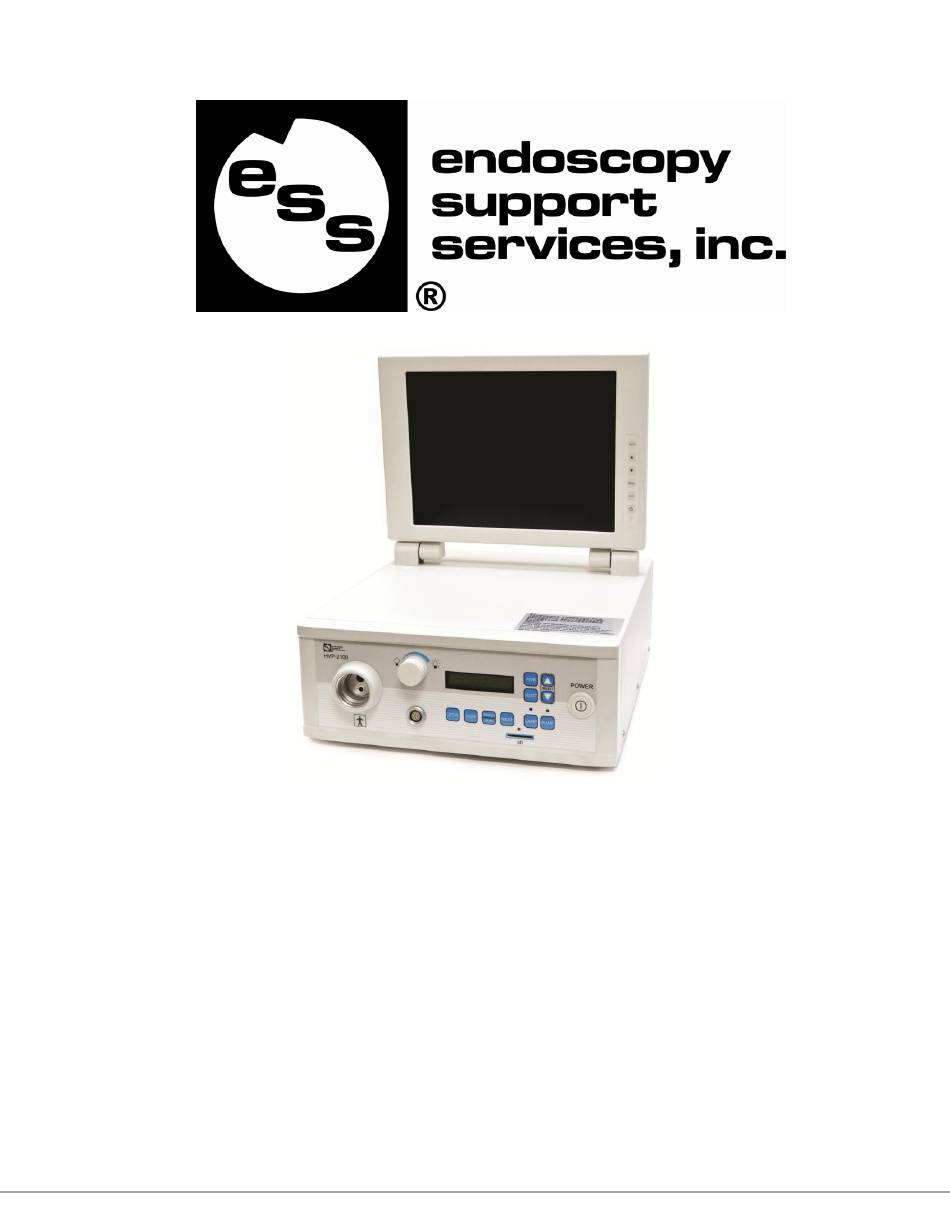

- Page 1 ESS HVP-2100 Veterinary All-In-One Video System INSTRUCTION MANUAL Endoscopy Support Services, Inc. 3 Fallsview Lane • Brewster, NY 10509 P: (845) 277-1700 • F: (845) 277-7300 REV: HVPM-032017A...
-
Page 2: Importance On Safety
IMPORTANCE ON SAFETY 1. APPLICATION ESS HVP-2100 Video Center has been designed to provide image processing and light for use with the ESS Veterinary Video Endoscopy System of endoscopes, as well as for rigid endoscopes and Olympus® brand flexible fiberoptic endoscopes (NOTE: requires additional camera head, coupler, eyepiece adapter and light guide in the case of rigid endoscopes –... - Page 3 In case of fluids entering the unit, please remove the plug from the socket immediately and contact ESS, Inc. or your ESS, Inc. Representative. 9. WARNING Never close monitor with anything on top of the HVP-2100 video system - this could cause damage to the LCD display. Image of damaged LCD screen 10.
-
Page 4: Table Of Contents
CONTENTS IMPORTANCE ON SAFETY………………………………………………………………………….2 FOREWORD……………………………………………………………………………………………5 CONVENTIONS IN INSTRUCTIONS …………………………………………………………….…6 SYMBOLS ON HVP-2100 UNIT ……………………………..………….…………………………..6 1. SAFETY……………………………………………………………………………………………..7 1-1 Notice of Use……………………………………………………………………………………...7 1-2 Content of [ Warning] in Each Chapter……………………………………………………7 2. STANDARD SET, PARTS’ NOMENCLATURE AND FUNCTION………………………..…9 2-1 Standard Set……………………………………………………………………………………..9 2-2 Front Panel……………………………………………………………………………………….9 2-3 Rear Panel……………………………………………………………………………………...11... -
Page 5: Foreword
FOREWORD This instruction manual is for the use and care of the ESS HVP-2100 & HVP-2100L All-In-One veterinary video system. Regarding the use and care of the ESS veterinary video endoscopes and other auxiliary equipment, please refer to their own instructions. -
Page 6: Conventions In Instructions
Warning caution items about equipment damage Caution consecutive numbers indicating successive operation ①.②.③. … note, cue or supplement ※ SYMBOLS ON HVP-2100 UNIT Symbol Explanation BF TYPE CONSULT MANUAL/INSTRUCTIONS FOR USE Conformité Européenne (European Conformity) GROUND FUSE (marks number of fuses & fuse type) -
Page 7: Safety
(1) Check Before Using In order to avoid accidents while using and to maintain optimal performance, please check the HVP-2100 prior to using as instructed (2) Use With Other Equipment Sometimes this instrument is used with ancillary equipment. In order to avoid current shock accident when using other ancillary equipment than medical equipment like monitor etc., please use special socket of the ancillary equipment to put through... - Page 8 4-2 Startup Do not look directly to the light while the lamp is working, or intense light from endoscope’s distal end and light output of light source may damage your eyes. Do not use 3 pins-2 pins transform plug by which may cause accident of electric shock.
-
Page 9: Standard Set, Parts Nomenclature And Function
6．BNC Video Cable 7. Fuse (T2AL250V) Front Panel 14 13 12 11 Fig 2-1 HVP-2100 Front Panel OUTPUT SOCKET: Connect to endoscopy light guide connector BRIGHTNESS: Rotate clockwise the level increases and the image on monitor brighter and it is on... - Page 10 AWB: Press to adjust the White Balance automatically. PARAMETER ADJUSTING/SELECT(): Select the parameter, including brightness, size of the window, contrast, language, and color. Main POWER On: [Ⅰ], OFF: [○], the indicator illuminates when power on. SELECT/Enter: Select the parameter, including brightness, size of the window, PUMP: Press to start or stop air feed LAMP:...
-
Page 11: Rear Panel
Rear Panel 5 6 7 8 Fig 2-2 HVP-2100 Medical Video Center Rear Panel 1. Plug receptacle for power supply power cord & fuse holder 2. Ground post for grounding wire (to ground casing against electrostatic discharge) 3. Air intake nozzle for air pump (keep clear) 4. -
Page 12: Side Panel
Side Panel Fig 2-3 HVP-2100 Medical Video Center Side Panel Lamp Access Plate: open to remove/install light source lamp Fix bolt: holds lamp access plate closed when in operation Pothook: used to hold the water bottle to device... -
Page 13: Instrument Installation
1. Plug the light guide connector of endoscope into the output socket of the HVP-2100 (refer to figure 2-1 HVP-2100 Front Panel), meanwhile make sure that both of light guide pipe and air pipe are inserted into correct holes of the receptacle and that it fits firmly by the endoscope light guide connector’s spring ring. -
Page 14: Monitor Connection
Connect the video output of medical video center (refer to the figure 2-2) to the video input of monitor with the offered video signal cable (image can also be displayed on the flip-top LCD monitor on the HVP-2100.) CHAPTER 4... -
Page 15: Parameter Adjustment
1. Inspection of Switch When the Power Switch is turned ON “Ⅰ”, check the following to confirm that power is actually being supplied to the equipment. The green indicator of the power switch on the front panel is lit. 2. Inspection of Illumination ①... -
Page 16: Image/Video Capture
0 to 9. The revised value can be stored automatically. Image/Video Capture 1: Insert SD card, open video center HVP-2100, choose “CVBS” input . 2: Press “SHIFT” on the Front Panel, choose “video” OR “camera”... - Page 17 In “video” mode, press “CAPTURE” to take videos, press again to stop. Maximum video capture time is 10 minutes – after which (without pressing the “CAPTURE” button) the system will stop taking video and store the video. (more, next page…)
-
Page 18: Maintenance And Care
3: After pressing “VIEW”, you can check images and videos by pressing “NEXT” When you want play videos, please press ”PLAY” CHAPTER 5 MAINTENANCE AND CARE Clean after use Caution Clean the instrument according to the instructions. Failure to properly clean the instrument, or to use cleaning procedures not expressed in the manual, could cause damage to the unit and operational failure. -
Page 19: Daily Inspection
Service or repair should be conducted by a qualified manufacturer service technician. The manufacturer suggests that the equipment should be inspected once each year by a qualified customer service technician. Contact the ESS Service Department at 1 (845) 277-1700 x214 or by e-mail at: service@endoscopy.com. Cautions for Care ※... -
Page 20: Fuse Replacement
Unplug the unit before replacing fuse. ① Turn the HVP-2100 off and unplug the power cord from the receptacle in back. ② Replace fuses as instructed in following figures (Fuse rating is T2AL250V) -
Page 21: Appendix Itroubleshooting Guide
APPENDIX I TROUBLESHOOTING GUIDE The following actions should be executed by qualified technician. Please stop using and send to repair if trouble still can not be solved after these actions. Problem Possible Cause How to resolve The indicator light of Power Cord Connect the power cord to the power supply does... -
Page 22: Appendix Ii Main Specification
APPENDIX II MAIN SPECIFICATION Type Ⅰ Type of electric shock prevention Extent of electric shock prevention Type BF Protection grade of explosion prevention far away from flammable gas Working mode continuous Distinguishability No.5 distinguishability board is grade 9 and permitting half-grade down Function Auto white balance... -
Page 23: Appendix Iii Guarantee And After-Sales Services
ESS “Speed-Up” Repair Form (call & request faxed copy or download from ESS website.) Please include your address, zip code, operator’s name and telephone number (person who can authorize any repairs/make decisions.) -
Page 24: Notes (Blank Pages For User Notes)
NOTES:... - Page 25 NOTES:...
-
Page 28: Back Cover W/Address & Phone Number Information
Endoscopy Support Services, Inc. 3 Fallsview Lane • Brewster, NY 10509 Toll Free (Continental U.S. only): 1-800-386-3636 Phone: 1-845-277-1700 (Service Dept.: ext. 214) ESS, Inc. Main Office Fax: 1-845-277-7300 Service Department (repairs) Fax: 1-845-276-4200 ESS website: www.endoscopy.com Service Dept: www.endoscopy.com/service...
