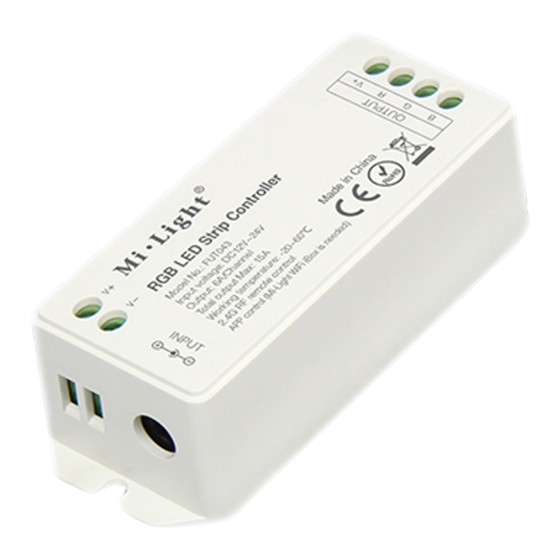

Miboxer FUT043A Quick Start Manual

Smart LED Control System
Model No.: FUT043A / FUT044A / FUT045A

1. Introduction

Smart(set) LED strip control system is our newly developed high-end LED controller controlled by
wireless remote controller, also with smartphone control and 4G long distance control(2.4GHz
gateway is needed). The controller has auto-transmitting and auto-synchronizing function and
with RGB,RGBW and RGB+CCT output mode.
This controller adopt the widely used 2.4GHz wireless technology with the features of low power
consumption, long signal transmitting and strong anti-interference, etc. One compatible remote
control many controllers at the same time. Widely used on the controlling of hotel lighting and
home lighting.

2. Technical Data

Controller
Model No.: FUT043 / FUT044 / FUT045
Working Voltage: DC12V~24V
Output Max: 6A/Channel
Total Output Max: 15A
Working Temperature: -20~60°C
RF: 2.4GHz
Max Controlling Distance: 30m
Output Connection: Common anode
Size: 37*28*97mm
Remote control
Model No.: FUT088
Working Voltage: 3V(2*AAA Battery)
Transmitting Power: 6dBm
Standby Power: 20uA
Working Temperature: -20~60°C
Radio Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Control Distance: 30m
Size: 47*16.5*134mm

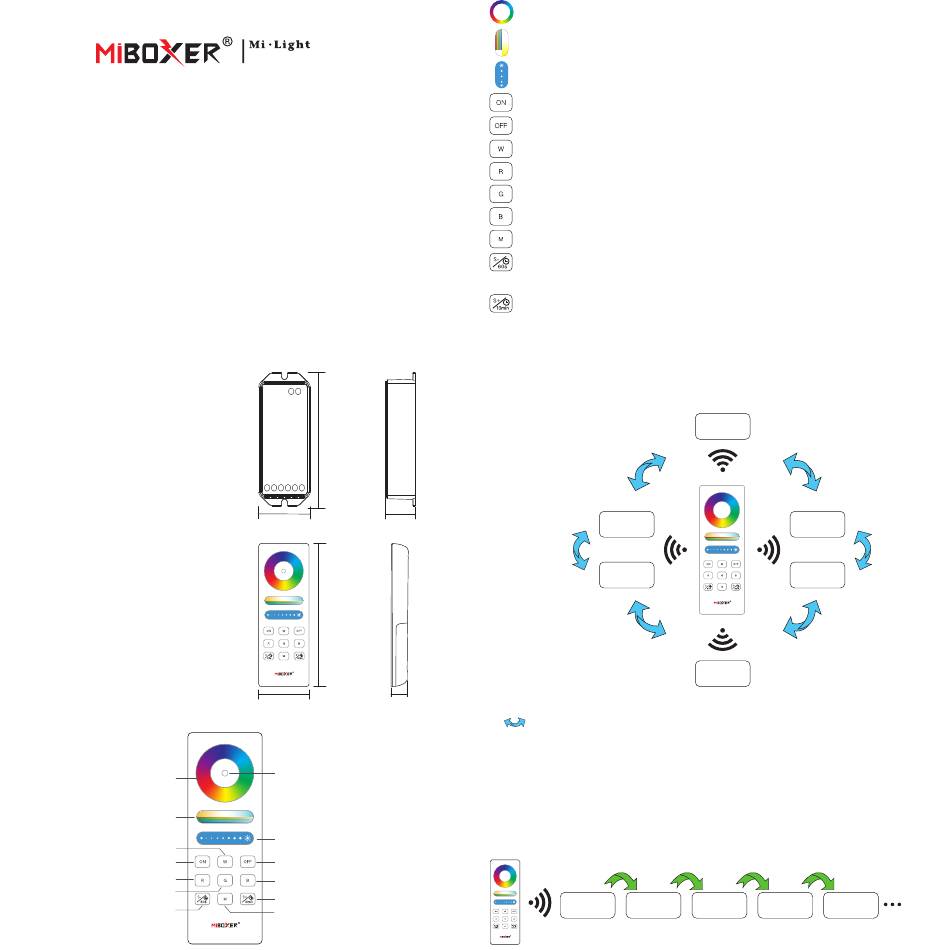

3. Products Key Diagram

Color Ring
Saturation / CCT Control
White
ON / Link(Unlink)
Static Red Light
Static Green Light
Speed- / 60S Delay OFF
Subordinate New Brand
97mm
37mm 28mm
134mm
47mm 16.5mm
Indicator light
Dimming Slider
OFF
Static Blue Light
Speed+ /10min Delay OFF
Mode
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Slide the brightness slider to adjust the brightness.
Touch ON button, turn on the linked device.
Touch OFF button, turn off the linked device.
Press the button to get white light.
Static Red Light.
Static Green Light.
Static Blue Light.
Dynamic mode switching button.
Slow the speed under present dynamic mode.
Under static mode, Long press for 2 seconds, the light shine once,
the light will be off after 60 seconds.
Accelerate the speed under present dynamic mode.
Under static mode, Long press for 2 seconds, the light shine once,
the light will be off after 10 minutes.

4. Auto-synchronization function

Different controllers can work synchronously when they are started at different times, controlled
by the same remote, under same dynamic mode and with same speed.
Controller
Controller
Auto-synchronization Diagram
Remark:
1. Indicating Auto-transmitting.
2. Controller will be auto-synchronizing in the same dynamic modes and within 30m controlling
distance.

5. Auto-transmitting function

One strip controller can transmit the signals from the remote control to another controller within
30m, as long as there is a strip controller within 30m, the remote control distance can be
limitless.
Auto-transmitting Auto-transmitting
Controller Controller
Auto-transmitting Diagram
Controller
Controller
Controller
Controller
Auto-transmitting Auto-transmitting
Controller Controller Controller
