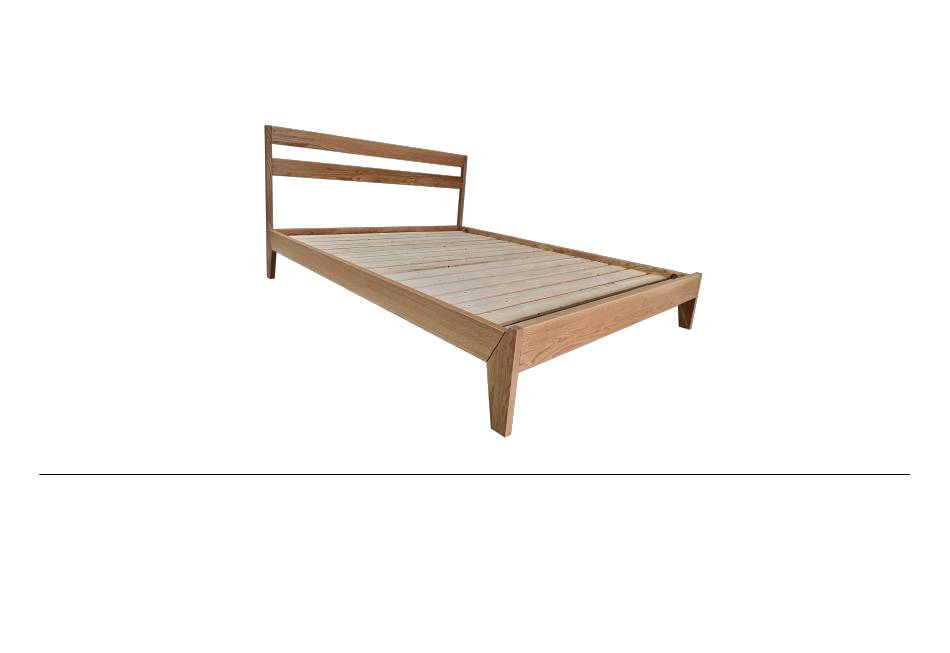

  • Page 1 O R I G I N B E D F R A M E ASSEMBLY INSTRUCTIONS...
  • Page 2 I. DISCLAIMERS & NOTES Attention: Important Safety Disclaimers For your safety,please read all instructions carefully before installing the bedframe . IMPORTANT : WEIGHT LIMITS : Two people are required to assemble the bed frame . The bed frame is not rated to support weight exceeding 400 kgs.

  • Page 3: Product Dimensions

    II. PRODUCT DIMENSIONS Unit：mm Mattreess Free Height Headboard Footboard Sideboard Mattress Mattress Length Width Platform Under Height Height Height Length Width （kg） （kg） Height Furniture SINGLE 1970 1900 44.0 49.0 90x190cm SUPER SINGLE 1970 1130 1900 1070 45.0 50.0 107x190cm QUEEN 1970 1580...
  • Page 4 PRODUCT DIMENSIONS...

  • Page 5: Parts List

    III. PARTS LIST Ensure you have received all the parts listed blow before discarding the packing materials. REF. Picture Part Name Specifications Quantity Material Side board - LH 1890*113*30mm White Oak Side board - RH 1890*113*30mm White Oak Foot board 900/1070/1520/1830*133*30mm White Oak Head board - Upper...
  • Page 6 PARTS LIST REF. Picture Part Name Specifications Quantity Material Cross Bars 1910*60*38mm Pine Cross Bars Holders White Oak Mattress Platform 900/1070/1520/1830*457*30mm Pine and Beech Wood Locating Pins - Big Pine ￠10*50mm Wood Locating Pins - Small Pine ￠8*40mm Screw Rods M8*90mm M8 Nuts Zinc Plated...

  • Page 7: Installation

    IV. INSTALLATION STEP1： STEP3： Remove box cover, take out all of the packing materials. Install the Screw Rods (P) and Wood Locating Pins - Big (N) to Head End Check all the components and parts are correct quantities and in good Legs - LH (I) &...
  • Page 8 INSTALLATION STEP4： STEP5： Install the Wood Locating Pins - Small (O) to Cross Bars Holders (L) and Install the Foot board (C) to Foot End Legs - LH (G) & Foot End Legs - RH place Cross Bars Holders (L) to the Head board - Lower (F) & Foot board (C) (H) and place the Crescent Shape Plastic Pads (S) and use 14mm Spanner in correct position and then use phillips screwdriver to lock and tighten the (T) to lock and tighten the M8 Nuts (Q) as feature - 4.
  • Page 9 INSTALLATION STEP6： Install the Head End Legs - LH (I) & Head End Legs - RH (J) to Head board Upper (D),Head board - Middle (E) & Head board - Lower (F) and place the Crescent Shape Plastic Pads (S) and use 14mm Spanner (T) to lock and tighten the M8 Nuts (Q) as feature - 5 &...
  • Page 10 INSTALLATION STEP7： STEP8： Install the Head board Assembly & Foot board Assembly to Side board - LH Place the Cross Bars (K) to Cross Bars Holders (L) in correct position and (A) & Side board - RH (B) and place the Crescent Shape Plastic Pads (S) place the Mattress Platform (M) on the Cross Bars (K) as feature - 8.

  • Page 11: Warranty

    V. WARRANTY We guarantee this product is free from defects in material and workmanship under normal usage. Our product warranty does not cover damage caused by misuse or accident. For Warranty Information, please visit our website: https://originmattress.com.sg...

  • Page 12: B E D F R A M E
