- Page 1 ViewConn ® VC-8200 1. Introducing ViewConn 2. Using ViewConn Pro 3. Optional Integrated Optical Power Meter 4. Specifications...
- Page 2 Safety Fiber optic lasers use light wavelengths not visible to the human eye. All Lightel microscopes are eye-safe video microscopes. Nevertheless, all standard safety precautions should be followed.
- Page 3 Inspect at Every Step Manufacturing QC and Receiving System Assembly Installation System Testing Network Testing Maintenance Troubleshooting...
- Page 4 Introducing ViewConn ViewConn was the first, and only, hand-held, all-in- one inspection and cleaning device. ViewConn’s integrated operation allows users to quickly and easily inspect, clean and reinspect, ensuring connectors are truly clean prior to mating. ViewConn’s large 3.5” display provides clear, sharp images.
- Page 5 Introducing ViewConn Plus Save Time The ViewConn Plus dual microscope design, originated by Lightel, lets you easily inspect both male and female mated connector pairs without the time consuming need to change tips.

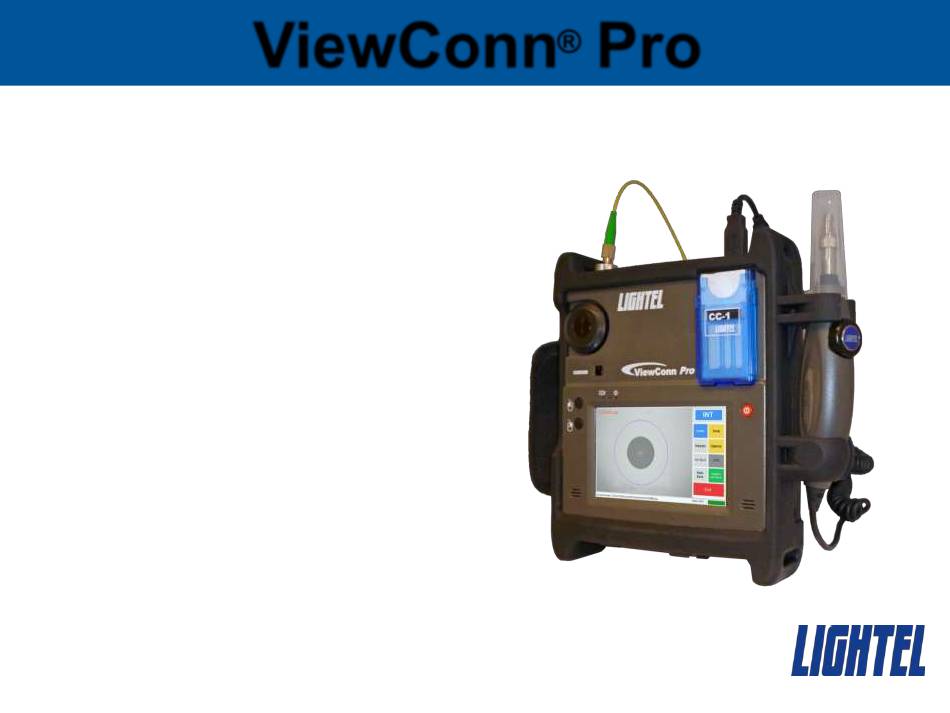

- Page 6 Introducing ViewConn Pro Comprehensive Solution ViewConn Pro is an integrated system for fiberoptic connector inspection, evaluation, documentation and cleaning. This hand-held tool provides dual microscopes, touchscreen controls, Pass/Fail analysis and a cleaning cassette all in a single unit.
- Page 7 ViewConn Pro VC-8200 1. ViewConn adapter tip (INT) 2. ViewConn focus knob (INT) 3. Cursor touch pad 4. Left-click button 5. Right-click button 6. Wrist strap 7. 5” color touchscreen 8. Stylus and stylus holder 9. Power button 10. Probe focus knob (EXT) 11.
- Page 8 ViewConn Pro ViewConn Pro is designed to fit your work style. With a fold out stand, a wrist strap for support when holding it and neck strap attachments at either top or bottom, ViewConn Pro gives you the flexibility to use it whatever way the job requires.
- Page 9 Inspecting Male Connectors When you turn ViewConn Pro on it will be set to inspect male connectors (patchcords and jumpers) ─ the INT setting. Ensure that you have the proper tip in the tip receptacle at the top of ViewConn, then place the connector into the tip.
- Page 10 Cleaning Male Connectors Once you have inspected the fiber, if you need to clean it, open the cover of the CC-1 cleaning cassette, and, using moderate pressure swipe the connector ferrule from the top down on a clean section of the CC-1 cassette.
- Page 11 Cleaning Male Connectors Wet Cleaning If you decide you need to wet clean a connector, use a solvent dispenser like the optional Chemtronics Electro-Wash® pen dispenser to lightly wet a clean section of a CC-1 sheet. Less solvent is best. Always go from the wet portion to the clean dry portion.
-
Page 12: Cleaning Cassette
CC-1 Cleaning Cassette When you have used all three slots on a CC-1 cleaning sheet, pull the sheet out to advance it to the next sheet. The cassette cover must be open to advance the sheet. If you wish to tear off a sheet, first close the cover. - Page 13 Changing ViewConn Tips All ViewConn tips are intended for use strictly with male connectors. Most ViewConn tips are universal tips, either PC or APC, for all connectors with the same ferrule size. All tips work for both single mode and multimode connectors.
- Page 14 Inspecting Male APC Connectors APC connectors are angled and need tips designed specifically to view them. (Note the angle on the tip stem.) A male APC connector is keyed. The key should be directly to the front of ViewConn to provide the best image. Or you can simply turn the connector until it has the best contrast.
- Page 15 Inspecting Female Connectors To inspect female connectors (in bulkheads and patch panels) touch the INT portion of the touchscreen. It will change to read EXT. The image displayed will now be coming from the probe. The Field of View from the probe is wider allowing you to more easily locate the ferrule.
- Page 16 Inspecting Female Connectors When you have focused on the ferrule, you can freeze it to examine it, enlarge and automatically center it, and then analyze it. Or you can choose to just immediately analyze it.
- Page 17 Changing Probe Tips Probe tips are held in place with a lock nut. Holding the probe, turn the lock nut counter-clockwise to loosen it fully, and then remove the tip. All tips have a slot and fit into the key at the top of the probe.
-
Page 18: Probe Tips
Probe Tips Most probe tips are for female connectors. (Universal male tips are available for the probe for special applications.) Female tips are specific to the type of connector being inspected. All tips work for both single mode and multimode connectors. Probe tips are available in a variety of styles for specialty applications including 60°... - Page 19 Using ViewConn Pro ViewConn Pro is simple to use. The main screen provides access to all the ViewConn Pro features and all the controls you need to view, capture and analyze connectors. Or work from the Quick View screen with large simplified controls and a large graphic battery level indicator.
- Page 20 Using ViewConn Pro Capturing an image is as simple as a touch of the screen. With another touch you can shift to the probe and save images from it.
- Page 21 Using ViewConn Pro You can digitally zoom the connector for a closer look. Individualize your power saving settings or set up a Wi-Fi connection.
- Page 22 Using ViewConn Pro You can easily go back and view any Analysis Report or image you have saved. Check to ensure you are running the most recent Lightel software update for ViewConn Pro.
- Page 23 Analyzing Connectors You can analyze connectors with one touch. Simply touch the green Analyze button in Quick View. No calibration is necessary. Just select Single mode or Multimode. The ConnectorView Plus software can be set to automatically save the Analysis Report or you can choose to save only selected reports.
- Page 24 Analyzing Connectors ConnectorView Plus software use IEC 61300-3-35 as the default standard for its analysis, but the acceptance criteria can be modified to allow for different corporate standards. Multiple standards can be stored and reused. A new Summary Report is automatically generated whenever criteria are changed.
- Page 25 ViewConn Pro Power Meter ViewConn Pro has an optional integrated power meter. This add-in module can be installed by Lightel or can VC8-OPM installed be easily installed by the user. Two versions are in ViewConn Pro available for standard or for higher power ranges. Universal 2.5mm and 1.25mm tips are included with each power meter.
- Page 26 Case ViewConn Pro comes in a reinforced soft case. With both a shoulder strap and handle, there is room enough for additional cleaning supplies and other tools. A tipbox with adjustable compartments capable of holding any ViewConn Pro tip is also included in the package.
- Page 27 ViewConn Pro Specifications ViewConn (Pro) Probe ~660μm x 495μm Field of View ~464μm x 346m Field of View 0.5μm detectable 0.5μm detectable Resolution Resolution Optical Sensor CMOS Optical Sensor CMOS Light Source Blue LED Light Source Blue LED 5” LCD color touchscreen LCD Display Power Supply USB2.0 connection with ViewConn...
