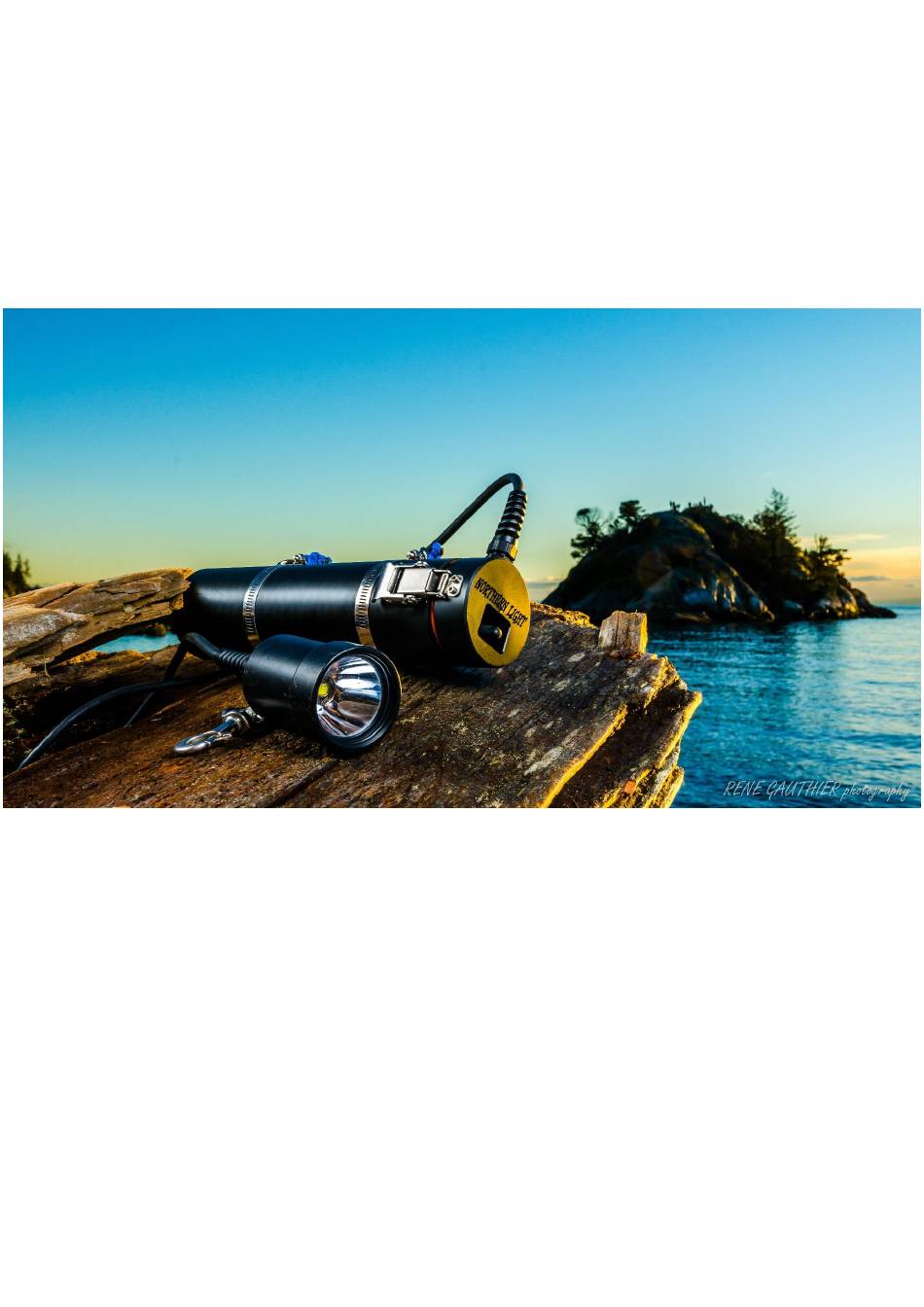

NORTHERN LIGHT CA.

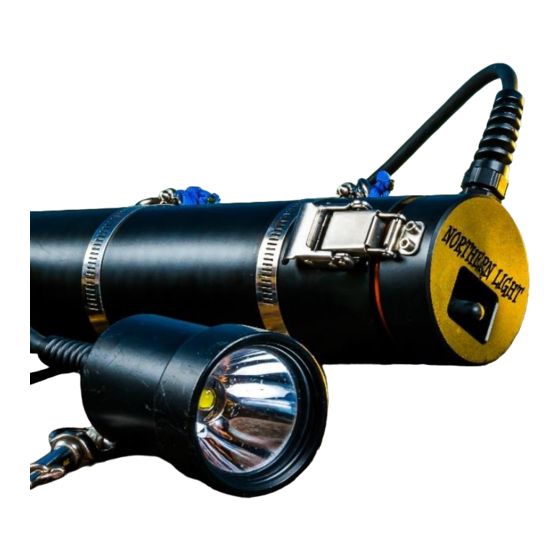

MODEL : A4000
PRIMARY CANISTER LIGHT
CONGRATULATIONS ON YOUR NEW ACQUISITION OF THE
NORTHERN LIGHT PRIMARY DIVE LIGHT BUILT FOR
TECHNICAL DIVERS THAT DEMAND PERFORMANCE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Northern Lights A4000

Summary of Contents for Northern Lights A4000

  • Page 1 NORTHERN LIGHT CA. MODEL : A4000 PRIMARY CANISTER LIGHT CONGRATULATIONS ON YOUR NEW ACQUISITION OF THE NORTHERN LIGHT PRIMARY DIVE LIGHT BUILT FOR TECHNICAL DIVERS THAT DEMAND PERFORMANCE.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1-GENERAL INFORMATION CRITICAL WARNINGS PAGE 3-4 2-PACKAGE CONTENTS PAGE 5 3-TECHNICAL SPECIFICATIONS PAGE 5-6 4- LIGHT FUNCTIONS FEATURES PAGE 7 5- CHARGING THE LIGHT PAGE 8 6- AIR TRAVEL PAGE 9 7- HOW TO REMOVE THE CANISTER TOP PAGE 9-10 8-MAINTENANCE PAGE 10...

  • Page 3: Critical Warnings

    CRITICAL WARNINGS THIS MANUAL MUST BE READ IN FULL FAILURE TO READ THIS MANUAL AND FOLLOW THE PRECAUTIONS IN THIS MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH OR PROPERTY DAMAGE WARNING THIS IS A VERY HIGH-POWER LED LIGHT THAT COULD CAUSE TEMPORARY OR PERMANENT EYE DAMAGE TO YOURSELF OR YOUR DIVE BUDDIES OR AQUATIC LIFE.
  • Page 4 WARNING DO NOT USE ANY OTHER CHARGER THEN THE SUPPLIED CHARGER TO CHARGE THE BATTERY PACK. CONTACT NORTHERN LIGHT CA. FOR REPLACMENT CHARGER IF EVER NEEDED. WARNING CHARGING WIRES MUST BE CONNECTED TO THE BATTERY CANISTER WITH CORRECT POLARITY IE: RED WIRE TO RED CANISTER PLUG. FAILURE TO DO SO COULD CAUSE PERMANENT DAMAGE TO THE BATTERY AND THE AC CHARGER.

  • Page 5: 2-Package Contents

    PACKAGE CONTENT  OWNERS MANUAL  AC CHARGER  BATTERY CANISTER  CANISTER HEAD AND LIGHT  2 - SS MOUNTING CLAMPS  1 - 2 INCH NYLON WEBBING TECHNICAL SPECIFICATIONS CANISTER DIMENSIONS DIAMETER 75mm / 3 inch LENGTH 300mm / 11.75 inch WEIGHT 2.64 KG / 5.84 LBS CHORD LENGTH STANDARD 137cm / 54 inch...
  • Page 6 TECHNICAL SPECIFICATIONS BATTERY INFO: VOLTAGE 7.4 V NIMH nominal AMPERE HOUR 10000 MAH WATT HOURS RUN TIMES % OF TOTAL 100% LUMEN POWER SETTING SETTING SETTING SETTING SETTING TIME - MINUTES 100% 4000 3600 3200 2000 1200...

  • Page 7: 4- Light Functions Features

    LIGHT FUNCTIONS FEATURES  5 MANUAL SETTINGS WITH AUTOMATIC DIMMING WHEN BATTERY REACHES CERTAIN POWER LEVELS.  TEMPERATURE PROTECTION, POWER TO THE LIGHT HEAD WILL BE CUT UNTIL TEMPERATURE DROPS TO OPERATING TEMPERATURE. THIS COULD TAKE A LONG PERIOD OF TIME IF LEFT OUT OF WATER. ...

  • Page 8: 5- Charging The Light

    CHARGING THE LIGHT FIRST CONNECT THE BANANA PLUGS TO THE BATTERY CANISTER + RED TO +RED THEN THE -BLACK TO -SILVER PLUG. THEN INSERT THE THERMAL SENSOR INTO ANY OF THE 2 TRAVEL HOLES. THE CHARGER HAS 2 CHARGE RATES, CHARGE THE LIGHT ON 2A ALWAYS. REFER TO THE BELOW PHOTO FOR PROPER CONNECTIONS.

  • Page 9: 6- Air Travel

    AIR TRAVEL IF YOU TRAVEL WITH YOUR LIGHT YOU MUST DO 2 THINGS.  DO NOT FULLY CHARGE YOUR LIGHT FOR FLIGHT.  ROTATE THE CANISTER CAP SO THE POWER PLUGS LINE UP WITH THE TRAVEL HOLES SO THE LIGHT CAN NOT BE TURNED ON IN TRANSPORT. ...

  • Page 10: 8-Maintenance

    CANISTER CAP REMOVAL 1. RELEASE THE LATCHES 2. LATCH BAR 3. CAP RETAINER WATCH THE VIDEO DEMONSTRATION ON YOUTUBE NORTHERN LIGHT CA https://youtu.be/jG0RjqW-f3E MAINTENANCE TO KEEP YOUR LIGHT IN TOP RUNNING CONDITION BY SENDING IT IN FOR ANNUAL MAINTENANCE, NEW O RINGS AND NEW LIGHT CHORD WILL BE ADDED Email for pricing THANK YOU FOR YOUR PURCHASE OF THE NORTHERN LIGHT CANISTER...
