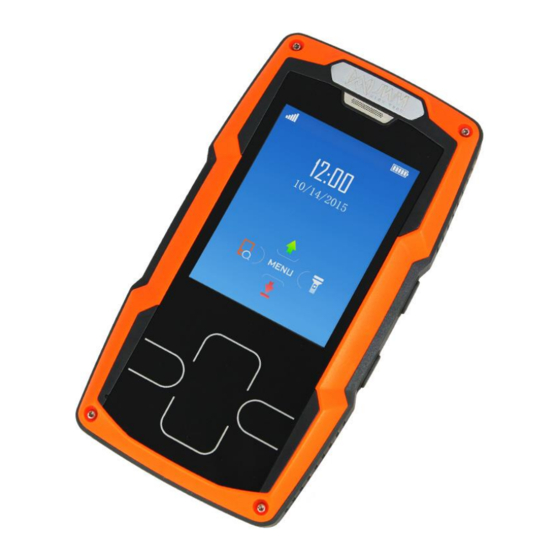

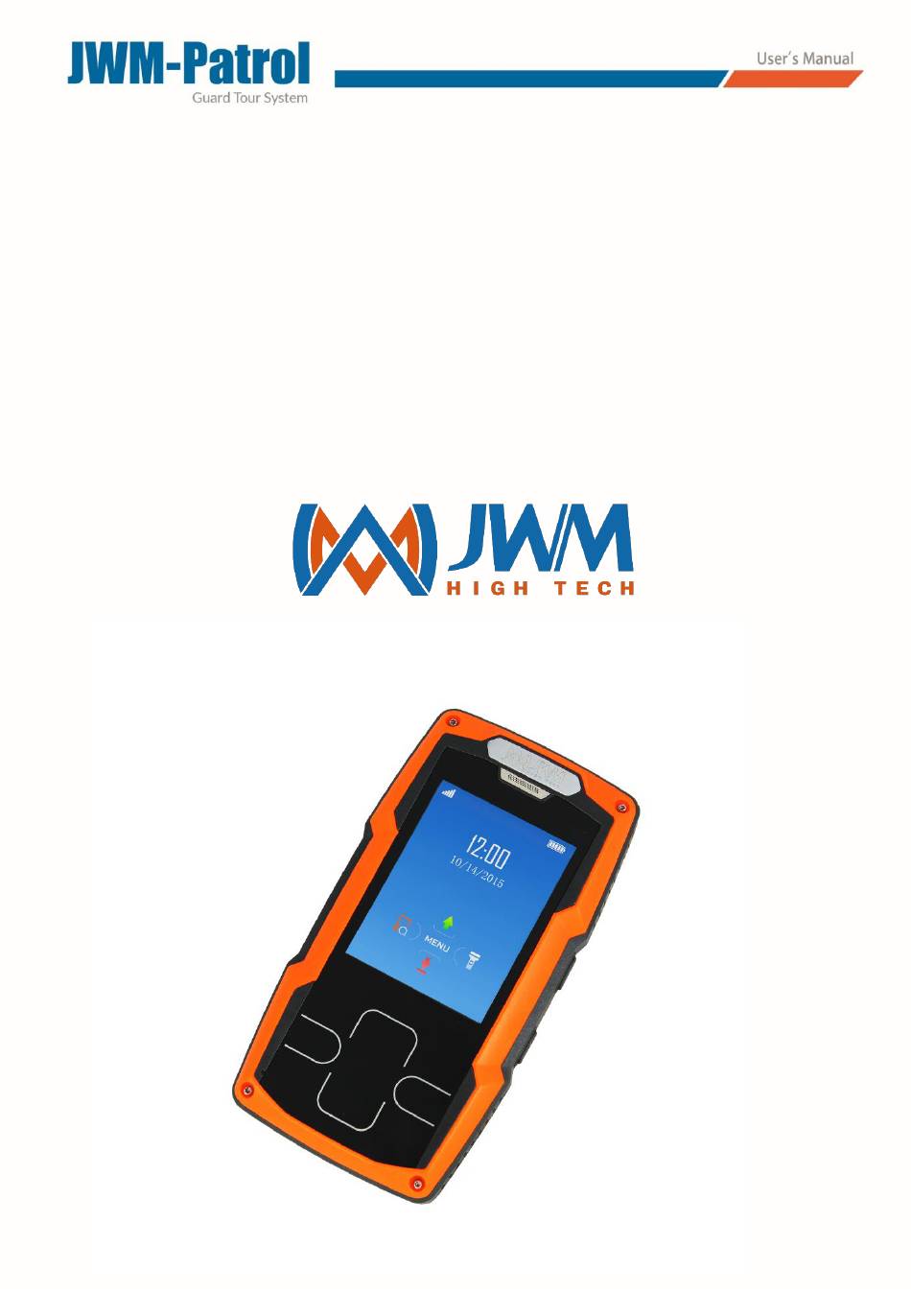

- Page 1 GUARD TOUR MANAGEMENT SYSTEM USER’S MANUAL WM-5000F3...
- Page 2 WM-5000F3 Guard Tour System User’s Manual 1. What is guard tour system? A guard tour system is a system used to help companies and organizations to organize, log and execute guard tours and patrols in their assets ensuring that the officers will accomplish their tasks within the predefined time intervals.
- Page 3 2. Applications warehouse systems improving rent a car systems monitoring proper service supervising personnel work time and place monitoring scheduled technical maintenance supervising guards supervising service producers supervising drivers monitoring rent systems airport protection and supervising workers hotel protection and supervising workers protection for other public institutions 3.
- Page 4 Working Prompts 1 vibration with 1 flash of red light with screen Turn on shows “JWM” logo 1 vibration with screen shows “Closing” Turn off 1 vibration with screen shows “ID Saved” Read undefine checkpoint 1 vibration with screen shows “guard’s name”...
-
Page 5: Technical Information
4. Technical Information Model WM-5000F3 Metal body with silicon shell outside Physical 132mm*71mm*26mm Dimensions 294.5g Weight RFID Tag Reading 125KHz Frequency 3-5cm Reading Distance -40℃ to +85℃ Operating Temperature 100,000 pieces records Storage Capacity 4G Flash ROM Memory 500 Pixels Pixel 2.7 Inch Screen Size... - Page 6 RFID Tags 1.7g 3.8g 2.8g 5. System Components 1) WM-5000F3 reader 2) Magnetic cable 3) Software 4) Charger 5) Holster 6) RFID tags (optional purchase) 7) Guard ID cards (optional purchase) 8)Event wallet (optional purchase)
- Page 7 6. User Flow 1) Make a sketch of the checking places that the guard needs to check. 2) Install tags on each checking place. *The round shape tag can be stuck or screwed on the wall. *For the cylinder glass tag, make a hole in the wall, and then put it inside and cover it.
- Page 8 There are 2 ways that you can start your patrol (1) Use the device to read checkpoint directly, first time, it will prompt you set some information like read checkpoint choose guard press “OK”, the name become red, and press read the same checkpoint press “OK”, again...
- Page 9 (2) Open the device and setup first, then start to read checkpoints. Choose the guard Press “menu” Press “OK” name, it becomes red, then back. Choose the plan, it becomes red, then back. choose “route” Next, you can use the device to patrol checkpoints.
- Page 10 7. Warranty Policy (1) All products are strictly tested and qualified before sale. (2) Hardware devices sold by our company are covered by 5 Year parts warranty. (3) During 5 Year warranty period, we will replace or repair units without charge, subject to any problem coming from product itself under ordinary usage condition.
- Page 11 JWM Hi-Tech Development Co., Ltd TEL: 0086 24 83782790 Email: sales@jwm-rfid.com support@jwm-rfid.com Web: http://www.jwm-rfid.com...
