Summary of Contents for blupura WALL

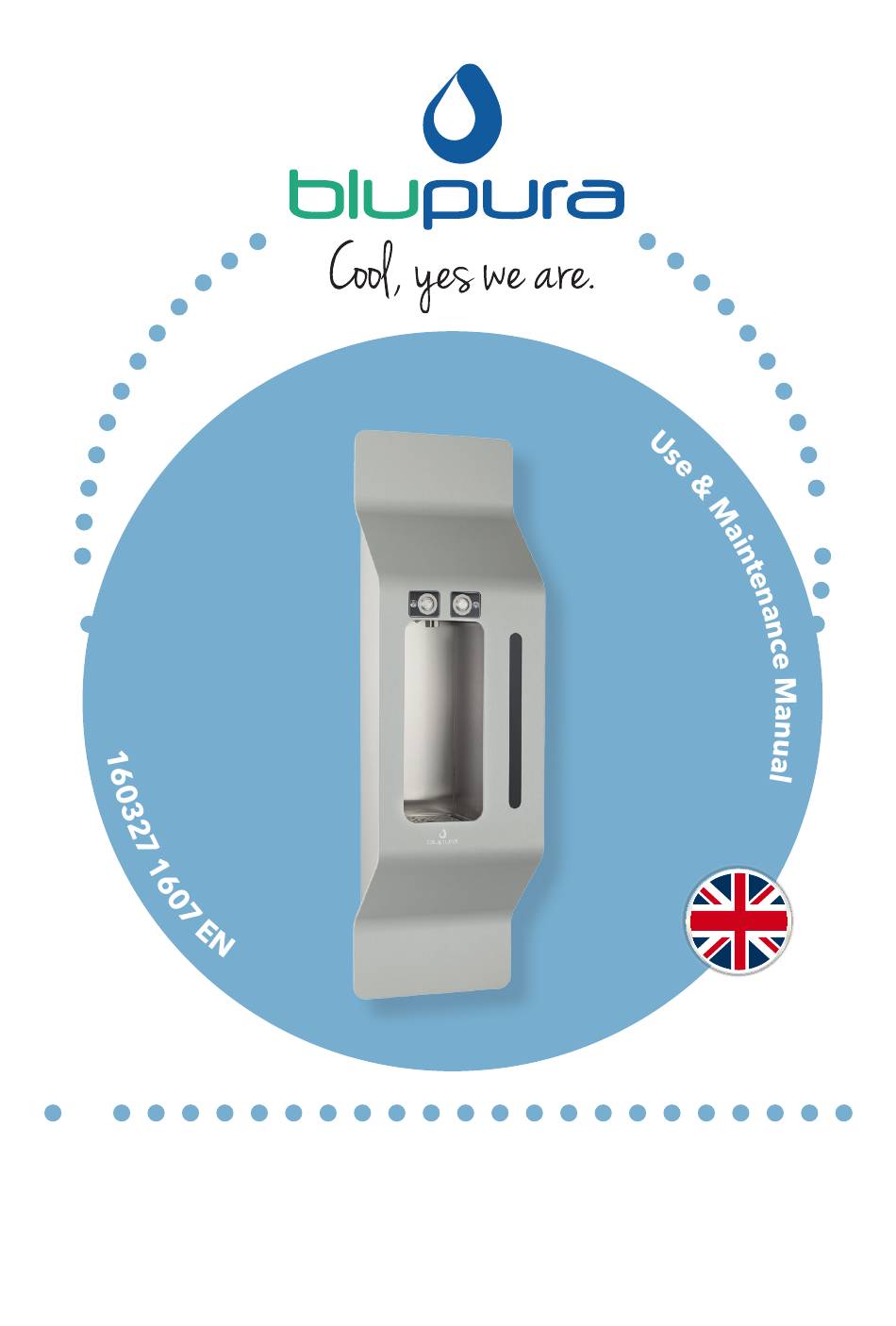

  • Page 1 WALL...

  • Page 3: Table Of Contents

    Index • BEFORE INSTALLING THE WATER COOLER • RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT • DECLARATION OF CONFORMITY • ASSOCIATIONS • INTERNATIONAL AWARDS • PRECAUTIONS AND GENERAL RECOMMENDATIONS • DESCRIPTION OF THE UNIT • DESCRIPTION OF THE KEYBOARD • TECHNICAL FEATURES – TECHNICAL DATA PLATE •...

  • Page 4: Before Installing The Water Cooler

    Before installing the water cooler Congratulations for choosing a BLUPURA product. We have designed and manufactured this product with great care to ensure that it will dispense water of the highest quality. In order to get the most out of your water cooler, please read the instructions in...

  • Page 5: Recommendations For Safeguarding The Environment

    Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

  • Page 6: Declaration Of Conformity

    Declaration of conformity D.M. 174 UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 rosso 032 c Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation.

  • Page 7: Associations

    Associations International Awards 2015 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME 2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE EUROPEAN AQUA AWARDS 2015, ROME 2014 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2014, BUDAPEST 2013 - BEST PRODUCT INNOVATION EUROPEAN AQUA AWARDS 2013, BERLIN 2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE...

  • Page 8: Precautions And General Recommendations

    After installation, ensure that the unit is not resting on the power cable. Check that the unit is level and that it is resting on a wall with sufficient load-bearing capacity, in an environment that is suitable for its dimensions and its use.

  • Page 9: Description Of The Unit

    Description of the unit WALL - the innovative wall-housed water cooler with a great design, for single or multiple connection. • A modern design using natural materials, such as stainless steel and aluminium. • Elegant and practical for office spaces, homes, residences, high-class condominiums and hotels.
  • Page 10 Front view Front cover Dispensing nozzle Stainless steel push buttons Drip tray with grid...
  • Page 11 Rear view Cold water and sparkling water Power cable inlet pipes Ø8mm Drip tray waste pipe Ø17mm...

  • Page 12: Description Of The Keyboard

    Description of the keyboard Sparkling water dispensing button Cold water dispensing button The water is dispensed while pressure is being applied to the button.

  • Page 13: Technical Features - Technical Data Plate

    Technical Features – Technical Data Plate 16 Year of manufacture 06 Month of manufacture 07549 Serial number...
  • Page 14 Technical Features - dimensions (mm) [mod. WALL] [mod. WALL built-in] 110,1 306,4 110,1 103,1 224,6 70,1 12,5...
  • Page 15 WALL Technical data sheet WALL built-in 230 V - 50 Hz Power supply 18,4W Power consumption Ø 8 x 1 mm Inlet water pipes Dimensions LxDxH (mm) 273 x 114 x 900 306 x 110 x 545 Packaging dimensions LxDxH (mm)

  • Page 16: Installation

    Unplug the electrical connector (2, fig. 17.1). Using some screws, fix the unit on the 4 Fig. 16.3 Ø6 holes on the back. Use the provided washers to separate the frame from the wall and appropriate screws and anchors according the type of wall.
  • Page 17 Once the frame is fixed to the wall, connect the supply cable, the water pipe and insert the wastewater pipe in the predisposed conduit. For the built-in version, prepare the housing in the wall (dim. LxDxH: 225x110x491) and fix the unit in...
  • Page 18 Connect the waste pipe (2) to a waste water manifold. Make sure that the connecting pipes between the cooler and the Wall are adequately insulated to prevent condensation. On the “Fizz” models with sparkling water, you can adjust the output stream with the screw on the compensator (3).
  • Page 19 *Optional on models Box 80/150 Fig. 19.1 - Example of typical installation...
  • Page 20 Electrical connection The connections must comply with local regulations. The grounding of the unit is a legal requirement. Connect the power cable (1) to a socket. The electronic tap is now activated and the keypad is turned on. Press the “Sparkling Water” button (P.1) in order to release any air in the circuit and to allow the pump on the under counter water cooler to start and fill...

  • Page 21: Filtration (Optional)

    Filtration (optional) Sterilizing UV filter The supply head is fitted with a BLUPURA UVC OUT QUARTZ 4W FM 150193 (λ=254 nm) sterilizing filter at the exit point to avoid backflow contamination. The UV-C light emitted by the special 4W mercury vapour lamp is lethal for all microorganisms (bacteria, viruses, mould, algae, etc.);...

  • Page 22: Sanitization - Notes

    This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization.

  • Page 23: Ordinary Maintenance

    Ordinary maintenance External cleaning of the unit To clean the unit, use the BLUSTEEL ULTRAMICROFIBRA cloth (code 190094), which is specifically designed for our products. Alternatively, you can use a soft cloth and a dedicated product for the cleaning of stainless steel. To remove limescale, use DAILY CLEANER SPRAY (cod.

  • Page 24: Service History

    Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature...

  • Page 25: Warranty Conditions

    Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects.
  • Page 26 Blupura srl - Registered office - Via F.lli Brancondi, 56 60025 Loreto (AN) Italy - Headquarters - Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...
