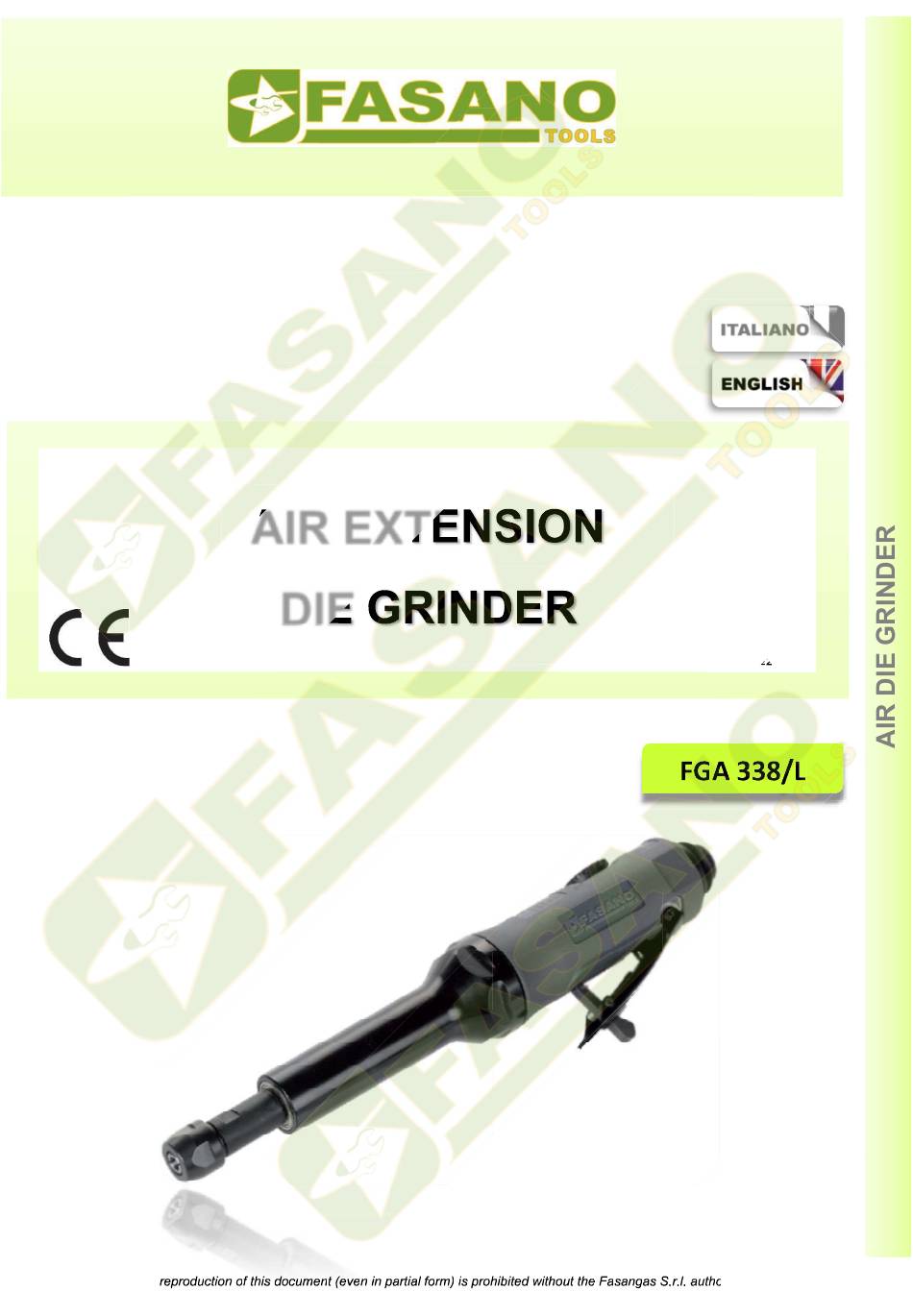

- Page 1 AIR EXTENSION DIE GRINDER Rev.122017 FGA 338/L The reproduction of this document (even in partial form) is prohibited without the Fasangas S.r.l. authorization...
- Page 2 CONTENT GENERAL WARNINGS TECHNICAL FEATURES OF THE TOOL IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS FOR THE USE OF THE TOOL MAINTENANCE TROUBLESHOOTING DISPOSAL INFORMATIONS EC DECLARATION OF CONFORMITY WARRANTY...
- Page 3 2. TECHNICAL FEATURES OF THE TOOLS Model: FGA 338/L Type: Air extension die grinder Weight : 0.8 kg (1.8 lb)
- Page 4 3. IMPORTANT SAFETY INSTRUCTIONS When using this air tool, the following basic safety precautions should always be followed to reduce the risk to personal injury: Always wear safety glasses with side shields in accordance with applicable regulations. Air powered equipment are capable of propelling materials such as metal chips, saw dust and other debris at high speed, which could result in serious eye injury.
- Page 5 4. INSTRUCTIONS FOR USE OF THE TOOL AIR LINE: Compressed air is cooled and its water content separated, as soon as the air leaves the compressor. A portion of the water content, however, is condensed in the piping, and can enter the tool mechanism, and may cause trouble. So, install an air filter and an oiler between the compressor and the tool.
- Page 6 ATTENTION Clean the hose with a blast of compressed air before connecting the hose to air tool. This will prevent both moisture and dust within the hose from entering the tool and causing possible rust or malfunction. Do not use damaged, frayed or deteriorated air hoses and fitting. g) Speed selector.
- Page 7 5. MAINTENANCE ATTENTION ALWAYS DISCONNECT AIR SUPPLY BEFORE LUBRICATING, INSTALLING, REMOVING OR ADJUSTING THE TOOL. LUBRIFICATION Air tools require regular lubrication throughout the life of the tool. The air motor and bearing use compressed air to power the tool. Because moisture in compressed air will rust the air motor, you must lubricate the motor daily. An inline oiler is recommended.
- Page 8 8. EC DECLARATION OF CONFORMITY This product complies with the dispositions of the following European Directives and Harmonized Standards: EN ISO 12100-1+A1 :2009 EN ISO 12100-2+A1 :2009 2006/42/EC EN ISO 14121-1 :2007 Machinery directive EN ISO 14121-2 : 2007 EN ISO 792-9+A1 :2008 9.
