DO Install the Device

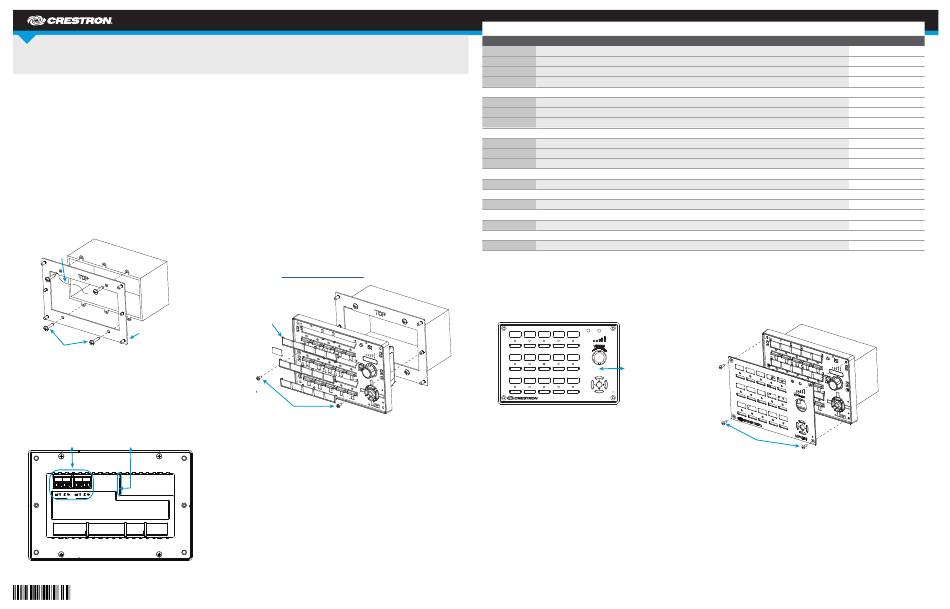

Install the Device into an Electrical Box

After the facility control network has been installed and verified, use the
following procedure to install the MP-B10/MP-B20 into a standard 3-gang
electrical box:
1. Turn the system power OFF.
2. Use the four included 6-32 x 3/4" screws to attach the mounting plate
to the electrical box.
3. Attach the mounting plate ground wire to an earth ground.
NOTE: Ensure that the unit is properly grounded.
Ground
wire
Mounting
plate
(4): 6-32 x 3/4"
Screws

Install the Cables

Route all appropriate cables through the electrical box, and then attach
them to the rear of the MP-B10/MP-B20.
NET: LAN:
To any Cresnet ® 10/100Base-T Ethernet to
network device LAN or web
LAN PoE
NET
When making connections to the MP-B10/MP-B20, note the following:
• Use Crestron ® power supplies for Crestron equipment.
• Apply power after all connections to the device have been made.
WARNING: Incorrect wiring may damage the MP-B10/MP-B20.

Complete the Assembly

Use the two included 4-40 x 1/4" screws to attach the MP-B10/MP-B20 to
the mounting plate.
CAUTION: Excess wire that is pinched between the MP-B10/MP-B20 and
the electrical box could short out. Ensure that all excess wire is completely
contained inside the electrical box and not between the box and the
device.

Label the Buttons

1. Attach the three label holders by placing them over their respective
slots and by sliding them downward into position.
2. Attach the included labels in the appropriate positions on the
MP-B10/MP-B20.
3. Optional custom-engraved labels for the MP-B10/MP-B20 can be
ordered separately by downloading the Crestron Engraver software
from www.crestron.com/software.
Label
holders (3)
Button
label
Screws (2): 4-40 x 1/4"
DO Check the Box
QUANTITY PRODUCT
1 Plate, Mounting
2 Screw, 4-40 x 1/4", Pan Head, Phillips
4 Screw, 6-32 x 3/4", Truss Head, Combo
1 Tool, 1/16" Allen Wrench, L-shape, 3" Blade
MP-B10-W, MP-B20-W Only
1 Labels, Sources, 100 Piece Set
1 Labels, Actions, 100 Piece Set
4 Screw, 4-40 x 1/2", Button Head, Hex
MP-B10-B-T, MP-B20-B-T
1 Labels, Sources, 100 Piece Set
1 Labels, Actions, 100 Piece Set
4 Screw, 4-40 x 1/2", Button Head, Hex
MP-B10-W Only
1 Front Panel and Label, 10 Button
MP-B10-B-T Only
1 Front Panel and Label, 10 Button
MP-B20-W Only
1 Front Panel and Label, 20 Button
MP-B20-B-T Only
1 Front Panel and Label, 20 Button
DO

Program the Device

Program the Device via USB

1. Perform any necessary programming using the COMPUTER (USB) connection prior to attaching the front panel of the MP-B10/MP-B20 to the
device.
NOTE: Programming can also be performed via the LAN port.
Computer
(behind front cover):
To USB computer
console port
MP-B20
2. Use the four included 4-40 x 1/2" screws and the included 1/16" Allen wrench to attach the front panel to the MP-B10/MP-B20.
COLOR PART NUMBER
4506280
2007156
2009211
2022867
White 4509400
White 4509402
2021396
Black 4509401
Black 4509403
Black 2021395
White 4506186
Black 4506187
White 4506182
Black 4506183
Screws (4): 4-40 x 1/2"
