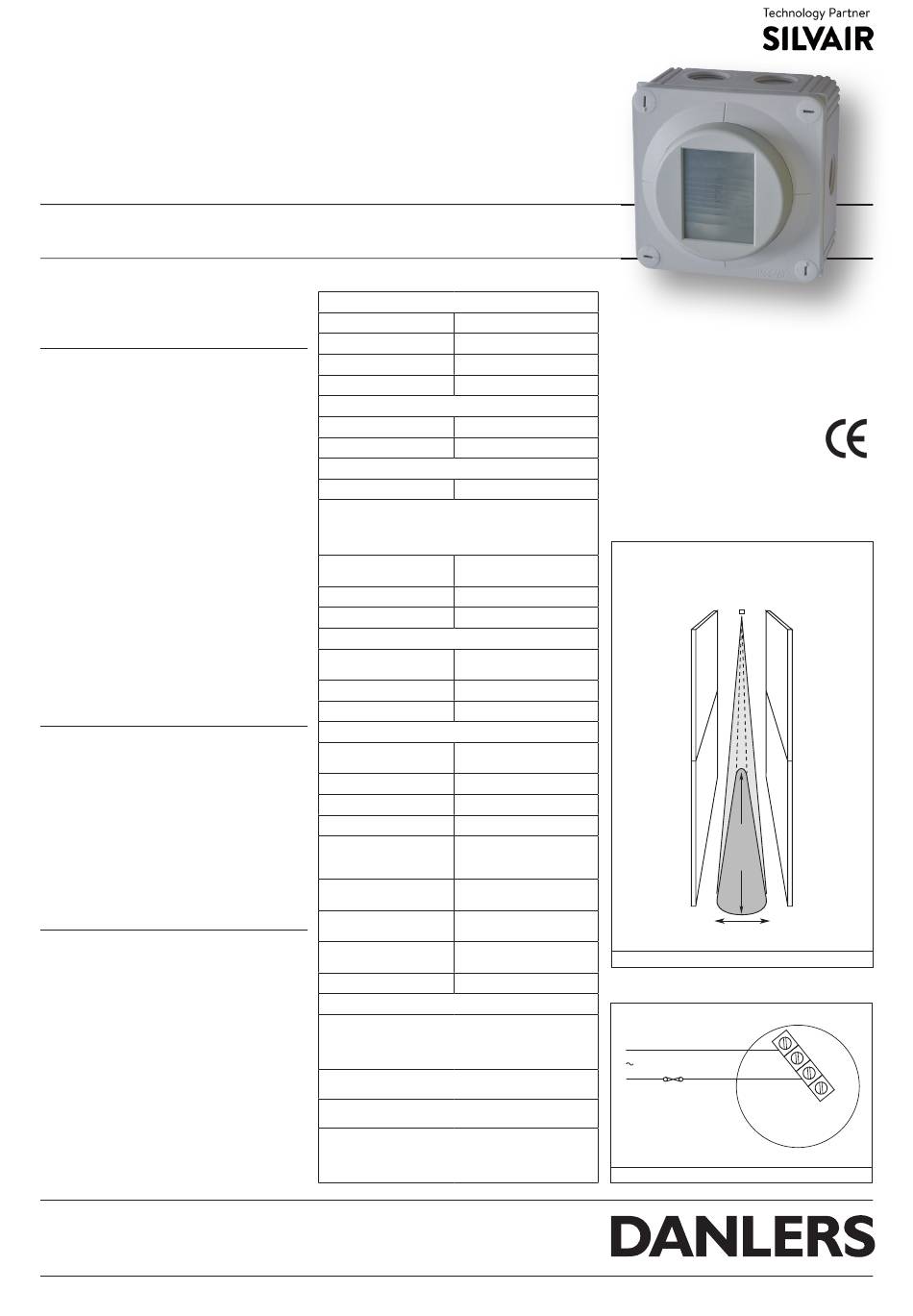

Silvair MESH-HBND IP66 Series Quick Start Manual

MESH-HBND IP66 (XX)
IP66 Rated Ceiling High Bay (Narrow) Passive
Infra Red (PIR) Occupancy Detector & Photocell
Input: 100-240 Vac 50/60Hz
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THE PRODUCT
NOTE: MESH- is compatible with any qualifi ed Bluetooth mesh components and commissioning tools.
HBND IP66
We recommend Silvair Commissioning as a reliable solution.
This MESH-HBND IP66 High Bay (Narrow
Detection) Lighting Control has an IP66 rated
weatherproof enclosure and can be ceiling
mounted. Confi gurable for any room occupancy
style, via the Silvair Platform (App and Web).

INSTALLATION

To be installed by a competent person with
reference to BS 7671 or equivalent local standards.
If in doubt consult a qualifi ed electrician.
• Plan where the MESH-HBND IP66 is to be
located (see diagram 1). Switch off supply and
check for hidden cables and pipes.
• Remove the front cover by quarter turning the
four quick release fasteners to the '0' position
(see diagram 4 overleaf).
• Mount the back section of the mounting box in
the required location via the 4 corner holes.
• Thread mains cable carefully through the
required membrane entry point.
• Unclip the internal back plate. Remove the
required knock out if replacing the optional
internal back plate.
• Thread mains cable into the unit. The MESH-
HBND IP66 should be connected as shown in
diagram 2:
L - Live in. N - Neutral in.
• Reclip the internal back plate if required.
• Replace the front cover ensuring the quick
release fasteners are secured in the '1' position.

OPERATION

To check the operation of the MESH-HBND IP66:
• Turn on the supply then after 20 seconds if the
sensor has recognised movement of a person
within its zone of detection the integral red LED
on MESH-HBND IP66 will stay illuminated for 4
seconds before the red LED turns off.
• Thereafter, every time movement is detected by
MESH-HBND IP66 the integral red LED will stay
illuminated for 4 seconds.
The control also features adjustable time out (time
lag) control and daylight threshold control which
are confi gured by the Silvair APP.

PRECAUTIONS

• Do not place the MESH-HBND IP66 near heat
sources, fans or in ventilated ceiling voids.
• MESH-HBND IP66 can be wired in parallel
(sharing the same Live and Neutral).
• Do not place close to, or positioned such
that, any light source points directly into the
MESH-HBND IP66.
• Ensure wires and cables are securely held within
the connection terminals.
• The MESH-HBND IP66 should be protected by
a 5 or 6 Ampere mcb or fuse.
• Disconnect the MESH-HBND IP66 from the
circuit before performing insulation testing
of the wiring circuit.
DANLERS Limited, Vincients Road, CHIPPENHAM, Wiltshire, SN14 6NQ, UK.
Telephone: +44 (0)1249 443377 Fax: +44 (0)1249 443388 E-mail: sales@danlers.co.uk
www.danlers.co.uk
Company Registered Number 2570169 VAT Registration Number 543 5491 38
11/10/19

TECHNICAL DETAILS

INPUT

Voltage: 100 - 240Vac
Frequency: 50/60Hz
Max. mains current: 20mA
Standby current: 14mA

RADIO TRANSCEIVER

Operating frequencies: 2.4... 2,483 GHz
Max. output power: +4 dBm

LUX PARAMETERS

Range: 5 - 2000 lux

OPERATING CONDITIONS

Note: The temperature difference between the
detection target and the background must be at
least 4 °C.
-20... +40 °C (lout
Ambient temperature:
20mA)
Storage temperature: -25... +75 °C
Max. relative humidity: 0... 80%, non cond.

CONNECTORS

Terminal block 0.5mm
Wire size: or stranded
Wire strip length: 6-7mm
Tightening torque: 0,4 Nm/4 Kgf.cm

MECHANICAL DATA

110mm x 110mm x
Dimensions:
73mm
Weight: 255g (unpacked)
Degree of protection: IP66
Protection class: Built-in Class 2
Flame-retardant
Material (casing) polycarbonate/
Polypropylene.
Finish / Colour: Matt /Grey
WM-HBND IP66 GY (RAL 7035)
Finish / Colour: White
WM-HBND IP66 WH (RAL 9001)
Finish / Colour: Black
WM-HBND IP66 BK (RAL 9005)
Protection class: Built-in Class 2

CONFORMITY AND STANDARDS

EMC emission:
EN 301 489-1 V2.2.0, EN 301 489-17 V3.1.1,
EN 55032: 2015, EN61000-3-2: 2014,
EN61000-3-3: 2013
EMC immunity:
EN 301 489-1 V2.2.0, EN 301 489-17 V3.1.1
Environment:
Complies with WEEE and RoHS directives
CB scheme:
IEC60669-1:1998, IEC60669-1:1998/AMD1:1999,
IEC60669-1:1998/AMD2:2006, IEC60669-2:2002,
IEC60669-2-1:2002/AMD1:2008,
COLOUR OPTIONS
This product is available in 3 colour options
designated by the following product codes:
MESH-HBND IP66 GY
Grey:
White: MESH-HBND IP66 WH
Black: MESH-HBND IP66 BK

5 YEAR WARRANTY

MESH-HBND IP66 (XX) comes with
a 5 year warranty from the date of
manufacture and is CE marked.
Mounting height up to 12m
Perspective view - ceiling mounted
- 2.5mm solid
2 2
Suggested typical wiring
N
230 Vac
L
5A or 6A MCB
or fuse
L - Live in. N - Neutral in.
Two neutral and two live terminals
are available for easy 'loop in' and
'loop out' connection.
INS379 MESH-HBND IP66 (XX) (Issue 03)
Perspect
Up
to
15m
Up to 3m
DIAGRAM 1
N
N
L
L
DIAGRAM 2
Moun
