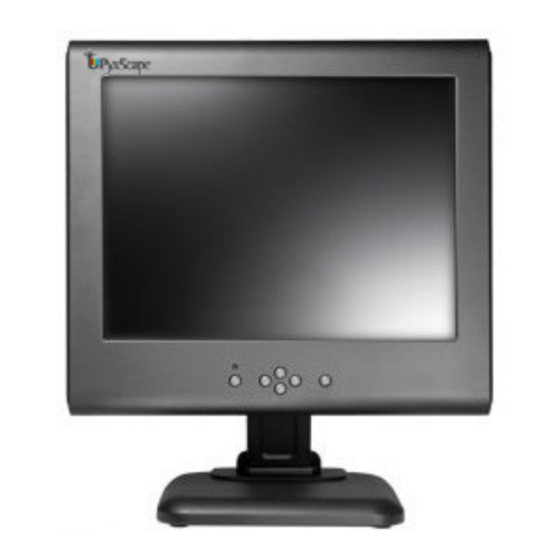

User Manual for LCD Monitor

User Manual

For

LCD Monitor

March 10, 2004

Table of Contents

Need help?

Do you have a question about the SV 3170 and is the answer not in the manual?

Questions and answers

Summary of Contents for Archive SV 3170

Page 1 User Manual for LCD Monitor User Manual LCD Monitor March 10, 2004...
Page 2: Table Of Contents
User Manual for LCD Monitor CONTENTS GENERAL SAFETY PRECAUTIONS ........................1 UNPACKING YOUR MONITOR..........................4 VIEWING ANGLE..............................5 CONNECTING YOUR MONITOR ..........................6 REMOVING THE REAR COVER..........................7 QUICK START FOR MONITOR ADJUSTMENT....................8 USING THE FRONT PANEL CONTROL BUTTONS....................8 OSD FUNCTIONS ..............................10 (OSD).............................10 CREEN ISPLAY ................................10 ..................................10 ETTINGS...
Page 3 Table IX. Pin Number and Signal Names........................24 Table X. Preset Timing Modes ............................25 Table XI. MAC Modes ..............................26 Table XII. Specifications for 15-Inch Monitor SV 2150/SV 3150 ......Error! Bookmark not defined. Table XIII. Specifications for 17-Inch Monitor SV 2170/SV 3170 ................27...
Page 4: General Safety Precautions
User Manual for LCD Monitor General Safety Precautions This monitor has been engineered and manufactured to assure your safety. Please read this manual carefully and comply with the warnings and the procedures to avoid serious electrical shock or other serious damage. Do not place anything heavy, wet or magnetic on the monitor or power cord.
Page 5 User Manual for LCD Monitor Place the monitor on a flat surface to prevent it from falling. Do not apply any mechanical shocks to the machine. Install it in a well-ventilated area or secure enough space for ventilation. Make sure the power cord and any other cords are properly connected to a grounded outlet.
Page 6 User Manual for LCD Monitor Turn the monitor off before connecting it to the power outlet. Overloaded AC outlets and extension cords are dangerous. Also, frayed power cords and broken plugs can cause electric shock or fire. CAUTION: RISK OF ELECTRIC SHOCK, DO NOT OPEN.
Page 7: Unpacking Your Monitor
User Manual for LCD Monitor Unpacking Your Monitor Always make sure the following items are included with your monitor. If you find that any of these items are missing or appear damaged, contact your dealer immediately. Figure 1. Monitor and Accompanying Items Note: The power cord can be different depending upon different voltage areas.
Page 8: Viewing Angle
User Manual for LCD Monitor Viewing Angle Your monitor is designed to allow you to adjust it to a comfortable viewing angle. The viewing angle can be adjusted 3° to 45° forward and backward respectively as indicated by the arrow marks in the following illustration.
Page 9: Connecting Your Monitor
User Manual for LCD Monitor Connecting Your Monitor Note: Always turn the computer off before connecting the monitor. The AC adapter may be optional and any ITE or Direct Plug-in Power Supply with maximum output ratings of 12VDC and 40 Watts may be used with the monitor. Figure 3.
Page 10: Removing The Rear Cover
User Manual for LCD Monitor Removing the Rear Cover Always replace the rear cover of the monitor after accessing the input/out connectors. Note: When returning the rear cover to the back of the monitor, be sure to hook the bottom of the cover first and then snap the top into place.
Page 11: Quick Start For Monitor Adjustment
User Manual for LCD Monitor Quick Start for Monitor Adjustment To obtain the best viewing on your monitor, press and hold Auto Adjust button for four seconds. Your monitor will self-adjust to your computer. After it self-adjust you press the select button when the Green Smiley face is displayed, this saves the auto-adjusted values.
Page 12: Table I. Front Panel Control Buttons Description
User Manual for LCD Monitor Table I. Front Panel Control Buttons Description Name Description Activates the auto adjustment function. AUTO To activate Auto Adjust, press and hold button for more than three seconds. Opens the OSD (On Screen Display) menu. MENU Press and simply release the button-do not hold button down.
Page 13: Osd Functions
User Manual for LCD Monitor OSD Functions On Screen Display (OSD) The OSD Menu provides access to controls that allow you to fine tune your monitor. The menu includes the following: Reset Audio (optional based upon the model of the monitor) Brightness/Contrast Color Image Shape...
Page 14: Figure 6. Main Menu Active
User Manual for LCD Monitor Figure 6. Main Menu Active Figure 7. Settings Active...
Page 15: Using The Osd
User Manual for LCD Monitor Using the OSD Note: Refer to the button names and parts of the OSD for visual reference of the following descriptions (see Figure 8). Enter the OSD Press the Menu button to display the OSD Main Menu. Active Main Menu will have the Green Accept/Exit (happy face) and Red Reject/Exit (sad face) Menu Icons.
Page 16: Menu Icons/Settings/Adjustments
User Manual for LCD Monitor Menu Icons/Settings/Adjustments Figure 8. Menu Icons/Settings/Adjustments Screen Note: Depending on the features of your monitor and the configuration of the OSD used, some OSD menu icons may not appear.
Page 17: Reset
User Manual for LCD Monitor Reset Reset settings (see Table II) are used to return one or all of the monitor adjustments to the manufacturers original default settings. These settings have no adjustments. Use the Left or Right buttons to highlight the desired setting, and then press the Select button.
Page 18: Volume
User Manual for LCD Monitor Volume Note: This option is dependent upon the model of the monitor. The Audio settings (see Table III) are used to control the speakers contained in your monitor. Table III. Volume Settings Volume- Adjusts the volume of the speakers in your monitor. Balance - Switches between the left and right speakers in your monitor.
Page 19: Brightness/Contrast
User Manual for LCD Monitor Brightness/Contrast Brightness and Contrast settings (see Table IV) determine how much detail you will see in the shadow and highlight areas. To maximize the visible detail in the images, adjust the brightness and contrast controls on your monitor so that all objects on the screen are clearly visible. Table IV.
Page 20: Color
User Manual for LCD Monitor Color Color settings (see Table V) are used to modify the color characteristics on the screen. Table V. Color Settings RGB Adjust - Adjusts each color parameter for red, green, and blue. Natural Color - Allow you to fine tune color.
Page 21: Image Shape
User Manual for LCD Monitor Image Shape Image Shape settings (see Table VI) are used to adjust the position and clarity of the display. While your monitor should come optimized from the factory, it may be necessary to manually adjust the display image on your monitor. Adjusting the display image is a progressive process.
Page 22: Table Vi. Image Shape Settings
User Manual for LCD Monitor Table VI. Image Shape Settings Shape Reset - Resets the Shape settings to factory defaults: Course Adjust, Fine Adjust, Horizontal Position, and Vertical Position. Horizontal Position - Adjusts the horizontal position of the screen image. Vertical Position - Adjusts the vertical position of the screen image.
Page 23: Osd
User Manual for LCD Monitor On Screen Display settings (see Table VII) let you customize where and how long the OSD is displayed on your screen, and allow you to block access to the OSD preventing accidental changes to the display. Table VII.
Page 24: Warnings
User Manual for LCD Monitor Warnings Change Computer Hz The refresh frequency describes how often the video screen is retraced in order to prevent the image from flickering. The entire image area of most monitors is refreshed approximately 60 times per second. A higher refresh frequency reduces any flicker on your screen, but choosing a setting that is too high for your monitor can make your display unusable and may cause damage to your hardware.
Page 25: Mode Error
User Manual for LCD Monitor Mode Error This warning indicates that the monitor does not recognize the signal it is receiving. IMPORTANT: If you see this warning, contact the monitor manufacturer.
Page 26: Appendix
User Manual for LCD Monitor APPENDIX Power Management Function This monitor is equipped with a DPMS (Display Power Management Signaling) function that automatically cuts power usage to less than 5W when the computer is left unattended. Although the monitor can remain in power-saving mode for longer periods, we recommend that you turn it off after your daily work.
Page 27: Table Ix. Pin Number And Signal Names
User Manual for LCD Monitor Table IX. Pin Number and Signal Names Pin No. Signal Name Pin No. Signal Name N.C. GREEN GROUND BLUE GROUND GROUND DDC SDA GROUND H-Sync RED Ground V-Sync GREEN Ground DDC SCL BLUE Ground...
Page 28: Display Modes
User Manual for LCD Monitor Display Modes Supported Display Modes Table X. Preset Timing Modes Horizontal Vertical Display Standard Mode Frequency Frequency Mode Type (KHz) (Hz) 640 x 350 31.5KHz 70Hz 720 x 400 31.5KHz 70Hz Industry 640 x 480 31.5KHz 60Hz Standard...
Page 29: Table Xi. Mac Modes
User Manual for LCD Monitor Table XI. MAC Modes Horizontal Vertical Display Standard Mode Frequency Frequency Mode Type (KHz) (Hz) 640 x 480 31.469KHz 59.940Hz 832 X 624 49.725KHz 74.551Hz SVGA 1024 x 768 48.780KHz 60.001Hz 1024 x 768 60.241KHz 74.927Hz SXGA 1152 x 870...
Page 30: Table Xiii. Specifications For 17-Inch Monitor Sv 2170/Sv 3170
User Manual for LCD Monitor Specifications Table XII. Specifications for 17-Inch Monitor SV 3170 Size 17.0” viewable Resolution SXGA 1280 x 1024 Brightness 250cd/m Contrast 450:1 (Typical) ratio Viewing 140 horizontal x 110 vertical angle Surface Anti-glare, H3 hard coating Color 8 bit color depth: 16.2 millions colors...
