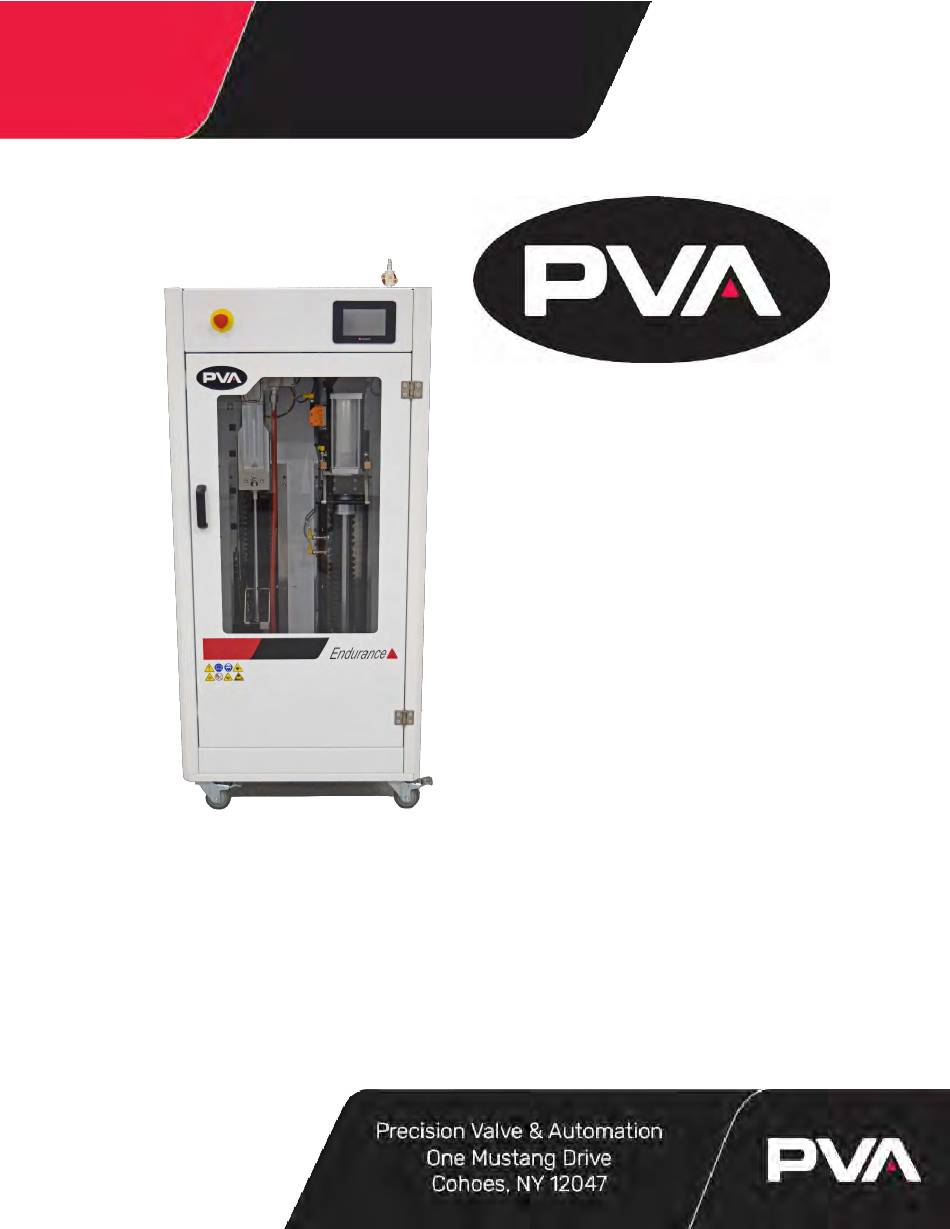

Page 1 INNOVATION. PRECISION. EXCELLENCE. Endurance Dispensing Metering Module Owner’s Manual REV A...
Page 2 Endurance Operation Manual This document is based on information available at the time of its publication. While efforts have been made to ensure the contents of this manual are accurate, the information contained herein does not purport to cover all specific details or variations in hardware, or to provide for every possible contingency in connection with installation, operation, or maintenance.
Page 3: Table Of Contents
Hardware ..........................15 Fluid Components ......................15 Electrical Components....................15 System Requirements ......................15 Software Overview ..................16 Accessing Endurance Software via Portal ................ 16 Log In ............................17 Home Screen Features and Functions................19 Navigation Pane ........................20 Fields ............................21 Edit Number Field ......................
Page 4 Endurance Operation Manual Set Recipe Name ......................22 Common Configurations ................23 Two Servo Piston Pumps, Two 10-Gallon Tanks........... 24 Manager (2 SPP, 2 10G T) ..................... 24 Home Screen ........................24 Operator Material Functions ..................25 Ready ..........................26 Manual →...
Page 5 Endurance Operation Manual Manual → Dispense → Settings .................. 45 Manual → Dispense → Pressure ................. 46 Manual → Dispense → Level..................47 Manual → Material......................48 Manual → IO → Local ..................... 49 Manual → IO → Pump B ....................50 Manual →...
Page 6 Endurance Operation Manual Manual → IO → Pump B ....................68 Manual → Valve ......................69 Setup → Recipe → Pump B ..................70 Setup → Recipe → Pump A ................... 71 Setup → Recipe → Valve ....................72 Setup → Recipe → Table ....................73 Setup →...
Page 7 Endurance Operation Manual Manual → IO → Local ...................... 91 Manual → IO → Pumps ....................92 Two Servo Cartridge Pumps ................93 Manager ........................... 93 Home Screen ........................93 Operator Material Functions ..................94 Ready ..........................95 Manual → Dispense → Settings .................. 96 Manual →...
Page 8 Manual → IO → Pump B and Pump A ............... 124 Troubleshooting .................... 126 Error Messages ........................126 Drawings ......................127 Notes ......................128 Table of Figures ..................... 129 PVA Warranty Policy ..................132 Page 8 of 132 REV A October 2020...
Page 9: Introduction
Before you operate this system, read the operation and setup manual. This will help you to become familiar with the product and ensure successful operation. If any questions or problems arise, contact PVA’s Technical Support department. PVA Contact Information Main Office...
Page 10: Safety
Endurance Operation Manual Safety Certain warning symbols are affixed to the machine and correspond to notations in this manual. Before operating the system, identify these warning labels and read the notices described below. Not all labels may be used on any specific system.
Page 11 Endurance Operation Manual Do not smoke near the machine. Always have a fire extinguisher available for emergency use. Before performing any repairs or maintenance to the system, turn off power and lock out the power disconnect switch. Warning notices are used to emphasize that hazardous voltages, current, temperatures, or other conditions that could cause personal injury exist in this equipment or may be associated with its use.
Page 12: Theory Of Operation
The system is designed to be flexible as to fit into as many applications as possible. PVA offers supply packages to feed material to the pumping systems in a wide variety of volumes, from cartridges up to 10g pressure pots as a standard option.
Page 13: Machine Requirements
Endurance Operation Manual Machine Requirements Air Supply Requirements • 80 psi dry, unlubricated air Power Requirements • 120 V, 220 V/50-60 Hz Page 13 of 132 REV A October 2020...
Page 14: Installation And Setup
Endurance Operation Manual Installation and Setup WARNING: The following procedures should be performed by qualified persons in accordance with this manual and applicable safety regulations. A “qualified person” is defined as “a person or persons who, by possession of a recognized degree or...
Page 15: Operating Environment
PVA portal with a PVA workcell. Ensure the following is complete before using the machine: • All air lines are attached from the PVA workcell to the machine (refer to the workcell schematics for the correct connections). •...
Page 16: Software Overview
Endurance is equipped with a built-in software program. If Endurance is a standalone product, the program can be accessed directly from the Endurance cart. If Endurance has been integrated with a PVA automated workcell, the software can be accessed via PVA Portal or the Endurance cart.
Page 17: Log In
Endurance Operation Manual 5. The Endurance software screen will display in a new popup window. Figure 2: Endurance Software in Portal Log In 1. Select Login to log in. Figure 3: Login Page 17 of 132 REV A October 2020...
Page 18: Figure 4: Username And Password
Endurance Operation Manual 2. Click on the dropdown to choose the desired login permission. Figure 4: Username and Password 3. Use the arrows to navigate the roles. Select the desired login and click Ok. Figure 5: Choose Role 4. Enter the password.
Page 19: Home Screen Features And Functions
Endurance Operation Manual Home Screen Features and Functions Figure 7: Home Screen Features 1. User: This field will display which user is currently logged in. To change users, select Logout then Login to choose a new role. 2. Operator Material Functions: Select Enter to navigate to the Manual → Material screen.
Page 20: Navigation Pane
3. Manual: Select this button to navigate to the Manual screen. 4. Setup: Select this button to navigate to the Setup screen. 5. Manual : Select this button to open the Endurance manual. Figure 8: Navigation Pane Overview Page 20 of 132...
Page 21: Fields
Endurance Operation Manual Fields Each Endurance screen has a combination of editable fields and display fields. The edit fields will allow you to enter a name or number in the respective field. Display fields cannot be edited. Edit Number Field 1.
Page 22: Set Recipe Name
Endurance Operation Manual Set Recipe Name To set a recipe name, click inside the recipe field and the Set Recipe Name popup will display. 1. Enter a recipe name using the alphanumeric keyboard. 2. Use the tools in the bottom left to: •...
Page 23: Common Configurations
Endurance Operation Manual Common Configurations Depending on your chosen configuration for Endurance, some screens and options may vary. This section will review the settings and options for the following configurations: • Two SPP080 Servo Piston Pumps, Two 10-Gallon Tanks o 2 SPP, 2 10G T •...
Page 24: Two Servo Piston Pumps, Two 10-Gallon Tanks
Endurance Operation Manual Two Servo Piston Pumps, Two 10-Gallon Tanks Manager (2 SPP, 2 10G T) Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 11: Manager Home Screen (2 SPP, 2 10G T)
Page 25: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 26: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select Exit to return to the Recipe The current recipe selection.
Page 27: Manual → Dispense → Settings
Endurance Operation Manual Manual → Dispense → Settings From the Navigation Pane, click Manual to display this screen. The Manual → Dispense → Settings screen has the following features and options: DISPLAY FIELDS EDIT FIELDS The pump status for both Ready Enter a K-Factor.
Page 28: Manual → Dispense → Pressure
Endurance Operation Manual Manual → Dispense → Pressure From the Manual → Dispense tab, click Pressure to display this screen. The Manual → Dispense → Pressure screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Process Displays the process (psi).
Page 29: Manual → Dispense → Level
Endurance Operation Manual Manual → Dispense → Level From the Manual → Dispense tab, click Level to display this screen. The Manual → Dispense → Level screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Displays the pump level...
Page 30: Manual → Material
Endurance Operation Manual Manual → Material From the Navigation Pane, click Manual → Material to display this screen. It can also be accessed from the Home Screen, by clicking Enter under Operator Material Functions. The Manual → Material screen has the following features and options:...
Page 31: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 32: Manual → Io → Pump B
Endurance Operation Manual Manual → IO → Pump B From the Navigation Pane, select Manual → IO → Pump B to display this screen. The Manual → IO → Pump B screen has the following features and options: DISPLAY FIELDS...
Page 33: Manual → Io → Pump A
Endurance Operation Manual Manual → IO → Pump A From the Navigation Pane, select Manual → IO → Pump A to display this screen. The Manual → IO → Pump A screen has the following features and options: DISPLAY FIELDS...
Page 34: Manual → Valve
Endurance Operation Manual Manual → Valve From the Navigation Pane, select Manual → Valve to display this screen. The Manual → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click and hold toggle to open the valve for the...
Page 35: Setup → Recipe → Pump B
Endurance Operation Manual Setup → Recipe → Pump B From the Navigation Pane, select Setup → Recipe → Pump B to display this screen. The Setup → Recipe → Pump B screen has the following features and options: DISPLAY FIELDS...
Page 36: Setup → Recipe → Pump A
Endurance Operation Manual Setup → Recipe → Pump A From the Navigation Pane, select Setup → Recipe → Pump A to display this screen. The Setup → Recipe → Pump A screen has the following features and options: DISPLAY FIELDS...
Page 37: Setup → Recipe → Valve
Endurance Operation Manual Setup → Recipe → Valve From the Navigation Pane, select Setup → Recipe → Valve to display this screen. The Setup → Recipe → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Displays the current...
Page 38: Setup → Recipe → Table
Endurance Operation Manual Setup → Recipe → Table From the Setup → Recipe screen, select Table to display this screen. The Setup → Recipe → Table screen allows you to view each recipe and their settings. Select Exit to return to the Setup screen.
Page 39: Setup → Supply → Pump B
Endurance Operation Manual Setup → Supply → Pump B From the Navigation Pane, select Setup → Supply → Pump B to display this screen. The Setup → Supply → Pump B screen has the following features and options: DISPLAY FIELDS...
Page 40: Setup → Supply → Pump A
Endurance Operation Manual Setup → Supply → Pump A From the Navigation Pane, select Setup → Supply → Pump A to display this screen. The Setup → Supply → Pump A screen has the following features and options: DISPLAY FIELDS...
Page 41: Setup → Global
Endurance Operation Manual Setup → Global From the Navigation Pane, select Setup → Global to display this screen. The Setup → Global screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select the checkbox to Operator enable the operator to select Recipe Select recipes.
Page 42: Technician (2 Spp, 2 10G T)
Endurance Operation Manual Technician (2 SPP, 2 10G T) Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 29: Technician Home Screen (2 SPP, 2 10G T) Page 42 of 132 REV A...
Page 43: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 44: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select Exit to return to the Recipe The current recipe selection.
Page 45: Manual → Dispense → Settings
Endurance Operation Manual Manual → Dispense → Settings From the Navigation Pane, click Manual to display this screen. The Manual → Dispense → Settings screen has the following features and options: DISPLAY FIELDS EDIT FIELDS The pump status for both Ready Enter a K-Factor.
Page 46: Manual → Dispense → Pressure
Endurance Operation Manual Manual → Dispense → Pressure From the Manual → Dispense tab, click Pressure to display this screen. The Manual → Dispense → Pressure screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Process Displays the process (psi).
Page 47: Manual → Dispense → Level
Endurance Operation Manual Manual → Dispense → Level From the Manual → Dispense tab, click Level to display this screen. The Manual → Dispense → Level screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Displays the pump level...
Page 48: Manual → Material
Endurance Operation Manual Manual → Material From the Navigation Pane, click Manual → Material to display this screen. It can also be accessed from the Home Screen, by clicking Enter under Operator Material Functions. The Manual → Material screen has the following features and options:...
Page 49: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 50: Manual → Io → Pump B
Endurance Operation Manual Manual → IO → Pump B From the Navigation Pane, select Manual → IO → Pump B to display this screen. The Manual → IO → Pump B screen has the following features and options: DISPLAY FIELDS...
Page 51: Manual → Io → Pump A
Endurance Operation Manual Manual → IO → Pump A From the Navigation Pane, select Manual → IO → Pump A to display this screen. The Manual → IO → Pump A screen has the following features and options: DISPLAY FIELDS...
Page 52: Manual → Valve
Endurance Operation Manual Manual → Valve From the Navigation Pane, select Manual → Valve to display this screen. The Manual → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click and hold toggle to open the valve for the...
Page 53: Operator (2 Spp, 2 10G T)
Endurance Operation Manual Operator (2 SPP, 2 10G T) Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 40: Operator Home Screen (2 SPP, 2 10G T) Page 53 of 132 REV A...
Page 54: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 55: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select Exit to return to the Recipe The current recipe selection.
Page 56: Manual → Material
Endurance Operation Manual Manual → Material From the Home Screen, click Enter under Operator Material Functions to display this screen. The Manual → Material screen has the following features and options: DISPLAY FIELDS EDIT FIELDS The pump status for both Ready Pump B and Pump A.
Page 57: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Manual screen, select IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS Control Indicates if the control Power power is on or off.
Page 58: Manual → Io → Pump B
Endurance Operation Manual Manual → IO → Pump B From the Manual screen, select IO → Pump B to display this screen. The Manual → IO → Pump B screen has the following features and options: DISPLAY FIELDS EDIT FIELDS...
Page 59: Manual → Io → Pump A
Endurance Operation Manual Manual → IO → Pump A From the Manual screen, select IO → Pump A to display this screen. The Manual → IO → Pump A screen has the following features and options: DISPLAY FIELDS EDIT FIELDS...
Page 60: Two Servo Gear Pumps, Two 5-Gallon Pail Pumps
Endurance Operation Manual Two Servo Gear Pumps, Two 5-Gallon Pail Pumps Manager (2 SGP, 2 5G PP) Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 47: Manager Home Screen (2 SGP, 2 5G PP)
Page 61: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 62: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select Exit to return to the Recipe The current recipe selection.
Page 63: Manual → Dispense → Settings
Endurance Operation Manual Manual → Dispense → Settings From the Navigation Pane, click Manual to display this screen. The Manual → Dispense → Settings screen has the following features and options: DISPLAY FIELDS EDIT FIELDS The pump status for both Ready Enter a K-Factor.
Page 64: Manual → Dispense → Pressure
Endurance Operation Manual Manual → Dispense → Pressure From the Manual → Dispense tab, click Pressure to display this screen. The Manual → Dispense → Pressure screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Process Displays the process (psi).
Page 65: Manual → Dispense → Level
Endurance Operation Manual Manual → Dispense → Level From the Manual → Dispense tab, click Level to display this screen. The Manual → Dispense → Level screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Supply Displays the supply level...
Page 66: Manual → Material
Endurance Operation Manual Manual → Material From the Home Screen, select Manual → Material to display this screen. It can also be accessed by clicking Enter under Operator Material Functions. The Manual → Material screen has the following features and options:...
Page 67: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 68: Manual → Io → Pump B
Endurance Operation Manual Manual → IO → Pump B Figure 55: Manager Manual IO Pump B (2 SGP, 2 5G PP) Figure 56: Manager Manual IO Pump A (2 SGP, 2 5G PP) Page 68 of 132 REV A October 2020...
Page 69: Manual → Valve
Endurance Operation Manual Manual → Valve From the Navigation Pane, select Manual → Valve to display this screen. The Manual → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click and hold toggle to open the valve for the...
Page 70: Setup → Recipe → Pump B
Endurance Operation Manual Setup → Recipe → Pump B From the Navigation Pane, select Setup → Recipe → Pump B to display this screen. The Setup → Recipe → Pump B screen has the following features and options: DISPLAY FIELDS...
Page 71: Setup → Recipe → Pump A
Endurance Operation Manual Setup → Recipe → Pump A From the Navigation Pane, select Setup → Recipe → Pump A to display this screen. The Setup → Recipe → Pump A screen has the following features and options: DISPLAY FIELDS...
Page 72: Setup → Recipe → Valve
Endurance Operation Manual Setup → Recipe → Valve From the Navigation Pane, select Setup → Recipe → Valve to display this screen. The Setup → Recipe → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Displays the current...
Page 73: Setup → Recipe → Table
Endurance Operation Manual Setup → Recipe → Table From the Setup → Recipe screen, select Table to display this screen. The Setup → Recipe → Table screen allows you to view each recipe and their settings. Select Exit to return to the Setup screen.
Page 74: Setup → Supply → Pump B
Endurance Operation Manual Setup → Supply → Pump B From the Navigation Pane, select Setup → Supply → Pump B to display this screen. The Setup → Supply → Pump B screen has the following features and options: DISPLAY FIELDS...
Page 75: Setup → Supply → Pump A
Endurance Operation Manual Setup → Supply → Pump A From the Navigation Pane, select Setup → Supply → Pump A to display this screen. The Setup → Supply → Pump A screen has the following features and options: DISPLAY FIELDS...
Page 76: Setup → Global
Endurance Operation Manual Setup → Global From the Navigation Pane, select Setup → Global to display this screen. The Setup → Global screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select the checkbox to Operator enable the operator to select Recipe Select recipes.
Page 77: Technician
Endurance Operation Manual Technician Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 65: Technician Home Screen (2 SGP, 2 5G PP) Page 77 of 132 REV A October 2020...
Page 78: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select Exit to return to the Recipe The current recipe selection.
Page 79: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 80: Manual → Dispense → Settings
Endurance Operation Manual Manual → Dispense → Settings From the Navigation Pane, click Manual to display this screen. The Manual → Dispense → Settings screen has the following features and options: DISPLAY FIELDS EDIT FIELDS The pump status for both Ready Enter a K-Factor.
Page 81: Manual → Dispense → Pressure
Endurance Operation Manual Manual → Dispense → Pressure From the Manual → Dispense tab, click Pressure to display this screen. The Manual → Dispense → Pressure screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Process Displays the process (psi).
Page 82: Manual → Dispense → Level
Endurance Operation Manual Manual → Dispense → Level From the Manual → Dispense tab, click Level to display this screen. The Manual → Dispense → Level screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Supply Displays the supply level...
Page 83: Manual → Material
Endurance Operation Manual Manual → Material From the Navigation Pane, select Manual → Material to display this screen. It can also be accessed by clicking Enter under Operator Material Functions. The Manual → Material screen has the following features and options:...
Page 84: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 85: Manual → Io → Pump B
Endurance Operation Manual Manual → IO → Pump B Figure 73: Technician Manual IO Pump B (2 SGP, 2 5G PP) Manual → IO → Pump A Figure 74: Technician Manual IO Pump A (2 SGP, 2 5G PP) Page 85 of 132...
Page 86: Manual → Valve
Endurance Operation Manual Manual → Valve From the Navigation Pane, select Manual → Valve to display this screen. The Manual → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click and hold toggle to open the valve for the...
Page 87: Operator
Endurance Operation Manual Operator Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 76: Operator Home Screen (2 SGP, 2 5G PP) Page 87 of 132 REV A October 2020...
Page 88: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 89: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select Exit to return to the Recipe The current recipe selection.
Page 90: Manual → Material
Endurance Operation Manual Manual → Material From the Home Screen, select Manual → Material to display this screen. It can also be accessed by clicking Enter under Operator Material Functions. The Manual → Material screen has the following features and options:...
Page 91: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 92: Manual → Io → Pumps
Endurance Operation Manual Manual → IO → Pumps Figure 81: Manager Manual IO Pump B (2 SGP, 2 5G PP) Figure 82: Manager Manual IO Pump A (2 SGP, 2 5G PP) Page 92 of 132 REV A October 2020...
Page 93: Two Servo Cartridge Pumps
Endurance Operation Manual Two Servo Cartridge Pumps Manager Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 83: Manager Home Screen (2 SCTP) Page 93 of 132 REV A October 2020...
Page 94: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 95: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click Dispense to begin Recipe The current recipe selection. 5 Dispense dispensing.
Page 96: Manual → Dispense → Settings
Endurance Operation Manual Manual → Dispense → Settings From the Navigation Pane, click Manual to display this screen. The Manual → Dispense → Settings screen has the following features and options: DISPLAY FIELDS EDIT FIELDS The pump status for both Ready Enter a K-Factor.
Page 97: Manual → Dispense → Pressure
Endurance Operation Manual Manual → Dispense → Pressure From the Manual → Dispense tab, click Pressure to display this screen. The Manual → Dispense → Pressure screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Process Displays the process (psi).
Page 98: Manual → Dispense → Level
Endurance Operation Manual Manual → Dispense → Level From the Manual → Dispense tab, click Level to display this screen. The Manual → Dispense → Level screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Pump Displays the level for both...
Page 99: Manual → Material
Endurance Operation Manual Manual → Material From the Home Screen, select Manual → Material to display this screen. It can also be accessed by clicking Enter under Operator Material Functions. The Manual → Material screen has the following features and options:...
Page 100: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 101: Manual → Io → Pump B And Pump A
Endurance Operation Manual Manual → IO → Pump B and Pump A From the Navigation Pane, select Manual → IO → Pump B or Manual → IO → Pump A to display this screen. The Manual → IO → Pump B and Pump A screen have the following features and options:...
Page 102: Figure 92: Manager Manual Io Pump A (2 Sctp)
Endurance Operation Manual Figure 92: Manager Manual IO Pump A (2 SCTP) Page 102 of 132 REV A October 2020...
Page 103: Manual → Valve
Endurance Operation Manual Manual → Valve From the Navigation Pane, select Manual → Valve to display this screen. The Manual → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click and hold toggle to open the valve for the...
Page 104: Setup → Recipe → Pump B
Endurance Operation Manual Setup → Recipe → Pump B From the Navigation Pane, select Setup → Recipe → Pump B to display this screen. The Setup → Recipe → Pump B screen has the following features and options: DISPLAY FIELDS...
Page 105: Figure 94: Manager Setup Recipe Pump B (2 Sctp)
Endurance Operation Manual Figure 94: Manager Setup Recipe Pump B (2 SCTP) Figure 95: Manager Setup Recipe Pump A (2 SCTP) Page 105 of 132 REV A October 2020...
Page 106: Setup → Recipe → Valve
Endurance Operation Manual Setup → Recipe → Valve From the Navigation Pane, select Setup → Recipe → Valve to display this screen. The Setup → Recipe → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Displays the current...
Page 107: Setup → Recipe → Table
Endurance Operation Manual Setup → Recipe → Table From the Setup → Recipe screen, select Table to display this screen. The Setup → Recipe → Table screen allows you to view each recipe and their settings. Select Exit to return to the Setup screen.
Page 108: Setup → Global
Endurance Operation Manual Setup → Global From the Navigation Pane, select Setup → Global to display this screen. The Setup → Global screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Select the checkbox to Operator enable the operator to select Recipe Select recipes.
Page 109: Technician
Endurance Operation Manual Technician Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 99: Technician Home Screen (2 SCTP) Page 109 of 132 REV A October 2020...
Page 110: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 111: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click Dispense to begin Recipe The current recipe selection. 5 Dispense dispensing.
Page 112: Manual → Dispense → Settings
Endurance Operation Manual Manual → Dispense → Settings From the Navigation Pane, click Manual to display this screen. The Manual → Dispense → Settings screen has the following features and options: DISPLAY FIELDS EDIT FIELDS The pump status for both Ready Enter a K-Factor.
Page 113: Manual → Dispense → Pressure
Endurance Operation Manual Manual → Dispense → Pressure From the Manual → Dispense tab, click Pressure to display this screen. The Manual → Dispense → Pressure screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Process Displays the process (psi).
Page 114: Manual → Dispense → Level
Endurance Operation Manual Manual → Dispense → Level From the Manual → Dispense tab, click Level to display this screen. The Manual → Dispense → Level screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Pump Displays the level for both...
Page 115: Manual → Material
Endurance Operation Manual Manual → Material From the Home Screen, select Manual → Material to display this screen. It can also be accessed by clicking Enter under Operator Material Functions. The Manual → Material screen has the following features and options:...
Page 116: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 117: Manual → Io → Pump B And Pump A
Endurance Operation Manual Manual → IO → Pump B and Pump A From the Navigation Pane, select Manual → IO → Pump B or Manual → IO → Pump A to display this screen. The Manual → IO → Pump B and Pump A screen have the following features and options:...
Page 118: Figure 108: Technician Manual Io Pump A (2 Sctp)
Endurance Operation Manual Figure 108: Technician Manual IO Pump A (2 SCTP) Page 118 of 132 REV A October 2020...
Page 119: Manual → Valve
Endurance Operation Manual Manual → Valve From the Navigation Pane, select Manual → Valve to display this screen. The Manual → Valve screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click and hold toggle to open the valve for the...
Page 120: Operator
Endurance Operation Manual Operator Home Screen See Home Screen Features and Functions for a detailed description of each feature. Figure 110: Operator Home Screen (2 SCTP) Page 120 of 132 REV A October 2020...
Page 121: Operator Material Functions
Endurance Operation Manual Operator Material Functions From the Home Screen, click Enter under Operator Material Functions to display this screen. It can also be accessed by selecting Manual → Material. The Operator Material Functions screen has the following features and options:...
Page 122: Ready
Endurance Operation Manual Ready From the Navigation Pane, click Ready to display this screen. The Operator Material Functions screen has the following features and options: DISPLAY FIELDS EDIT FIELDS Click Dispense to begin Recipe The current recipe selection. 5 Dispense dispensing.
Page 123: Manual → Io → Local
Endurance Operation Manual Manual → IO → Local From the Navigation Pane, select Manual → IO → Local to display this screen. The Manual → IO → Local screen has the following features and options: DISPLAY FIELDS EDIT FIELDS OUTPUTS...
Page 124: Manual → Io → Pump B And Pump A
Endurance Operation Manual Manual → IO → Pump B and Pump A From the Navigation Pane, select Manual → IO → Pump B or Manual → IO → Pump A to display this screen. The Manual → IO → Pump B and Pump A screen have the following features and options:...
Page 125: Figure 115: Technician Manual Io Pump B (2 Sctp)
Endurance Operation Manual Figure 115: Technician Manual IO Pump B (2 SCTP) Page 125 of 132 REV A October 2020...
Page 126: Troubleshooting
Endurance Operation Manual Troubleshooting Error Messages Error Index Error Message Text Error Index Error Message Text Emergency Stop Pressed RS232 Communication Error Material Weight Scale (L) Process Pressure RS232 Communication Error Material Overpressure (L) Material Weight Scale (R) Process Pressure...
Page 127: Drawings
Endurance Operation Manual Drawings Figure 116: Endurance Drawings Page 127 of 132 REV A October 2020...
Page 128: Notes
Endurance Operation Manual Notes Page 128 of 132 REV A October 2020...
Page 129: Table Of Figures
Endurance Operation Manual Table of Figures Figure 1: Access Software from Portal ....................16 Figure 2: Endurance Software in Portal ..................... 17 Figure 3: Login ............................17 Figure 4: Username and Password ..................... 18 Figure 5: Choose Role ..........................18 Figure 6: Enter Username and Password ..................
Page 130 Endurance Operation Manual Figure 41: Operator Manual Material Screen (2 SPP, 2 10G T) ............54 Figure 42: Operator Ready Screen (2 SPP, 2 10G T) ............... 55 Figure 43: Operator Manual Material (2 SPP, 2 10G T) ..............56 Figure 44: Operator Manual IO Local (2 SPP, 2 10G T) ..............
Page 131 Figure 113: Technician Manual IO ...................... 123 Figure 114: Technician Manual IO Pump B (2 SCTP) ..............124 Figure 115: Technician Manual IO Pump B (2 SCTP) ..............125 Figure 116: Endurance Drawings ....................... 127 Page 131 of 132 REV A...
Page 132: Pva Warranty Policy
Unauthorized repair or modification of the enclosed product, and/or the use of spare parts not directly obtained from PVA (or from factory authorized dealers) will void all warranties.

PVA Endurance Owner's Manual

Table of Contents

Introduction

Installation and Setup

Software Overview

Common Configurations

Two Servo Piston Pumps, Two 10-Gallon Tanks

Two Servo Gear Pumps, Two 5-Gallon Pail Pumps

Two Servo Cartridge Pumps

Troubleshooting

Drawings

Notes

Table of Figures

Quick Links

Chapters

Need help?

Questions and answers

Summary of Contents for PVA Endurance

Table of Contents
