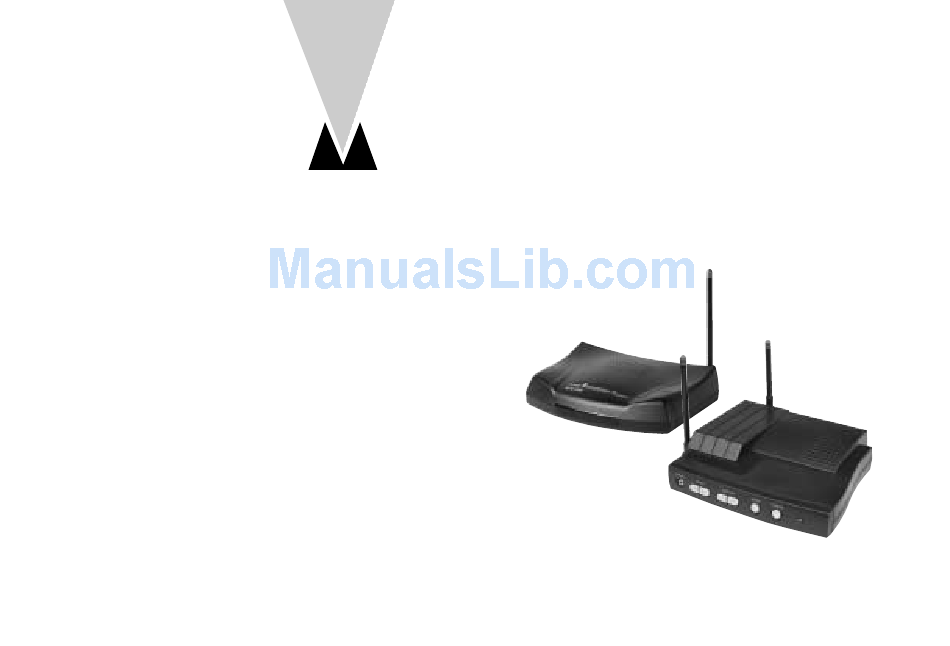

C A B L E S E N D E R
( P O W E R s e n d e r T V A V S 8 1 5 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TV AVS 815 and is the answer not in the manual?

Questions and answers

Related Manuals for Cables to Go TV AVS 815

Summary of Contents for Cables to Go TV AVS 815

  • Page 1 C A B L E S E N D E R ( P O W E R s e n d e r T V A V S 8 1 5 )
  • Page 2 Thank you very much. You have acquired an electronic system of a very high technical standard. With the TV AVS 815 Power Transmitter you can transmit colour images with stereo sound through walls and ceilings. The greatest possible care is necessary for bringing it into operations, and that means studying every point in these operating instructions.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions 2. General description 3. Transmissions 4. The AVS 850 Power Transmitter 5. The AVS 840 Power Transmitter 6. The RC 815 infra-red remote control for the cable tuner 7. Bringing into operation 7.1 Connecting the AVS 850 7.2 Connecting the AVS 840 7.3 Adjusting the cable tuner in the AVS 850 7.4 Changing the coding of the RC 815 remote control unit...

  • Page 4: Safety Instructions

    1. Safety instructions IMPORTANT If the system is handled incorrectly there is a risk of injury from electric shock. The following instructions must be followed, in order to avoid any risk of injury or damage, and the operating instructions must also be adhered to. It is never allowed to open the plug-in mains adapter Only a properly qualified technician is allowed to check and inspect the system.

  • Page 5: Transmissions

    3. Transmissions If you use the infra-red remote control of another piece of video equipment, these infra-red signals will be passed on via the RX 579 infra- Cabel-TV SAT-TV red module to the relevant appliance, such as a satellite-receiver, the audio and video signals of which are being transmitted.

  • Page 6: The Avs 850 Power Transmitter

    4. The AVS 850 Power Transmitter Aerial adapter AVS 850 Power Transmitter RX 579 infra-red module Plug-in mains adapter Items included Items included 1 Power Sender AVS 850 Power Transmitter 1 12 V plug-in mains adapter 1 RX 579 infra-red module Co-axial 1 Cinch/Scart connecting cable branch...
  • Page 7 3. Channel switch The channels can either be selected one behind the other (1,2,3,4,1,2, etc., or the other way round) or set by means of the enclosed infra-red remote-control unit (using the keys TXA ... TXD – see Point 5). 4.

  • Page 8: Control Elements

    5. AVS 840 Power Receiver AVS 840 Power Receiver Plug-in mains adapter Items included: Items included 1 Power AVS 840 Power Receiver 1 9 V plug-in mains adapter 1 Cinch/scart connecting cable Control elements Cinch/scart 1. A/V Cinch output sockets connecting cable 1 video, 2 audio output sockets.
  • Page 9 4. Channel and switch settings. The AVS 840 Power Receiver can be operated in one of two ways: 1. Permanent reception of a given wireless channel (cable TV or video). 2. Switching between the pre-set wireless channels at pre- determined intervals. This function is necessary when, for instance, the Power Receiver is to be used with a number of different wireless monitor cameras with the AVS 850 Power Transmitter.

  • Page 10: The Rc 815 Infra-Red Remote Control For The Cable Tuner

    6. The infra-red remote-control unit for the cable tuner General You need the RC 815 remote-control unit in order to be able to control the cable tuner integrated into the AVS 850 Power Transmitter. The basic code "0000” is set on the remote-control unit when it is delivered. This code can be changed, e.g.

  • Page 11: Bringing Into Operation

    7. Bringing into operation 7.1 Connecting the AVS 850 Power Transmitter Scart cable (accessory) Scart cable "out” AV-in Ant.-in AV-out VCR/SAT 1. Insert the cable branch plug "A” into the TV cable socket. 2. Insert the adapter "B” into the aerial socket of the AVS 850. 3.

  • Page 12: Connecting The Avs 840

    7. Starting up 7.2 Connecting the AVS 850 Power Receiver The AVS 840 receives the AV signal from the AVS 850 Power output signal is available from the AV sockets on the rear side of the unit. Connecting: 1. Insert the cinch plug of the connecting cable into the AV socket of the Power Receiver.
  • Page 13 Connecting the Power Receiver to a television set with a video recorder If you would like to feed the AV signal into a video recorder, connect the AVS 840 Power Receiver to the AV or scart input sockets on the video recorder. You can then record the programme that is being received and/or watch television at the same time.

  • Page 14: Adjusting The Cable Tuner In The Avs 850

    7. Starting up 7.3 Settings on the cable tuner The settings on the cable tuner are made with the RC 815 infra-red remote-control unit from the place where the AVS 840 Power Receiver is set up. Note: the TV AVS 815 Power Transmitter has two separate television programme memories, one for TV channels and the other for cable TV channels.
  • Page 15 5. Press the "SET” button. 6. Switch on the television set connected to the AVS 840 Power Receiver and select the AV input. You will see the lettering "RF ID XXX" (XXX represents the code currently set on the RC 815 remote-control unit). 7.

  • Page 16: Operating Possibilities

    8. Operating possibilities Fine-tuning the TV AVS 815 Power Transmitter The AVS 850 power transmitter is able to transmit AV signals over a distance of up to 300 metres (line of sight). Any wall or concrete ceiling will represent a slight obstacle, and will thus reduce the transmission range of the system.
  • Page 17 Extension possibilities with the TV AVS 815 Power Transmitter An AVS 815 Power Transmitter TV Set can be extended with a number of AVS 840 Power Receivers. Example: 1 Power Transmitter to 3 Power Receivers RC 815 remote-control unit 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 AVS 840 Power Receiver...

  • Page 18: Rectifying A Malfunction

    9. Rectifying a malfunction Problem Poor transmission quality No transmission Remote-control channel RC 815 infra-red remote-control does not control the AVS 850 1. Wrong code set. Reset the code as described in Point 7.4. Remedy 1. Reflections of the signal can sometimes affect the transmission quality.

  • Page 19: Technical Data

    10. Technical data Power Transmitter TV Set AVS 815 Power Transmitter AVS 850 Operating voltage: Mains adapter 12 V DC Transmitter: 4 Channel Channel 1 (TXA): 2.414 GHz Channel 2 (TXB): 2.432 GHz Channel 3 (TXC): 2.450 GHz Channel 4 (TXD): 2.468 GHz Transmitter output: 10 mW...
