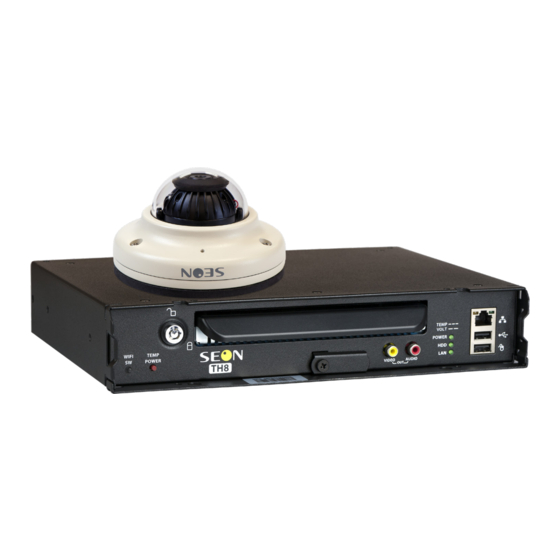

SEON TH8 Quick Installation Manual

Warranty

For full warranty information, visit:
• www.seon.com/documents/Seon-Warranty.pdf
2002/96/EC (WEEE directive): This product cannot be disposed of as unsorted municipal waste
in the European Union. For proper recycling, return the product to your local supplier upon the
purchase of equivalent new equipment, or dispose of it at designated collection points, for more
information, see www.recyclethis.info.
2006/66/EC (battery directive): This product does not contain batteries.
Support
• Phone: 1.844.899.7366
• Email: PTsupport@safefleet.net
TH8 & NH16K 48 V POE Injector Quick Installation Guide
About
This guide covers installation procedures for connecting a POE (Power Over Ethernet) injector kit to a TH8 or
NH16K recorder.
A POE injector kit enables connection of an IP camera to the recorder's rear expansion port. A maximum of 2
cameras can be connected in this manner. Connecting a second IP camera requires a second POE injector kit.
Pre-requisites
Before proceeding with these procedures, you must have a TH8 or NH16K recorder with FW 2.0 or higher
installed and functioning in a vehicle. Do not proceed with this document if you haven't installed the recorder.
The TH8 and NH16K installation documentation is available on the Safe Fleet Community (https://community.
safefleet.net).
Note: You will need login credentials to access the documentation. Please contact tech support if you do not
have access to the Community.
Kit Contents
(1 kit required per camera added)
48 V POE Injector Kit (Part #: TH8POEKIT48):
• POE Injector (Part #: 085-1106) - Qty 1
• Y-Power Harness (Part #: 060-1163) - Qty 1
• Microfit Ctrl Cable (Part #: 060-0656) - Qty 1

Specifications

48 V POE Injector
Input 12VDC/1.5A to 16VDC/1.1A.
Output 48 VDC, up to 15.4 W max. IEEE 802.3af compliant. Short circuit protection.
Ethernet Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e.
Distance: up to 100 m. Speed: 10/100BaseT, half/full duplex, auto negotiation.
Indicators (LED) Red LED: Port status.
Yellow & Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active.
Agency Listings UL/cUL: UL60950-1 (Information Technology Equipment).
CE European Conformity.
Dimensions (W x L x H) 2.5" x 3.8" x 1" (63.5 mm x 96.52 mm x 25.4 mm).
Weight (approx.) Product Weight: 0.2 lbs. (0.1 kg). Shipping Weight: 0.25 lbs. (0.11 kg).
Temperature Operating: 0º C to 40º C (32º F to 104º F).
Storage: -40º C to 70º C (-40º to 158º F).
Relative Humidity 85% +/-5%.
Operating Altitude: -304.8 to 3,048 m (-1000 to 10,000 ft.).
• 1.5 ft CAT5e Cable (Part #: 085-0065) - Qty 1
• 1" Stainless Steel Philips Rounded Head Drilling
Screw (Part #: 600-1022) - Qty 1
© Safe Fleet | 2021 | All rights reserved | Part #: 700-1228 R2
