JONARD TOOLS TETP-900 Instruction Manual

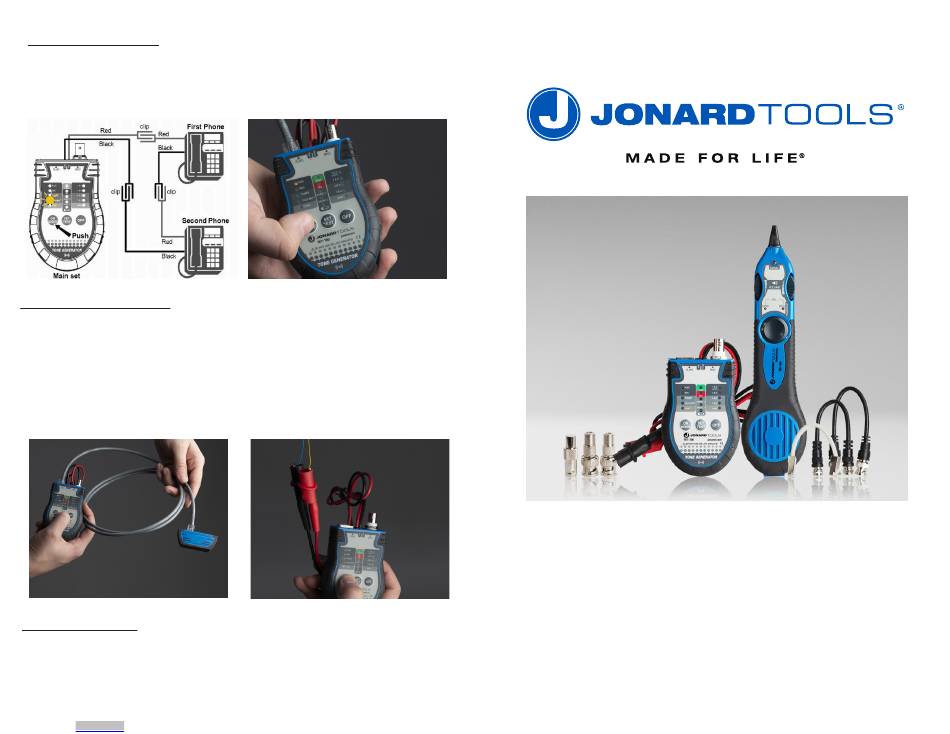

TALK BATTERY MODE

1. Press the ON/MODE button to turn on the TET-700. Press the mode button repeatedly until the yellow LED next
to Talk/batt lights.
2. Using the red and black test leads, connect the TET-700 to two telephones (Figure 3). Using this mode will drain
the battery quickly, so the TET-700 should only be used for short intervals during this function.
(Figure 3)

RJ45 CABLE TEST MODE

1. Press the ON/MODE button to turn on the TET-700. Press it repeatedly until the yellow LED next to "RJ45"
illuminates.
2. Connect a RJ45 cable to the TET-700. Remove the remote terminator from the body of unit, connect it to the
other end of the RJ45 cable, and push SET/TEST button to test cable (Figures 4 & 5).
If the cable is open: The FAIL LED will illuminate, while the LEDs for any open pairs will be off.
If the cable is shorted: The wire pairs that are shorted will be indicated by flashing LED's and the
Fail LED will light.
If the cable is good: All wire pair LED's as well as the PASS LED will illuminate.
3. Power off the unit manually or it will power off automatically after 20 seconds if no other button is pressed.
(Figure 5)

CONTINUITY MODE

1. Press the ON/MODE button to turn on the TET-700. Press the mode button repeatedly until the yellow LED next
to "CONT" illuminates.
2. Using the red and black test leads, connect the TET-700 to the cable being tested and push the Set/Test button.
If the TET-700 detects continuity in the cable, the Pass and 7&8 LED's will illuminate (Figure 6). If the TET-700
detects an open, the Fail LED will illuminate, and the 7&8 LED will blink.
3
Arrow.com.
Downloaded from
(Figure 4)
CABLE TESTER TONE & PROBE KIT+
(Figure 6)
TETP-900
INSTRUCTION MANUAL
