Fountain Components
Item Description
Facet Fountain,
Small - Top
Plate
Facet Fountain,
Small - Small
Bowl
Facet Fountain,
Small - Pump
House
Square One
Fountain - Large
Bowl
Fountain Information:
• Two people are recommended for the installation of this fountain!
• This fountain holds approximately 5 gallons of water.
• This fountain uses a small fountain cover: FTNCOV-SM
• Refill kit is not recommended for this fountain.
Pump Information:
OEMPF140 - 140 GPH Pump (6 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-348A
1
FT-348B
1
FT-348C
1
FT-349D
1

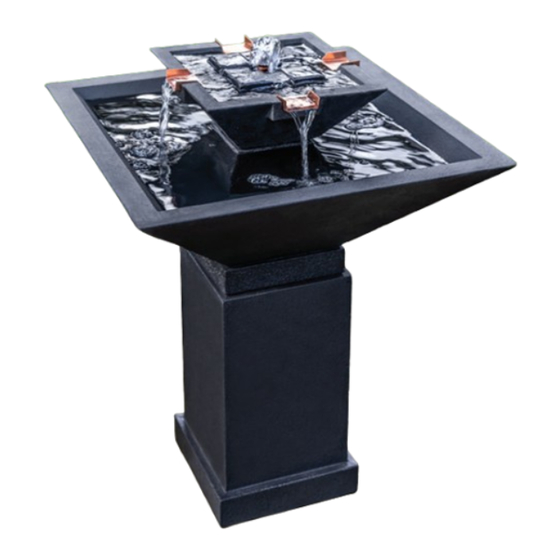

FT-349 Square One Fountain
Assembly Instructions
Pump Kit Parts List
PK140 Pump
(use adapter indicated)
3" length of 1/2" ID copper pipe
Approx. 8" length of 1/2" black
non-kink tubing
Approx. 1-1/2" length of 5/8" clear
Approx. 1-1/2" length of 1/2" CPVC
Copper Spillers
2.8 oz clear silicone
Hose Clamps
Proudly
MADE IN USA
Component
Quantity
#10 Stopper
tubing
pipe
Wedges
(FT-348SPL)
rev 9/28/2020
1
1
1
1
1
1
3
4
1
1
Advertisement
Related Manuals for Campania International Square One FT-349
Summary of Contents for Campania International Square One FT-349
- Page 1 FT-349 Square One Fountain Assembly Instructions Fountain Information: • Two people are recommended for the installation of this fountain! • This fountain holds approximately 5 gallons of water. • This fountain uses a small fountain cover: FTNCOV-SM • Refill kit is not recommended for this fountain. Pump Information: OEMPF140 - 140 GPH Pump (6 ft.
- Page 2 FT-349 Square One Fountain Assembly Instructions Two people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-349 Square One Fountain Assembly Instructions Step 11 - Place the top plate (FT-348A) in the center of the small bowl (FT-348B). Step 13 - Wait 24 hours before filling the fountain with water to let the silicone set. FT-348A (3 lbs) 5.25"L x 5.25"W x 1.5"H...
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
