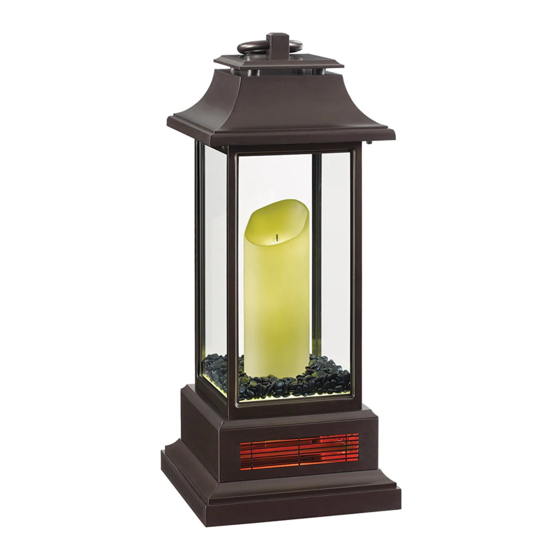

- Page 1 MODEL: 10ILH100-01 www.tsicustomerservice.com 1-800-318-9373 Twin-Star International, Inc; Delray Beach, FL 33445 Made in China • Printed in China • Fabricado en China • Impreso en China • Fabriqué en China • Imprimé en Chine A517 www.tsicustomerservice.com...
-
Page 2: Getting Started
GETTING STARTED 1. The serial number is located on the side of the lantern, the serial number is necessary for product warranty registration and customer service. Serial Number Model Number 2 . Go to www.tsicustomerservice.com for product warranty registration. If you are unable to complete registration save your proof of purchase for warranty purposes. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. The bolts are found under the top edge, remove 4 bolts by hand. 2. Remove the cover from the lantern. 3. Place black or white decorative rocks around the base of the candle. 4. Re-attach cover in reverse order. Black Rocks White Rocks A517... - Page 5 OPERATION INSTRUCTIONS 1000W 1500W Control Panel Back view The lantern can be operated by either the remote control or the control panel. A517 www.tsicustomerservice.com...
- Page 6 OPERATION INSTRUCTIONS FUNCTION ICON DESCRIPTION The power button supplies power to all of the functions POWER of the lantern. To disable or re-enable the heater function, with the Power ON, press and hold the Power button on the control panel for 10 seconds.
-
Page 7: Troubleshooting
TROUBLESHOOTING Problem Root Cause Corrective Action Your unit should always be positioned on an inside wall with proper insula- Location tion. The heater provides supplemental heating for up to 1000 sq/ft in conjunction with a primary heat source. The heater is taking a The back and side of the heater should be greater than 6 inches away from Location long time to reach desired... -
Page 8: Replacement Parts
REPLACEMENT PARTS Part Part Name Part Number Ring handle Y16-S175-RHBRZ Downlight Circuit Board Y16-S175-P49 Candle Light PCBA Y16-S175-CLP Y16-S175-P40 Flame Circuit Board Remote control P137 Main Circuit Board Y16-S175-P15 Heater/Blower Assembly Y16-S175-P01 Control Panel Buttons Y16-S175-85 Control Panel Circuit Board Y16-S175-32 A517 www.tsicustomerservice.com... -
Page 9: Fcc/Ic Information
FCC/IC INFORMATION Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 10: Year Limited Warranty
1-YEAR LIMITED WARRANTY The manufacturer warrants that your new Lantern is free from manufacturing and material defects for a period of one year from date of puchase, subject to the following conditions and limitations. 1. Install and operate this Electric Appliance in accordance with the installation and operating instructions furnished with the product at all times. - Page 11 www.tsicustomerservice.com A517 www.tsicustomerservice.com...
