Summary of Contents for The COM COM-DB90

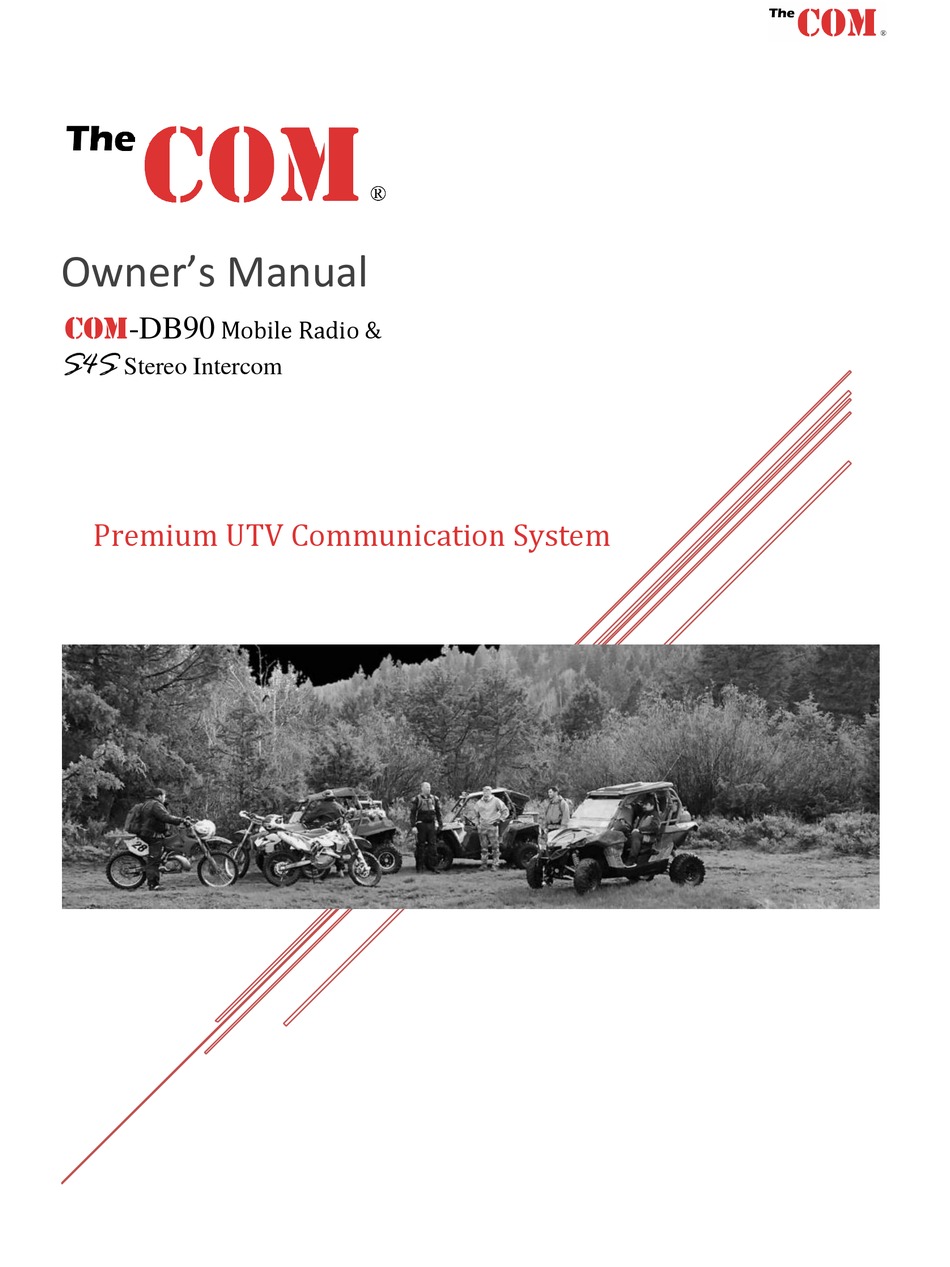

- Page 1 Owner’s Manual Mobile Radio & COM-DB90 Stereo Intercom Premium UTV Communication System...
- Page 2 Congratulations on your purchase and welcome to the COMplete Radio InterCOM COMmunication family. We thank you for your purchase with care the unit should give you good service. Please read these instructions carefully, by doing so you will get full use of the products This Manual is broken up into parts: 1.
-
Page 3: Table Of Contents
Contents COM-DB90 Dual Band Mobile Radio .................... 1 Features ........................... 1 Info & Warnings ......................... 1 FCC Notice ..........................2 RF Energy Exposure ........................2 Getting to Know The COM-DB90 ..................... 4 Front of the Radio ........................4 Back of the Radio........................6 Hand Mic .......................... - Page 4 Introduction ..........................24 Main Features..........................25 Installing TheCOM ........................26 General Install Guidelines..................... 26 Headsets ............................ 27 Installing Helmet Headsets ....................27 Mic Placement ........................27 Fitting the headset parts to your helmet ................27 Front Keypad Controls ......................29 Power On / Off ........................
-
Page 5: Com-Db90 Dual Band Mobile Radio
COM-DB90 Dual Band Mobile Radio Features TheCOM-DB90 mobile 2-way radio is unique for its compact body, powerful output and frequency range design. It's also designed with new and personalized operation menu to give you easy-to-use and exceptional operation experience. We believe its mini size and cost-effective price will allow the off-road community the ability to install the radio in more locations without having to modify their vehicles. -
Page 6: Fcc Notice
FCC rules and federal law. RF Energy Exposure The COM-DB90 is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy. ➢ United States Federal Communications Commission (FCC), Code of Federal... - Page 7 Regulations: 47 CFR part 2 sub-part J ➢ To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting. ➢...
-
Page 8: Getting To Know The Com-Db90
Getting to Know The COM-DB90 Please check the packaging of your radio for any signs of damage. Carefully open the box, if you find the radio or the included accessories are damaged or lost, immediately contact your dealer or us at info@utvcom.com... - Page 9 Toggle between Memory & Channel Current band indicator mode (for simple (similar to AM and FM on channel driven radio your car radio leave on memory mode) Channel Selector or press to Radio Volume & enter radio Toggle between press and hold to menu bands A, B, C &...
-
Page 10: Back Of The Radio
Back of the Radio 1. TRRS 3.5 mm connection for S4S intercom connection – Pinout diagram below: 2. DATA, Programming Jack TRS 3.5 mm: (Restricted to comply with FCC Part 90) 3. Cooling Fan 4. SO-239 RF Antenna Connector: Connects to PL-259 Antennas 5. -
Page 11: Hand Mic
Hand Mic 1. “MENU” - Function key VFO/MR Toggle (Long Press) 2. “UP”: - Toggle up 3. “DOWN” - Toggle down 4. “EXIT” - Exit the ABCD band selection, activate alarm (Long Press) 5. “*/SCAN” - Scanning function 6. “#/LOCK” - High / Low Power Toggle, Keypad Lock (Long Press) 7. -
Page 12: Screen Icons
Screen Icons Not used on this model Offset / simplex indicator Wide / Narrow Band DTF signaling Frequency Reversal Output power H/L Keypad Lock CTCSS Tone Radio can Transmit & Receive Battery indictor Shows Receive Shows the numerical signal intensity. receive intensity Shows transmit Shows microphone signal... -
Page 13: Antenna
Antenna Do not transmit without an antenna attached to the mobile radio. This can cause stress and harm to the internal transmitter and damage the mobile radio. Choose an antenna suitable for transmitting on user frequencies with an impedance of 50 ohm. If an antenna is not properly tuned for the frequency you transmit on this could cause reflective damage to the radio. -
Page 14: Powering Thecom
Powering TheCOM It is preferred that TheCOM be connected (the positive lead RED wire) directly to the positive post of the vehicle’s battery. If this is not available a fuse block may be used. If external noises are heard through the radio such as “alternator wine” (could be from pumps, switches, lights, clutch fans, other accessories) it is recommended that the power be re-rout directly to the battery posts. -
Page 15: Toggling Between Bands A/B/C/D
Toggling between Bands A/B/C/D Pressing the “Exit/ABCD” will toggle between the four different band on the radio. Current Main Band Band indicator. This Icon shows that this band is being monitored... -
Page 16: Function Menu
Function Menu Note that due to part 90 requirements many of the menu functions have been restricted or deactivated. To enter the menu press the knob to the right of the screen. Menus may be quickly jumped to by typing the menu number in on the hand mic. Menu Menu Secondary... - Page 17 Menu Menu Secondary Description Notes Name Menu Narrow 12.5 kHz Band Unused Setting Beep Keypad audible tone Turn On/ Off keypad tone On/Off D023N > Squelch opens when proper DCS Receive - Analog Tone D754I code is detected R-DCS Squelch No DCS code required 67.0 >...
- Page 18 Menu Menu Secondary Description Notes Name Menu Squelch opens for CTCSS/DCS tones only. Squelch opens when CTCSS/DCS tone is recognized along with the SPMUTE Speaker Mute Setting optional signaling. Squelch opens when either the CTCSS/DCS tone or the optional signaling is recognized. Do not send Send at beginning of transmission PTT-ID...
- Page 19 Menu Menu Secondary Description Notes Name Menu Chinese Keypad Auto Lock Enabled AUTOLK Auto Keypad Lock Keypad Auto Lock Disabled Main LCD display Black, White, Red, Blue, Green, MAINFC Select Color foreground color (Text) Yellow, Indigo, Purple, Gray Main LCD display Black, White, Red, Blue, Green, MAINBC Select Color...
- Page 20 Menu Menu Secondary Description Notes Name Menu Display Mic Audio level on bottom MIC-V display bar Indicates channel number to be MEM-CH Program Channel 000 > 199 stored to memory Indicates channel number to be DEL-CH Delete Channel 000 > 199 deleted from memory No offset (simplex) SFT-D...
- Page 21 Menu Menu Secondary Description Notes Name Menu After energizing, you must press the power button to power on Menu reset Reset the radio to factory RESET defaults Menu and channel reset...
-
Page 22: Other Settings And Options
Other Settings and Options Programing Adding or removing frequencies and programing must comply with FCC regulations. GMRS channels 001 – 022 are programed to receive only. See the frequency chart for more information. Keypad Lock-out Hold the microphone “#” for 2-3 seconds to turn on / off the keypad lock-out. Once locked a lock icon appears in the radio menu bar. -
Page 23: Troubleshooting Thecom-Db90
Troubleshooting TheCOM-DB90 If you experience difficulties using your COM we have many technical help references, videos, blogs and self-help on our website https://utvocm.com or the below chart can help t correct common operation problems. If you have a problem which you believe requires service, please call first and speak with a service technician at (208) 779-2891. -
Page 24: Specifications
Specifications Technical Specifications Description Spec Frequency Range (MHz) VHF: 136-174 MHz Rx/Tx UHF: 400-480 MHz Rx//Tx GMRS (Channels 001-030) Rx Only Memory Channels Frequency Stability ±2.5ppm Frequency Step (kHz 2.5k/5.0k/6.25k/10.0k/12.5k/25.0k Squelch Setup CARRIER / CTCSS / DCS / 5Tone / 2 Tone / DTMF Antenna Impedance 50 Ohm Operating Temperature... -
Page 25: Frequency List
Frequency List Name Channel Band Frequency Rx Frequency Tx 462.5625 GMRS1 462.5875 GMRS2 462.6125 GMRS3 462.6375 GMRS4 462.6625 GMRS5 462.6875 GMRS6 462.7125 GMRS7 467.5625 GMRS8 467.5875 GMRS9 467.6125 GMRS10 467.6375 GMRS11 467.6625 GMRS12 467.6875 GMRS13 467.7125 GMRS14 462.5500 GMRS15 462.5750 GMRS16 462.6000 GMRS17... - Page 26 Channel Band Frequency Rx Frequency Tx Name RUGGED 156.6750 156.6750 Sand Limo 152.5100 152.5100 KOH1 157.4500 157.4500 KNUCKLUP 153.1850 WX1 (Weather) 162.5500 WX2 (Weather) 162.4000 WX3 (Weather) 162.4750 WX4 (Weather) 162.4250 WX5 (Weather) 162.4500 WX6 (Weather) 162.5000 WX7 (Weather) 162.5250 UHF = Ultra High Frequency VHF = Very High Frequency ____ =Transmission disabled.
- Page 27 This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In addition, our Stingray UTV LLC radio (COM-DB90) complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: •...
-
Page 28: S4S Stereo Intercom
S4S Stereo Intercom Introduction TheCOM is an intercom system designed to allow communication between both the driver, passengers and other cars through the Push To Talk (PTT) and allow connection to a variety of equipment for off-road recreation or racing. TheCOM has engineered this model to provide greater audio quality and provide a better experience for the user by eliminating background engine noise and preventing excessive sound levels in the headsets. -
Page 29: Main Features
Main Features ➢ Stereo Sound – Music and media from the audio in and or Bluetooth if equipped is Stereo sound ➢ Noise Reduction - to help eliminate amplification of background noise ➢ Noise cancelling microphones - for improved sound reproduction ➢... -
Page 30: Installing Thecom
Installing TheCOM Depending on the model COM you purchased the installation will be unique to your model COM and the vehicle you are installing it in. For installation examples and ideas please see our website https://utvcom.com/installation-examples/ General Install Guidelines Connect the 12-volt power cord to a correct 12-volt power port. If you decide to hardwire the unit it is recommended that both the hot and ground wires be connected directly to the battery terminals to avoid interference and the cables should NOT be run together with other vehicle wiring. -
Page 31: Headsets
Headsets Stereo over-the-head headsets, helmet headsets and behind the head headsets are all available and connect directly to the back of the intercom via a TRRS 3.5 mm headset connection. Extension cords can be placed between the intercom and the headset to increase the separation distance between passenger and COM. - Page 32 examples/ Microphone (Practice headsets & boom mics) – Practice headset and boom mics should be adjusted so that the mic is in line with your lips and right against your lips for the greatest audio performance. Note the further the mic is from your lips the more distant your voice will be and the less amplified it will be to the co-drivers.
-
Page 33: Front Keypad Controls
Front Keypad Controls Power On / Off Press and hold the “1” key for several seconds on the front of the intercom to power TheCOM on and off. Volume Controls The S4S comes equipped with four independent volume controls. Press the number that you would like to increase or decrease the volume then once the red LED lights up next to the number simply press the “+”... -
Page 34: Rear Intercom Ports
Rear Intercom Ports From left to right Power Wires The wires are protected by a boot for strain relief. Never dangle, pull on or hang the intercom by the power wires. The red wire has a 2 amp (“F2AL250V” Length = 28.5 mm by Diameter = 5mm) glass fuse. -
Page 35: Phone / Audio In
Phone / Audio In Phone / Audio in is a 3.5 mm TRRS connection that connects with a phone or other media device to listen to music and take phone calls. HS-1 Is headset port 1 and the volume is controlled with the “1” keypad on the front panel. HS-2 Is headset port 2 and the volume is controlled with the “2”... -
Page 36: Bluetooth
3. Make phone or media device Bluetooth is on and search for the word “The COM” followed by a unique number/letter code (example “The COM-5B10”). -
Page 37: Contact Info
Contact Info You can find us on the web at https://utvcom.com/ Phone: (208) 779-2891 Email us at: info@utvcom.com Our tech support online for self-help is https://utvcom.com/issue-resolution/ Visit our shop at: https://utvcom.com/shop/ TheCOM is a registered trademark of Stingray UTV LLC. All rights reserved.
