Installation and Operation Manual
ARV 2000
Section 1: Installation Information, Checklist & General
Descriptions
1.1 Installation Information
Important
The ARV 2000 uses single-stage regulation to control pressure in non-critical processes. The valve
compensates for house exhaust fluctuations, reduces potential for contamination, and provides quick
response, as well as being low maintenance and self-cleaning. The ARV 2000 has been manufactured
to provide pressure control in the range of 0-498.2 Pascal's (50.8 mm H
O). The total ARV 2000 system
2
is comprised of the tool Interface module (TIM-100 FSP) controller, the ARV 2000 valve, and
associated interface cables. The TIM-100 FSP controls a stepper-motor driven throttling-type valve,
which regulates the pressure drop across the valve, resulting in tighter controls of airflow and pressure
at the valve input (i.e., process) pressure.
ARV
Process
Exhaust
Clean room
2000

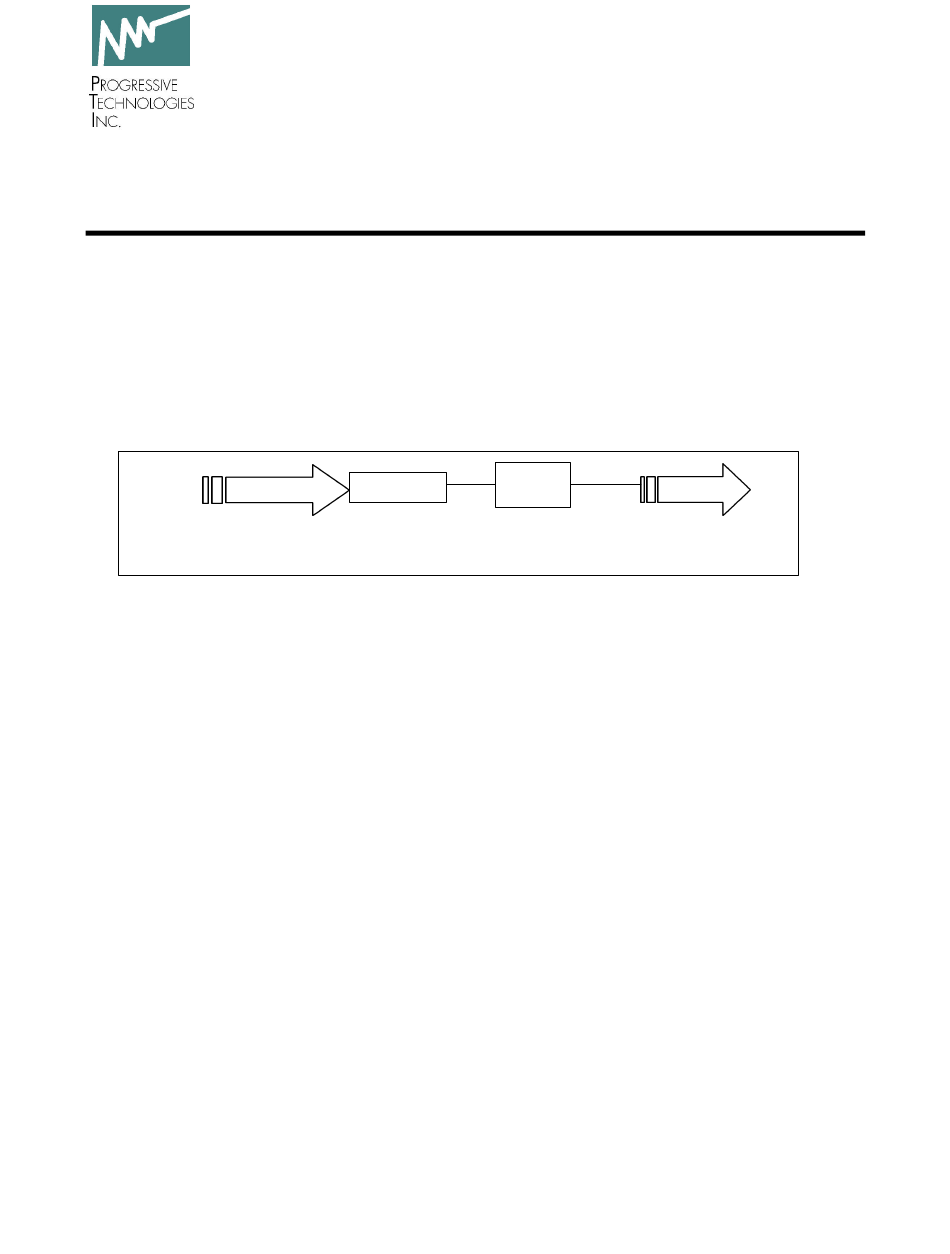

Air Flow Through The Process And Control System
Comparison with Traditional Butterfly Valves and Double-Acting Gate Valves
The ARV 2000 differs from traditional valves in several ways. The most important feature is its linearity,
which derives from the vane configuration. As a butterfly valve or gate valve reaches its nearly closed
position, small rotational increments create large differences in the open area through the valve
resulting in large changes in the flow through the valve. As the valve opens, the flow changes less and
less with each rotational step. The ARV 2000, on the other hand, closes off the same amount of area
with each step, so the flow is reduced by the same amount at each step.
The non-linearity of the traditional valve prevents it from controlling well at the maximum and minimum
of its range. The ARV 2000, on the other hand, controls well throughout its range.
The second major difference between a butterfly valve and an ARV 2000 is Fast Set Point control
technology that creates a rapid response to set point not achievable with conventional PID control.
System compatibility
The ARV 2000 system electronics provide significant flexibility. Since the same electronics, with
minimal configuration changes entered from the keypad, can be used to control Progressive
Technologies' automated VRV and automated SENTRY products, the pressure control technology can
be upgraded at any time with minimal effort and expense.
12755 rev 04
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARV 2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for PTI ARV 2000

  • Page 1: Section 1: Installation Information, Checklist & General Descriptions

    As the valve opens, the flow changes less and less with each rotational step. The ARV 2000, on the other hand, closes off the same amount of area with each step, so the flow is reduced by the same amount at each step.
  • Page 2 1.2 Checklist Quick Start Guide If you are familiar with the ARV 2000 and have previously installed the same model, you may wish to simply photocopy or print this checklist onto clean room paper and refer to it during the installation.
  • Page 3 1.3 General Description Contents Unpacking the ARV 2000 system, make sure the contents shown below are not missing or damaged. Report the missing or damaged components to PTI customer support department at (1) 978.863.1000. ARV 2000 Tool Interface Module TIM-100 FSP...
  • Page 4: General Description

    (TIM-100 FSP), and associated cabling. ARV 2000 1. The automated ARV 2000 is an innovative control valve. It is designed to respond to changes in static exhaust pressure while maintaining a constant exhaust flow from the process tool. 2. External sense port Not used—for future applications.
  • Page 5 1.3 General Description TIM-100 FSP 1. TIM-100 FSP is a microprocessor-based interface used in conjunction with the ARV 2000. The TIM-100 FSP provides the user with the ability to interface with the controller through direct keypad input or through electronic communication from the process equipment.
  • Page 6: Section 2: Guidelines, Installation & Power-Up

    1. The ARV 2000 can be mounted in any configuration—horizontal, vertical, with any rotation. 2. Only the process exhaust to be controlled should be plumbed to the ARV 2000. Other sources of exhausted airflow or manifolds should not be connected prior to the ARV 2000 input.
  • Page 7: Installation & Power-Up

    Connect the ARV 2000 Input and Output Connect the input and the output of the ARV 2000. Use plumbing of a diameter that is equal to the diameter of the ARV 2000 input and output and use clamps to secure the connections.
  • Page 8: Section 3: Operation, Maintenance & Troubleshooting

    Auxiliary Sense Ports The ARV 2000 has two pressure test ports, one each on the inlet and outlet of the valve. The ARV 2000 is shipped with these ports plugged with screws. To use them, remove the screw, insert a barbed fitting into the hole, and run 1/8"...
  • Page 9: Scheduled Maintenance

    Except for the preventative maintenance cleaning noted below, there is no scheduled maintenance for either the ARV 2000 or the TIM-100 FSP. The innovative and simple design of the ARV 2000 system allows for years of dependable operation with minimal maintenance required.
  • Page 10: Troubleshooting

    3.3 Troubleshooting Troubleshooting Problems generally associated with the ARV 2000 or the TIM-100 FSP can be traced to improper setup, installation, or cabling. The following troubleshooting table will assist the user in identifying and correcting some of the most common problems.
  • Page 11: Section 4: Specifications, Menu Parameters & Grounding

    Power Requirements: +15 to +24 VDC, 650 mA User supplied DC voltage: -15 to-24 VDC, 50 mA - or - User supplied AC voltage for PTI Universal 90-260 VAC, 47-63 Hz Power Supply: 12w nominal Alarms: Deviation, High, and Low Alarms...
  • Page 12: Menu Parameters

    4.2 Menu Parameters Factory Recommended TIM-100 FSP Command Menu Settings (Setting May Vary by installation) Product: ARV 2000 TIM-100 FSP Menu Parameter STANDARD MENU PARAMETER SETTINGS Default Value Default Value Default Value X = N/A X = N/A X = N/A...
  • Page 13 4.3 Grounding Recommended System Grounding 12755 Rev 04 Page 3 of 3...
  • Page 14: Section 5: Technical Support, Warranty & Regulatory Information

    This document contains information belonging to Progressive Technologies Inc. (“PTI”). This information is not for publication and has been provided to PTI’s customers on the condition that it not be copied or reproduced either wholly or in part, to third parties without the expressed written consent of PTI.
  • Page 15: Warranty And Regulatory Information

    Repair service will be performed according to normal repair lead-time. The Customer will assume the cost of shipping the product to PTI. PTI will assume the cost of returning the product to the customer.
