Summary of Contents for Arjo KWIKtrak

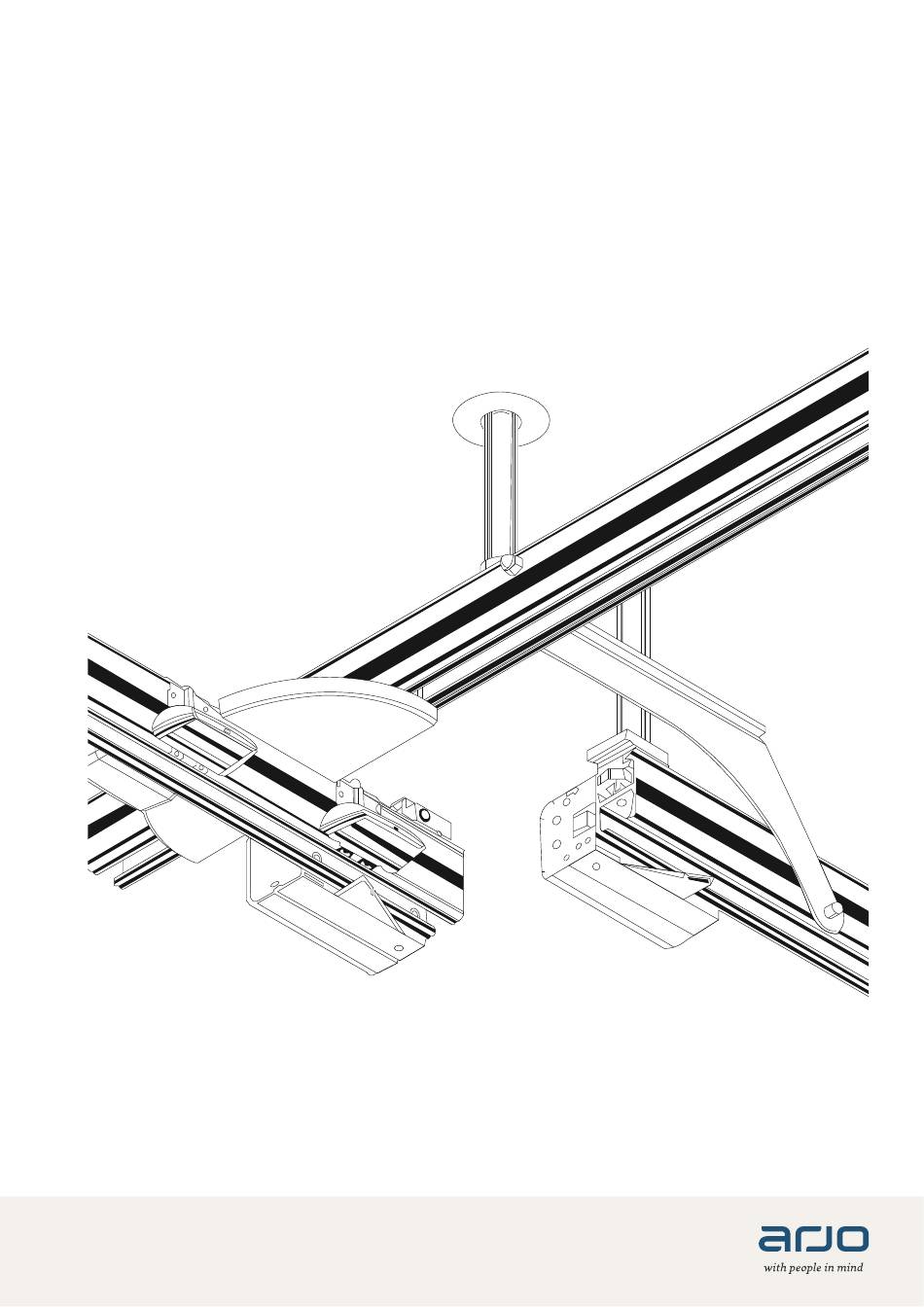

- Page 1 INSTRUCTIONS FOR USE KWIKtrak Gate 001-11502-EN rev 10 • 11/2020...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2020. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the...
-
Page 3: Table Of Contents
Environmental Advice ..........................6 Homecare Environment Considerations ....................6 Symbols Used ..........................7 General Symbols ............................. 7 Product Description / Labels ......................8 How to use the KWIKtrak Gate ....................9 Crossing the Gate ............................ 9 ..........................9 Troubleshooting ........................11 Care and Maintenance ......................12 Preventive Maintenance Schedule ...................... -
Page 4: Foreword
CAUTION: Do not attempt to expose, service or repair the KWIKtrak Gate system . If any unit is defective, Means: Failure to follow this instruction may contact your local Arjo vendor. cause damage to the product(s). -
Page 5: Safety Instructions
The KWIKtrak Gate system is a track accessory a complete overhaul is required. Aging of the to be used with the KWIKtrak track system and equipment, frequency of use (cycles per day), the weight of the resident and maintenance nursing homes and other assisted living centers. -
Page 6: Safe Working Load
Environmental Advice The KWIKtrak Gate system has been designed When disposing of any items associated with to be used with Arjo ceiling lifts with a safe the product, contact the appropriate local working load of 272 kg (600 lb) or less. -
Page 7: Symbols Used
Symbols Used Symbols Used General Symbols This symbol points out the manufacturer’s name and address. CE marking indicating conformity with European Community harmonised legislation. This symbol points out the manufacturer’s catalogue number. This symbol points out the manufacturer’s serial number. Separate and recycled, according to the European Directive (WEEE) or... -
Page 8: Product Description / Labels
Product Identification Warning! Fig. 1 Legend 1) KWIKtrak Gate 2) Energy reserve box 3) KWIKtrak Gate motor box 4) Double contact box 5) KWIKtrak Gate DF Locker 6) KWIKtrak Gate clamp block 7) KWIKtrak Gate reinforcement kit 8) KWIKtrak Gate... -
Page 9: How To Use The Kwiktrak Gate
How to use the How to use the KWIKtrak Gate KWIKtrak Gate Crossing the Gate WARNING: If you see the warning symbol appearing at the end of the track, and the mobile track is not aligned DO NOT use the gate system. - Page 10 NOTE: The ceiling lift must always be routed slowly under an activation station. If the lift is moved too quickly, it may not be detected by the station and the gate’s position would remain unchanged. To close the gate, move the lift slowly under activation station #2. How to use the KWIKtrak Gate...
-
Page 11: Troubleshooting
• the contact blades on the ceiling lift unit making good contact with the activation station when trying to lock or unlock the gate system. If the gate system still fails to function properly after all these checks, or if the gate emits a beeping sound, contact your local Arjo representative for assistance. Troubleshooting... -
Page 12: Care And Maintenance
NOTE: If the product does not work as intended, immediately contact your local Arjo representative for support. Cleaning To clean the KWIKtrak Gate system, wipe it down with a damp cloth using warm water and a disinfectant cleaner. Care and Maintenance... -
Page 13: Disinfection
Disinfection To disinfect the KWIKtrak Turntable, follow the cleaning procedure, then wipe down the KWIKtrak Turntable with a disinfecting solution. Compatible disinfectants and their appropriate concentrations are shown in the following table. WARNING: To avoid eye and skin damage, always use protective glasses and gloves. if contact occurs, rinse with plenty of water. - Page 14 Duty cycle Sound power level (dBA) <65 dBA The KWIKtrak Gate is compliant to IEC 60601-1 series including applicable collateral standards and national deviations. The KWIKtrak Gate is compliant to ISO 10535 standard. WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external Compatibility”...
-
Page 15: Product Dimensions
Product Dimensions Product Dimensions Dimensions Track “B” Track “A” Tracks Height 200 mm H140 253 mm H180 293 mm H140 H140 306 mm H140 H180 346 mm H180 H180 386 mm Fig. 5 Product Dimensions... -
Page 16: Electromagnetic Compatibility
Electromagnetic Emissions - For all Equipment and Systems The KWIKtrak Gate is intended for use in the electromagnetic environments indicated below. The customer or the user of the KWIKtrak Gate should make sure that it is used in such environments. -
Page 17: Electromagnetic Immunity
Electromagnetic Immunity Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For all Equipment and Systems The KWIKtrak Gate The customer or the user of the KWIKtrak Gate should make sure that it is used in such environments. IEC 60601 test Compliance... - Page 18 (continued) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For all Equipment and Systems Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance 3 V outside ISM bands 3 V outside ISM bands between 0.15-80 MHz between 0.15-80 MHz Conducted RF IEC 61000-4-6 6 V inside ISM and...
- Page 19 AUSTRALIA FRANCE Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi 11 Talavera Road CS 70133 Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Australia Tél: +33 (0) 3 20 28 13 13...
- Page 20 ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjo.com 001-11502-EN...
