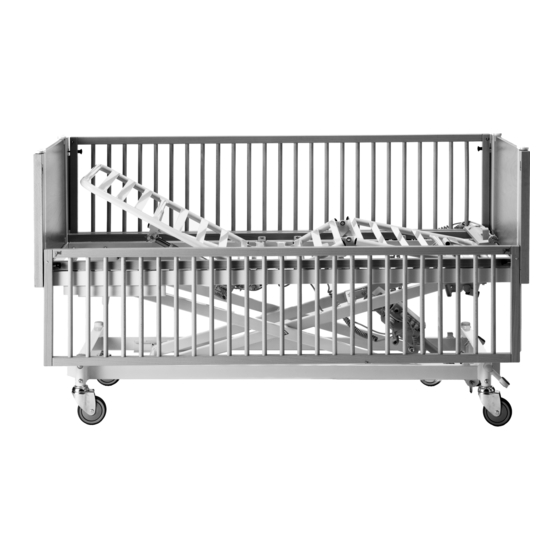

- Page 1 Invacare®Scanbeta NG™ en Children’s Bed User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 General ........1.1 About this manual . -
Page 4: General
If a problem should arise in connection with the delivered product, The expected service life of this product is eight years when used please contact your Invacare® supplier. An address list is shown on daily and in accordance with the safety instructions, maintenance the back side at this manual. -
Page 5: Safety
2.2 Labels and symbols on the product should be kept clear of the accessories or any other moving parts of the bed. 2.2.1 Product label WARNING! Invacare Rea AB EN 60601-2-52 Växjövägen 303 YYYY - MM 34375 Diö - Sweden... -
Page 6: Other Labels And Symbols
Invacare®Scanbeta NG™ Abbreviations for technical data: Max. User Weight • • Iin = Incoming Current AC = Alternating Current • • Uin = Incoming Voltage Max = maximum • • Int. = Intermittence min = minutes Max. Safe Working Load For more information about technical data, refer to 9 Technical data, page 20. -
Page 7: Setup
Setup 3 Setup 3.1 Receiving the bed When you receive the bed, check the packaging. If the bed shows any signs of damage upon delivery, please read Section Warranty. WARNING! Risk of personal damage There is a risk of entrapment or squeezing, while assembling or disassembling of the bed. -
Page 8: Mounting The Side Rails
Invacare®Scanbeta NG™ Bed end attachments 3.3.2 Mounting the side rails After mounting the side rails: Make sure that the bed end attachments are straight and tighten the screws on the bed end properly. Fixed side and opening/folding panel Insert the bed end attachments in the insert pipes on the Fit the guide pins on the mattress support into the brass bushings mattress support. -
Page 9: Mounting The Lifting Pole
Setup 3.3.3 Mounting the lifting pole Press in the locking pins on the sides, at the same time or one side at a time. Insert the guideways into the traces of the corner trims. Release the locking pin(s) when they are above the mattress support. If you are doing one side at a time, make sure both sides are in place before moving on to the next step. -
Page 10: Operating The Bed
Invacare®Scanbeta NG™ 4 Operating the bed 4.1 General Safety Information WARNING! Risk of personal injury and damage to property. – The bed must be placed so that the height adjustment is not obstructed by, for example, lifts or furniture. – Take care that no body parts are being squeezed between fixed parts (such as side rails, bed ends etc) and moving parts. -
Page 11: Operating Child Safety Latch
Operating the bed 4.2.3 Operating child safety latch Up: press left side of the button (p). Down: press right side of the button (q). WARNING! Risk of falling out of bed Backrest section – Always check that the child safety latch is properly (HL82 / HL84) engaged after closing the door. -
Page 12: Operating Castors Without Central Braking System
Invacare®Scanbeta NG™ 4.4.1 Operating castors without central braking system Pull the cord out to the side, to release it from the locking mechanism. Keep the cord out to the side and slide the plastic cord lock Locking the brake upwards. -
Page 13: Manual Positioning Of The Leg Section
Operating the bed 4.6 Manual positioning of the leg section 4.7 Emergency release of the backrest or thigh/leg section Up – from horizontal position An emergency release of the backrest or thigh/leg section could be necessary in the case of power- or motor failure. CAUTION! Risk of injury –... -
Page 14: Accessories
IMPORTANT! – Use only original accessories and spare parts. Spare parts lists and extra user manuals can be ordered from Invacare sales companies (see addresses and websites on the back page of this user manual). WARNING! The tools necessary for mounting/dismounting the accessories of... -
Page 15: Maintenance
– The bed does not tolerate cleaning in automatic washing plants or the use of water-jet based cleaning A service contract can be made in the countries, where Invacare® has equipment. its own sales company. In certain countries Invacare®offers courses –... -
Page 16: Dismounting The Motor
Invacare®Scanbeta NG™ Check the electronic wiring for the motors (wires not squeezed). Check that the enclosing of the motors are intact (no cracks that enables fluids to pierce). Check the sections of the mattress support by using the hand control to activate all functions of the moving parts. -
Page 17: Dismounting The Shear Arms From The Base
Maintenance IMPORTANT! After mounting – Check that red buttons in the buckles are in a locking position. If not; the red button must be turned 45° counter clockwise until it locks. 6.7 Dismounting the shear arms from the Lift the loop off the end of the pipe pin and release the clamp. base Pull the pin out, through both holes in the shear arm. -
Page 18: After Use
IMPORTANT! company’s impact on environment, locally and globally, is reduced Accumulator back-up to a minimum. – Old accumulators must be returned to Invacare® or recycled as car batteries We comply with the current environment legislation (e.g. WEEE and RoHS directive). -
Page 19: Troubleshooting
Troubleshooting 8 Troubleshooting 8.1 Troubleshooting electrical system Symptom Possible cause Remedy Mains are not connected Connect mains Mains indicator does not light up Fuse in the control unit is blown * Replace the control unit Control unit is defective * Replace the control unit Insert the motor plug properly into the Motor plug is not fully inserted into the control unit. -
Page 20: Technical Data
• All measurements and angles are stated without tolerances. Fixed, Lowering side Lowering side Bed size (cm) Invacare® reserves the right to change the stated measurements and Opening or rail on both rail on one angles without warning. Folding side... -
Page 21: Electromagnetic Compliance (Emc)
Technical data The bed has no isolator (main switch). Disconnect the bed by unplugging it from the mains socket. 9.6 Electromagnetic compliance (EMC) Guidance and manufacturer´s declaration – electromagnetic emission The medical bed is intended for use in the electromagnetic environment specified below. The customer or the user of the bed should assure that it is used in such an environment. - Page 22 Invacare®Scanbeta NG™ Immunity test IEC 60601–1–2 test level Compliance level Electromagnetic environment – guidance Radiated RF 3 V/m 3 V/m 80 MHz to 800 MHz IEC 61000-4-3 800 MHz to 2,5 GHz where P is the maximum output power rating of the...
