DHP 4240449 Manual

Upholstered bed
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Weight Limit: 500 Lb / 227 Kg
KT - 2020/1/13
© 2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4240449

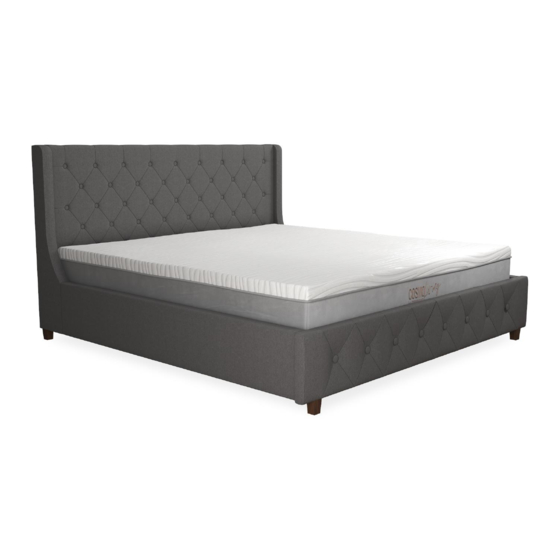

Upholstered Bed
Light Grey Linen
Lot Number
B34424044900
King
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4240449 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHP 4240449

Summary of Contents for DHP 4240449

  • Page 1 King Light Grey Linen Weight Limit: 500 Lb / 227 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and ● Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of ●...
  • Page 3 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts This item is packed in 2 boxes! All parts listed on this page are in Box A. If Box B is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Headboard Support Leg Wooden Slats...
  • Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts This item is packed in 2 boxes! All parts listed on this page are in Box B. If Box A is missing please contact your Retailer. Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly.

  • Page 5: Hardware Pack

    Hardware Pack Hardware Pack #: T4240449-00 1/4" X 3/4" X 36 5/16" X 1 9/16" 1/4" X 1 9/16" X 14 5/16" X 3" Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 ❶ Attach G/S to C with Note: holes are located on top side...
  • Page 7 Step 2 ❶ Attach G/T to D with Note: holes are located on top side...
  • Page 8 Step 3 ❷ Attach E to C with Note: Slat holes on E towards upside...
  • Page 9 Step 4 ❷ Attach E to D with Note: Slat holes on E towards upside...
  • Page 10 Step 5 ❹ Attach Z to A2 with Repeat the same step for remaining parts Z/A1.
  • Page 11 Step 6 ❶ ❸ Screw into A2 and into A2 at the specified locations as shown , leave half of the thread exposed. Repeat the same step for remaining parts Do not completely tighten the BOLTS, leave half of the thread exposed.
  • Page 12 Step 7 7.1 Hang sub-assembly C on A2 as illustrated, Attach E to A2 with ❷ . Repeat the same step for remaining parts D/E/A1.
  • Page 13 Step 8 Hang A onto A1 and A2 as illustrated .
  • Page 14 Step 9 Properly fasten the bolts at all locations in the compartments as illustrated. Note: Open the compartment on the back of Headboard A to access and tighten bolts, after assembly, properly close the compartment using velcro .
  • Page 15 Step 10 ❹ Attach Z x 2 to B with...
  • Page 16 Step 11 Do not completely tighten the ❶ BOLTS, leave half of the thread Screw into B , leave half of the thread exposed. exposed.
  • Page 17 Step 12 Hang sub-assembly C and D on B as illustrated, don't completely tighten the bolts until STEP 14 is complete.
  • Page 18 Step 13 ❶ Attach L x 2 to F with...
  • Page 19 Step 14 ❶ Attach F to A and B with Then properly tighten all the bolts.
  • Page 20 Step 15 15.1 Insert P1 into X; 15.2 Press X into E, repeat the same procedure for the opposite side of the bed. Follow the same procedures going backwards for every row of slats. 15.1 15.2 SLAT WARNING Correct: Slat curve should be facing upwards.
  • Page 21 Step 16 16.1 Insert Y x 2 onto the free end of both P1 assembled in previous step, Take a new P1 and insert each end into the other free end of Y x 2; 16.2 Press Y x 2 SIMULTANEOUSLY into F x 2 as illustrated.

  • Page 22: Helpful Hints

    ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location. ● Your DHP furniture can be disassembled and reassembled to move. ● Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement.

  • Page 23: Información Sobre La Garantía

    ● Trabaje en un área espaciosa y cerca de donde su producto será utilizado, preferiblemente sobre una alfombra o utilice el cartón del empaque para proteger su DHP garantiza que este producto está libre de defectos de fábrica en la mano de obra piso y su producto.
  • Page 24 Partes Instrucciones Paso 1 Una G/S con C con los ❶ . Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts Paso 2 Una G/T con D con los ❶ . Este artículo se embala en 2 cajas! Paso 3 Las piezas nombradas abajo están en la Caja A. Una E con C con los ❷...

  • Page 25: Consejos Útiles

    ● Mueva sus muebles nuevos con cuidado, con dos personas levantando y llevando el aparato a su nueva ubicación. ● Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza. ● Algunas partes han sido pre-ensambladas en este producto. Se encuentran ilustradas en esta página y disponibles para reemplazo.

  • Page 26: Informations Sur La Garantie

    ● Travaillez dans un endroit spacieux et près du lieu où l'unité sera utilisée, préférablement sur un tapis, ou sur un morceau de l'emballage pour protéger le DHP garantit que ce produit est exempt de tout vice de matériaux et de fabrication et plancher et le produit.
  • Page 27 Pièces Instructions Pour les pièces de rechange, visitez www.dhpfurniture/fre/replacement-parts Étape 1 Attacher G/S à C avec ❶ . IMPORTANT: La liste des références ci-dessous est propre à votre produit. Étape 2 Veuillez le garder sous la main lorsque vous appelez des pièces de rechange. Attacher G/T à...

  • Page 28: Conseils Utiles

    ● Déplacez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel emplacement. ● Votre mobilier DHP peut être démonté et reassemblé pour faciliter les déménagements. ● Certaines pièces (illustration disponible dans la section en anglais), sont pré...
