Victron Energy Quattro Quick Manual

Victron Energy Quattro - Quick guide operation instructions- From 2011

Quattro Inverter/charger

The Victron Energy Quattro is a 3000va inverter with a 100amp battery charger capacity, which

is programmed by Avida for our battery configuration of 3 batteries totalling 300amp/h, the

charger is programmed to a max 60amp output.

The inverter will automatically detect a 240v input from either the onboard genset or 240v mains

and supply the motorhome 240v via 2 independent outputs (1), the inverter output circuit, to

GPO's and (2) mains output circuit, to roof A/C, hot water service, refrigerator and stove.

This document is designed a s a quick start operational guide of the Quattro system, for a

detailed guide to the operations and its full functions, please refer to the Victron Energy

operation manual.

Inverter Mode: - When not connected to 240V mains or generator. Operates GPO's but not Roof

Air Conditioner, Fridge or HWS due to their heating elements drawing high current.

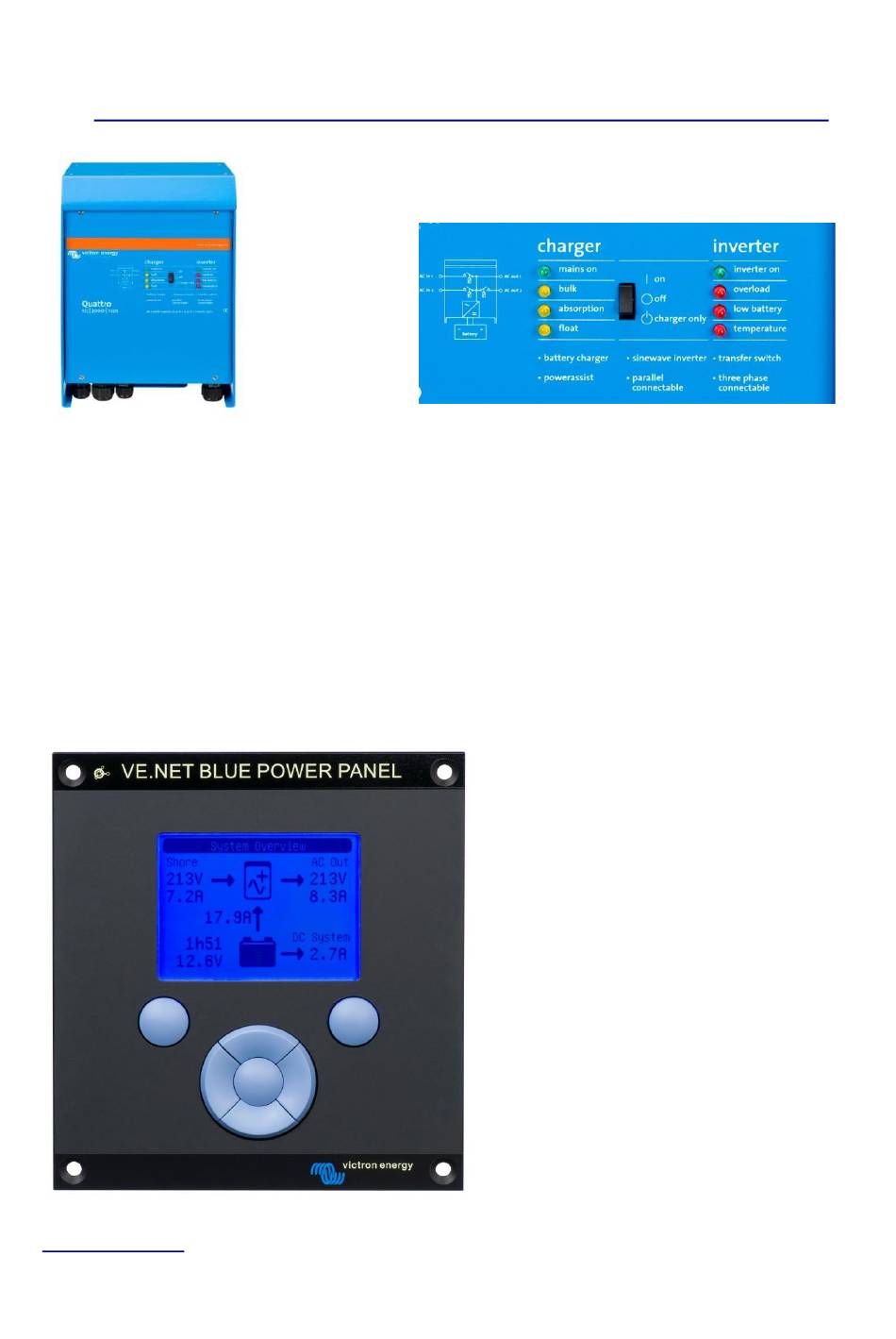

Control switch and operational LED's

a) Press to turn the system on

b) Press to turn system off

c) Press to enter/select

d) Press to scroll left through display

e) Press to scroll right through display

f) Press to scroll up through display

g) Press to scroll down through display

h) Display panel

Table of Contents

Need help?

Do you have a question about the Energy Quattro and is the answer not in the manual?

Page 1 Quattro Inverter/charger Control switch and operational LED’s The Victron Energy Quattro is a 3000va inverter with a 100amp battery charger capacity, which is programmed by Avida for our battery configuration of 3 batteries totalling 300amp/h, the charger is programmed to a max 60amp output.
Page 2 Turn master switch at Victron Inverter/Charger to “ON” position Turn 12v control panel on to supply power to Victron Power Panel Turn system by pressing button (a) on Victron control panel, Starting up is displayed in the panel (h) “Inverter” LED illuminates on the Quattro once the Internal panel has been turned on Inverter now turned on and ready for use.
Page 3 Turn the master switch at Victron Inverter/Charger to “ON” position Turn the 12v control panel on to supply power to Victron Power Panel Turn system by pressing button (a) on Victron control panel, Starting up is displayed in the panel (h) Inverter on appears on control panel until 240v input is recognised by the Quattro.
Page 4 Note: To avoid damage to electrical systems, generators should never be started or shut down under load with appliances such as the roof a/c. Turn on the Quattro in the same manner as with the inverter and mains power modes Prime the generator and then press the start button Once 240v is recognised from the generator, charging status and battery voltage is displayed...
