- Page 1 8019447 2.1 Multimedia Speaker System INSTRUCTION MANUAL Read all of the instructions before using this unit and keep the manual in a safe place for future reference.
- Page 2 Important Safety Instructions TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE SCAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- Page 3 Important Safety Instructions 13. OVERLOADING - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 14. OBJECT AND LIQUID ENTRY (cUL Standards)- This product should not be exposed to dripping or splashing and objects filled with liquid, sush as vases, should not be placed on this product. 15. SERVICING - Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as the power-supply cord or plug being damaged, liquid spillage, or objects falling on or into the product, or if it has been exposed to rain or moisture or it has been dropped - anything that causes the apparatus to not operate normally.
- Page 4 Table of Contents Important Safety Instructions ........1 Table of Contents .

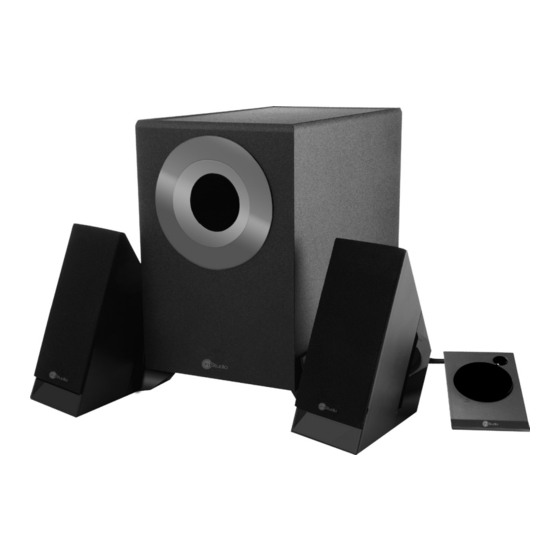

- Page 5 Box Contents: ● 1 × Subwoofer ● 2 × Satellite speaker (with connecting cable) ● 1 × Wired controller (with audio cable) ● 1 × User manual Identifying The Parts: 1. Power switch 2. Line in 3. Output for satellites 4. Power cable 5. Headphone jack 6. Mute switch 7. LED indicator ON: play mode OFF: mute mode 8. Volume control knob NOTE: a. Audio only comes through the headphones when it is connected to the headphone jack on the wired controller. b. The wired volume controller will not affect the headphone’s volume.
- Page 6 Connectivity 1. Connecting the speakers Connect the satellite to the speaker output port on the back panel of the subwoofer, using the 3.5mm connector cable attached to the satellites. 2. Connect to audio source Connect audio sources (like a PC card, MP3/MP4 player or CD player) to the wired controller, using the 3.5mm connector cable attached to the wired controller. 3. Play the music Connect the speaker to outlet and switch on the system, play the music and adjust master volume to a comfortable level. Specifications: Power output: RMS 2 x 1.8W + 4W Signal to noise ratio: ≥85dBA Distortion: ≤0.5% Input sensitivity: R/L: 350 mV ± 50 mV SW: 250 mV ± 50 mV Frequency response: R/L: 180Hz~20kHz SW: 20Hz~180Hz Bass unit: 4” (106mm) Tweeter unit: 50mm × 90mm Dimension: Subwoofer: 158 x 225 x 252 mm (W x H x D) Satellite: 64 x 140 x 112 mm (W x H x D) Power Supply: 120V~60Hz Troubleshooting ● Make sure power is connected, and the wall outlet is switched on.
- Page 7 Please Recycle...
