AMF 90XLi Manual

Positive ball lift pinspotter manual supplement
Hide thumbs
Table of Contents

Advertisement

Quick Links

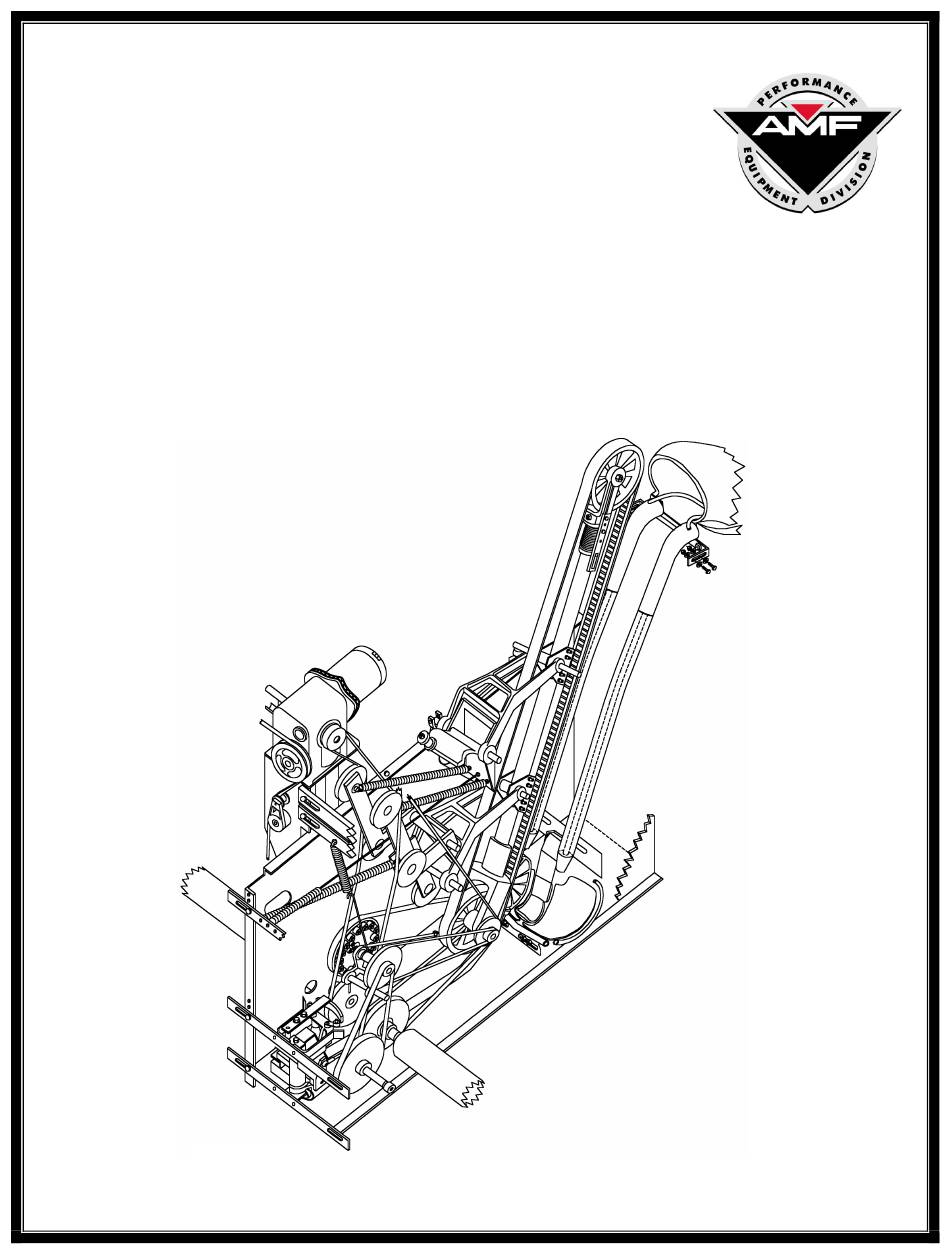

POSITIVE BALL LIFT (PBL)
AMF 90XLi Pinspotter Manual Supplement
PBL ASSEMBLED (REVISED)
400-088-011 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90XLi and is the answer not in the manual?

Questions and answers

Summary of Contents for AMF 90XLi

  • Page 1 POSITIVE BALL LIFT (PBL) AMF 90XLi Pinspotter Manual Supplement PBL ASSEMBLED (REVISED) 400-088-011 Rev. A...
  • Page 3 All rights to this manual including the diagrams, figures, and technical specifications are the property of AMF Bowling Products, Inc. Reproduction or transmission of any of the material contained in this manual without the prior written permission of AMF Bowling Products, Inc.
  • Page 5 Positive Ball Lift (PBL) Manual, Rev. A 400-088-011 UMMARY OF HANGES Change No. ECR No. List of Effective Pages Page Change No. Effective Date Original 10/29/2004...

  • Page 7: Table Of Contents

    Table of Contents SAFETY ........................INTRODUCTION ......................1-1 How To Use This Manual ................1-1 POSITIVE BALL LIFT OPERATION & ADJUSTMENT ..........2-1 Positive Ball Lift Description ................. 2-2 Positive Ball Lift Removal ................2-2 Positive Ball Lift Installation ................2-2 Positive Ball Lift Belt Adjustment ..............
  • Page 8 Table of Contents Ball wobbles on track rail assembly ............4-6 Ball lift belt leaves V-groove of sheaves ............4-7 Rudder slaps ball back onto carpet ............. 4-8 Sensor fails to clear pin jams ............... 4-9 DRAWINGS & PARTS LISTS ..................5-1 Positive Ball Lift - assembled ................

  • Page 9: Safety

    SAFETY General Safety Guidelines AMF believes strongly in its commitment to safety. Proper service and repair are important to the safety of the mechanic as well as the safe, reliable operation of the pinspotters. Please read, understand, and follow all of the recommended safety procedures presented in this manual.
  • Page 10 AMF 90XLi PINSPOTTER Safety Labels and Symbols It is important to understand the safety labels and symbols used in this manual set. Three of these labels are used to show the relative risk associated with a particular activity or instruction. These labels are shown below in order of decreasing importance.
  • Page 11 SAFETY Safety – Refer to the Service Manual before performing maintenance or repair. – Caution! Severe pinching hazard - belts. It is also important to understand that the use of these symbols and labels is not all- inclusive because it is impossible to warn of all the possible hazards and consequences that could result from failure to follow these instructions.
  • Page 12 AMF 90XLi PINSPOTTER Guards and Safety Precautions All safety guards must be in place before operating the machine. When maintenance is required, the following steps must be followed: 1. Disconnect the power plug before working on the pinspotter. 2. Remove guards only as required to perform the maintenance.

  • Page 13: Introduction

    • The Drawings and Parts Lists Section is designed to be an invaluable tool for identifying parts and part numbers for maintenance and repair of the unit. This manual is intended to be a supplement to, and is included with, the AMF 90XLi Pinspotter Manual Set.
  • Page 14 AMF 90XLi PINSPOTTER This Page Intentionally Left Blank 400-088-011 Page 1-2 Rev. 10/04...

  • Page 15: Positive Ball Lift Operation & Adjustment

    SECTION 2.0 Operation & Adjustment POSITIVE BALL LIFT OPERATION & ADJUSTMENT Ball Lift Assembly Track Rail Assembly Belt Tightener Belt Tensioner Ratchet Drive Assembly Light Ball Sensor PBL ASSEMBLED (REVISED) Figure 2-1 400-088-011 Page 2-1 Rev. Date 10/04...

  • Page 16: Positive Ball Lift Description

    The purpose of the ball lift is to raise the ball high enough to permit a gravity return to the bowler. The 90XLi Pinspotter’s Positive Ball Lift is equipped with AMF’s Gripper Ball Lift system ensuring reliable operation even with today’s heavily oiled lanes. The ball lift consists of a number of separate assemblies that work together to achieve the desired result.

  • Page 17: Positive Ball Lift Belt Adjustment

    SECTION 2.0 Operation & Adjustment 7. If the ball lift is not aligned with the track rails: Rotate the ball lift support shafts so that the slots in the adjustable plates are in line with the direction of offset between the support brackets on the kickback plates (see Figure 2-2).

  • Page 18: Sensor Assembly Operation

    AMF 90XLi PINSPOTTER Sensor Assembly Operation The cam follower roller must be low enough so that it will slide under the rudder cams when paddle movement is blocked, but high enough so that the rudder cams will lock behind it in the power drive position (see Figure 2.4).

  • Page 19: Rudder And Sensor Adjustment

    SECTION 2.0 Operation & Adjustment Rudder and Sensor Adjustment 1. Remove the retaining nut from the crank pin and save (see Figure 2-6). 2. Remove the rod assembly from the crank pin and swing it out of the way so that the sensor assembly can be moved manually.
  • Page 20 AMF 90XLi PINSPOTTER Shim Here to Raise Rudder Arm Rudder Arm Length Adjustment Bolt SENSOR - BACK VIEW Shim Here to Lower Rudder Arm Figure 2-7 6. If not done previously, disconnect the spring from the belt tensioner and remove the belt from the rudder drive pulley.

  • Page 21: Trip Cam Adjustment

    SECTION 2.0 Operation & Adjustment Trip Cam Adjustment 1. Turn the drive pulley to place the rudder in the center of its travel (center of ball lift). 2. Push the trip cam followers forward as far as they will go. There should be a 1/8-inch gap on each side between the trip cam and rollers (see Figure 2-8).

  • Page 22: Checking The Reset Cams

    AMF 90XLi PINSPOTTER 2.10 Checking the Reset Cams 1. Manually rotate the rudder drive pulley. While the sensor is moving back and forth, move one of the trip cam follower rollers towards the rear of the machine. Continue rotating the drive pulley until the roller contacts the reset cam, returning the trip cam follower roller to its normal (forward) position.

  • Page 23: Positive Ball Lift Assembly Adjustment

    SECTION 2.0 Operation & Adjustment 2.11 Positive Ball Lift Assembly Adjustment 1. The Positive Ball lift assembly must be centered between the return rails (see Figure 2-9). To adjust, loosen the nuts on the four clamp studs in the upper and lower mounting brackets, adjust the lift from side to side as needed, and retighten the nuts.

  • Page 24: Lift Arm Adjustment

    AMF 90XLi PINSPOTTER 2.12 Lift Arm Adjustment 1. Measure the height of the lift arm above the door weldment (see Figure 2-11). This distance should be no more than 1/8 inch. Adjust this gap by adjusting the length of the rod that connects between the lift arm and the ratchet drive assembly (see Figure 2-12).

  • Page 25: Rubber Bumper Adjustment

    SECTION 2.0 Operation & Adjustment 2.13 Rubber Bumper Adjustment 1. Place a bowling ball on the lift arm assembly (see Figure 2-13). 2. Measure the clearance between the ball and the ball lift belt. This clearance should be between 3/8 and 1/2 inch. The increase in clearance from earlier units is needed because of the thicker rail covers of the new Gripper ball return.
  • Page 26 AMF 90XLi PINSPOTTER This Page Intentionally Left Blank 400-088-011 Page 2-12 Rev. 10/04...

  • Page 27: Lubrication Instructions

    SECTION 3.0 Lubrication LUBRICATION INSTRUCTIONS LUBRICATION Lubrication is one of the most important items in the proper operation and maintenance of the Positive Ball Lift. Care must be taken to insure that lubricants are applied correctly. Avoid excessive lubrication to minimize the possibility of transmitting lubricants to the bowler.

  • Page 28: Lubrication Points

    AMF 90XLi PINSPOTTER LUBRICATION POINTS 3.3.1 POSITIVE BALL LIFT (PBL) - Figure 3-1 1 Rudder arm pivot points (2 places): apply 2 drops of oil every 3 months. 2 Paddle drive pulley shaft (2 places): apply 2 drops of oil every 3 months.

  • Page 29: Positive Ball Lift

    SECTION 3.0 Lubrication 3.3.2 POSITIVE BALL LIFT - Figure 3-2 1 Idler pulley (2 places): apply 2 drops of oil to each side every 3 months. 2 Lower yoke pivot points (4 places): apply 2 drops of oil every 3 months. 3 Upper yoke pivot points (4 places): apply 2 drops of oil every 3 months.
  • Page 30 AMF 90XLi PINSPOTTER 3.3.3 BELT TENSIONER - Figure 3-3 1 Pulley (2 places): apply 1 drop of oil to each side every 3 months. 2 Hanger arm center pivot points (6 places): apply 1 drop of oil every 3 months.

  • Page 31: Light Ball Sensor

    SECTION 3.0 Lubrication 3.3.4 LIGHT BALL SENSOR - Figure 3-4 DO NOT LUBRICATE component parts of the trip cam and rudder cam assembly, outlined within the square below. Friction is required in this area to allow the sensor to operate properly. DO NOT LUBRICATE ANY COMPONENTS WITHIN THIS BOX...
  • Page 32 AMF 90XLi PINSPOTTER This Page Intentionally Left Blank 400-088-011 Page 3-6 Rev. 10/04...

  • Page 33: Troubleshooting

    SECTION 4.0 Troubleshooting TROUBLESHOOTING PROBLEM: Ball idles at exit – will not enter lift. START Ball lift too low? Adjust bumper. Lift arm assembly not Adjust lift arm. centered between side plates? Rudder jammed? Adjust rudder. Light Ball Sensor out Adjust per Section 2 of adjustment? of manual.

  • Page 34: Ball Lift Fails To Elevate Ball

    AMF 90XLi PINSPOTTER PROBLEM: Ball lift fails to elevate ball. START Pulley rotates but ball Replace clutch. lift does not. Ball lift clutch broken or worn? Setscrew loose on drive Tighten setscrew. pulley? Ball lift belt tension low. Check length of belt Belt tension spring compression spring.

  • Page 35: Ball Fails To Roll Up Track Rails

    SECTION 4.0 Troubleshooting PROBLEM: Ball fails to roll up track rails. START Adjust height of rubber Ball lift assembly stops as required to obtain position too high? proper ball lift height. Lift arm does not Reset lift arm height. engage ratchet clutch? Ball bounces on Reset lift arm height.
  • Page 36 AMF 90XLi PINSPOTTER PROBLEM: Ball fails to continue to top of lift assembly and stops or slides back to the lift arm. START Lift belt is dirty or Clean ball lift belt. oily? Ball lift belt too Adjust lift spring loose? tension.

  • Page 37: Ball Becomes Airborne At Top Of Track Rail Assembly

    SECTION 4.0 Troubleshooting PROBLEM: Ball becomes airborne at top of track rail assembly. START Change shock Insufficient shock mount position or travel? shock assembly. Lift belt to track rail Reset ball lift clearance is less height. than 4.5 inches? Sticking shock Replace shock absorber? assembly.

  • Page 38: Ball Wobbles On Track Rail Assembly

    AMF 90XLi PINSPOTTER PROBLEM: Ball wobbles on track rail assembly. START Ball lift assembly Center ball lift not centered assembly at both between track top and bottom of rails? track rail assembly. 400-088-011 Page 4-6 Rev. 10/04...

  • Page 39: Ball Lift Belt Leaves V-Groove Of Sheaves

    SECTION 4.0 Troubleshooting PROBLEM: Ball lift belt leaves V-groove of sheaves. START Center ball lift Ball lift assembly not assembly at both top centered between and bottom of track track rails? rail assembly. Insufficient belt Adjust length of ball tension? lift spring.

  • Page 40: Rudder Slaps Ball Back Onto Carpet

    AMF 90XLi PINSPOTTER PROBLEM: Rudder slaps ball back onto carpet. START Rudder cams fail to Reset rudder reset to proper height? cams. Rudder cams fail to Remove washers from clear top of 1-inch under 1-inch diameter diameter follower? cam follower.

  • Page 41: Sensor Fails To Clear Pin Jams

    SECTION 4.0 Troubleshooting PROBLEM: Sensor fails to clear pin jams. START Rudder cams fail to Reset trip cam. engage 1-inch diameter follower? Sensor spring is too Replace sensor weak? spring. Excessive rudder cam- Add washers under to-top-of-cam follower 1-inch diameter cam clearance? follower.
  • Page 42 AMF 90XLi PINSPOTTER This Page Intentionally Left Blank 400-088-011 Page 4-10 Rev. 10/04...
  • Page 43 SECTION 5.0 & & Page 5-1 400-088-011 Rev. 10/04...

  • Page 44: Drawings & Parts Lists

    SECTION 5.0 POSITIVE BALL LIFT (PBL) - ASSEMBLED Drawings & Parts Lists POSITIVE BALL LIFT ASSEMBLED (REVISED) 400-088-011 Page 5-2 Rev. Date 10/04...
  • Page 45 POSITIVE BALL LIFT (PBL) - ASSEMBLED AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 000-024-673 SPRING 070-011-035 STRAP 090-004-520 V- BELT, CARPET DRIVE 070-011-039 RATCHET ASSEMBLY 831-565-002 NUT, HEX, 3/8 - 16 070-011-064 V- BELT, RATCHET DRIVE...

  • Page 46: Positive Ball Lift - Exploded View

    SECTION 5.0 POSITIVE BALL LIFT (PBL) – EXPLODED VIEW Drawings & Parts Lists 400-088-011 Page 5-4 Rev. Date 10/04...
  • Page 47 POSITIVE BALL LIFT (PBL) – EXPLODED VIEW AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 840-057-002 NUT, STOVER LOCK, 5/16 070-001-995 UPPER YOKE w/NUT 948-761-112 WASHER, FLAT, 11/32 X 11/16 X 1/16 000-024-661 PULLEY 070-006-320 SHAFT ASSY.
  • Page 48 SECTION 5.0 POSITIVE BALL LIFT (PBL) – EXPLODED VIEW (continued) Drawings & Parts Lists 400-088-011 Page 5-6 Rev. Date 10/04...
  • Page 49 POSITIVE BALL LIFT (PBL) – EXPLODED VIEW (continued) AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 070-008-217 SHORT SPACER 090-003-401 CLUTCH RACE, LONG 900-208-161 FLANGED BEARING, .503 x .875 x 1 070-011-796 LOWER SHAFT 146-005-277...

  • Page 50: Pbl Belt Tensioner Assembly

    SECTION 5.0 PBL BELT TENSIONER ASSEMBLY Drawings & Parts Lists 400-088-011 Page 5-8 Rev. Date 10/04...
  • Page 51 PBL BELT TENSIONER ASSEMBLY AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 000-029-605 PIVOT SHAFT 900-110-081 SLEEVE BEARING, .628 X .878 X .5 see 3A HANGER ARM 000-029-659 HANGER ARM ASSY (includes items 2 & 3)

  • Page 52: Pbl Belt Tightener Assembly

    SECTION 5.0 PBL BELT TIGHTENER ASSEMBLY Drawings & Parts Lists 400-088-011 Page 5-10 Rev. Date 10/04...
  • Page 53 PBL BELT TIGHTENER ASSEMBLY AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION see 1A & 1A1 ARM ASSY WELDMENT, L.H. MACHINE 070-011-530 ARM ASSY, L.H. MACHINE (includes 1 & 3) 070-011-524 BELT TIGHTENER, L.H. MACHINE (includes 1, 3, 4, 5, 6, 7, 8, &...

  • Page 54: Pbl Ratchet Drive Assembly

    SECTION 5.0 PBL RATCHET DRIVE ASSEMBLY Drawings & Parts Lists 400-088-011 Page 5-12 Rev. Date 10/04...
  • Page 55 PBL RATCHET DRIVE ASSEMBLY AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 919-005-600 RETAINING RING 070-011-029 070-011-028 WASHER 070-011-064 V-BELT, RATCHET DRIVE 070-011-027 SHAFT 0-26* 948-767-132 WASHER, FLAT, 13/32 X 13/16 X 1/16 907-000-200 070-008-212...
  • Page 56 SECTION 5.0 PBL LIGHT BALL SENSOR ASSEMBLY Drawings & Parts Lists 400-088-011 Page 5-14 Rev. Date 10/04...
  • Page 57 PBL LIGHT BALL SENSOR ASSEMBLY AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 809-857-165 SCREW, HEX, 5/16 - 18 X 1 070-011-146 PADDLE 000-022-869 WASHER 000-021-423 COLLAR WITH SETSCREW 070-011-418 TRIP CAM 000-021-427 FLANGED BEARING, .629 X .878 X 1/8...

  • Page 58: Pbl Light Ball Sensor Assembly

    PBL LIGHT BALL SENSOR ASSEMBLY (continued) SECTION 5.0 Drawings & Parts Lists 400-088-011 Page 5-16 Rev. Date 10/04...

  • Page 59: Pbl Light Ball Sensor Assembly (Continued)

    PBL LIGHT BALL SENSOR ASSEMBLY (continued) AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 070-011-100 CAM SENSOR WELDMENT 070-011-110 CAM SENSOR ASSY (includes 33 & 47) 070-011-099 900-208-161 FLANGED BEARING, .503 X .875 see 50A RUDDER CAM, L.H.

  • Page 60: Pbl Track Rail Assembly

    SECTION 5.0 PBL TRACK RAIL ASSEMBLY Drawings & Parts Lists (ITEM PBL TRACK RAIL ASSEMBLY (REVISED) 400-088-011 Page 5-18 Rev. Date 10/04...
  • Page 61 PBL TRACK RAIL ASSEMBLY AMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 809-865-165 SCREW, HEX, 3/8 - 16 X 1 951-164-002 WASHER, SPLIT LOCK, 3/8 000-021-813 WIPER SUPPORT 088-001-232 RAIL COVER, BLACK 000-024-666 TRACK RAIL WELDMENT...
