Release Date: Feb. 2013 / Manual Revision: 7.13

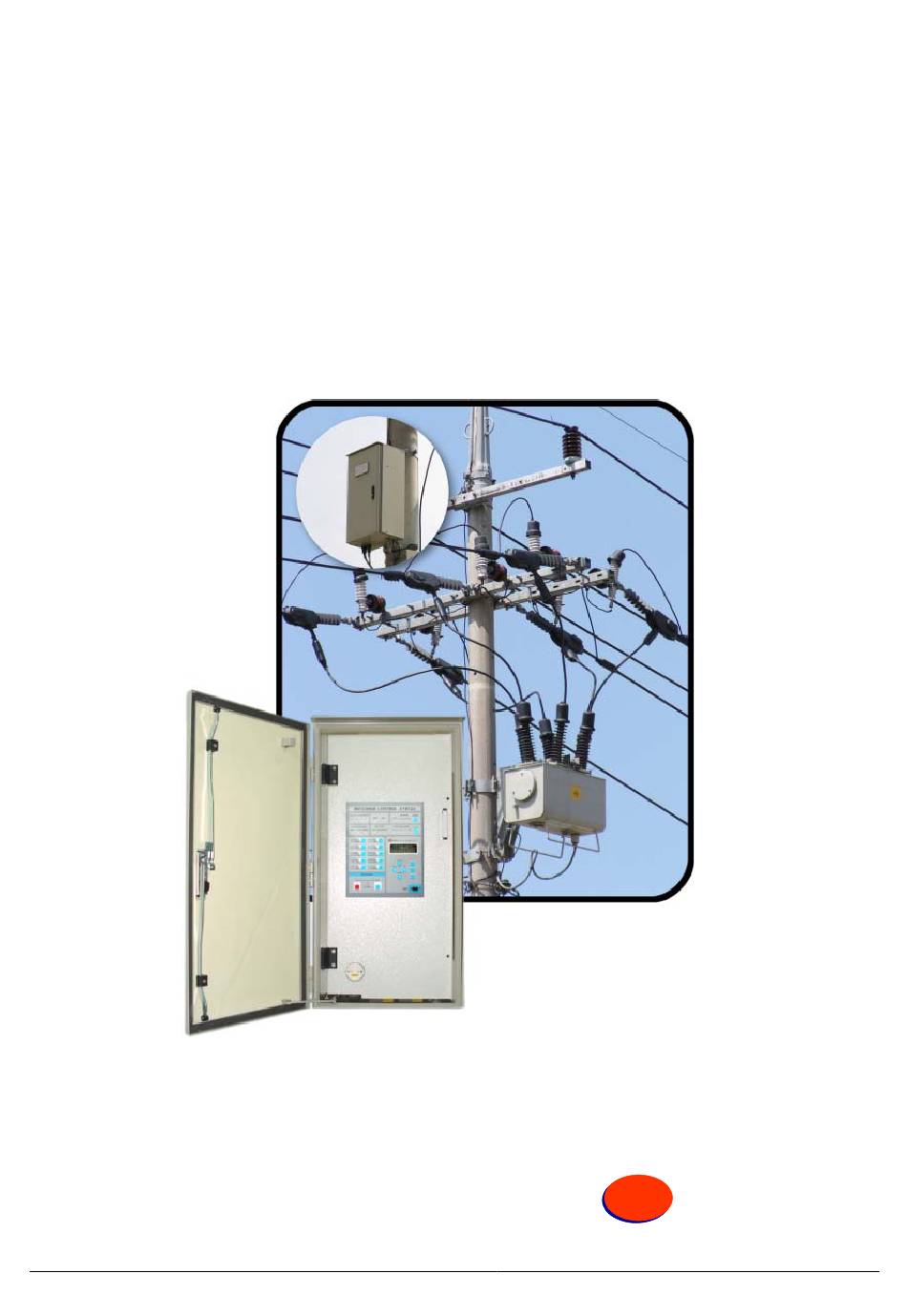

RECLOSER CONTROL EVRC2A-N6,NT
USER'S MANUAL
ENTEC
ENTEC
ELECTRIC & ELECTRONIC CO., LTD
Copyright © 2002 by ENTEC ELECTRIC & ELECTRONIC CO., LTD all right reserved.
Forerunner Distribution & Automation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVRC2A-N6-NT and is the answer not in the manual?

Questions and answers

Md.Shafiul
April 23, 2025

Only ground current increase suddenly and trip the circuit

0
1 comments:
Mr. Anderson
May 11, 2025

A sudden increase in ground current that trips the circuit in an Entec EVRC2A-N6-NT can be caused by a ground fault on the distribution line. If the ground directional control loses its direction due to a drop in polarized voltage below the minimum level, the system may rely on the non-directional ground overcurrent element to trip. Additionally, the ground fast time overcurrent or ground instantaneous high current trip (50G1) can trigger a trip if the ground current exceeds the set pickup value.

This answer is automatically generated

0
