Sound Sw itch P ro
Electronic filters in the Sound Switch Pro can be adjusted so that the switch can be triggered by the user's
voice but not by background noise. The sensitivity can be adjusted over an extremely wide range. In a quiet
environment, the unit's sensitivity can be adjusted to pick up footsteps or someone whispering.
A delay function allows output activation from either an instantaneous detected volume level, or a sustained
volume level. This allows the user to have a conversation without unintentionally activating the output device.
The LED lights green when sound is detected and red when the output is active. The LED briefly lights green
when the unit is turned on.
The Sound Switch Pro can also be triggered from an external push button switch allowing for better
integration with the user's environment and ability.
Suggestions for use as teaching aid
Before using the Sound Switch Pro in a teaching situation we strongly recommend sitting down with the
device and 'playing' with it. Try out the sensitivity adjustment control, the delay function and become familiar
with the operation of the Sound Switch Pro. If you are confident with the use and adjustment of the switch
your teaching will be more effective.
Information Sheet
Sound Switch Pro
SS-PRO

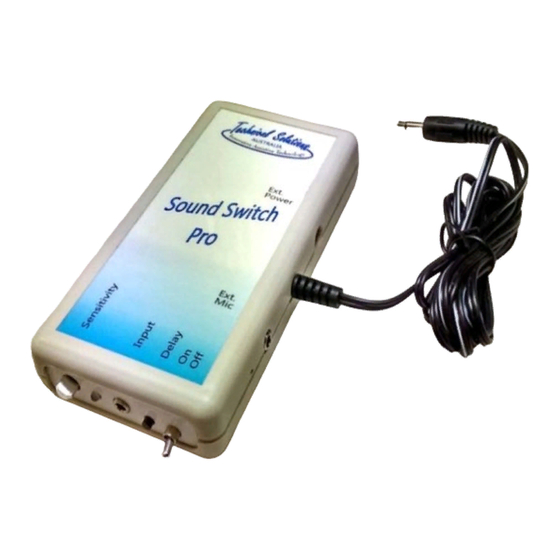

The Sound Switch Pro is specifically designed to
operate from the human voice. Electronic hardware
and software filters, along with sensitivity adjustment,
ensure reliable and consistent switch activation.
The Sound Switch Pro has been optimised for high
efficiency resulting in a long battery life.
The Sound Switch Pro also comes with a power socket
so it can be plugged into mains power to allow for
extended use in conjunction with alarms and call
systems.
The Sound Switch Pro can be connected to battery-
powered toys, buzzers, alarm systems or single switch
activated scanning environment control devices.
Advertisement
Table of Contents
Summary of Contents for Technical Solutions Sound Switch Pro
- Page 1 Electronic filters in the Sound Switch Pro can be adjusted so that the switch can be triggered by the user’s voice but not by background noise. The sensitivity can be adjusted over an extremely wide range. In a quiet environment, the unit’s sensitivity can be adjusted to pick up footsteps or someone whispering.
- Page 2 • Connect the switch output lead to the toy or equipment to be used, adjust the Sensitivity and Delay to ensure desired operation • Note that it is very important to adjust the Sensitivity and Delay so that the Sound Switch Pro is not inadvertently operated by extraneous noises in the room •...
- Page 3 Changing the Batteries The Sound Switch Pro operates from two AA batteries. The first indication of a flat battery will be an inability to hear an audible tone when trying to set the delay time. To change the batteries: • Remove the cover on the underside of the case (Press down and slide in direction of arrow) •...
