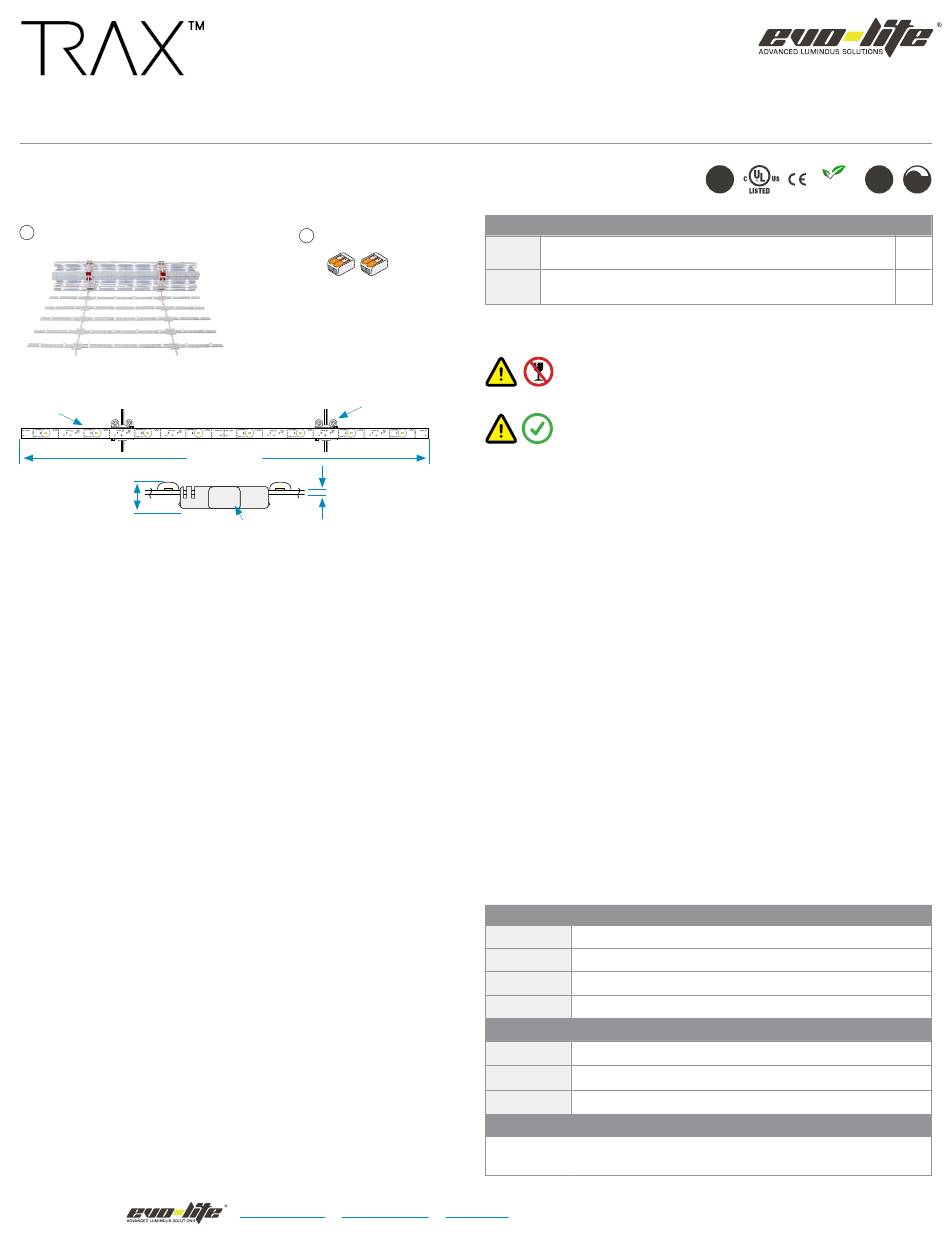

Evo-lite TRAX SCWWL Instruction Manual

RETICULAR BACKLIGHTING SYSTEM | SCWWL
ITEM #: TX1-24-SCWWL SERIES (SINGLE COLOR WHITE WITH LENS)
CONTENTS
Each TRAX Single Color White With Lens package includes one TRAX Array
(A) and two Wago connectors (B).
A TRAX ARRAY
PROFILES
(SEE SPEC SHEET FOR MORE DETAILS)
LED Bar
PATENT PENDING
TX1-24-53-L175 TX1-24-53-L175 TX1-24-53-L175 PROD#200424
24" (609.6mm)
0.43"
(11mm)

SAFETY INFORMATION

Read all instructions before beginning.
// To reduce the risk of fire, electric shock, or injury to persons, pay close attention to this manual and stay within its guidelines when using this product.
Save these instructions for future reference.
// WARNING: RISK OF ELECTRIC SHOCK. DISCONNECT POWER AT THE SOURCE BEFORE SNAPPING, CUTTING, OR ALTERING PRODUCT IN ANY WAY. DO
NOT CONNECT TRAX TO AC CURRENT. USE ONLY WITH 24V DC INPUT POWER.
// Products should be installed in accordance with these instructions, local/regional electrical codes, and the current National Electric Code (NEC).
// Use only with UL Listed or UL Recognized Class 2, Limited Power Source (LPS) or Low Voltage Limited Energy (LVLE) power supplies. Provide the appropriate
number of 24V Class 2 circuits for your layout. Do not exceed the maximum load limit of any power supply per the manufacturer's recommendations.
// To retain Class 2 compliance per UL regulations, do not interconnect more than one full 24" x 96" (609.6mm x 2438.4mm) TRAX Array (86W). Use one 96W
24V Class 2 LPS or LVLE power supply / channel per TRAX Array. Best practices include allowing headroom for power supply longevity. The TRAX system's
integrated wire clips have a 4A capacity. Do not exceed the load capacity of these in any configuration.
// This product is rated IP65 and can be used in wet locations, but not where water may accumulate.
// Do not penetrate the TRAX LED bar with any type of mechanical fastener. Only use mechanical fasteners in the established, marked locations. See page
3 - MOUNTING TRAX for more details.
BEST PRACTICES
// LEDs are bright. Do not look directly at lighted product.
// Dry fit TRAX Array and power connections before permanently installing
to a substrate. Always test operation before installing the translucent
(forward-facing) material.
// When not working with curved applications, the Rail Mounting Kit (sold
separately: TX1-M-RMK) is strongly recommended. The Rail Mounting Kit
will reduce installation time and labor while improving accuracy.
// Never slide heavy materials over product as this may cause damage to the
lighting product or material.
// Avoid installing where subject to continuous flexing.
// For detailed, application specific installation guidance, please contact us.
B WAGO CONNECTORS
Wire Clip
TX1-24-53-L175 TX1-24-53-L175 TX1-24-53-L175 TX1-24-53-L175
0.0625"
(1.6mm)
Wire Clip
READ AND FOLLOW THE PRODUCT HANDLING, INSTALLATION, & INTEGRATION ADVISORY ON PAGE 4.
WWW.EVO-LITE.COM • INFO@EVO-LITE.COM
BACKLIGHTING // RETICULAR LED SYSTEMS // TRAX // SCWWL
PART
TRAX Array (24" x 96" / 609.6mm x 2438.4mm) with 32 LED bars each pre-
A
wired and pre-mounted to wire mounting clips
B Wago same polarity, two port splicing connectors
HANDLING ADVISORY & PRE-INSTALL TESTING
Do not set anything on top of the product (i.e. tools, mugs, etc.).
Avoid placing product on floor or anywhere it could be stepped
on. The product may be damaged with improper handling.
Due to possible unforeseen issues with shipping and handling,
we advise that all products be inspected at time of delivery and
TX1-24-53-L175
dry-fit tested for proper illumination prior to mounting and
again before the forward-facing material is installed.
For troubleshooting guidance, please visit www.evo-lite.com
Input Voltage 24 Volt DC – Constant Voltage
Input Power 86W per TRAX Array, 2.69W per bar, 0.336W per LED
Connectivity One TRAX Array to retain Class 2 compliance per UL regulations
Certification IP65, cULus Listed (E495221), CE Compliant (EMC and LVD), and RoHS Certified
Cut Line Spacing Snappable segments every 1.5" (38.1mm)
Coverage Up to 16ft
Operating Temp. -22°F ~ +158° F (-30C ~ +70C)
Compatible with full range (100% – 0%), flicker-free power and control components.
Please contact Evo-Lite for optimal solutions to fit your requirements.
• 1-888-887-2980 • ©2020 EVO-LITE, LLC • 6240 W 54TH AVE., ARVADA, CO 80002 • V1–4420
INSTRUCTION MANUAL
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION
IP65
PRODUCT DESCRIPTION
ELECTRICAL
PHYSICAL
(1.486m2) per Class 2 guidelines, 0.098ft
2
POWER & CONTROLS
RoHS
24V
− +
DIMMABLE
C O M P L I A N T
QTY
1
2
(0.009m ) per bar
2 2
