Food warming/merchandising cabinet

Advertisement

Quick Links

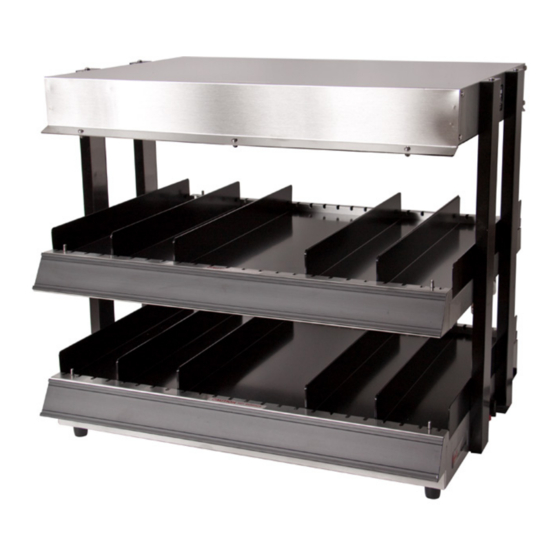

MODEL 282-24
**Includes (8) 3⅞"W Aluminum Product Trays (0022520) and
(2) 8"W Aluminum Product Trays (0022591)**
The perfect merchandiser for all your hot fast foods. Compact display unit is designed for maximum
visibility and extended shelf life. Featuring product illumination for both shelves and an adjustable
thermostat to keep your products at just the right serving temperature.

FEATURES:

• Thermostatically controlled heated shelf and base plate
• Adjustable thermostat for precise temperature control
• Temperature range to above 150°F
• Illuminated to showcase product on both heated surfaces
• (2) 2" × 24" display channels that allow you to slide in custom
graphics (max. thickness: 0.025")
• Sturdy, durable stainless steel construction
• Slanted shelf/base units available that have the top shelf and
base angled down 6° in front: Models: 282-24-S or 282-24-SR

AVAILABLE ACCESSORIES:

#0022544SK
Acrylic Sneeze Guard (NSF does not require usage
of
#0022520 3⅞"W Aluminum Product Tray
(unit holds 6 trays per surface)
#0022591 8"W Aluminum product Tray
(unit holds 3 trays per surface)
#0022542 Flat Grill Rack (unit holds 2 racks per surface)
#0022521 Divider Bar
#0022523 Sign Holder (holds sign: 21"L x 9½"H, max. thickness: ⅛")
FOR EXTENDED SHELF LIFE, WE RECOMMEND:
Product Trays for wrapped sandwiches
Flat Racks for plastic containers or wrapped products
P.O. Box 10 • Oregon, WI 53575 • Ph: 608.835.3106 • Fx: 608.835.7399 • wiscoind.com • wiscomade.com
P.O. Box 10 • Oregon, WI 53575 • Ph: 608.835.3106 • Fx: 608.835.7399 • wiscoind.com • wiscomade.com
sneeze guard on this model)
FOOD WARMING/
MERCHANDISING CABINET
MODEL 282-24-R
**Includes (4) Flat Grill
Racks (0022542)**

ELECTRICAL DATA:

120
VOLTS:
AMPS:
• Best when operated on an individual branch
circuit
• Approx. 70" power cord length

DIMENSIONS:

• External: 21"W × 25"D × 20 ½"H
• Base: 24"W × 17"D
• Shelf: 24"W × 17"D

SHIPPING INFORMATION:

• SHIPPING DIMENSIONS: 22"W × 30"D × 24"H
• SHIPPING WEIGHT: 66 LBS.
12.5
1500
WATTS:
FP140123 REV: C
