RIVATECH RTS650 Quick Start Manual

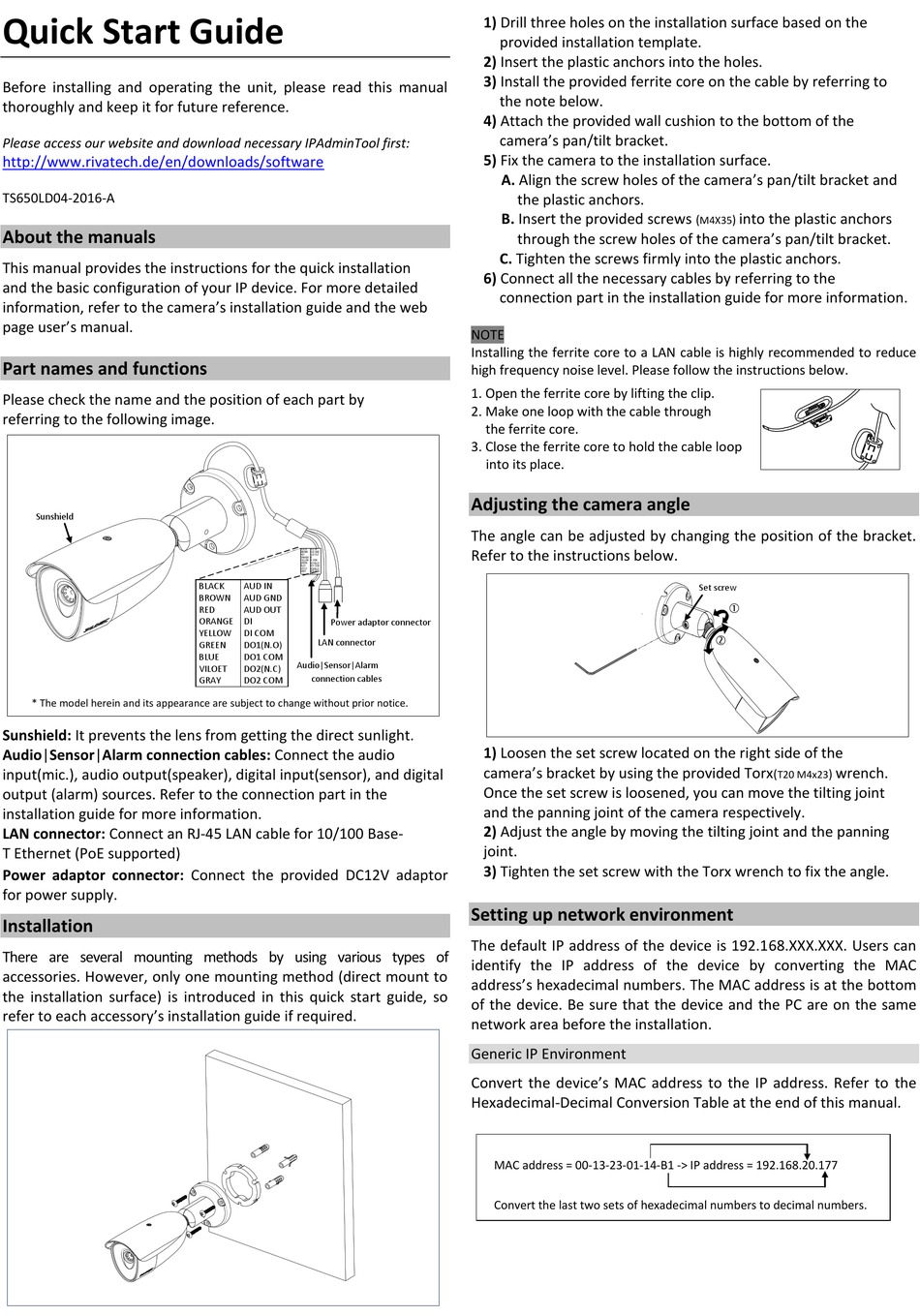

Quick Start Guide
Before installing and operating the unit, please read this manual
thoroughly and keep it for future reference.
Please access our website and download necessary IPAdminTool first:
http://www.rivatech.de/en/downloads/software
TS650LD04-2016-A
About the manuals
This manual provides the instructions for the quick installation
and the basic configuration of your IP device. For more detailed
information, refer to the camera's installation guide and the web
page user's manual.
Part names and functions
Please check the name and the position of each part by
referring to the following image.
Sunshield
Screw &
Plastic Anchor-3pcs
* The model herein and its appearance are subject to change without prior notice.
Sunshield: It prevents the lens from getting the direct sunlight.
RESET
Audio|Sensor|Alarm connection cables: Connect the audio
input(mic.), audio output(speaker), digital input(sensor), and digital
output (alarm) sources. Refer to the connection part in the
installation guide for more information.
LAN connector: Connect an RJ-45 LAN cable for 10/100 Base-
T Ethernet (PoE supported)
Power adaptor connector: Connect the provided DC12V adaptor
for power supply.
Installation Template
Installation
There are several mounting methods by using various types of
accessories. However, only one mounting method (direct mount to
the installation surface) is introduced in this quick start guide, so
refer to each accessory's installation guide if required.
BLACK AUD IN
BROWN AUD GND
RED AUD OUT
ORANGE DI
Power adaptor connector
YELLOW DI COM
LAN connector
GREEN DO1(N.O)
BLUE DO1 COM
Audio|Sensor|Alarm
VILOET DO2(N.C)
connection cables
GRAY DO2 COM
MICRO
SD DO DI DC12V
C 1 C 1
RESET
ETHERNET
MICRO
SD
DO DI DC12V
C 1 C 1
1) Drill three holes on the installation surface based on the
provided installation template.
2) Insert the plastic anchors into the holes.
3) Install the provided ferrite core on the cable by referring to
the note below.
4) Attach the provided wall cushion to the bottom of the
camera's pan/tilt bracket.
5) Fix the camera to the installation surface.
A. Align the screw holes of the camera's pan/tilt bracket and
the plastic anchors.
B. Insert the provided screws
through the screw holes of the camera's pan/tilt bracket.
C. Tighten the screws firmly into the plastic anchors.
6) Connect all the necessary cables by referring to the
connection part in the installation guide for more information.
NOTE
Installing the ferrite core to a LAN cable is highly recommended to reduce
high frequency noise level. Please follow the instructions below.
1. Open the ferrite core by lifting the clip.
2. Make one loop with the cable through
the ferrite core.
3. Close the ferrite core to hold the cable loop
into its place.
Adjusting the camera angle
The angle can be adjusted by changing the position of the bracket.
Refer to the instructions below.
ETHERNET
1) Loosen the set screw located on the right side of the
camera's bracket by using the provided Torx
Once the set screw is loosened, you can move the tilting joint
and the panning joint of the camera respectively.
2) Adjust the angle by moving the tilting joint and the panning
joint.
3) Tighten the set screw with the Torx wrench to fix the angle.
Setting up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can
identify the IP address of the device by converting the MAC
address's hexadecimal numbers. The MAC address is at the bottom
of the device. Be sure that the device and the PC are on the same
network area before the installation.
Generic IP Environment
Convert the device's MAC address to the IP address. Refer to the
Hexadecimal-Decimal Conversion Table at the end of this manual.
MAC address = 00-13-23-01-14-B1 -> IP address = 192.168.20.177
Convert the last two sets of hexadecimal numbers to decimal numbers.
into the plastic anchors
( )
M4X35
Set screw


wrench.
( )
T20 M4x23
ETHERNET
WIRE
