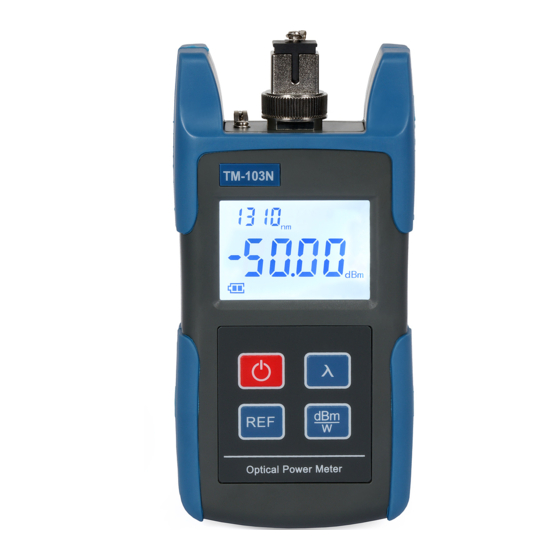

- Page 1 TM-103N Optical Power Meter User Manual V1.0...
-
Page 2: Table Of Contents
CONTENTS 1. Model Introductions ......1 2. Features ..........1 3. Technical Specifications ....3 4. Layout ..........4 5. Function Keys ........5 6. Operation ..........7 6.1 Turn on/off ........... 7 6.2 Absolute power measurement ..... 7 6.3 Relative power measurement ...... 7 6.4 User self-calibration function ....... -
Page 3: Model Introductions
1. Model Introductions TM-103NA: Measurement range: -70~+10dBm，calibrated wavelength：850nm、1300nm、1310nm、1490nm、 1550nm、1625nm TM-103NB: Measurement range: -50~+26dBm，calibrated wavelength：850nm、1300nm、1310nm、1490nm、 1550nm、1625nm 2. Features High measurement accuracy and display resolution Quick response and measurement: It can display fast-tracking and real-time measurement of optical power when output power changes ... - Page 4 Auto-off function Backlight LCD display AAA batteries which is more convenient to carry User self-calibration function...
-
Page 5: Technical Specifications
3. Technical Specifications -70～+10 dBm -50～+26 dBm Measurement range dBm 800～1650 Wavelength range（nm） 850nm、1300nm、1310nm、1490nm、 Calibrated wavelength 1550nm、1625nm（other wavelength will be on request） Detector InGaAs <±3% （-10dBm、22℃） Accuracy Linearity ： 0.1% ， Non-linearity ： Resolution 0.01dBm -10℃～+50℃ Working temperature -20℃～+70℃ Storage temperature 90%（＋30℃）... -
Page 6: Layout
4. Layout 1. Wavelength ： Display the wavelength, such as 850nm 、 1300nm 、 1310nm 、 1490nm 、 1550nm and 1625nm. 2. Power value： Displays the current output power under absolute... -
Page 7: Function Keys
test mode Displays the difference between the current output power and reference power under relative test mode 3. Unit：mW、uW、nW、dBm、dB. 4. Battery level : Indicate the current battery level. When the icon is blank, it means the power is too low, please change the batteries. - Page 8 wavelengths, the current choice of wavelength will appears on the LCD REF ： press enter relative measurement mode and it has 3 working modes: A) Directly enter the relative measurement: in absolute measurement mode, press REF to enter the relative measurement. Now the Ref value shows the previous saved power values.
-
Page 9: Operation
6. Operation 6.1 Turn on/off Press ON/OFF shortly to turn on the unit. Press ON/OFF for a few seconds to turn it off and press this key slightly to activate or deactivate the auto-off function. 6.2 Absolute power measurement ... -
Page 10: User Self-Calibration Function
and introduce another measurement light, now the current value shown in the LCD is the difference value between the tested signal and reference value. The reference value shown in the Ref position Press dBm/W to review the current absolute power value. -
Page 11: Auto Off Function
Now connect it with a pigtail which we already know its power and press REF or dBm/W to increase or decrease the power value by 0.05d every time. Until the LCD display the pigtail’s power (Or the difference gap less than 0.3db), press ON/OFF to save the ... -
Page 12: Trouble-Shootings
Keep using the same type of connector Please cover the dust cap when not in use to keep the connector clean. Carefully plug in or out the adapter Regularly clean the connector. Take out the battery when not in use for a period of time. - Page 13 caused under the normal operation free of charge. Note: remember to show us the warranty card when repair 2. For the following situation, we have to charge certain cost： Out of the warranty； Fail to provide the warranty card Alter and omit the warranty card Wrong operation including the problem caused human actors,...
- Page 14 Packing List TM-103N Optical Power Meter…………………1pc ……………………………………1pc Soft case ………………………………… 1pc User Manual Battery(AAA, transportation permit) ………3pcs Quality Certificate ………………………………1pc...
- Page 15 Quality Certificate Product name：Optical Power Meter Product model：TM-103N Serial number： Date of production： Inspection ： Warranty Card Date of purchase： Customer name： Customer address： Customer phone： Distributor name： Distributor phone； Posted back to： Fault unit return back to manufacture for repair purpose should come with the warranty card with detailed information.
