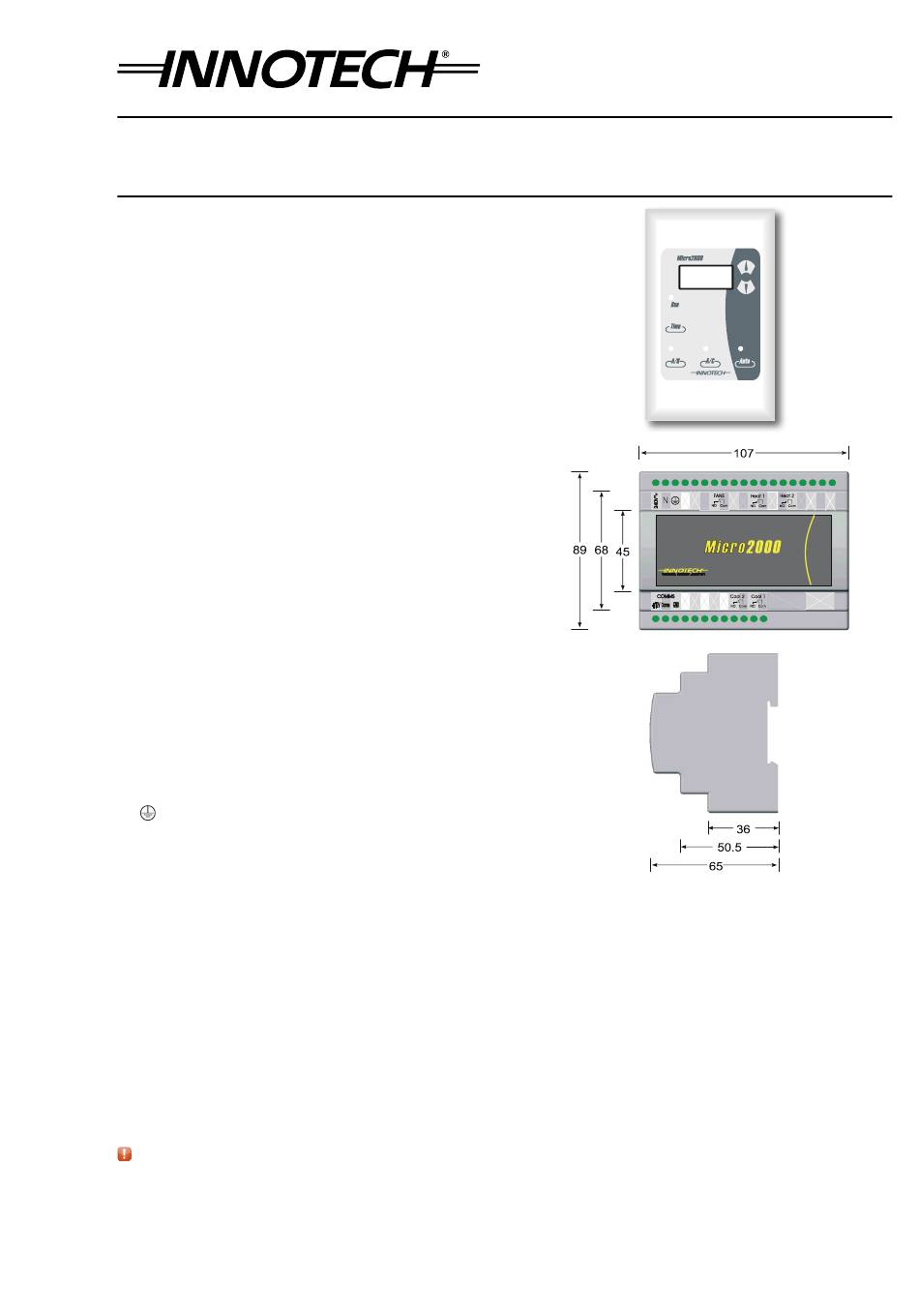

Mass INNOTECH M2K03 Manual

Models:
M2K03: 1 Speed FAN, 2 COOL and 2 HEAT Controller, 365 day
Battery Backed Time Clock
Specifications
Power Supply
• Voltage: 240VAC ±10% @ 50/60Hz
• Power Consumption: 7VA max.
Inputs
• 10kΩ Thermistor temperature sensor
• Digital Input for Switched contact
Outputs
Relay # 1: Voltage free relay contacts:
Normally Open
Relay # 2, 3: Voltage free relay contacts:
Normally Open
Relay # 4, 5: Voltage free relay contacts:
Normally Open
Connection Between Controller and Control Station
• 3 way connection via 2 core plus screen cable

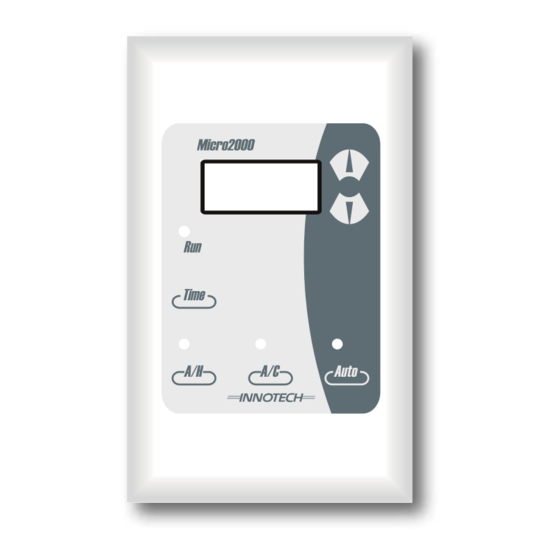

Control Station Terminal Identification
• IN 1 Temperature Sensor input
• IN 2 Digital Input for Switched Contact
• IN 3 Digital Input for Switched Contact
• +12V Power from Controller
• Comms Comms to Controller
• GND Ground from Controller
Controller Terminal Identification
240 Volt Power connection to Control Unit:
• Earth
• N Neutral supply
• 240V~ Mains 240VAC Supply
Output Relays
• NO Normally open contact
• COM Common contact
Comms Terminals
• +12V Power to Control Station
• Comms Comms from Control Station
• GND Ground to Control Station
Battery
Contains a lithium type battery, dispose of properly.
(In accordance with local regulations)
• Type CR-2032 Lithium Battery
• Nominal voltage 3 Volts
• Shelf life 5 years, dependent on ambient temperature
Caution: Risk of Explosion if battery is replaced by an incorrect type.
Temperature Ratings
• Storage: 0 to 50°C non-condensing
• Operating: 0 to 40°C non-condensing
• Sensor Input: 5 to 35°C
240VAC, 16A resistive
240VAC, 6A inductive
240VAC, 10A resistive
240VAC, 6A inductive
240VAC, 2A resistive
240VAC, 0.5A inductive
© MASS ELECTRONICS Pty Ltd 2008
M2K03
Micro2000 Controller
Application
The Innotech Micro2000 Series Controllers are designed to be used
in commercial applications to provide complete control for air
conditioning systems.
Features
• LED Display of Temperature and Program functions
• Control Station fits standard electrical wall plates
• Four core screened cable simplifies connection between the control
station and controller
• Adjustable Proportional Band, Dead Zone, Compressor Restart Time,
After hours Timer and Setpoint Range
• Able to operate as 2 cool, 2 electric heating or as reverse cycle heating
or cooling
• After Hours function
• 365 Day Battery Backed Real Time Clock
• Programmable Schedules, 2 schedules per day
• Programmable Holidays, 20 On/Off Dates
• Storage of Accumulated After Hours Run Time
• All adjustments from the control station
DS 9.03
October 2013
