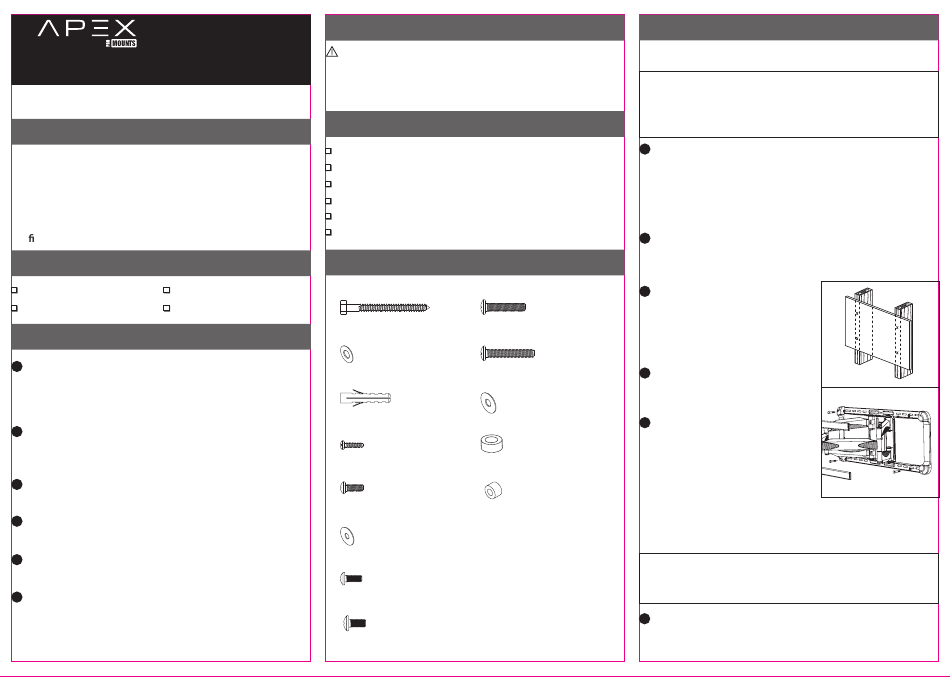

Promounts Apex UA-PRO640 Instruction Manual

UA-PRO640
BY
FULL-MOTION WALL MOUNT
FOR LCD, PLASMA, and LED DISPLAYS
INSTRUCTION MANUAL

SPECIFICATIONS

Display Size: 37" to 100"
Maximum Load: 68 kg (150 lbs)
Mounting Pattern: 600 mm x 400 mm (23.6" x 15.7") max
Tilt Range: 2° up to 10° down
Pan/Swivel Range: up to 180°
Pro le: 7.1 cm to 64.3 cm (2.8" to 25.3")
BOX CONTENTS
Mount (x1) Instruction Manual (x1)
Mount Arm (x2) Hardware Kit (x1)

WARNINGS

Read these instructions before you begin. If you are
1
unsure of any part of the process, contact a professional
contractor or installer for assistance. Improper installation
can result in injury or damage.
2 The wall or mounting surface must be capable of
supporting the combined weight of the mount and the
display; if not, the structure must be reinforced.
Locate pipes, wires, or any other hazards in the wall where
3
you wish to install the mount before drilling.
4 Safety gear and proper tools must be used. Failure to do so
can result in injury or damage.
5 Two people are recommended for installation. Do not
attempt to lift a heavy display without assistance.
6 Follow all instructions and recommendations regarding
adequate ventilation and suitable locations for mounting
your display. Consult the owner's manual for your particular
display for more information.
WARNINGS (continued)
CAUTION: This wall mount is intended for use only with
the maximum weight of 150 lbs. Use with heavier than
the maximum weights indicated may result in instability
causing possible injury.

TOOLS REQUIRED

Phillips Head Screw Driver
Ratchet or Driver with a 1/2" Socket
Electric or Portable Drill
1/4" Drill Bit and Stud Finder for Drywall Installation
3/8" Masonry Bit for Concrete Installation
Level

HARDWARE KIT

(A) M8 x 63 Lag Bolt (x4) (I) M8 x 30 Screw (x4)
(B) Lag Bolt Washer (x4) (J) M8 x 50 Screw (x4)
(C) Concrete Anchor (x4) (K) M8 Washer (x4)
(D) M4 x 15 Screw (x4) (L) Small Spacer (x4)
(E) M5 x 15 Screw (x4) (M) large Spacer (x4)
(F) M5 Washer (x4)
(G) M6 x 15 Screw (x4)
(H) M8 x 15 Screw (x4)

INSTALLATION

Part 1A – Mounting to the Wall (Drywall)
IMPORTANT! The mount must be secured to at least two
wood studs no less than 16" apart. The studs must be capable
of supporting the combined weight of the mount and
display.
Use a high quality stud finder to locate two studs on the
1
wall where you wish to install your mount. Mark both
edges of each stud to help identify the exact center.
NOTE: Use the center of each stud to avoid cracking or
splitting the wood.
2 Place the mount against the wall over the marked studs
with the arrow on the mount pointing up. Make sure it is
level.
While another person holds the
3
mount in place, mark four
locations (two per stud) for
securing the mount to the wall
(see Fig. 1).
Set the mount aside and drill a
4
1/4" pilot hole at each marked
location.
5
Attach the mount to the wall
with the arrow pointing up using
the lag bolts (A) and washers (B)
provided (see Fig. 2). Do not
release the mount until all bolts
are secure. Ensure that the
mount remains level.
Part 1B – Mounting to the Wall (Concrete)
IMPORTANT! For safety reasons, the concrete wall must be
capable of supporting the combined weight of the mount
and the display.
1 Place the mount against the wall in the desired location
with the arrow on the mount pointing up. Make sure it is
level.
Fig. 1
Fig. 2
