Sensor Slew & Height (Multi)
Quick Start Guide
Sensor Slew & Height monitors the slew position of the machine by
means of counting of the slew teeth and also monitors the position
of the front end equipment (Boom and Dipper) to allow the safe use
of the machine while under obstacles.
This quick start guide takes you through setting both Slew and
Height limits as well as the operational mode of the system.
It also covers the Safety Check procedure for checking the slew
motion cut valves.

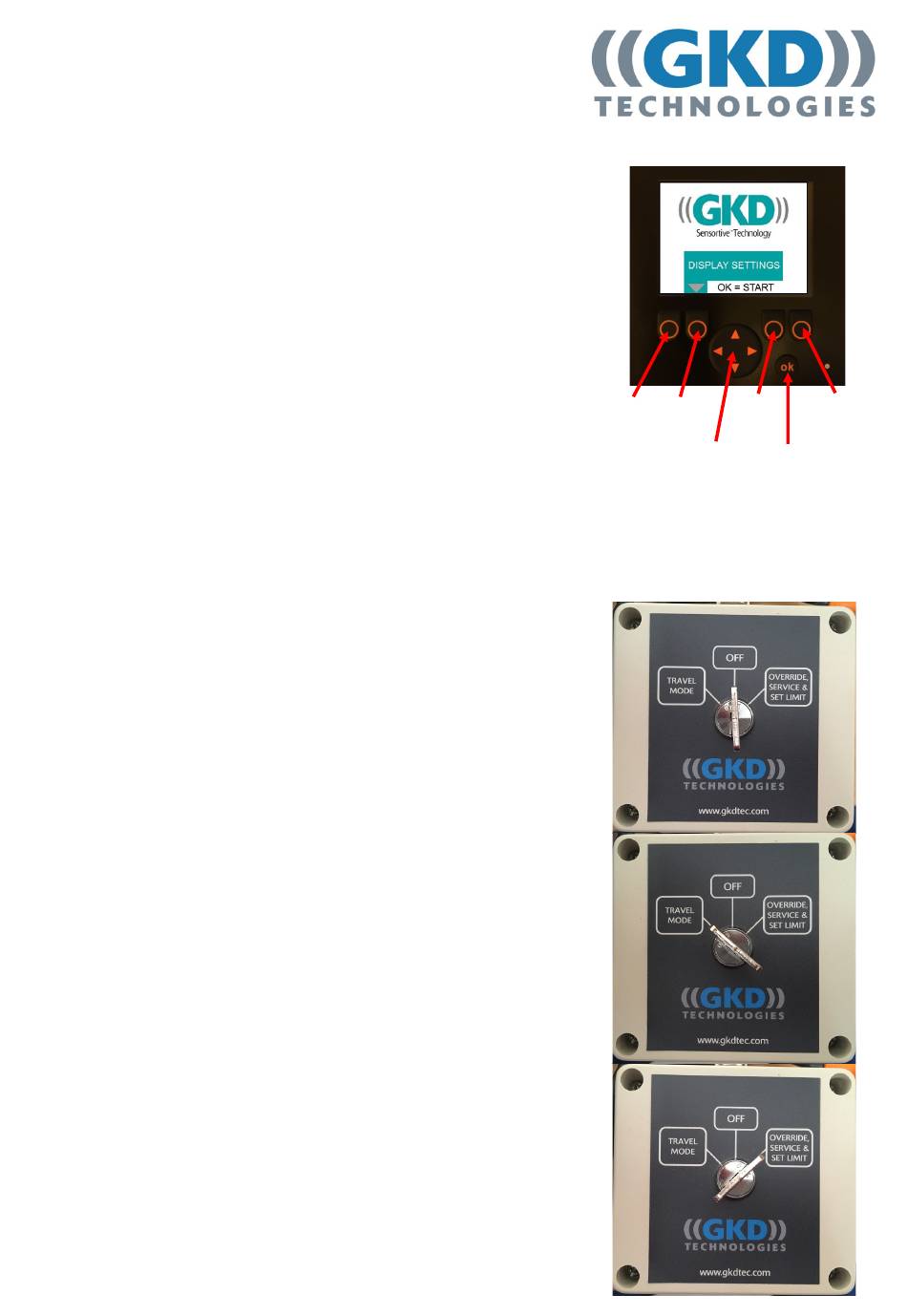

When the system powers up, and displays the GKD logo, press the
OK button to enter the operational mode.
Key Switch Positions
Operational
Turn the key switch to the straight position.
This puts the system into the Operational Mode. While in this
mode, both Slew and Height Limits are active.
Travel Mode
Turn the key switch to the left position to enable Travel Mode.
While in Travel Mode, both Slew and Boom controls are locked, but
travel is allowed (depending on optional Travel Inhibit valve).
Service Menu or Calibration Mode
Turn the key switch to the right position to access Override, Set
Limits and Service Area.
From this menu, both Slew and Height limits can be set and/or
adjusted. Also, the system can be overridden if required.
The Service Area is passcode protected.
M2000010 V1.1
F1
F2
F3
Arrow Keys
OK
F4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for GKD Sensor Height and Slew
- Page 1 Height limits as well as the operational mode of the system. It also covers the Safety Check procedure for checking the slew motion cut valves. When the system powers up, and displays the GKD logo, press the Arrow Keys OK button to enter the operational mode.
- Page 2 With the key switches in the straight position (Operational Mode), the operational screen will appear. The ellipse represents the area around the machine. The green part is the safe zone where the operator slews the machine. The red section is the restricted zone. M2000010 GKD Technik Ltd...
- Page 3 F1. Override The slew and height limits in this mode are overridden, so the operator can rotate and lift the arm freely without any restriction. The external beacon (if fitted) will flash to indicate this state. M2000010 GKD Technik Ltd...
- Page 4 When both the Sensor Slew and Sensor Height (Multi) are activated, the operation screen will combine both the ellipse and bar. The Slew Safety Check procedure will also need to be followed at start-up with the Sensor Slew & Height (Multi) Combined, as well as after every 4 hour operating cycle. M2000010 GKD Technik Ltd...
- Page 5 The Slew Safety Check procedure will also need to be followed at start-up with the Sensor Slew, Height and Depth (Multi) Combined, as well as after every 4 hour operating cycle. M2000010 GKD Technik Ltd...
- Page 6 Depth (Multi) Combined, as well as after every 4 hour operating cycle. GKD Technologies contact details: +44 (0) 1202 971971 service@gkdtec.com GKD Technologies reserve the right to change these instructions in line with the policy of continuous improvement. M2000010 GKD Technik Ltd...
