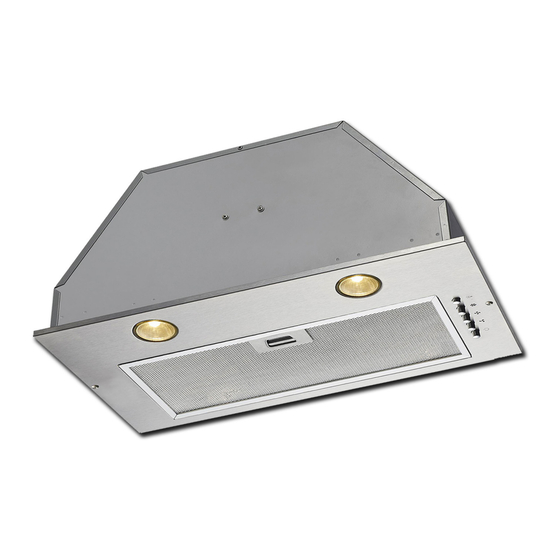

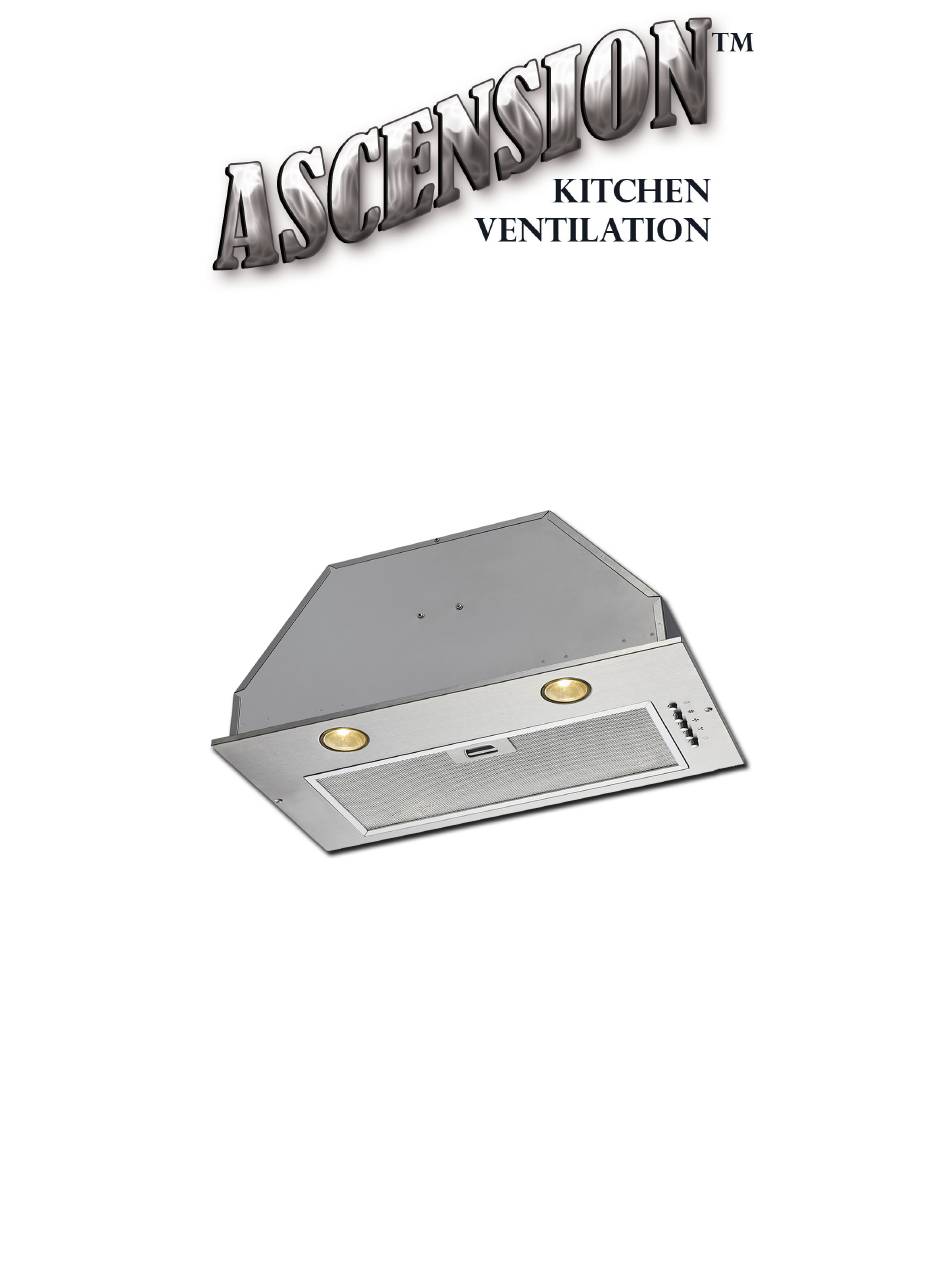

- Page 1 Range Hood Ventilator Instruction Manual SY-HVA-350-SL READ AND SAVE THESE INSTRUCTIONS Copyright © 2016 Castlewood by AMS, All rights reserved.
- Page 2 Following the recommendations contained in this Instruction Manual will ensure this To All Consumers: appliance gives you many years of high efficiency and performance. CONTENTS: RECOMMENDATIONS AND SUGGESTIONS CHARACTERISTICS INSTALLATION & USE MAINTENANCE RECOMMEDATIONS AND SUGGESTIONS INSTALLATION: * The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- Page 3 * Proper manitenance of the ventilator will assure efficient performance of this unit. MAINTENANCE: * Disconnect the ventilator from the main power supply before carrying out any maintenance work. * Clean and/or replace baffle filters periodically as needed. * Clean the ventilator unit using a damp cloth and a neutral liquid detergent. * DISPOSAL: Do not dispose of this product as unsorted municipal waste.
- Page 4 CHARACTERISTICS DIMENSIONS: INSTALLATION & USE Before the final installation is made check that all parts are in the box. The unit comes with a face plate/ filter, duct outlet adapter, light bulbs and mounting screws. Check the finish of the ventilation unit for scratches or dents, check the operation of the ventilator.
- Page 5 Caution: To reduce the risk of fire, use metal ductwork. 1. Decide where the ductwork will run between the ventilator unit and the outside. 2. A straight, short duct run will allow the ventilator to perform most efficiently. 3. Long duct runs, elbows, and transitions will reduce the performance of the ventilator. Use as few of them as possible.
- Page 6 Before fixing, the outlet exhaust duct for air evacuation DUCT INSTALLATION: to the outside must be installed. Use an outlet exhaust duct with: minimal length, minimal possible bends (maximum angle of bend 90 ), certified material (according to local building code), if flexible ducting is used it should be metallic and as smooth as possible inside.
- Page 7 - Exhaust air must not be discharged into a flue which is used for exhausting fumes from an appliance NOTICE: buring gas or other fuels. - If the instructions for installation for the gas cooktop specify a greater distance than 30” from surface, this must be taken into account and adjusted accordingly.
- Page 8 CASTLEWOOD by AMS, Inc. Ascension Ventilation ONE YEAR LIMITED WARRANTY WARRANTY Castlewood by AMS warrants to the original consumer of this product that it will be free of defects in materials and workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Need help?
Do you have a question about the SY-HVA-350-SL and is the answer not in the manual?
Questions and answers

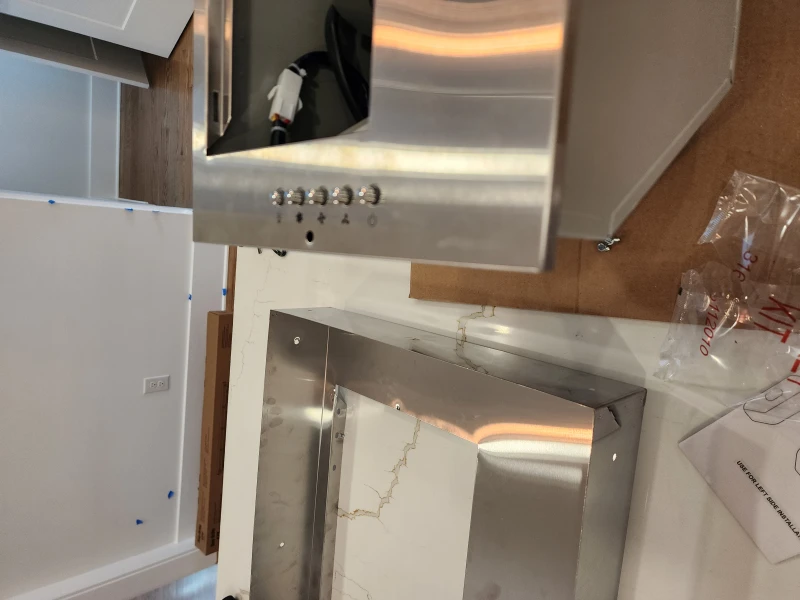

Cannot install finished cap does not fit
The finished cap may not fit on the Ascension SY-HVA-350-SL if the exhaust duct is not properly installed or if there are drastic changes in duct cross-section. The system is designed for a 6" exhaust duct with minimal bends and smooth interior. Using incorrect duct size, incompatible materials, or improper transitions may prevent the finished cap from fitting correctly.
This answer is automatically generated
