Dado Panic Strip Additional Information
1.Installation
When installing dado panic strip the space between the edge of the aluminium channel and
the edge of the wall must be taken into consideration. If using a standard end as illustrated in
Figure 1.1, a minimum gap of 33mm must be left between the end of the aluminium channel
and the wall as in Figure 1.2.

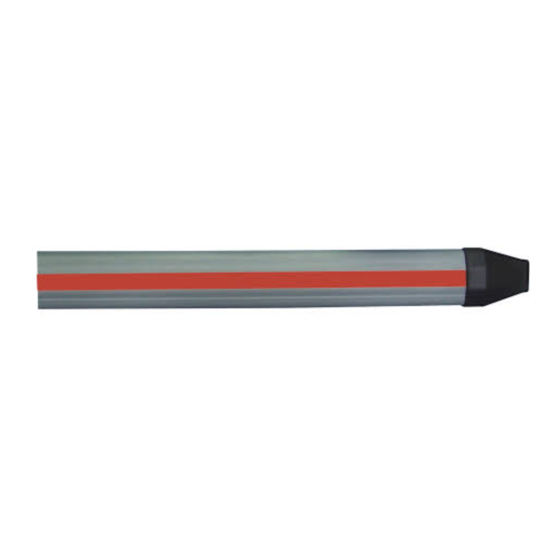

Figure 1.1: Panic strip with end cap.
If using a corner piece as in Figure 1.3, the minimum required gap between the aluminium
channel and the edge of the wall/corner are as follows;
• 55mm for an external corner (Figure 1.4).
• 70mm for an internal corner (Figure 1.5).
55m
m
Figure 1.4: External Corner.
55m
m
Figure 1.2: Distance from aluminium
channel to wall for use with end cap.
Figure 1.3: Panic strip with Corner.
70mm 70mm
Figure 1.5: Internal Corner.
33mm
Advertisement
Related Manuals for Hoyles Dado Panic Strip
Summary of Contents for Hoyles Dado Panic Strip
- Page 1 Dado Panic Strip Additional Information 1.Installation When installing dado panic strip the space between the edge of the aluminium channel and the edge of the wall must be taken into consideration. If using a standard end as illustrated in Figure 1.1, a minimum gap of 33mm must be left between the end of the aluminium channel and the wall as in Figure 1.2.
- Page 2 2.Ordering When the dado panic strip is delivered to site it cannot be altered in length, therefore it is of vital importance to ensure the sizes are correct when placing the order, please measure from corner to corner. To ensure the order is placed correctly please include a sketch of the area the dado is required for as illustrated in Figure 2.1, a hand drawn sketch will suffice.
