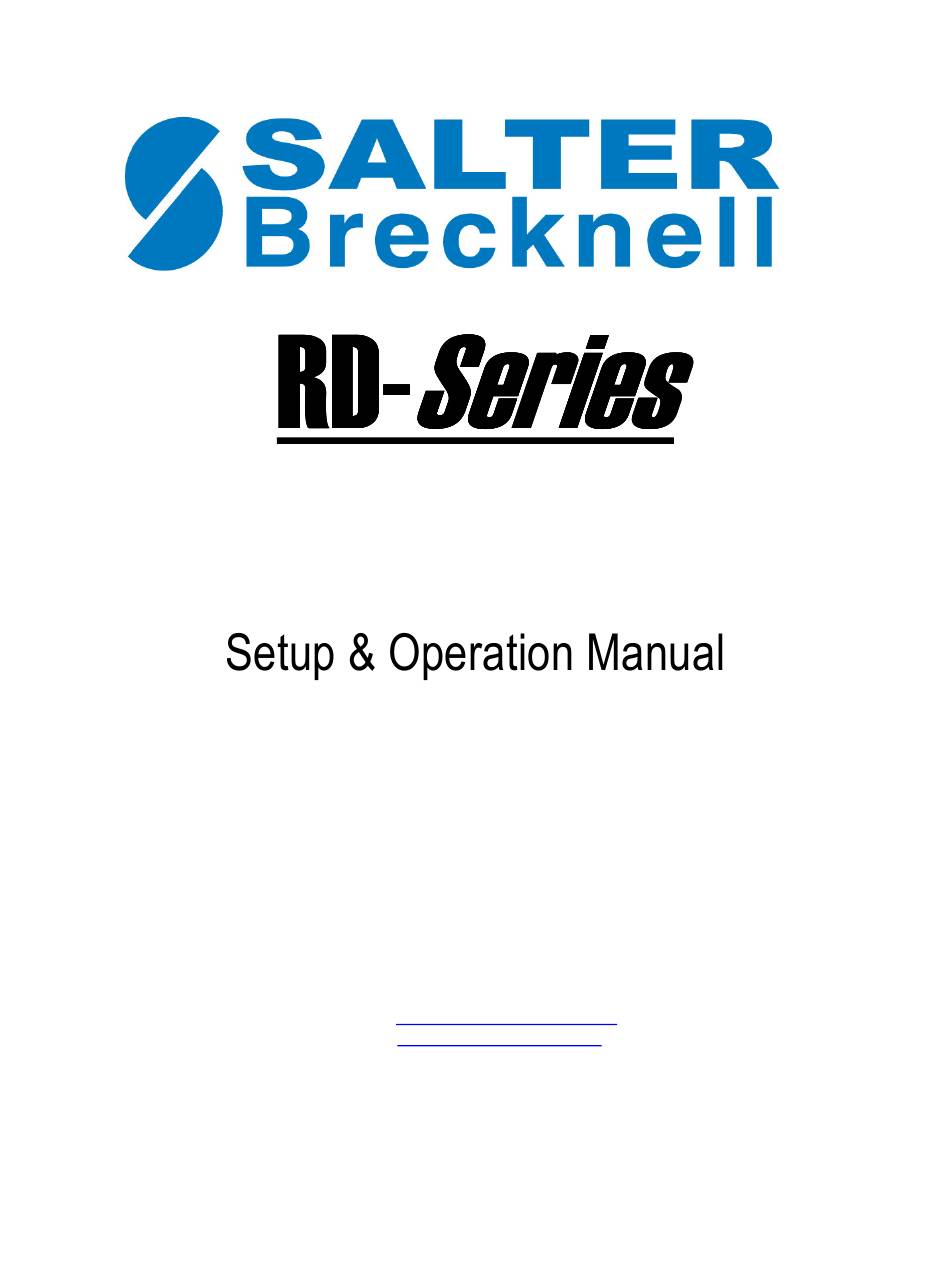

- Page 1 Remote Display RD-2/RD-4 Revision 1.1 March 11 2003 Contents subject to change without notice. Salter Brecknell Weighing Products 1000 Armstrong Drive Fairmont, MN 56031 Tel (800) 637-0529 Tel (507) 238-8702 Fax (507) 238-8271 E-mail: sales@salterbrecknell.com Web: www.salterbrecknell.com...
- Page 2 Electromagnetic Compatibility Statement for North America This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 2 1/2” High LED display RD-4 4” High LED display The RD Series Remote displays are housed in a NEMA 4X stainless steel enclosure. A wall mount bracket and sun-shade are standard. SETUP Setup is very easy and can be configured automatically or manually.
- Page 4 Remove the two screws holding the setup switch cover located on the center of the back cover. Slide the switch to the left position for setup. Power up the RD Series Remote Display. Watch the display begin cycling through the possible combinations of baud rate, bits and parity.
- Page 5 Display will begin cycling through the possible combinations of baud rate, bits and parity. When the configuration from your indicator is found, the RD Series Remote Display will show SET and begin to operate. Slide the configuration switch to the right position and replace the cover and two...
- Page 6 Display will begin cycling through the possible combinations of baud rate, bits and parity. When the configuration from your indicator is found, the RD Series Remote Display will show SET and begin to operate. Slide the configuration switch to the right position and replace the cover and two...
- Page 7 SPECIFICATIONS: POWER CONSUMPTION Max – 910 mA (all segments on) Typ – 300 mA Min – 100 mA (all segments off) ENVIRONMENTAL Operating Temperature –10° to +40° C Storage Temperature -25° to +70° C Dimensions:...
