Summary of Contents for EL-CELL PAT-Press-Box

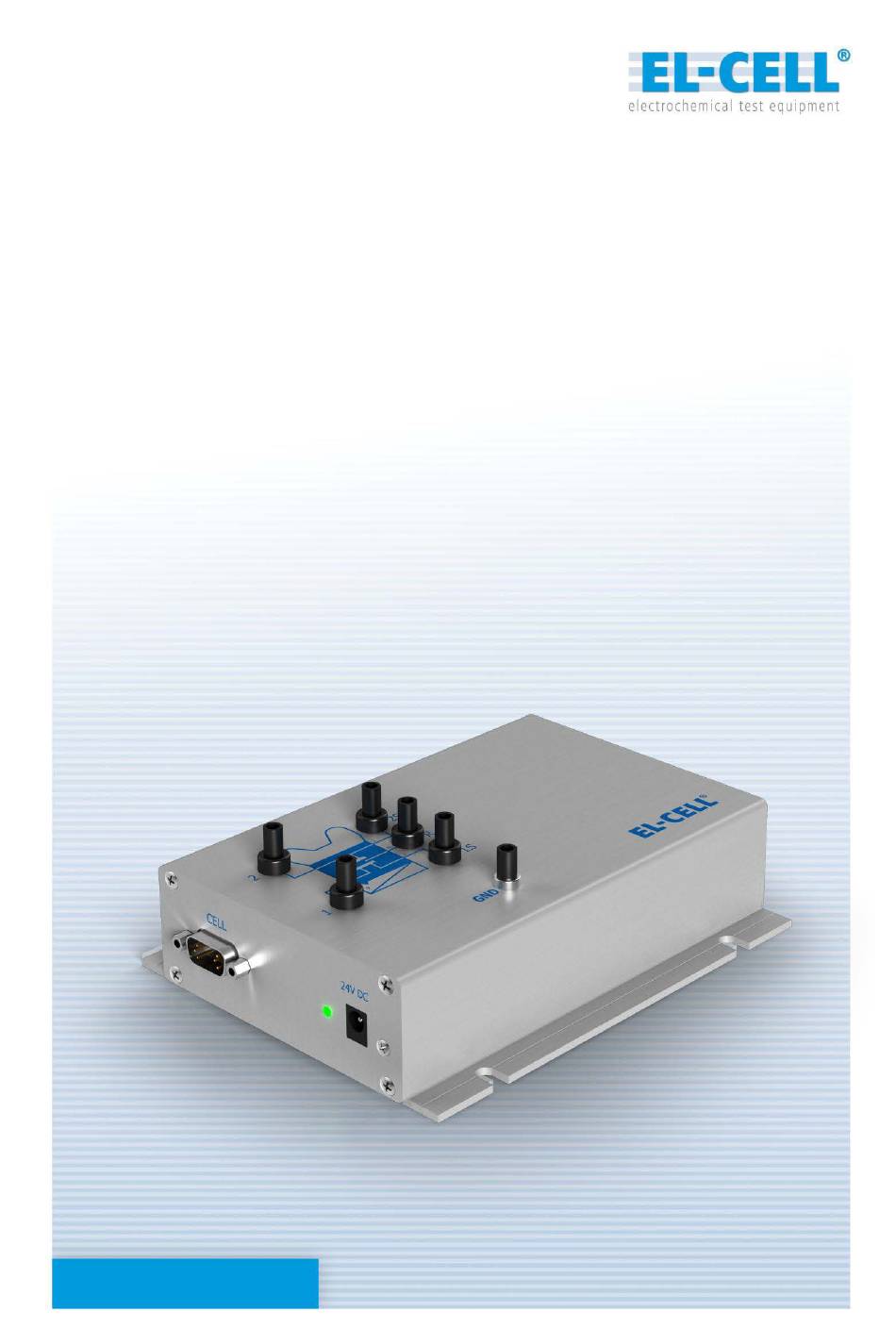

- Page 1 User Manual Release 1.0 PAT-Press-Box Box with data logger for gas pressure measurements with PAT series test cells © 2019 EL-CELL GmbH...
- Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-Cell GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -Cell GmbH does not assume any liability arising from the use or application of this product.
-
Page 3: Table Of Contents
User Manual PAT-Press-Box Content 1 Product description ............................4 2 Technical data ..............................5 3 Assembly and installation ........................... 6 4 Connectors ..............................7 5 Unpacking................................ 9 6 Accessories ..............................9 7 Technical support ............................10 8 Warranty ................................ 10 Page 3 of 10 Release 1.0... -
Page 4: Product Description
User Manual PAT-Press-Box 1 Product description The PAT-Press-Box is required to read and record the analog pressure signal of a PAT series test cell when the cell is used in a docking station that does not provide this functionality itself. -
Page 5: Technical Data
User Manual PAT-Press-Box 2 Technical data Dimensions (width x depth x height): 160 mm x 130 mm x 40 mm Weight: approx. 0.6 kg Operation temperature range: 0 to 40°C Humidity: non-condensing Power supply: 24 V, 0.6 A supplied by PSA15R-240P mains adapter ... -
Page 6: Assembly And Installation
User Manual PAT-Press-Box 3 Assembly and installation Install the EC-Link datalogger software from the provided CD. For details see the manual of the EC-Link Software. With the provided cable, connect the docking station inside the temperature chamber to ... -
Page 7: Connectors
User Manual PAT-Press-Box 4 Connectors Banana sockets (2 or 4 mm) at the box cover (Table shows standard connection to potentiostat or battery tester for full cell control) PAT-Press Box, banana sockets at Potentiostat Battery tester PAT-Core connection the box cover... - Page 8 User Manual PAT-Press-Box Cell connector (Sub-D M15) at the front of the box Pin # Signal Comments Sense lead to lower electrode of PAT-Core Sense lead to upper electrode Sense lead to reference ring Current lead to upper electrode Raw signal from pressure transducer inside PAT-Cell-Press test cell...
-
Page 9: Unpacking
Check the contents of the packages against the list given below to verify that you have received all of the required components. Contact EL-CELL, if anything is missing or damaged. NOTE: Damaged shipments must remain within the original packaging for freight company inspection. -
Page 10: Technical Support
8 Warranty For a period of one year from the date of shipment, EL-Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return...
