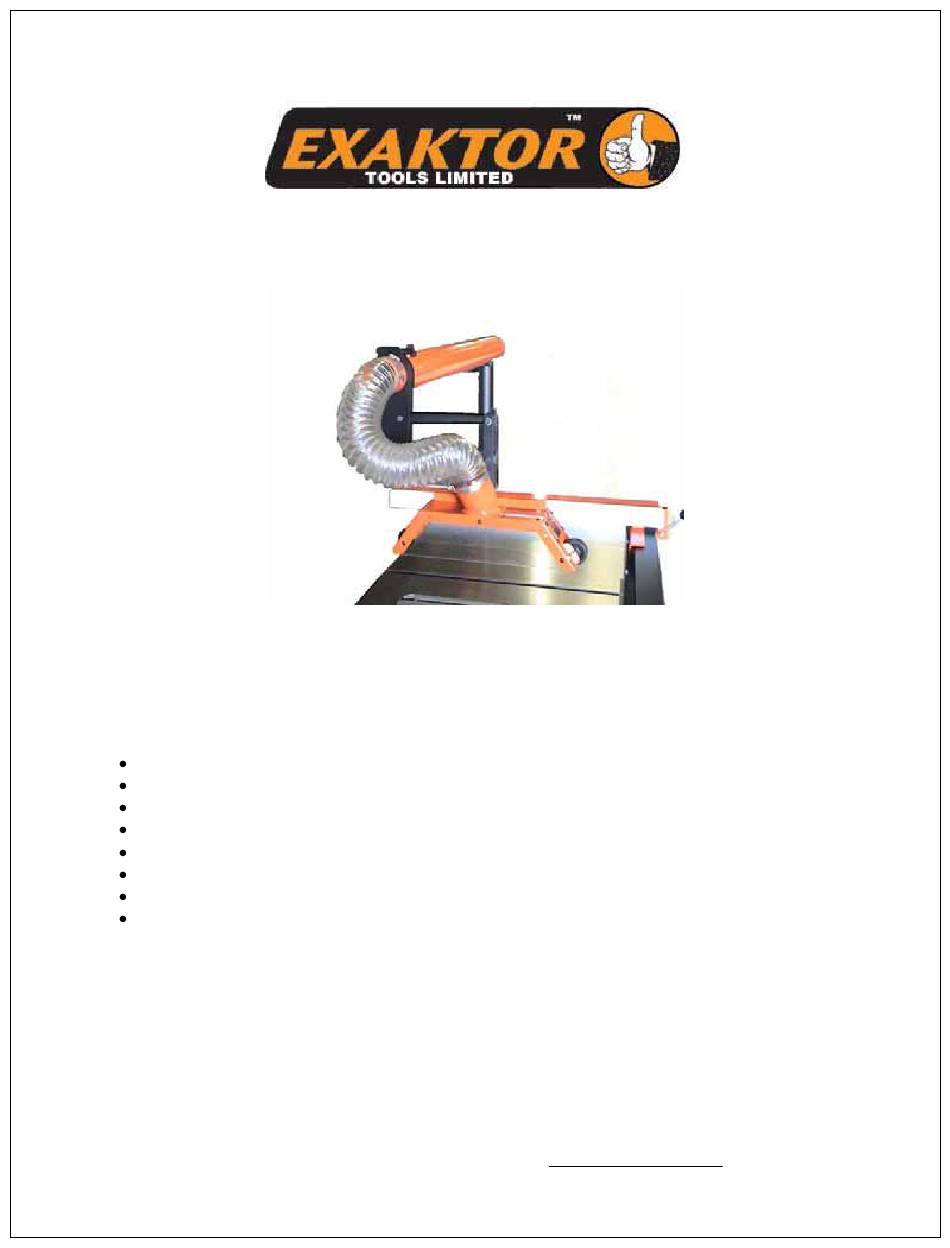

BLADE COVER/DUST COLLECTOR
Thank you for choosing the EXAKTOR
as a perfect upgrade for most contractor and cabinet-style table saws whose operators want to
eliminate dust thrown in the air by the saw's revolving saw blade.
®
The EXAKTOR
EXOA-2 Blade Cover provides you with the following benefits:
Complete with built-in dust collection capability and a four-inch hose connection.
The horizontal Boom is telescopic to suit table saws with up to 70" rip capacity.
The Guard Basket, Suspension and Boom have minimized weight for easy removal.
All metal parts have a baked-on powder coat paint surface for durability.
Quick Release Levers for removal and/or attachment of the mast to the saw table.
Counterbalance is located at the rear of the blade cover, out of your line of sight.
Two Rollers position the blade cover at the precise height above the work being processed.
The blade cover has shatterproof lens allowing for complete visibility of the saw blade.
Prior to installing the EXAKTOR
manual and then familiarize yourself with the parts that are used in its assembly. If you have
questions or if you feel there are parts of this manual that need clarification, you are encouraged
to let us know.
326 Watline Avenue
Mississauga, Ontario L4Z 1X2
Canada
Tel: 905-568-4459
Fax: 905-568-4059
EXOA-2
®
EXOA-2 Blade Cover. It has been designed to function
®
Blade Cover/ Dust Collector please take the time to read this
You can contact EXAKTOR Tools Ltd
210 South Eighth Street
Lewiston, New York 14092
USA
Tel: 800-387-9789
info.exaktortools.com
1/13/2005
(34100)
RTD10000404AA
1
Advertisement
Table of Contents
Summary of Contents for EXAKTOR EXOA-2
- Page 1 ® Thank you for choosing the EXAKTOR EXOA-2 Blade Cover. It has been designed to function as a perfect upgrade for most contractor and cabinet-style table saws whose operators want to eliminate dust thrown in the air by the saw’s revolving saw blade.
- Page 2 The EXOA-2 features a counter-balanced Guard Basket that accommodates saw blades up to 16” in diameter, raised up to 4” above the table and tilted for cuts to 45 degrees. You can be quickly position the Guard Basket to suit the saw blade and the material being cut, and it is equipped to accommodate the splitter and anti-kick-back pawls that are installed on your table saw.
- Page 3 Ask for help first. These safety rules do not cover every situation in a workshop. ® Consider your conditions when using your EXAKTOR Blade Cover. WARNING: NO PART OF THIS MANUAL MAY BE REPRODUCED IN ANY FORM WITHOUT THE WRITTEN APPROVAL OF EXAKTOR ®...
- Page 4 1/13/2005 Specifications: Height of boom above the floor………………………56” Height of boom above the saw table …………………20” Length of telescopic aluminum boom .….……………min 49” to max 80” Diameter of main boom tube …..……………………..4” Diameter of inner boom tube ……………..…………..3½” Guard Basket dimensions ..……………………………18½” x 4” x 4½” high Clearance between guard basket and saw table………..7”...
- Page 5 1/13/2005 EXOA-2 VIEW OVERALL...
-
Page 6: Installation
1/13/2005 ® EXAKTOR EXOA-2 BLADE COVER DUST COLLECTOR Installation ® The EXAKTOR BladeCover/Dust Collector has been designed to fit most table saws with its vertical Mast installed at either the right or left hand side of the machine. In most cases the vertical mast will be installed at the right hand end of the saw’s table or table extension, close to the rear edge of the table. -
Page 7: Boom Assembly
1/13/2005 Boom Assembly 7. There are two ” holes 6” apart, in the Large Note: Thermoplastic and UHMW spacers are Boom Tube for attaching the Boom Saddle (#9). used in the telescopic boom assembly. Their Push the Small Boom Tube out through the Large purpose is to provide a smooth bearing surface Boom Tube to gain access to these two ”... - Page 8 1/13/2005 Guard Basket Assembly 12. Position the large Roller Wheel (#41) at the front end of the Guard Basket and attach it with a ¼-20 x1-1/4” Shoulder Bolt (#6) and 10-24 Ny-Lock Nut (#44) with a 6mm washer (#19) placed under the head of the Bolt and under the Ny-Lock Nut.
-
Page 9: Suspension Assembly
1/13/2005 Suspension Assembly 17. Secure the forward end of the Short Arm (#26) to the middle of the Vertical Arm (#27) 15. Use -18 x 1¼” Shoulder Bolts (#31) and with a -18 x 1¼”Shoulder Bolt (#31) and -18 Ny-Lock Nuts (#40) to secure the rear end 18 TPI Ny-Lock Nut (#40). - Page 10 (#30) with ¼-20x3½” Carriage Bolt (#39). their table saw with the EXOA-2 Blade Cover remaining attached to the saw. The plate at the bottom 22. Use a Hose Clamp (#24) to secure the open end of...
- Page 11 1/13/2005 Parts for EXOA-2 Mast & Boom Assembly Part# Description Part# Description Qty. OA32 Counter Weight OA01 Lower Mast OA33 Star Washer ” OA02 Upper Mast OA34 End Caps OA03 T-Knob OA35 Locking Lever ¼ -20 x ” ¼-20 x ”...
-
Page 12: For Customer Service
EXAKTOR ® Numbers The Exaktor Solutions Center is our one-stop resource for all of your Exaktor tool needs. You can download the latest Assembly Manuals, read FAQ’s and trouble- shooting tips. Visit us at: http://solutions.exaktortools.com For Customer Service 1-800-597-1343 (Voice –... - Page 13 Product properly packaged, freight prepaid, to Exaktor’s Service Center together with a photocopy of your bill of sale. What Exaktor will do: Exaktor will evaluate your report of a possible defect to determine whether a defect exists, and if it does exist, Exaktor will repair or (at Exaktor’s option) replace the Product with a product that performs the same functions and...
