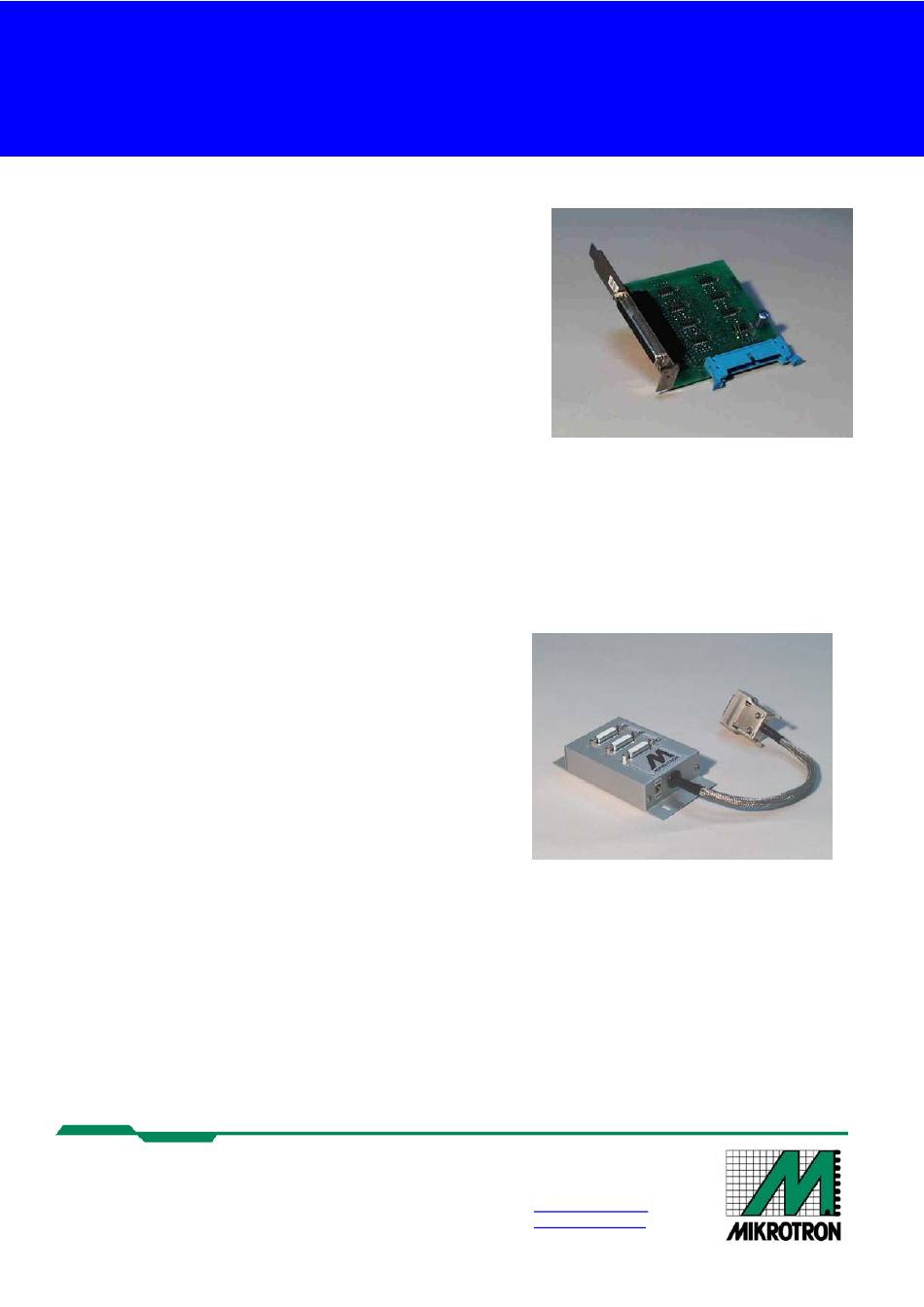

Mikrotron B422A Quick Start Manual

Mikrotron Frame Grabber Accessories
Digital Camera Interface and Multiplexer
B422A - 24-Bit - RS422/644 - Digital - Camera Interface
to 50 MHz
The B422A – 24-Bit RS422/644 digital camera interface has all the low-
voltage differential line receivers for three b/w or one RGB colour camera.
A flat-cable connects the B422A with the INSPECTA-3 frame grabber. A
62-pin HD-SUB-D-connector provides differential inputs for 8, 10 to 16, or
24 bit cameras. Signal levels are RS-644 compatible. Therefore both
standard RS-422-cameras and high speed cameras with up to 50 MHz can
be used. Four camera control outputs are used for specific camera features
as asynchronous shutter or long time integration. The 62-pin HD-D-SUB-D
-connector case has the same size as the conventional 37pin connector.
RGB-cameras with 24-bit can now be connected with a single connector.
B454 - 32 Bit - RS - 422/644 - Digital - Camera Interface up to 40 MHz
The Adapter has as well the B422A digital-camerainterface a 62-pin HD-SUB-D-camera connector. Four additional 37 pin SUB-
D-connectors on four PC-brackets are used for 8 bit digital cameras.

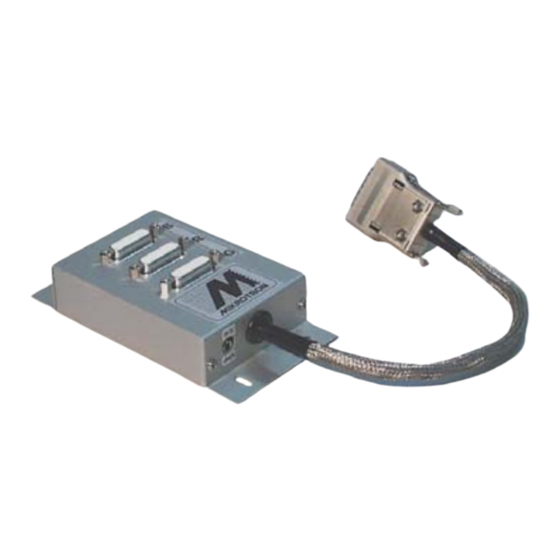

B408 – Break - Out Box for INSPECTA-3 Frame
Grabber
The INSPECTA has inputs for six analog cameras via two 15 pin SUB-D
connectors. Often the connection of multiple cameras with one single
connector is not practicable. The Break-out box B408 extends three video
channels to three single 15 pin SUB-D connectors, so that each camera
has its own connector. To connect more than three cameras, use two
B408. The max. power consumption of the connected cameras app. 1.2A.
Technical data :
•
L x W x H = 100 x 70 x 20 mm
•
Lenght of cable app. 300 mm
•
Connectors: 3 x 15-pin. SUB-D
up
Mikrotron GmbH
Landshuter Str. 20-22
D-85716 Unterschleissheim
Germany
Tel.: +49 (0) 89-72 63 42-00
Fax: +49 (0) 89-72 63 42-99
info@mikrotron.de
www.mikrotron.de
