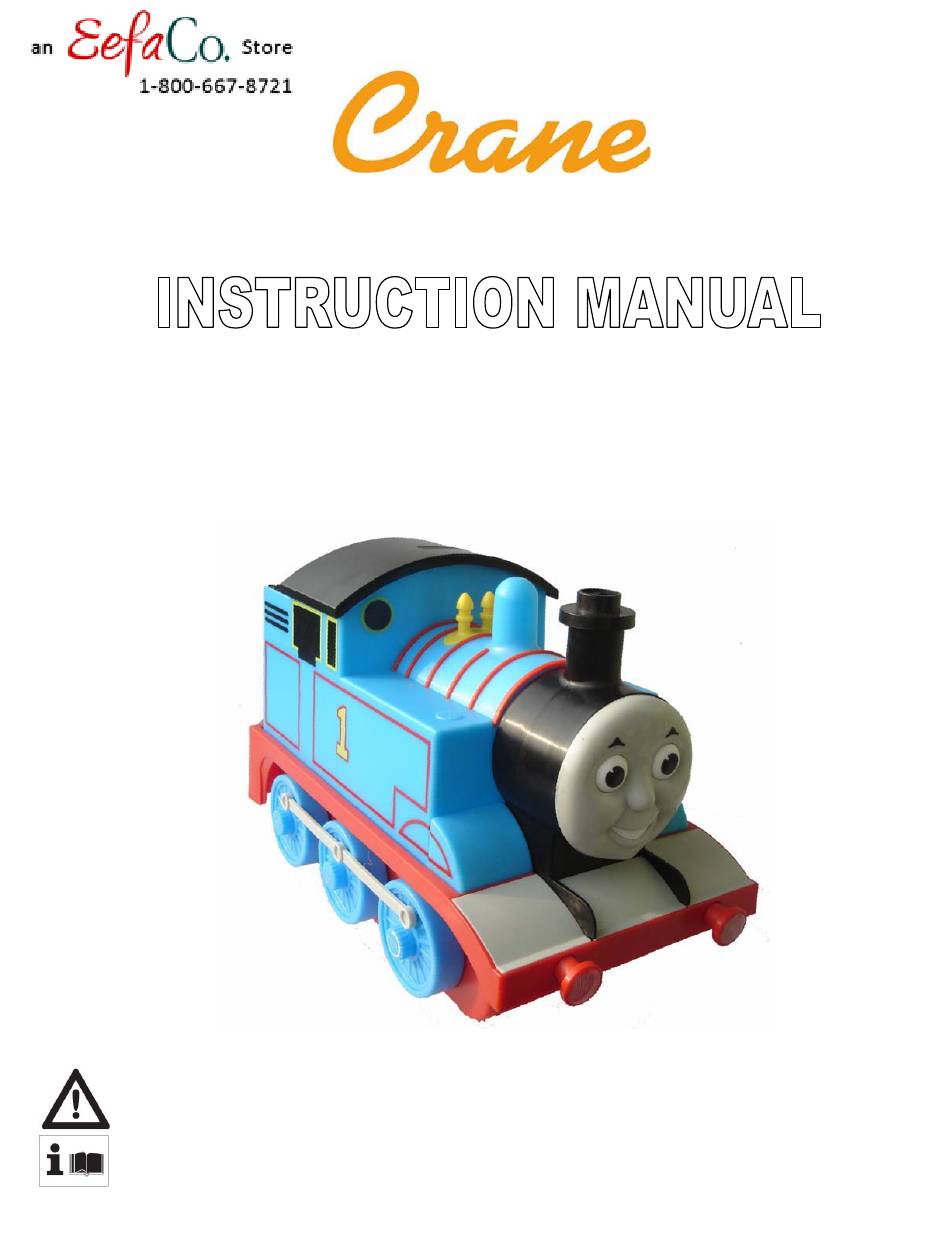

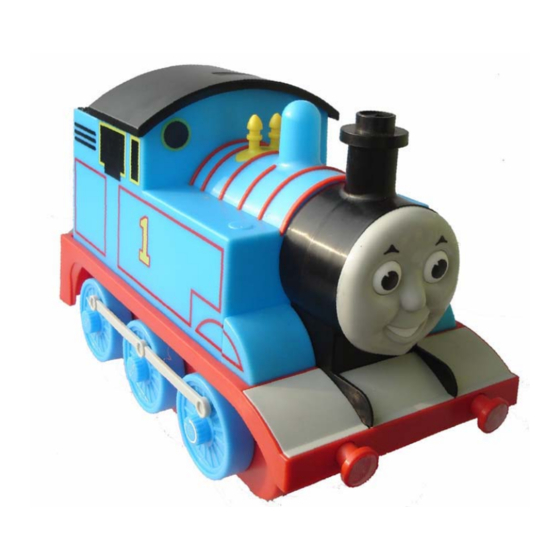

- Page 1 Adorable Humidifiers 1 GALLON/ 3.78 LITER ULTRASONIC HUMIDIFIER MODEL # EE-4094 PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS APPLIANCE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Important Safety Instructions P. 2 General Safety Instructions List of Main Parts Tech. Specifications, Contents of Packaging Operation and Use P.5-8 Maintenance P.8-10 Trouble Shooting P.10 Service Center P.11 Warranty Information P.12 Warranty Card P.14... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION Thank you for purchasing our CRANE Ultrasonic Humidifier. Each unit has been manufactured to ensure safety and reliability. Before using the humidifier for the first time, please read the instructions carefully, and keep them for further reference WARNING! READ AND SAVE THESE INSTRUCTIONS. -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire or serious personal injury. The warnings, cautions, and instruction discussed in this instruction manual cannot cover all possible conditions and situations that may occur. -
Page 5: List Of Main Parts
LIST OF MAIN PARTS PARTS DESCRIPTION Fig. 1 (Central Body) 1. Night Light Switch 2. On/Off Switch 3. Power Cord 4. Regulator Control Knob 5. Front Red/Green Power Light 6. Rear Red/Green Power Light Fig. 1 Fig. 2 (Top of Humidifier) 7. -
Page 6: Operation And Use
TECHNICAL SPECIFICATIONS: Rating Voltage 120V Frequency 60Hz Power Water Tank Capacity Approx. 1.0 Gallon / 3.78 Liter Output Per 24 Hours Approx. 2.1 Gallon / 8 Liter Run Time Per Tank Min. 11 Hours Humidifying Capacity Up to 500 sq.ft. / 46 m2 Noise <... - Page 7 ASSEMBLY 1. Lift the water tank off the central body. 2. Turn over the water tank and unscrew the water tank cap at the bottom of the tank by turning it counterclockwise. (See Fig. 5) Fig. 5 3. Fill water tank with cold water; do not fill all the way to the rim.
- Page 8 INSERTING HUMIDIFIER FILTER (SOLD SEPARATELY not included with your humidifier) A humidifier filter is an optional accessory for your Crane Cool Mist Humidifier. Filters are used to eliminate white dust caused by hard water and to reduce mold spores and bacteria that can build up in your humidifier.
-
Page 9: Maintenance
A NOTE ABOUT HUMIDITY It is best to keep the humidity level at about 30-50 percent of relative humidity. The comfort level of humidity will vary from room to room and with changing room conditions. In cold weather, windows and even some walls may fog or develop frost from excessive indoor humidity. - Page 10 GENERAL MAINTENANCE AND CLEANING Before any cleaning operation, switch the humidifier off and unplug it. 1. Always unplug the unit before cleaning. 2. The humidifier must be drained and cleaned before storing. 3. Once unplugged the exterior of the unit may be cleaned by wiping with a dry cloth. Caution: The ON/OFF switch must be thoroughly dry before unit is again plugged into power source.
-
Page 11: Trouble Shooting
Empty the humidifier and rinse the water basin with cool tap water and allow to dry for 15 to 30 min. White dust appears settles Area water have many outside the humidifier: minerals, change to filtered or distilled water. Crane filter cartridge eliminate... - Page 12 ENVIRONMENTAL PROTECTION If the appliance should no longer work at all, please make sure that it is disposed in an environmentally friendly way, by handing it into a public collection point. Please do not put it with your household waste.
