FrameCo

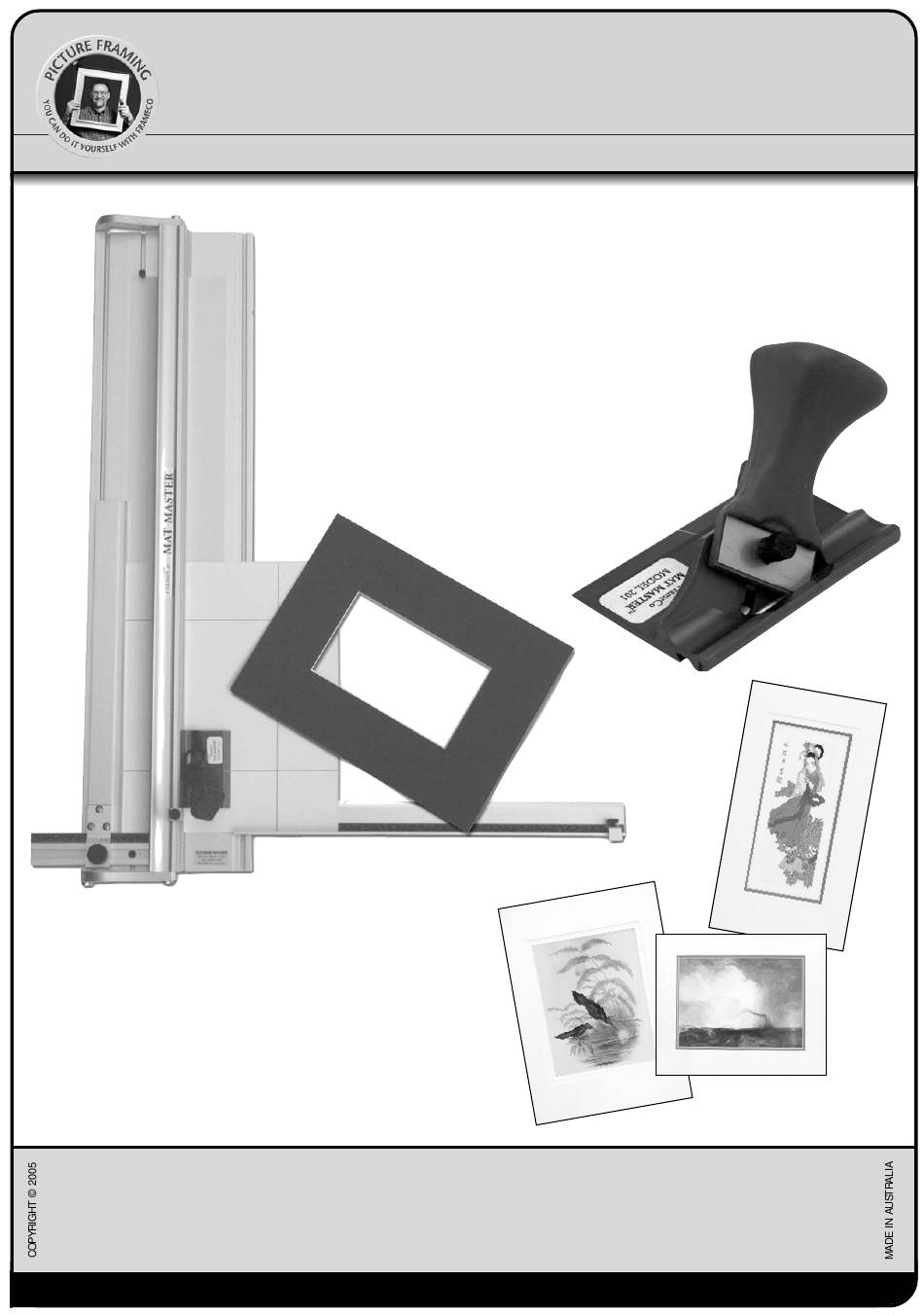

MAT MASTER
#14225
OWNERS MANUAL & OPERATING INSTRUCTIONS
Mat Master™ 560B System
Mat Master™ 860B System
Mat Master™ 1060B System
Mat Master™ 1260B System
Mat Master™ 1660B System
FrameCo - Australia
10 Monomeeth Drive
Mitcham VIC 3132
Freecall: 1800 033 619
Ph: +613 9872 3600
Email: frame@frameco.com.au
Welcome and thank you for purchasing a FrameCo Mat Master System.
Through these instructions we will endeavour to show you the benefits of
the system and how easy it is for you to cut and decorate your own mounts.
FrameCo - U.K.
4 Pauls Hill, Penn,
Bucks UK HP10 8NZ
Freecall: 0800 389 0767
Ph: 01494 816 397
Email: info@clubframeco.co.uk
www.clubframeco.com
SYSTEMS
TM
BEVEL MOUNT CUTTERS
FrameCo - U.S.A.
3850 Ramada Drive D-1
Paso Robles, CA, USA 93446
Freecall: 800 682 1222
Ph: 805 434 0912
Email: info@frameco-usa.com
Advertisement
Related Manuals for FrameCo Mat Master 560B System
Summary of Contents for FrameCo Mat Master 560B System
- Page 1 #14225 BEVEL MOUNT CUTTERS Welcome and thank you for purchasing a FrameCo Mat Master System. Through these instructions we will endeavour to show you the benefits of the system and how easy it is for you to cut and decorate your own mounts.
-
Page 2: Schematic Diagram
Schematic Diagram Arm Hinge Anodised Extruded Aluminum Base Slip Mat Stop Slip Mat Bevel Cutting Head Hinged Cutting Rail Production Stop Border Width Arm Right Squaring Arm (not included in 560B) Border Width Gauge Arm Hinge Measuring stop Setting up the Squaring Arm The Cutter can be used without installing the Right squaring Arm. - Page 3 Block option allows you to make these settings easily for double and require. With the FrameCo Speed Stop it is easy to have single mats. The blocks are in metric and imperial sizes and have sides accurate and repeatable settings everytime. The pin holes are of different widths.
- Page 4 Cutter Arm consists of a swivel point, calibrated scale and turning handle. The kit includes all the fittings to attach the FrameCo #201 Bevel Cutter, for cutting bevelled circles and arcs. Attachments are also available to mount a pencil or coloured pen and the GrooveMaster for making circular V-Grooves.
- Page 5 Wear Strip Mat Master #101 Straight Cutter Our standard pull style cutter is included with all FrameCo board mounted cutters. Finger Grip Consists of three blade depth positions. Top hole position for storage and safety. Middle position, the blade is set to cut standard mat board. The...
- Page 6 Marking Out the Mount 1. Set the Border Width Gauge to the 60mm mark. Place the mount under the hinged cutting rail and align it up against the Border Width Arm. 2. Draw a line from top to bottom using a 2H pencil. 3.
-
Page 7: Maintenance
Cleaning - Keep your cutter clean and dust free. Clean the base with a solvent such as methylated spirits or lighter fluid. Do not oil the guide rail or the cutting head. FrameCo makes a dust cover for the cutters which will keep them dust free. -
Page 8: Cutting Position
Changing & Adjusting the Blade Depth Changes to the Depth Adjustment Screw moves the depth stop.. ie the blade travels further. It does not actually lower the blade. 1. The blade is held in place with one central screw. 2. Release and remove the used blade by removing the central screw. The blades are packed in packs of 5 and can be used both ends. - Page 9 Cutting a Double Mount A Double or Triple Mat on an image will add more interest to the design of your framing. By choosing colours that compliment the picture, the image will be enhanced and become sharper. These colours will also help lead the eye from the frame into the picture, which is top mount the central focus.
- Page 10 GrooveMaster™ V-Grooving with GrooveMaster™ GrooveMaster™ is a revolutionary new hand tool for cutting decorative V- Grooves into all types of picture framing mount board. V-Grooves add a stylish look to all your framing. It is that creative touch that gives your picture a professional finish. Marking out the Mount 1.
-
Page 11: Changing Blades
Changing Blades Blades need to be changed once they have lost their sharp edge. We have noticed that the waste cut out strip curls up more, once the blades lose their sharpness. So change the blade once this starts to occur. The correct setting of the blades is critical for successful v-groove cutting. - Page 12 FrameCo - Australia FrameCo - U.K. FrameCo - U.S.A. 10 Monomeeth Drive 4 Pauls Hill, Penn, 3850 Ramada Drive D-1 Mitcham VIC 3132 Bucks UK HP10 8NZ Paso Robles, CA, USA 93446 Freecall: 1800 033 619 Freecall: 0800 389 0767...
