PreCise MRM
Air & Road Conditions (ARC)

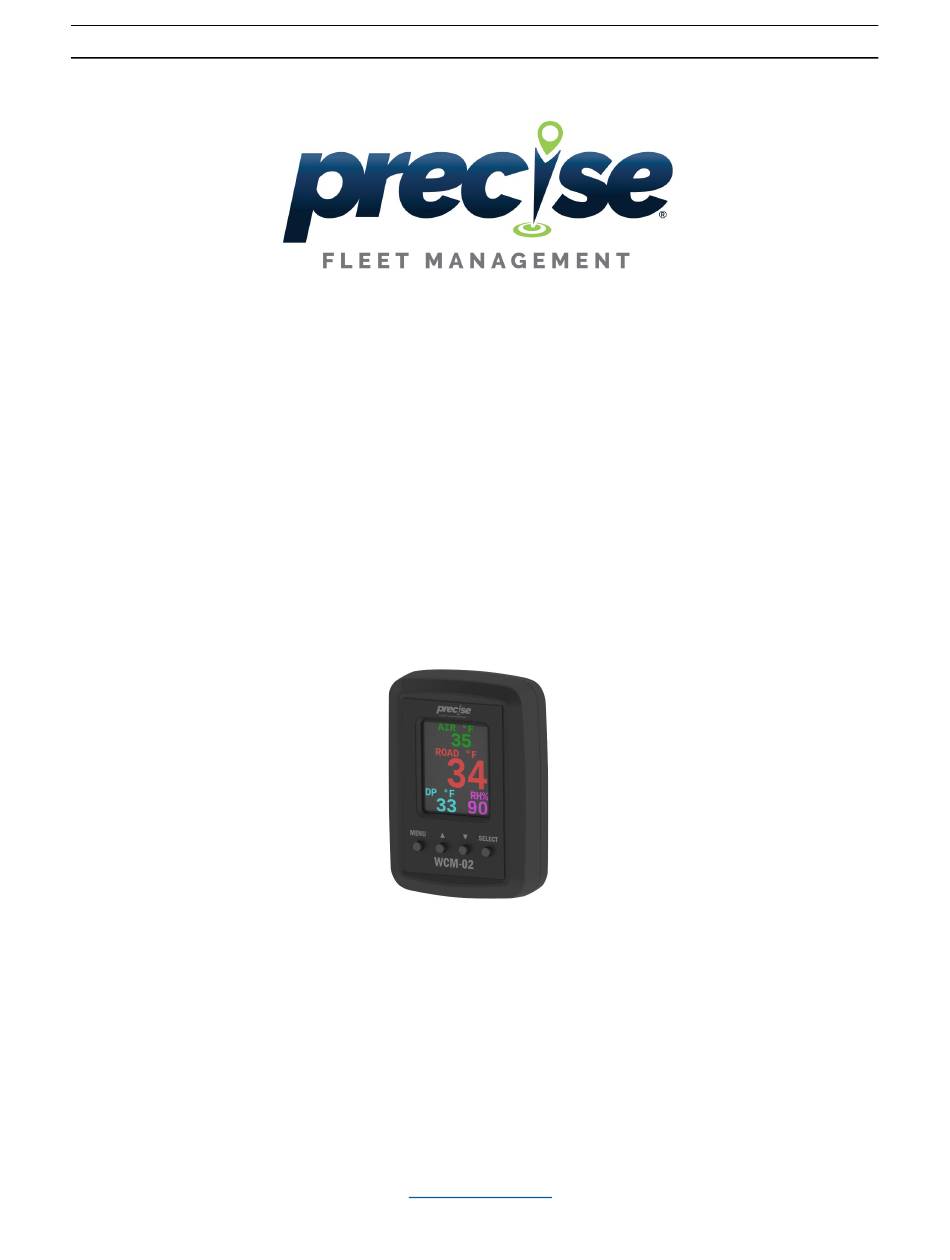

WCM-02 Installation and Operation Manual
Product Description

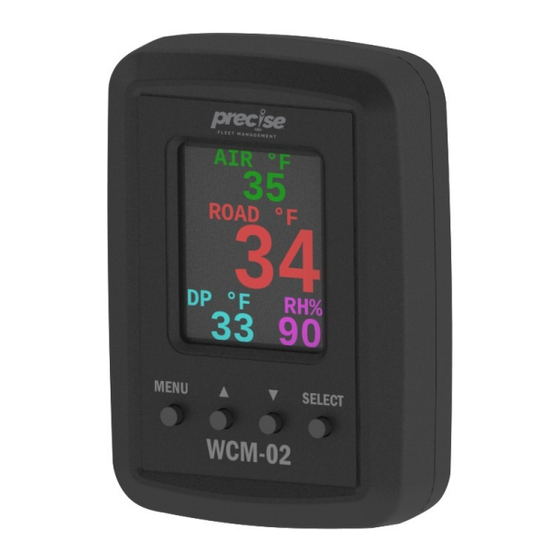

The PreCise
®
ARC System, WCM-02, is a remote in-cab display designed to connect to
a wired or wireless ARC sensor. The display collects accurate road and air conditions
information from the sensors and presents the information to the user on an intuitive,
easy-to-read screen. Easily view and collect data critical to decision making including
relative humidity, dew point, air temperature and road temperature.
Features
• Sunlight readable, full color display
• Backlight: User selectable and auto-dimming
• Display Units: °C or °F, User selectable
• Update Frequency: 1 to 60 seconds, User selectable
• Power: 9.8V-32V vehicle power
• Serial Interfaces: RS-232, SAE J-1708, CAN
1311 East Franklin Road, Suite 102
Meridian, Idaho 83642
Support: 1-888-254-1634
www.PreCiseMRM.com
a subsidiary of FORCE America
p. 1 of 14
Installation and Operation Manual
WCM-02
WCM-02C
Copyright 2017
Sales: 1-888-449-0357
Advertisement
Summary of Contents for PreCise WCM-02
- Page 1 The PreCise ® ARC System, WCM-02, is a remote in-cab display designed to connect to a wired or wireless ARC sensor. The display collects accurate road and air conditions information from the sensors and presents the information to the user on an intuitive, easy-to-read screen.
-
Page 2: Warnings And Cautions
PreCise MRM Installation and Operation Manual WCM-02 Warnings & Cautions • Read and follow all safety rules and instructions before installing or operating this equipment. Never operate a vehicle within a closed area. Always assure proper ventilation before starting •... -
Page 3: Installation Instructions
Electrical Connections The WCM-02 is designed to operate from switched 9.8-32Vdc power. It should typically be connected to the ignition signal so that the display is on when the vehicle is running, and off otherwise. - Page 4 PreCise MRM Installation and Operation Manual WCM-02 Figure 1: Wiring for WTS-01 Figure 2: Wiring for TS-01 1311 East Franklin Road, Suite 102 www.PreCiseMRM.com WCM-02C a subsidiary of FORCE America Copyright 2017 Meridian, Idaho 83642 Support: 1-888-254-1634 Sales: 1-888-449-0357 p. 4 of 14...
- Page 5 6 of the IX-101-H connector. The white wire should be inserted in position 7. DB-9 Figure 3: Connections for IX-101 For questions regarding installation or operation, please contact PreCise Support at 888-254-1634 during normal business hours (7AM-6PM Mountain Time, Monday-Friday) or support@precisemrm.com.
- Page 6 PreCise MRM Installation and Operation Manual WCM-02 Main Display Display Options Pairing Sensor to Display The first time a sensor and display are installed or if either is replaced, they will need to be paired. • Hit the MENU button.
- Page 7 PreCise MRM Installation and Operation Manual WCM-02 • Hit the SELECT button. • With “Scan sensors” underlined, hit SELECT again. • While the display shows “Scanning” install the battery in the sensor or tap it a few times to wake it up. If you are pairing to a wired sensor, it will transmit as long as it has power.
-
Page 8: Brightness Control
PreCise MRM Installation and Operation Manual WCM-02 frostpoint) and relative humidity. Note that it could take up to a couple of minutes before data from a wireless sensor appears. Brightness Control The brightness of the display can be controlled in a few ways. Even after power is removed from the display, it will remember the last setting. - Page 9 PreCise MRM Installation and Operation Manual WCM-02 Units Configuration (°F or °C) Once the configuration is selected, the setting is saved until the next time it is changed. • Hit the MENU button. • Use the UP (▲) and DOWN (▼) buttons to underline “Configuration”.
- Page 10 WCM-02 Signal Strength This screen shows the relative strength of the wireless signal that the WCM-02 is receiving from the sensor. The signal strength can range from 1 to 255. The higher the number, the better, but even a low value will be sufficient as long as the signal is received consistently. This screen can be used to evaluate the physical placement of both the WCM-02 and the temperature sensor.
- Page 11 The time between temperature and humidity readings being sent from the wireless sensor (WTS-01) to the WCM-02 display is controlled with this setting. The wired sensor (TS-01) will report every second, regardless of this setting. Once the interval is selected, the setting is saved until the next time it is changed.
- Page 12 PreCise MRM Installation and Operation Manual WCM-02 Accel Settings The wireless sensor (WTS-01) will “wake up” and determine if its paired display is on, based on sensing movement via the built-in accelerometer and periodically based on the wake interval. The wired sensor (TS-01) does not have an accelerometer. This screen will show the latest accelerometer readings in each axis, as well as the peak readings.
- Page 13 PreCise MRM Installation and Operation Manual WCM-02 Wake Interval The wireless sensor (WTS-01) will “wake up” and determine if its paired display is on, based on sensing movement via the built-in accelerometer and periodically based on the wake interval. The wired sensor (TS-01) will report as long as it has power, regardless of this setting.
- Page 14 PreCise MRM Installation and Operation Manual WCM-02 Accel Threshold The wireless sensor (WTS-01) will “wake up” and determine if its paired display is on, based on sensing movement via the built-in accelerometer and periodically based on the wake interval. The wired sensor (TS-01) does not have an accelerometer. If the accelerometer detects movement above the threshold setting, it will wake the sensor.
- Page 15 PreCise MRM Installation and Operation Manual WCM-02 MANUFACTURER LIMITED WARRANTY AND LIMITATION OF LIABILITY Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer's published specifications for the product, which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and workmanship.
