Summary of Contents for Spidertracks Spider X Keypad

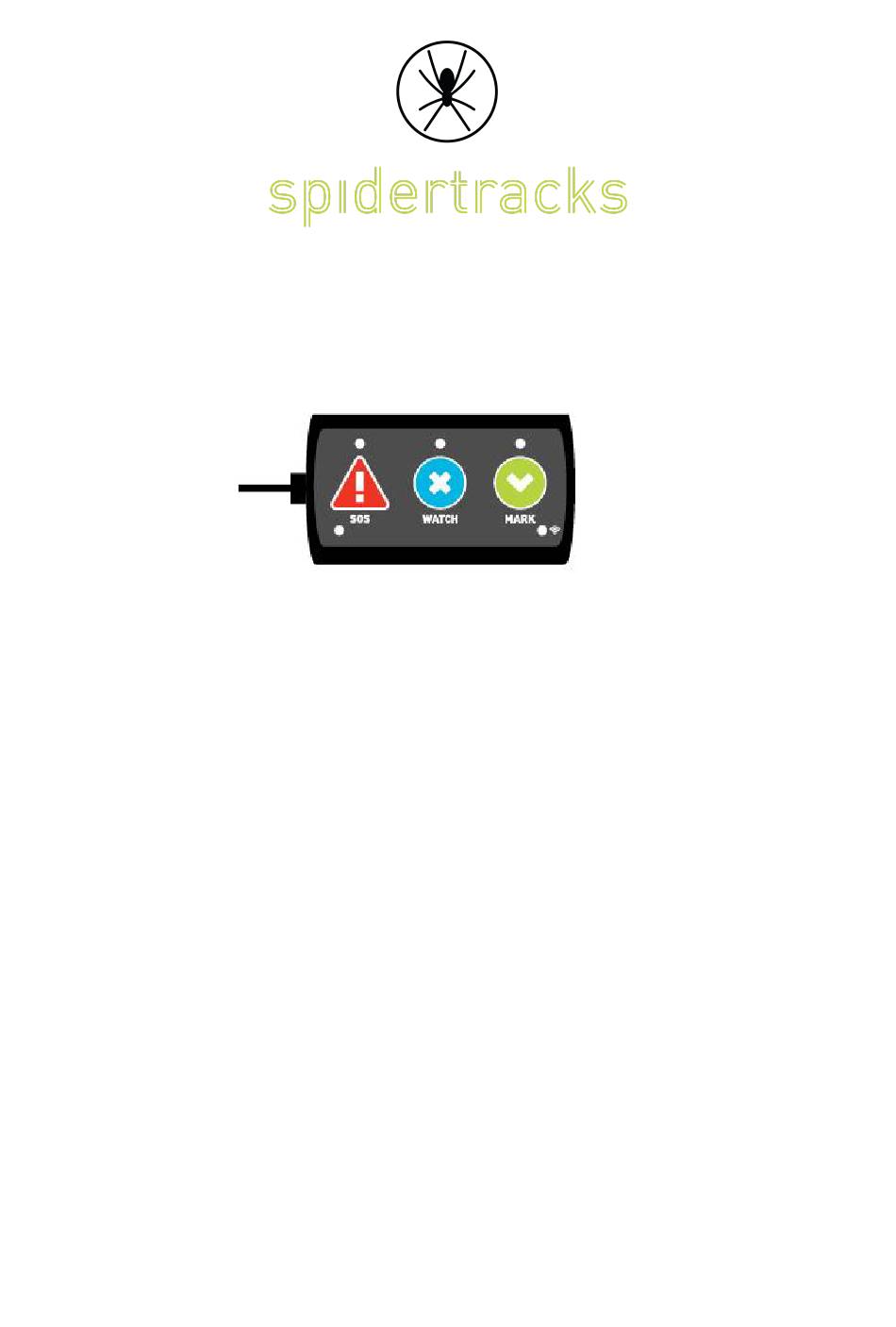

- Page 1 USER MANUAL Spider X Keypad Revision 1.1, 18 May 2021...
- Page 2 Installation must be completed by a suitably qualified person (check your local regulatory requirements). Refer all servicing to Spidertracks qualified service personnel. Servicing is required when the apparatus has been damaged in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the...
-
Page 3: Table Of Contents
Contents 1. Getting Started 1.1 Overview 1.2 What's in the box? 2. Install 2.1 Connect 2.2 Locate 2.3 Mount 3. Use 3.1 Status Lights 3.2 Mark 3.3 Watch 3.4 SOS 4. Help 4.1 Contact 4.2 Warranty 4.3 Disposal and Returns 5. -
Page 4: Getting Started
Getting Started 1.1 Overview The Spider X Keypad has the following key features: ● SOS - Button to send an SOS alert. ● Mark - Button to send preset mark notifications. ● Watch - Button to activate the Watch feature. -
Page 5: Install
Install 2.1 Connect The keypad is fitted in line with the Spider X power lead. For each end, insert the mating cable connector and screw finger tight. A. Connect to Spider X power input. B. Connect to Spider X power lead (2000PWR102 or 2000PWR105). 2.2 Locate Find a location for the Keypad where the pilot or crew are able to reach the buttons during flight. -
Page 6: Mount
2.3 Mount The keypad is supplied with a detachable mounting bracket. Choose one of the mounting options below. Adhesive tape Fasteners A. The adhesive tape can only be The keypad has two mounting holes applied once. suitable for M3 fasteners or similar. B. -
Page 7: Use
3.1 Status Lights Status LED No power Amber flashing Disconnected or unable to communicate with Spider Amber No satellite connection, can take up to 5 minutes to connect Green Satellite connection OK SOS LED SOS inactive Red flashing Spider sending SOS SOS active Watch LED Watch inactive... -
Page 8: Mark
3.2 Mark The Mark button allows the operator to send up to four preset messages to contacts within your organisation. See https://support.spidertracks.com/ for instructions on setting up notifications. Press Mark the number of times for the message required e.g. Three times for ‘Mark 3 message’. -
Page 9: Help
Help 4.1 Contact For service and support: Support Documentation: https://support.spidertracks.com Email: support@spidertracks.com Phone: Australia +61 1800 461 776 Canada +1 800 491 2895 Mexico +52 55 4169 3149 New Zealand +64 9 222 0016 South Africa +27 87 550 3970... -
Page 10: Warranty
(RMA) will be issued. Spidertracks will replace your Spider X Keypad with a new or refurbished Spider X Keypad. You are responsible for all return shipping costs of the device under RMA. Any attempt to repair or open the device, water damage, or physical damage beyond normal wear and tear will void the warranty. -
Page 11: Specifications
Specifications Part number 8000SX102 Keypad 70 mm x 42 mm x 25 mm Dimensions (2.76“ x 1.65“ x 1.18“) Weight 300 g (10.6 Oz) Length 2 m (6’ 6.75”) Interfaces M8 4-pin Male - connection only to Spider X Power lead (2000PWR102 or 2000PWR105) M8 4-pin Female - connection only to Spider X (6000SX) Power...
