BRUNDLE APSW Quick Start Manual

APSW HYDRAULIC GATE CLOSER - BOLT ON

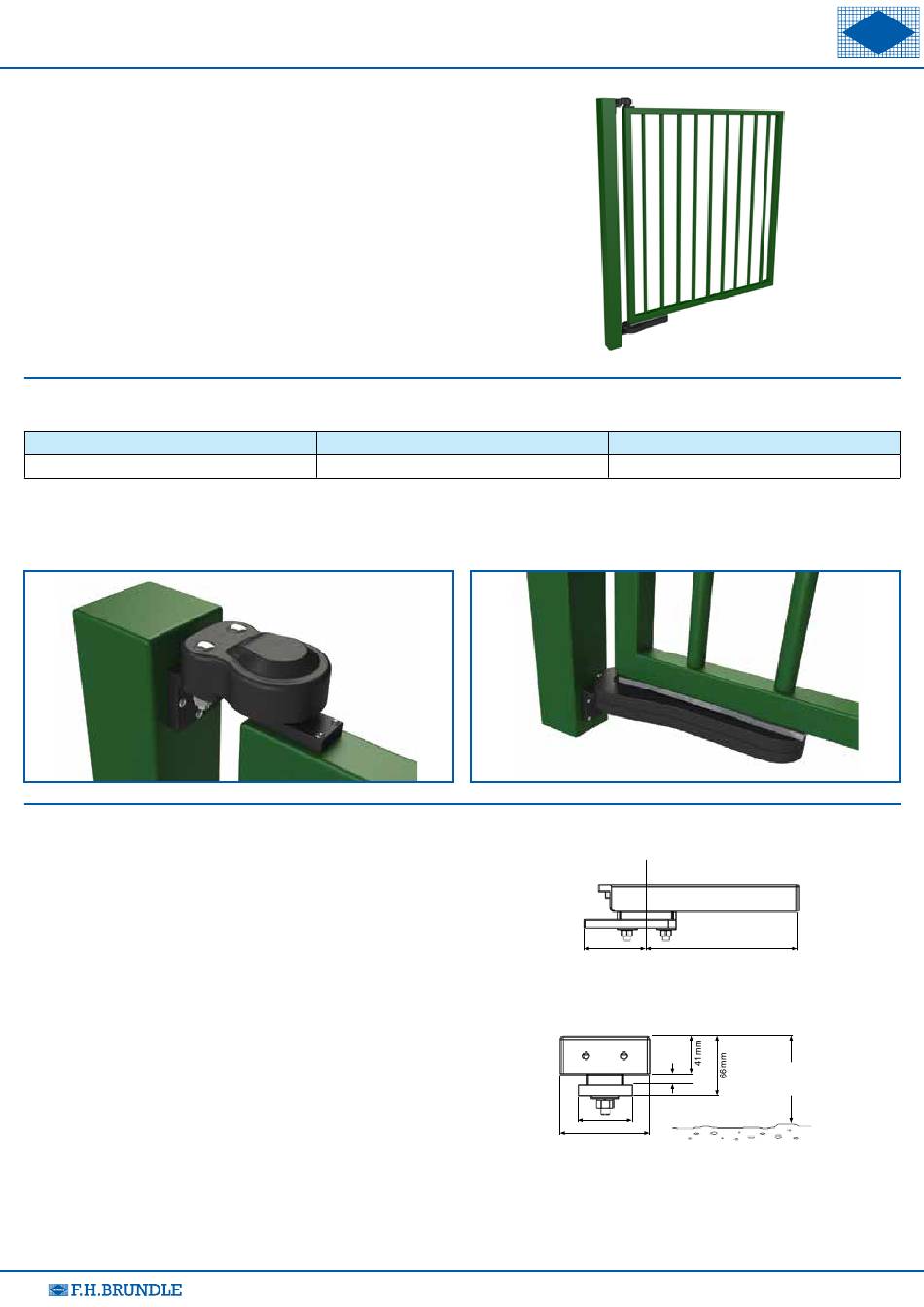

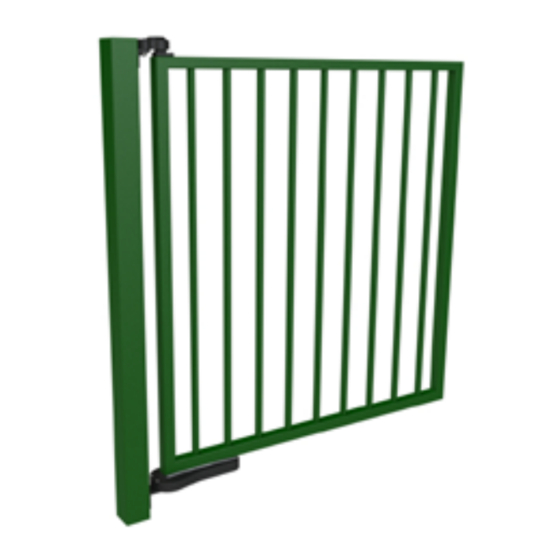

• The APSW closer and top hinge kit is specifically designed for
incorporating into gates for safe, reliable self closing
• Suitable for gates up to 150kg, no power required.
• Fully adjustable ROSPA compliant closing speed with closing
and latching speed adjustments
• The robust closer unit is fitted underneath the gate and also
acts as a load-bearing lower hinge. Fitted in this position the
closer is unobtrusive and highly vandal resistant.
• The kit includes a top hinge assembly which is fully adjustable
to enable the gate to be positioned correctly after installation

PRODUCT DETAILS

Description
Hydraulic gate closer
Fully adjustable unit.
TOP HINGE

INSTALLATION

1. Remove the closer from the steel case and weld the case
to the underside of the gate ensuring that when installed
the closer pivot will be vertically in line with the top hinge
spigot
2. Remove the two self-colour post brackets and weld them
to the gate post. Ensure that there will be sufficient clear-
ance between the closer and the finished ground surface
to enable the speed control valves to be adjusted using the
key supplied. Incorporate the top hinge spigot into the gate
frame near the top
3. Once the gate is painted or galvanised the components
can be assembled onto it and the gate lowered onto and
secured to the lower bracket. The top hinge can then be
assembled and adjusted to align the gate correctly. If using
the standard APS closer, please ensure that a separate
gate stop is fitted to prevent the gate being opened more
than 100˚.

MAINTENANCE

The top hinge should be kept lubricated with a suitable grease. The closer and bottom hinge require no maintenance.
Maximum Gate Weight kg
150
Code
05GC05W
BOTTOM HINGE
Centre line
of hinge
95mm 233mm
Minimum height to
12mm ground level
60mm
99mm
BRUNDLE
100mm
