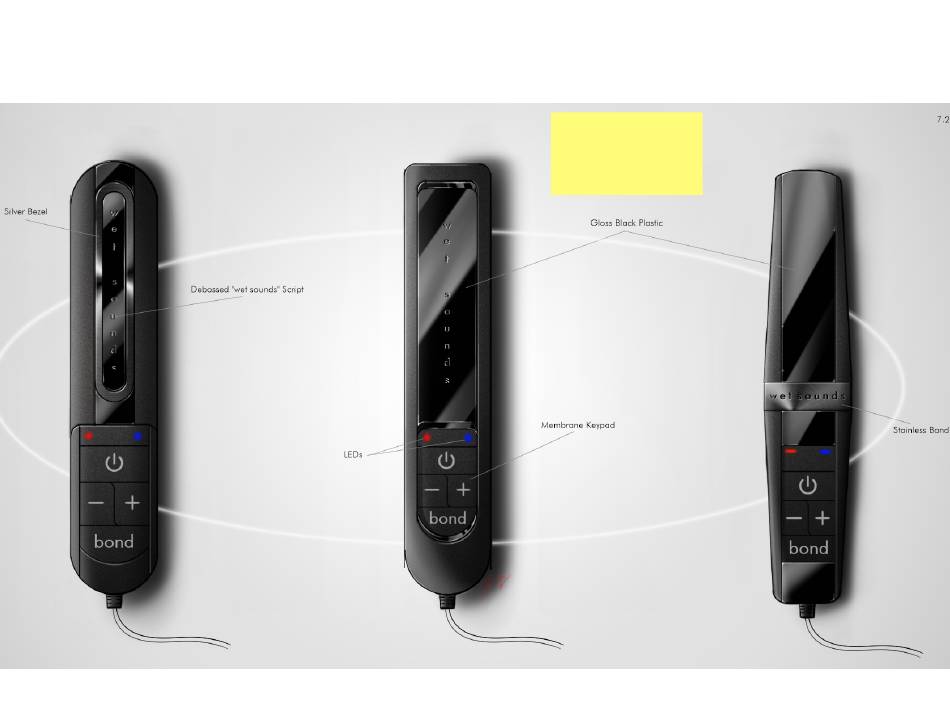

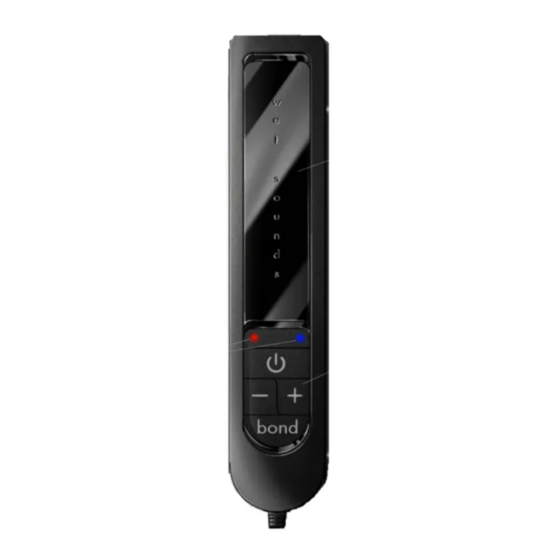

- Page 1 Wet Sounds A-Link Mk2 Preliminary ID concepts provided by Wet Sounds Eleven Engineering Inc. 072519 Note: no metal parts allowed in top half of product (the antenna region)
- Page 2 Wet Sounds A-Link Mk2 Mech Overview No metal parts Eleven Engineering Inc. 28 mm 19 mm allowed in top half 072519 of product (the antenna region) Side View Motherboard and FE Front View antenna (FE Antenna in upper section) Windshield mount...
- Page 3 Wet Sounds A-Link Mk2 Motherboard PCB footprint and Batt dimensions Eleven Engineering Inc. 072519 Batt is 8 mm thick PCB is 1.6 mm thick 130.0 mm Components top side, buttons and 65.0 mm LEDs bottom side 24.0 mm 24.0 mm...
- Page 4 Wet Sounds A-Link Mk2 Windshield mount and pigtail detail Eleven Engineering Inc. 072519 Are clips required to fasten the cable ? Suction cup windshield mount Boat 1 meter Windshield cable length (before split point) Cable Split point IN - 3.5 mm Stereo male plug OUT - 3.5 mm Stereo female jack...
- Page 5 Wet Sounds A-Link Mk2 Keypad UI configuration Eleven Engineering Inc. 072519 Batt LED (orange) FLASH = low batt SOLID = charging Power LED OFF = other RED = transmit GREEN = receive SKAA Indicator DIM = VO/sleep 3 LEDs - light pipes with domes...
- Page 6 SKAA Bond Button / SKAA Indicator Standard Definition Eleven Engineering Inc. 021418...
- Page 7 Notes Wet Sounds A-Link Mk2 Eleven Engineering Inc. • The BATT LED is shown on the power Signal Block Diagram block page 072519 The POWER BUTTON is shown on the • power block page SKAA Power Bond Volume Indicator Button...
-
Page 8: Battery Pack
Wet Sounds A-Link Mk2 Eleven Engineering Inc. Power Block Diagram Source DC Bus +3.3V DC Bus 072519 ~3.7 VDC 3.7 V Li-Po Battery Pack † BATT Volts Orange Switching † Low BATT Regulator BATT 3.3V to Charge motherboard enable includes... - Page 9 Chip Power Wet Sounds A-Link Mk2 Eleven Engineering Inc. SKAA Chip: Ginseng Power LED Power States Indicator 072519 ON Tx √ √ Bright Red Notes RF off √ Dim Red “VO” means Virtual Off —this is a power saving •...
- Page 10 Wet Sounds A-Link Mk2 Battery Life Calculation Supply Eleven Engineering Inc. Notes 072519 Li-Po Battery Dimensions of the LiPo flat pack • battery are shown in mech detail slide Capacity 1 cell (mAh) early in this document Nominal Volts 1 cell...
- Page 11 Wet Sounds A-Link Mk2 Per Unit Budget Eleven Engineering Inc. 072519 Manufacturing / Testing Component Cost 6.50 40.10 Ginseng Mk2 2-pack Packaging & Manual 1.30 1.05 LOP at 18% 7.45 0.45 Total (manufactured 2-pack) 48.85 Batt Charge Chip 0.75 1.00 3.3 V Regulator...
- Page 12 Wet Sounds A-Link Mk2 Audio Specs Eleven Engineering Inc. 112019 Parameter Spec Value Input full scale 1.0 VRMS Input impedance 10 k ohms Output full scale 1.0 VRMS Minimum load required at output 1k ohms Frequency Range 20 Hz - 20 kHz <...
