aquamundus GreaseShield 1000 AST-PF Installation Manual

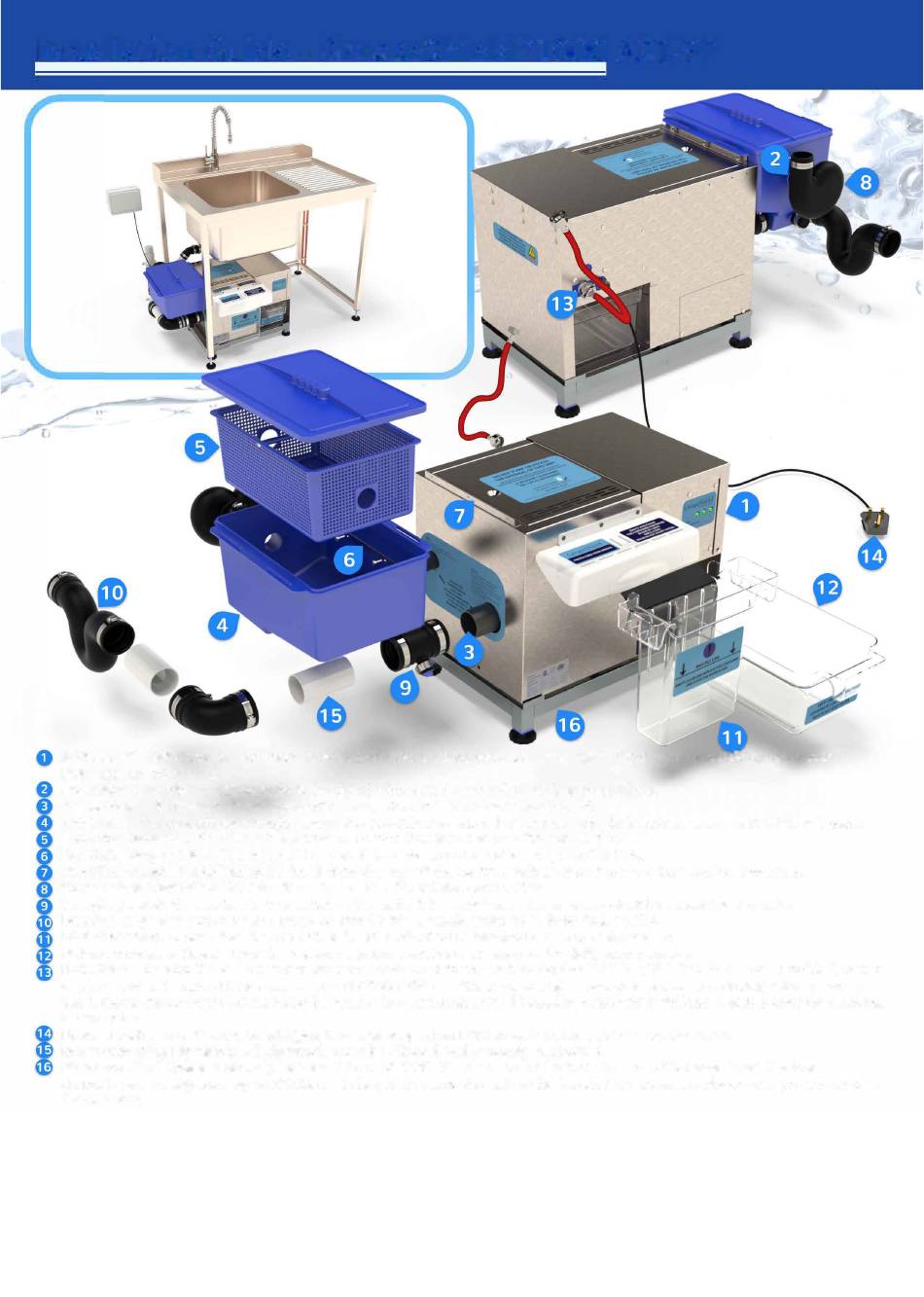

Installation Guide - GreaseShield
GS1000 AST Unit: Ensure that there is sufficient clearance above and to the right of the unit for servicing purposes
(5.9"/150mm minimum).
Pre-Filter Inlet Pipe - 1½"/40mm: To be piped with a sufficient fall of no less than 1 in 40.
Outlet Pipe - 2"/54mm: To be piped with a sufficient fall of no less than 1 in 40.
Pre-Filter: Ensure sufficient height above the Pre-Filter to allow for removal and daily maintenance of Pre-Filter basket.
Pre-Filter Basket: A Pre-Filter basket must be installed into the pre-filter at all times.
Pre-Filter Support Bar: T he support bar must be installed when attaching the Pre-Filter
Pre-Filter Adaptor Bracket: To be fixed onto the top of the GS1000 unit so that the Pre-Filter can be mounted.
Vortex Flow Controller: Must be fitted to the Pre-Filter inlet connection.
Sampling Point: Connected to the outlet of the unit; it is essential in the analysis of effluent leaving the unit.
Running Trap: T he outlet of unit must be fitted with a running trap to reduce foul smells.
FOG Container: Ensure that the container is not restricted or blocked for daily maintenance.
Solids Container: Ensure that the container is not restricted or blocked for daily maintenance.
Hot Water Solenoid Valve: Hot water must be connected to the unit using the ¾" BSP {F/F) Red PVC Hose provided, water
supply must not exceed 3 bar pressure and 60
used. Mains water connections must be made via a WRAS approved isolation valve which follows a WRAS approved double
check valve.
Power Lead: T he unit must be plugged into a 13 amp rated IP56 socket located below counter level.
Interconnecting Pipework: All pipework must be clipped and properly supported.
Stainless Steel Hygiene Stand {Optional Extra): GS1000 AST unit should be installed on a Stainless Steel Hygiene
stand. It can be adjusted up to 2"/50mm in height to allow the unit to be levelled on uneven surfaces and provide access
for cleaning.
Award Winning Technology
lOOO AST-PF
®
F. In the case of high pressure a pressure reducing valve must be
° C/140 °
V2 04/02/2020
