AAQ Antenna Controller
Users Manual
Revision R11.9.0
AvL Confidential and Proprietary Information
Do Not Copy
AvL Technologies
900-159-000
AvL Proprietary and Confidential
Content is Subject to Change without Notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AAQ Antenna Controller and is the answer not in the manual?

Questions and answers

Related Manuals for AvL Technologies AAQ Antenna Controller

Summary of Contents for AvL Technologies AAQ Antenna Controller

  • Page 1 AAQ Antenna Controller Users Manual Revision R11.9.0 AvL Confidential and Proprietary Information Do Not Copy AvL Technologies 900-159-000 AvL Proprietary and Confidential Content is Subject to Change without Notice...
  • Page 2 Revision History Rev. 25 July Software Release 6 5775 1.1.2.182 1.0.0.3 2012 Rev. 19 Sept Software Release 7 6112 1.1.3.22 1.0.0.4 2012 Rev. 12 Dec Software Release 8 6348 1.1.3.74 1.0.0.3 1.0.0.5 2012 Rev. 08 April Software Release 9 6869 1.1.3.160 1.0.0.3 1.0.0.6...

  • Page 3: Table Of Contents

    Contents Chapter 1 - Introduction ............................10 Controller System Overview ....................10 Standard Hardware Components ..................10 Software Architecture ......................11 1.3.1 Operating System ....................11 1.3.2 ROM ........................11 1.3.3 PIC .......................... 11 1.3.4 CONFIG ........................11 1.3.5 Remote – GUI (Graphical User Interface) .............. 11 1.3.6 Module –...
  • Page 4 AAQ Remote Network Settings Tool .................. 26 IP addressing and Networking Examples ................27 3.5.1 Factory Default Network Configuration ..............28 3.5.2 Single Device Configuration ................... 29 3.5.3 Dual Network Device Configuration ..............30 3.5.4 Cross Device Network Configuration ..............31 Chapter 4 - AAQ Remote .NET GUI ..........................
  • Page 5 4.4.5 LNB Control ......................63 4.4.6 Satellite List ......................63 4.4.7 System Log ......................65 4.4.8 Data Log ......................... 66 4.4.9 Alarm List ....................... 67 4.4.10 Device Window ....................68 4.4.11 Graphic Controller Window ................. 69 Login Menu ......................... 73 Help Menu ..........................
  • Page 6 5.10 Adding a Reference Satellite ................. 94 Chapter 6 – AAQ System Configuration Variables (Parameters) ................98 Introduction ........................98 6.1.1 Core Parameters ....................99 6.1.2 Target Parameters ....................101 6.1.3 Signal Parameters ....................102 6.1.4 Feed Parameters ....................103 6.1.5 Optional .......................
  • Page 7 6.5.9 Plateau Peaking ....................129 6.5.10 Polarization Peaking ................... 129 6.5.11 Other Signal Based Parameters ................130 Feed Based Parameters ....................130 Sensor Override ........................ 132 6.7.1 Compass ....................... 132 6.7.2 GPS ........................133 6.7.3 Tilt ........................133 System Options ......................... 133 6.8.1 NMEA Server ......................
  • Page 8 7.4.6 Acquiring the Satellite Signal ................159 7.4.7 Signal Source = RSL ....................161 7.4.8 Signal Source, Modem or Beacon Receiver ............163 7.4.9 Peaking on the Signal ................... 164 7.4.10 Coarse Peaking ....................164 7.4.11 Fine Peaking ......................166 7.4.12 Linear Polarization Optimization .................
  • Page 9 Elevation and Azimuth alignment ..................187 8.4.1 Elevation Offset ....................187 8.4.2 Azimuth Offset ..................... 188 8.4.3 Recognizing a Failed Compass ................189 8.4.4 Changing the Compass Heading Sources ............. 190 Recognizing a Failed GPS ....................191 8.5.1 Changing to Manual GPS ..................192 Maintenance ........................

  • Page 10: Chapter 1 - Introduction

    Chapter 1 - Introduction Controller System Overview The AAQ controller is a unique highly flexible, cost effective, purpose built embedded antenna controller. The primary application for this controller is for transportable satellite antennas exposed to harsh environments with demanding performance requirements. The small form factor packaging of the controller enables its use in a wide range of antenna types –...

  • Page 11: Software Architecture

    The NAV RIOM contains a GPS receiver and patch antenna, a 2-axis inclinometer and a magnetic compass. It also has a dsPIC33 microprocessor which communicates with these internal devices as well as with the ACU over Ethernet. Both of these standard components are designed to survive in harsh environments and to be embedded in the antenna pedestal to simplify cabling.

  • Page 12: Module - Device

    1.3.6 Module – Device A Device Module file enables inter-operability and communication between the controller and a specific device. An example of this type of vendor device module would be one created specifically for the iDirect Evolution 8000 Modem. 1.3.7 Module – Function A Function Module enables specific unique functions in the controller.

  • Page 13: Definitions And Common Terms

    Definitions and Common Terms: Antenna Bore Sight – line of sight passing through antenna vertex, feed phase center and satellite Azimuth – angular orientation of antenna bore sight about vertical axis; typical range ± 200°; positive direction clockwise looking down on pedestal World Azimuth –...
  • Page 14 Compass Heading - 0° = North, 90° = East, 180° = South, 270° = West; typically measured by embedded magnetic compass with declination adjustment or True North heading without declination adjustment Tilt – non-level condition where pedestal horizontal and vertical axes are pitched and rolled so pedestal azimuth axis is no longer aligned with local gravity vector AvL Proprietary and Confidential Content is Subject to Change without Notice...

  • Page 15: Chapter 2 - Aaq System Architecture & Hardware Overview

    Chapter 2 - AAQ System Architecture & Hardware Overview Controller System Block Diagram The basic AAQ Controller block diagram is shown in Figure 1.1. The AAQ communicates with the motors and NAV RIOM on an internal LAN. The ACU requires 28 VDC and communicates externally over a LAN or WAN.

  • Page 16: The Aaq Enclosure Contains

    The AAQ consists of a single PCB (Printed Circuit Board) enclosed in an aluminum housing with four (4) external connectors. The 8-pin power connector (J3) receives 28 VDC power and distributes the PWM voltage to each of the three standard motors. The TNC coax connector (IF IN) receives RF signal from the LNB.
  • Page 17 7. Communication Ports: 2 RS232 and 2 Ethernet 8. Ethernet Switch: 4-port 9. Positioner Sensor Inputs: Digital and Analog 10. LNB Bias Tee and Tone Generator 11. Sensor Analog and Digital I/O Interfaces The AAQ enclosure shown in figure 2.1.1 is generally mounted underneath the positioner AZ/EL cover.

  • Page 18: Aaq Antenna System

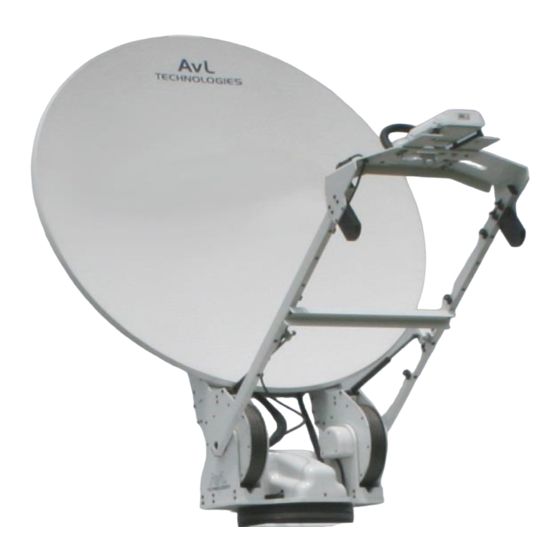

    AAQ Antenna System The controller combined with the proven AvL pedestal provides a pure and simple solution for communications in any environment. The controller offers many intuitive features allowing the user to successfully maintain and operate the antenna both locally and remotely from anywhere in the world. 2.2.1 AvL Cable Drive System The AvL cable drive system that is used with the AAQ Controller, utilizes highly reliable aircraft control cables in a redundant configuration to achieve a zero backlash, light-weight, very stiff drive...

  • Page 19: Aaq Components

    AAQ Components 2.3.1 Navigation Remote Input Output Module (RIOM) The NAV RIOM contains a GPS receiver and a 3 axis magnetic Compass. Depending on the model a 2- axis inclinometer may reside within the NAV RIOM. The NAV RIOM (see Figure 2.3.1) is plugged into the AAQ’s J2 harness and it is typically mounted on the back of the reflector at the topmost point when deployed.

  • Page 20: Chapter 3 - Gui Installation, Set-Up & Network Configuration

    Chapter 3 - GUI Installation, Set-up & Network Configuration This chapter describes the GUI “Graphical User Interface” installation and set-up as well as, how to configure the AAQ controller to communicate and function within a network of Ethernet devices. The available networking options on the AAQ controller are to ensure that the antenna controller is able to properly communicate with both clients (computers, mobile devices, CIP interfaces, etc.) and required devices (modem, beacon receiver, GPS device, etc.).
  • Page 21 This will prompt the programs and Features screen. Uninstall the file by left clicking the “AAQ Remote” file, initiating the uninstall wizard. Figure 3.1 - Programs and Features AvL Proprietary and Confidential Content is Subject to Change without Notice Page 21 of 195...

  • Page 22: Installation

    Installation 3.2.1 Windows installation file Begin by installing the AAQ Remote on your operating system through the AAQRemoteSetup_X-X-X-X.msi (Windows installation file), provided in your Customer Documentation Flash Drive. Figure 3.2.1 - Installation File 3.2.2 Installation Folder By default the wizard will save the GUI under the PC’s ‘All Programs’ menu located under: START >...

  • Page 23: Aaq Remote Access Settings

    3.2.4 AAQ Remote Settings (Access Level 0) The Remote Settings window displays the IP address, directing the Graphical User Interface (GUI) to the AAQ antenna controller unit (ACU). The default service address is shown. Path Main Window → File → Settings AAQRemote Settings Figure 3.2.4 - AAQ Remote Settings (Level 0)

  • Page 24: Editing Controller Alias

    3.2.5 Editing Controller Alias The “Controller Alias” pull down feature allows the user to associate an alphanumeric name with an IP address. This feature is accessed by clicking the “Edit” button in the AAQ Remote Settings window. This allows users to identify specific systems within a network. Figure 3.2.5 - Edit Controller (Alias) Profile 3.2.6 AAQ Remote Settings (Level 1-9) Figure 3.2.6 - AAQ Remote Settings (Level 1-9)

  • Page 25: Network Settings

    Network Settings 3.3.1 Factory IP Addresses The AAQ controller provides three interfaces to the customer’s network: Eth 1:0 – Interface #1, Configurable (Factory Default IP: 192.168.129.50) Eth 1:1 – Interface #2, Configurable (Factory Default IP: 192.168.129.52) Eth 1:2 – Service Interface, Non-Configurable (Factory IP: 192.168.129.51) Subnet mask: 255.255.255.0...

  • Page 26: Aaq Remote Network Settings Tool

    AAQ Remote Network Settings Tool The AAQ Remote Settings tool is utilized to customize the AAQ Network IP settings using login level 4 or above. Path Main Window → File → Settings AAQ Network Interface Options Modems, beacon receivers, etc. will sometimes require the AAQ controller to be configured on the device network, enabling communications between the two devices.

  • Page 27: Ip Addressing And Networking Examples

    To query the current running network configuration, left-click the Refresh Refresh button on the left side of the window. IP addressing and Networking Examples The following examples describe how to set up the AAQ controller to communicate and function within a network of Ethernet devices. The available networking options on the AAQ controller are to ensure that the antenna controller is able to properly communicate with both clients (computers, mobile devices, CIP interfaces, etc.) and required devices (modem, beacon receiver, GPS device, etc.).

  • Page 28: Factory Default Network Configuration

    3.5.1 Factory Default Network Configuration Equipment described:  AAQ Controller  Client Computer Connection Eth1:0 Customer Network Eth1:1 Customer Network Eth1:2 Service Network IP Address 192.168.129.50 192.168.129.52 192.168.129.51 Subnet Mask 255.255.255.0 255.255.255.0 255.255.255.0 Gateway None None None Fig. 3.5.1a - Factory Network Example The default network configuration contains basic networking needed to set up the controller on the customer’s network.

  • Page 29: Single Device Configuration

    3.5.2 Single Device Configuration Equipment described:  AAQ Controller  Client Computer  Standard IP Modem (external)  Network Switch (or CIP) Connection Eth1:0 Customer Network Eth1:1 Customer Network Eth1:2 Service Network IP Address 192.168.1.50 192.168.129.52 192.168.129.51 Subnet Mask 255.255.255.0 255.255.255.0 255.255.255.0 Gateway...

  • Page 30: Dual Network Device Configuration

    3.5.3 Dual Network Device Configuration Equipment described:  AAQ Controller  Client Computer  Standard IPv4 Modem  Beacon Receiver  Network Switch (or CIP internal) Connection Eth1:0 Customer Network Eth1:1 Customer Network Eth1:2 Service Network IP Address 192.168.1.50 192.168.2.50 192.168.129.51 Subnet Mask 255.255.255.0...

  • Page 31: Cross Device Network Configuration

    3.5.4 Cross Device Network Configuration Equipment AAQ Controller Client Computer Standard IPv4 Modem Network Switch (Internal to CIP) Network Router Connection Eth1:0 Customer Network Eth1:1 Customer Network Eth1:2 Service Network IP Address 192.168.1.50 192.168.3.50 192.168.129.51 Subnet Mask 255.255.255.0 255.255.255.0 255.255.255.0 Gateway None 192.168.1.1...
  • Page 32 Modem IPv4 Address: 192.168.3.30 External Network Subnet Mask: 255.255.255.0 Network Router IPv4 Address: 192.168.1.1 Subnet Mask: 255.255.255.0 Network Switch Computer AAQ Controller IPv4 Address: 192.168.1.50 192.168.3.50 IPv4 Address: 192.168.1.2 Subnet Mask: 255.255.255.0 255.255.255.0 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 Figure 3.5.4b - Cross Device Network Configuration Example AvL Proprietary and Confidential Content is Subject to Change without Notice Page 32 of 195...

  • Page 33: Chapter 4 - Aaq Remote .Net Gui

    AAQ Remote.NET interface. Introduction The AvL Technologies’ Graphical User Interface (GUI) is designed for use with the AAQ controller system and uses the Microsoft .NET 3.5 framework. This framework allows the use of the AAQ Remote GUI across most Microsoft operating systems: Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista, and Windows XP (provided XP users have proper service packs, updates, framework, and settings).

  • Page 34: Connection Indicator

    4.2.2 Connection Indicator Upon opening the AAQ Remote application the program will attempt to establish communication with the connected AAQ Controller. Once connection is established the Connection Indicator LED located in the bottom left corner of the application will turn from inactive (grey) to active (green), shown in Figure 4.2.2.

  • Page 35: Command Pane

    4.2.5 Command Pane Figure 4.2.5a - Command Pane The Command Pane contains the main controls for antenna movement. Each control is an LED indicator button with a descriptive label. When clicked the action associated with the control is performed. When the controller is performing an action the associated control LED will become active (green) indicating that it is the current command.

  • Page 36: Manual Control Pane

    4.2.6 Manual Control Pane Figure 4.2.6 -Manual Control Pane The Manual Control Pane contains the controls for manually jogging the antenna in any direction and axis. This pane is inactive until the controller is in manual control mode. To activate manual control mode select ‘Manual Control’...

  • Page 37: Target Selection Pane

    Device Description This is typically selected for locations where magnetic interference is expected. In this No Compass case, the antenna will make a wide scan in accordance with the “NoCompass Scan Width” parameter For future release. GPS or AvLGPS This is the most common setting which uses the NAV RIOM built-in compass. Compass For manual compass, the pedestal is set physically due south (northern hemisphere).

  • Page 38: Status Pane

    4.2.9 Status Pane Status Variable Display Motor Status Indicators Figure 4.2.9a - Status Pane The Status Pane displays commonly used sensor outputs from the controller. These are variables that the controller reports back to the application to be displayed for quick reference. Other variables can be accessed through the Sensor Output Window.

  • Page 39: File Menu

    The Motor Status indicators inform the user of the direction of motor movement, limit conditions reached, and safe move conditions reached. Each indicator represents a direction of movement possible by a certain axis and is styled to be in that movement’s direction. When moving in that direction the indicator will change to active (green) to indicate that the motor is moving in that direction.
  • Page 40 Figure 4.3.1a - Simple (Level 0) Settings Window There are two versions of the Settings Tool. Users at level 1 or above are able to access the advanced Settings Tool while level 0 (or not logged in users) will only be able to access a simple Settings Tool. The simple version of the Settings Tool allows the user to change the I.P.v4 address pointing the application to the AAQ Controller’s present address.
  • Page 41 The controller’s Subnet Mask and Default Gateway can also be set through this method. If a failure has occurred in setting the new IP Address, the ACU defaults back to the original 192.168.129.51 service address. IP Address 192.168.129.51 Subnet Mask 255.255.255.0 Default Gateway 192.168.129.1...
  • Page 42 Figure 4.3.1.1 - AAQ Advanced Network Settings Under the advanced network settings, the two customer networks are accessible to allow connection to system devices that reside on different networks. See chapter 3 on network settings for more details. If your network setup allows for network devices to use a DHCP & DNS server you may set the ACU to obtain its network settings through the DHCP &...
  • Page 43 4.3.1.2 – Remote Power Network Settings Figure 4.3.1.2 – Remote Power Network Settings The AAQ provides remote power control which is network accessible. The power control device has its own IP settings and defaults to those shown in figure 4.3.1.2. When the controller network is changed to a different subnet however, the Remote Power settings must be changed to this new subnet in order to maintain remote power control.

  • Page 44: Aaq Support Files, Upload / Download

    4.3.3 AAQ Support Files, Upload / Download… Path Main Window → File → Upload / Download … Level 4 Software, configuration, and firmware files for the AAQ Control system can be uploaded through the AAQ Remote application. To upload or download a file from the AAQ controller left-click the File button on the File Bar and select “Upload / Download …”.
  • Page 45 The AAQ Remote application has the capability to accept an encrypted service configuration file. This encrypted configuration file can be provided by AvL Technologies and is uploaded the same as a regular configuration file. When detected during a configuration upload, this will change configuration items as an administrator level user without the need to log in.

  • Page 46: Calibration

    4.3.4 Calibration 4.3.4.1 Compass Calibration Path Main Window → File → Calibration → Compass Calibration Level 4 Figure 4.3.4.1 – Compass Calibration Calibration of the module is generally used by AvL technical personnel only but may be suggested when an antenna system is being installed onto a permanent mount or vehicle for the first time. Calibration may also be required when an antenna system is moved into an area of high magnetic disturbance.
  • Page 47 The Compass Test Tool also calibrates the Compass however, user intervention is required and a tool window is provided which displays progress and allows some settings to be changed. Figure 4.3.4.2a – Compass Test Tool Window Once the window is open, check that “Honeywell” is selected at the top and press “begin Testing. By default the tool will scan from the CCW Limit to the CW Limit.

  • Page 48: Riom Software Update

    Figure 4.3.4.2b – Enter Heading Once OK is selected the program will determine if the compass is within tolerance (+/- 10 degrees or 20 Peak-to-Peak). If the compass is within tolerance it will inform the user of the recommended Heading offset and ask them if they wish to apply it to the configuration item. Apply the offset to complete.

  • Page 49: Show Movement

    Figure 4.3.5 – RIOM Software Upload From the RIOM Software Maintenance window, the user can update specific RIOM based devices on the system. When the “Upload RIOM Payload” button is pressed, the user is prompted to pick the location of the new file via a Windows location dialog box. Once the upload(s) are completed, the files will be shown in the “payload”...

  • Page 50: Edit Gui Layout

    Figure 4.3.6 - Show Movement Tool The Show Movement Window allows the demonstration of physical movements and actions. To setup a “Show Moves” routine simply fill in the text boxes for Azimuth, Elevation, and Polarization. These text boxes are the pedestal location where the antenna will move to during the routine. An optional third position is available for more dynamic movements.

  • Page 51: Change Status Variables Displayed

    Figure 4.3.7 – Layout Editor The Layout Editor lists the current commands and status outputs being displayed in the main window. The “Change Commands Displayed” function is reserved for Engineering Login only and does not function under user or integrator levels. To change the status variables displayed in the Status box on the main window, left-click the ‘Change Status Variables’...

  • Page 52: User Manager

    Figure 4.3.8 – Status Variable Select The Status Variable Select Window allows the user to choose and order the status variables to display on the main window. The sub-window Selectable Status Variables, located on the left side of the screen, contains all status variables reported by the controller. To include a variable in the main window, check the ‘Use Variable’...
  • Page 53 level 3 user, but may not delete a level 9 user. Before performing any modification, log into the controller with your usage rights. Note - Customer user profiles are typically set to access level “4” 4.3.9.1 Adding Users Path Main Window → File → User Manager → Add User Level 1 Figure 4.3.9.1 - Add New User To add a new user, enter the desired credentials for the new user and click the ‘Add’...

  • Page 54: Lock

    Figure 4.3.9.2 - Delete User To delete a user, enter the User ID of a user already known to the controller. The user will be removed from the system upon clicking the ‘Delete’ button. A “User List” is also available which provides all user IDs and the level of access for each one. 4.3.10 Lock Path...

  • Page 55: Exit

    The Lock tool opens a window that keeps all other windows from being used. This is meant as a preventative measure to keep stray keystrokes or mouse presses from unintentional actions, such as moving the antenna during communication. Once the window is closed the application returns to normal use.

  • Page 56: Controller Configuration

    4.4.2 Controller Configuration Path Main Window → View → Controller Configuration Level 4 Figure 4.4.2 - Configuration Window, Core Tab The configuration window allows the user to change all of the available configuration items (parameters) on the controller. There are two types of parameters, choice and non-choice. Items with choices have only a specific set of options to choose from, items such as signal sources contain choices (RSL/Modem/Beacon).

  • Page 57: Profile System

    4.4.3 Profile System Path Main Window → View → Configuration, Target Level 4 Up / Download Profile Profile Selection Drop Down Add (Edit) & Remove Profile Buttons Acquisition Processes Target Specific Parameters Target Sat. Drop Down Menu Figure 4.4.3a - Profile System or Configuration Window, Target Tab The Target / Profile Tab is available via the Configuration window.
  • Page 58 The Profile System tool allows the creation or editing and removal of profiles. Profile creation is only available for users of level 1 or above. Profile selection is available to all users through the main window. Target and Profile functions are explained below. Profile Function Explanation Can be any name.
  • Page 59 Figure 4.4.3d - Selecting Profile Acquisition Source 4.4.3.1 Creating a Profile Figure 4.4.3.1 - Add Profile Window To create a new profile left-click the “Add” button located in the top right corner of the Configuration Window/ Target tab. Once clicked the Add Profile Window will be shown, prompting the user to enter the name of the new profile.
  • Page 60 the currently selected profile. If multiple profiles exist on the system, start from a profile with a configuration closest to that which is desired for the one to be added. 4.4.3.2 Removing a Profile Figure 4.4.3.2 - Delete Profile Window To remove a profile select the profile you wish to remove through the Profile Selection Drop Down Menu.
  • Page 61 Figure 4.4.3.3 - Configuration Window, Signal Tab The signal tab contains all of the signal specific parameters that directly control how the controller uses a device. A selection menu is available at the left side of the window to select between the various devices on the system.

  • Page 62: Dvb-S2 Control

    4.4.4 DvB-S2 Control Path Main Window → View → DvB-S2 Control Level 4 Figure 4.4.4 - DvB-S2 Control Window The DvB-S2 control window allows full monitoring and captured carrier control of the AvL DvB receiver. The DvB receiver option functional modes and GUI details are covered in Appendix H of this User’s Manual.

  • Page 63: Lnb Control

    4.4.5 LNB Control Path Main Window → View → LNB Control Level 4 Figure 4.4.5 – LNB Control As many different types of LNBs are supplied with AvL antenna systems, the LNB Control window allows the user to control either the supply voltage or control tone used by the device. Supply voltage may be changed to match that required by a single band LNB or adjusted to change band as required by some multiband systems.
  • Page 64 Figure 4.4.6a - Satellite List Window When selecting from the list, the receive polarization must be determined. Click the Pol setting arrow to activate the dropdown box and change the Polarization setting for the satellite to be acquired. Note that in the above figure, certain satellites have information populated in the TLE 1 & TLE 2 columns.

  • Page 65: System Log

    Figure 4.4.6b – Add New Satellite Fill in all line items including the TLE Line 1 & 2 items. Line items should be copied and pasted from existing NORAD or equivalent ephemeris lists to assure accuracy. Should the TLE data be entered incorrectly, the data will populate the satellite list upon saving but operation for this satellite will not function for TLE tracking.

  • Page 66: Data Log

    The System log tool allows the user to monitor the function commands and indications as reported by the AAQ controller. This is typically used by AvL technical staff and is sometimes used for remote troubleshooting. 4.4.8 Data Log Path Main Window → View → Data Log Level 4 Figure 4.4.8 –...

  • Page 67: Alarm List

    4.4.9 Alarm List Path Main Window → View → Alarm list Level 0 Figure 4.4.9 - Alarm Window The Alarm Window displays the current alarms reported by the controller. If the window has no red “X” in the Status column, the system is not in an alarm state. AvL Proprietary and Confidential Content is Subject to Change without Notice Page 67 of 195...

  • Page 68: Device Window

    4.4.10 Device Window Path Main Window → View → Device window Level 0 Figure 4.4.10 - Device Window, Modem Example The Device Window displays the data and status of the connected “Signal Device” used for acquisition. The module that handles communication from the AAQ to the device reports up to 8 predetermined status labels and values.

  • Page 69: Graphic Controller Window

    4.4.11 Graphic Controller Window Path Main Window → View → Graphic Controller Window Level 0 Figure 4.4.11 - Graphic Controller Window The Graphic Controller Window is a simplified user friendly display of the main window. This window shows graphically all the necessary inputs and outputs for a normal user to select a Profile & acquire a satellite.
  • Page 70 4.4.11.1 Movement Commands Figure 4.4.11.1 - Graphic Controller Window Movement Commands The movement commands displayed on the Graphic Controller Window allow the same functions available in the Command Pane and the Manual Control Pane. This includes all of the basic commands with indicator LEDs showing which command is active and a group of jog buttons.
  • Page 71 4.4.11.2 Target Display Figure 4.4.11.2 - Graphic Controller Window, Target Display The target display shows a simulation of the visible sky from the controller’s Latitude and Longitude position on the earth. The point on the earth currently occupied by the antenna is represented as a circle (red or green) on the earth’s surface.
  • Page 72 4.4.11.3 Coordinate Dials Figure 4.4.11.3 - Graphic Controller Window Coordinate Dials Each axis of the positioner is represented by a graphic dial showing the current position of that axis in world coordinates. The current value of that axis is also displayed in the center of each dial. 4.4.11.4 Signal Strength Meter Figure 4.4.11.4 - Graphic Controller Window Signal Strength Meter The signal strength of each signal source is represented as a bar chart in the signal strength meter.

  • Page 73: Login Menu

    4.4.11.5 World Location Figure 4.4.11.5 - Graphic Controller Window World Location The current location of the controller can be seen as a red dot on a globe in the lower left corner of the window. This globe rotates to show the approximate position of the controller on the earth as well as showing the Latitude and Longitude coordinates in text.

  • Page 74: Help Menu

    Figure 4.5b - Login Window Upon logging in, the controller will accept the user and allow that user access up to their level. Help Menu The Help Menu is located on the toolbar in the upper left hand corner of the Main AAQRemote window. Figure 4.7 - File Bar Help Menu Select 4.6.1 About Path...

  • Page 75: Version

    Figure 4.7.1 - About Window The About Window shows the versions of the AAQ software and legal information. Additional information may be listed in the About Window pertaining to the build of the AAQRemote Software. 4.6.2 Version Path Main Window → Help → Version Info. Level 0 Figure 4.6.2 - About Window, Version example AvL Proprietary and Confidential...

  • Page 76: Troubleshoot

    The Version tab allows for the user to quickly locate all of the versions of code running on the system. This includes the application, ROM (main running code), RIOM, and module version. 4.6.3 Troubleshoot Path Main Window → Help → Troubleshoot Level 4 Figure 4.6.3 –...

  • Page 77: Chapter 5 - Initial Setup, Basic Operation & Profile Examples

    Chapter 5 – Initial Setup, Basic Operation & Profile Examples This chapter describes the setup & basic operations of the AAQ controller & typical Antenna configurations, from unpacking to acquisition of the target. See Chapter 3 for additional Network configuration as well as Chapter 6 for system configuration details.

  • Page 78: Basic Connections

    Basic Connections Connecting Your Equipment Figure 5.2 – CIP Connections HandHeld Controller Control Interface Panel (Front & Rear connections shown) Remote Controller (HandHeld) Cable Ethernet to PC , LAN, Modem or Beacon receiver * AAQ Power Connector Pedestal DC Power Connector AAQ Data Connector Serial for Aux Equipment such as Modem or Beacon receiver depending on system type Antenna Pedestal Control Cable...

  • Page 79: Aaq Remote Application (Gui) Installation

    Note – If your CIP is configured as a “router” from the factory, the labeling and function of the Ethernet connections will be different. See Appendix “B” for more information. AAQ Remote Application (GUI) Installation 5.3.1 Remove previous versions If there are any previous versions of AAQ Remote GUI installed on your PC, remove them before continuing.

  • Page 80: Power On And Boot

    Note that For Windows 7 and above, the Wizard will install the application to the “C:\Program Files x86\AvL\AAQ Remote” folder. For Windows Vista and XP, installation is to the “C:\Program Files\AvL\AAQ Remote” folder. Do not change location. Once system cables are connected (photo) and the AAQ Remote software is installed and started, the system can be powered on.

  • Page 81: Command Functions

    Figure 5.6b – Communication LED Login (Top of main GUI) to the controller with your customer Username & Password (Located in your customer documentation package or flash drive). The typical integrator access is at a level 4. This level determines the commands and configuration items visible and available to be modified. Figure 5.6c –...

  • Page 82: Command Descriptions

    Figure 5.7 – Command Pane  Stop: Stops the current running command.  Manual Control: Enables the manual jog commands to be accepted.  Home: Positions the antenna upright and initializes axis based sensors.  Stow: Stows the antenna to the specified angular values. ...

  • Page 83: Profile System

    The Acquire command starts the antenna towards it’s pointing sequence for the “Target” satellite. Acquisition runs in accordance with configuration details for the currently selected “Profile”. The Move to… command allows the user to move the antenna directly to a desired coordinate location. A “Move to”...

  • Page 84: Configuration Parameter Types

    new target profile to the list. Of course, each new target satellite needs a minimum of information to be updated for its unique profile:  Profile Name  Target Satellite & longitude  Receive Polarization  Reference satellite profile, if used Information may be needed for the profile in accordance with satellite specifics, for example: ...

  • Page 85: Profile Examples

     The “Feed” Parameters will change polarization and frequency band settings where applicable. Note - A complete alphabetical listing of configuration parameters can be found in chapter 6. All parameters available to customers (level 4 and below) are also defined in this chapter. Profile Examples The following section provides a number of examples of how to create new profiles.

  • Page 86: Simple Profile Example

    5.9.2 Simple Profile Example The “Target” tab of the Configuration window brings us to the Profile “tool” page. Path Main Window → View → Configuration, Target tab Level 1 Figure 5.9.2 – Configuration, Target tab Note that the factory test profile is shown in the “Profile Name” box. Next, click “Add”...

  • Page 87: Add Profile

    5.9.3 Add Profile For this example, the following name has been chosen Figure 5.9.3 – Add Profile name Once the name is chosen and you click on OK, your new profile is created with all parameters “copied forward”. We are ready to update some basic parameters to match your new Target choice: 5.9.4 Select Target Keeping in mind that the profile added so far is just a name, use dropdown box under the Profile...

  • Page 88: Common Profile Adjustments

    Figure 5.9.4b – Target Parameter Changes In this example, no other changes will be made as we are simply moving to a new Target satellite using the same Acquisition Signaling Source (RSL). Click “Save” at the bottom of the Configuration window to save the new profile.

  • Page 89: Adjusting Motion Limits

    5.9.6 Adjusting Motion Limits For this example, we will be installing new equipment on our “vehicle mounted system”. The original setting for maximum Elevation position (90 degrees) is now unacceptable to prevent mechanical interference. The following parameter will be updated: - User El Up Limit (under core parameters, level 4) Figure 5.9.6 –...

  • Page 90: Modem Acquisition, Low Power Carrier

    5.9.7 Modem Acquisition, Low Power Carrier In this example, we have created our new profile as in 5.9.1, however in this case we are using a modem signal for our Acquisition Source. In moving from the old satellite to the new one, we find that the modem reports back lower power (SNR) from the specified carrier than before.
  • Page 91 It is recommended that adjustments to parameters similar to the above example are made in small steps. It is also advisable that a written log is kept with regards to any changes made for later reference. Note – An alphabetical list of all user level 4 and below parameters can be found at the beginning of Chapter 6.

  • Page 92: Adjusting Rsl Threshold

    Press the green “+” sign to add a secondary (or tertiary) “Acquisition Source”. Then, use the dropdown to select the device for scan, coarse & fine peaking. For simple redundancy, it is recommended to duplicate the settings from the Primary Source as shown in figure 5.9.7.1. Once the Secondary Source is saved to your Profile, it will function during each acquisition if needed.
  • Page 93 Figure 5.9.8a – Sensor output, RSL Three monitor points are selected for this example:  The RSL Min Lock Signal (parameter = RSL Minimum Lock Threshold),  RSL Rx Lock &  RSL Rx Signal. Our “on satellite” signal level shows approximately 63.0 rel. which is well above the RSL Min Lock Sig. threshold setting of 40.0.

  • Page 94: Adding A Reference Satellite

    Figure 5.9.8b – RSL Min Lock Threshold Once the new value is entered to the location shown in the above figure, click “Save” to write the changes to your Profile. 5.10 Adding a Reference Satellite Adding a reference satellite (ref sat) to the acquisition process, corrects for any heading errors that may exist.
  • Page 95 Figure 5.10 – Reference Satellite Profile A ref sat must meet the following two requirements or it will not be used. 1) Must be outside the “SatTant Min Long Diff”, which is recommended to be set to 20 degrees. The “SatTant Min Long Diff” states that the referenced satellite must be this far from the longitude of the current location.
  • Page 96 One means of using the ref sat process is to use DBS (Direct Broadcast) satellites. They have broad, high power carriers in the high band section of their transmitted signal. The spacing of these satellites (in CONUS) makes it very unlikely that an adjacent satellite will be acquired. DBS type satellites are often used as their high carrier power simplifies acquisition in poor weather conditions as well.
  • Page 97 The “Maximum Valid Signal” is set to its maximum value (40) to prevent saturation and the “Minimum Valid Signal” is set (25) to avoid false locking of the receiver. The values in the example are those commonly used. We are now ready to configure our Target profile. Remember to save all changes.

  • Page 98: Chapter 6 - Aaq System Configuration Variables (Parameters)

    Chapter 6 – AAQ System Configuration Variables (Parameters) Introduction As mentioned in Chapter 1, the AAQ employs a complete set of configuration parameters that allow a single set of software instructions (ROM code) to control a variety of transportable antenna systems. In this chapter, all of the standard configuration parameters that are visible and adjustable by the system integrator and other users of the antenna system (Level 0 to 4) are discussed in detail.

  • Page 99: Core Parameters

    6.1.1 Core Parameters Core Parameters generally address the relationship between the pedestal mechanism, various related sensor devices and the code variables that control them. All parameters are listed here along with the section number where their information can be found. Auto Stow On Movement –...
  • Page 100 Elevation Stow Raw Is Interlock – 6.2.4 Elevation Stow Switch – 6.2.2 Elevation Up Limit – 6.2.1 Elevation Up Limit Switch Is Interlock – 6.2.4 Elevation Up Stow Limit – 6.2.1 Feed Bit Override – 6.3.6 Feed Bit Override Type – 6.3.6 GPS Scan Width –...

  • Page 101: Target Parameters

    Reflector Mount Elevation Switch Position – 6.2.3 Reflector Mount Polarization Position – 6.2.3 Reflector Mount Switch Elevation Offset – 6.2.3 Roll Inc Offset – 6.3.4 RSL Com Port – 6.3.1 RSL Com Port Settings – 6.3.1 RSL Gradient Sample Time – 6.3.1 RSL Minimum Lock Threshold –...

  • Page 102: Signal Parameters

    Fine Peak Signal Source 3 – 6.4.2 Reference Profile 1 – 6.4.1 Reference Profile 2 – 6.4.1 Reference Satellite Mode – 6.4.1 Run Repeak on Startup – 6.4.1 Run Track After Acquire - 6.4.1 Run Track After Peak - 6.4.1 Run Track on Startup –...

  • Page 103: Feed Parameters

    Modem Minimum Wait Time – 6.5.11 Peak Dwell Iterations – 6.5.6 Peaking Azimuth Travel Limit – 6.5.6 Peaking Elevation Travel Limit – 6.5.6 Peaking Ignore Noise Level – 6.5.1 Peaking Polarization Travel Limit – 6.5.10 Plateau Peaking Coarse Azimuth Velocity – 6.5.9 Plateau Peaking Coarse Elevation Velocity –...

  • Page 104: Optional

    Polarization Position Move Minimum PWM – 6.6 Polarization Position Move PWM Factor – 6.6 Polarization Pot Offset – 6.6 Polarization Pot Scale Factor – 6.6 Polarization RF Offset – 6.6 Polarization Stow Position – 6.6 Polarization CW Limit – 6.6 Polarization CCW Limit –...

  • Page 105: Hardware Safety & Mechanical Limits - Core

    Hardware Safety & Mechanical Limits - Core Safe operation of the AvL antenna system is essential and it is critical that the AAQ software be configured appropriately. Many limits on motion of the antenna are set by physical switches that are monitored by the AAQ ACU.

  • Page 106: Stow Position

    should be paid to the full range of antenna motion and any objects attached to the deck below the antenna that might not be stowed when the antenna in its normal operational position. The Azimuth CCW Limit (Read Only) is the maximum counter clockwise pedestal azimuth position. The Azimuth CW Limit (Read Only) is the maximum clockwise pedestal azimuth position.

  • Page 107: Reflector/Feed On/Off

    Elevation stow position in degrees if the stow Elevation Stow Position Float -100 to 180 type is 'Stow at Position'. The position in degrees of the pol for the stow Polarization Stow Position Float -180 to 180 routine. Enables Auto Stow function when set speed is Auto Stow On Movement Choice “No”, “Yes”...

  • Page 108: Interlocks

    Pedestal Elevation position for reflector mount or Reflector Mount Elevation Position Float - 180.0 to 180.0 dismount. Reflector Mount Elevation Switch Pedestal Elevation switch position for reflector Choice “No”, “Yes” Position mount or dismount. Reflector Mount Switch Elevation El position in degrees from the selected switch to Choice “No”, “Yes”...

  • Page 109: General System Set-Up - Core

    Wing Left/Right Deploy Switch is Choice “No”, “Yes” Flag indicating the digital input as an interlock Interlock Wing Left/Right Stow Switch is Choice “No”, “Yes” Flag indicating the digital input as an interlock Interlock Polarization Center Switch is Interlock Choice “No”, “Yes”...
  • Page 110 Figure 6.3 - AAQRemote Configuration Window AvL Proprietary and Confidential Content is Subject to Change without Notice Page 110 of 195...

  • Page 111: Rsl Meter

    6.3.1 RSL Meter Long name Level Type Value Range Documentation RSL1 Noise Floor Float -100000 to 100000 Minimum value that indicates an RSL signal above noise RSL Minimum Lock -100000.0 to 100000 Float Minimum value that indicates a lock with RSL Threshold Default value: 50 RSL Gradient Sample Time...
  • Page 112 Heading Source parameters set the primary and secondary sensors or methods that the AAQ will use to determine an initial compass heading for the antenna pedestal. These parameters can be viewed or modified in either the main AAQRemote GUI window or the Controller Config window. The standard choices for these parameters are: ...

  • Page 113: Manual Moves

    Values for the Signal Source 1 / 2 / 3 configuration parameters are selected on the left-hand side of the Profile System window (see Figure 6.4). All valid Signal Sources are available for each step in all three Acquisition attempts. As implied in the figure, up to three successive attempts will be made by the AAQ to acquire the Target Satellite based on entries made in the Primary, Secondary and Tertiary sections.

  • Page 114: Acquisition

    The “Fast” setting is typically set to a value at or above the maximum speed that the antenna axis can move. Setting a value higher than the maximum actual speed has no effect, ill or otherwise. Common values are in the area of 1 to 6 degrees per second. The “Slow”...

  • Page 115: Time

    Value to Divide the rad A/D value to produce a sensor Azimuth Pot Scale Factor Float -10000 to 10000 value. The formula for producing a final value is: ((raw number*10000)/scale factor) Azimuth Pot Offset Float -360 to 360 The offset added to the converter A/D value. Number of seconds to wait for valid signal data from a Signal Wait Time Integer...
  • Page 116 The computer device filename for the AvL Compass Com Port String communications port used for serial and the IP address used for Ethernet The communications parameters for the comm port AvL Compass Com Port in the form of BaudRate DataBits StopBits Parity for String Settings serial (ie 9600 8 1 0) where parity values are 0, and IP...

  • Page 117: Other Core Parameters

    6.3.6 Other Core Parameters Long name Level Type Value Range Documentation Restore the modem Tx enable when Modem Tx Restore On Open Choice "No", "Yes" modem is reopened after a failure. Set modem Tx enabled if Rx Lock is Modem Tx Enable On Rx Lock Choice "No", "Yes"...

  • Page 118: Automatic Operation - Target

    The Feed Bit Override parameter, extends the choices available to the controller outside the information provided by the feed bit logic output which comes from the feed itself. This also allows proper use of feeds which do not have feed bit control. Automatic Operation - Target Configuration of the AAQ’s automated features is made on a Target Satellite or Signal Source specific basis using the Profile System.

  • Page 119: Target Satellite

    6.4.1 Target Satellite Long name Level Type Value Range Documentation Current Satellite Inclination Float -100 to 100 The inclination of the current satellite. (degrees) The longitude of the satellite to target during acquire Current Satellite String with the numeric portion in decimal degrees and the hemisphere as a single letter (ie 61.5 W).
  • Page 120 Current Satellite should be set to the Longitude value of the Target Satellite. Format is important for this parameter. It must be entered in decimal degrees followed by a space and a single letter indicating hemisphere (e.g. 61.5 W or 110.0 E). Reference Satellite Mode performs two checks to determine if either Reference Profile is valid for use in locating the Target Satellite.

  • Page 121: Target Sources

    6.4.2 Target Sources Long name Level Type Value Range Documentation "0 dB", "1 dB", "2 dB", "4 dB", "8 Specifies the attenuation of the built in RSL RSL 1 Attenuation Choice dB", "16 dB", "31.5 dB" meter. Coarse Peak Signal "None", "RSL", modem, beacon Choice Type of modem, beacon if installed.

  • Page 122: Target Acquisition

     Romantis (if installed)  RSL (default)  SkyEdgeII (if installed) 6.4.3 Target Acquisition Long name Level Type Value Range Documentation The pol correction to be added to the calculated pol Satellite Polarization Offset Float -180 - 180 (deg) position during the targeting sequence. Flag indicating whether to use a SECANT correction Use Secant Correction Choice...

  • Page 123: Signal Source Based Parameters

    Flag indicating whether the acquire state should be set performed before entering Skip Acquire Sat State Choice "No", "Yes" track mode. If a Modem Module is present in the AvL antenna system and it supports a TX enable / disable command, then the Tx Enable Before Fine Peak parameter may be used to modify when the TX Enable command is sent to the Modem by the AAQ.

  • Page 124: Acquisition

    6.5.1 Acquisition Long name Level Type Value Range Documentation Azimuth scanning maximum velocity used in scanning Scan Azimuth Velocity Float 0.01 - 60.0 (deg/sec) movements. Elevation scanning maximum velocity used in scanning Scan Elevation Velocity Float 0.01 - 60.0 (deg/sec) movements.

  • Page 125: Fine Peaking

    Coarse peaking Maximum Cycles sets the maximum number of Coarse Peaking cycles that may be completed before the process is terminated. This parameter insures that the antenna does not fall into an “infinite do loop” attempting to satisfy the Coarse Peak Signal Difference Threshold parameter that may have been set too low for current conditions.

  • Page 126: Cross Pattern - Coarse Peaking

    6.5.4 Cross Pattern - Coarse Peaking Long name Level Type Value Range Documentation Width in degrees to scan during a coarse cross Cross Pattern Coarse Peaking Width Float 0.0 to 60.0 pattern peaking function. Height in degrees to scan during a coarse cross Cross Pattern Coarse Peaking Height Float 0.0 to 60.0...

  • Page 127: Step Pattern Mode

    Width in degrees to scan during a fine cross Cross Pattern Fine Peaking Width Float 0.0 - 60.0 pattern peaking function. Height in degrees to scan during a fine cross Cross Pattern Fine Peaking Height Float 0.0 - 60.0 pattern peaking function. Cross Pattern Fine Signal Tolerance Float 0.0 to 1000.0...

  • Page 128: Step Pattern - Coarse Peaking

    step. An individual signal measurement takes 0.012 seconds (where 1 second = 50 samples). If a noisy signal environment is anticipated, then this parameter should be changed. As this parameter is Modem Specific, a general value of between 100 to 200 is used for the RSL Signal Source. 6.5.7 Step Pattern - Coarse Peaking Long name Level...

  • Page 129: Plateau Peaking

    which leads to pointing inaccuracies. Setting the value too high may actually slow the process down as the AAQ is forced to correct for frequent over-shoot of the target position. 6.5.9 Plateau Peaking Long name Level Type Value Range Documentation Plateau Peaking Coarse Azimuth Azimuth velocity in degrees/sec for Float...

  • Page 130: Other Signal Based Parameters

    6.5.11 Other Signal Based Parameters Long name Level Type Value Range Documentation Allows a modem device to set the azimuth and Modem Based Target Allowed Choice "No", "Yes" elevation targets if supported by the modem. If set to yes then coarse peaking will be skipped if the Skip Coarse Peak If Tx Enabled Choice "No", "Yes"...
  • Page 131 Flag indicating whether the pol should be set manually Manual Polarization Choice "No", "Yes" during the acquire sequence. Offset in degrees, added to Pol angular value to correct for Polarization RF Offset Float -10 to 10 mechanical error Elevation Inc Offset Float -180 to 180 Offset in degrees to add to the elevation inclinometer.

  • Page 132: Sensor Override

    Most of AvL’s linearly polarized feeds include an automatic polarization adjustment feature, but not all. All of AvL’s circularly polarized feeds employ a quick and easy Manual Pol change feature. When this flag is set and the AAQ detects that it is being configured for a change in the polarization value, the operator of the antenna will be prompted to perform a manual change of polarization by the GUI.

  • Page 133: Gps

    Flag indicating that the compass declination should Declination Override Choice "No", "Yes" be ignored. 6.7.2 GPS Long name Level Type Value Range Documentation The latitude of the antenna to use if manual override for the Manual Latitude String GPS is selected in decimal degrees and direction (ie: 109.2 N). The longitude of the antennae to use if manual override for Manual Longitude String...

  • Page 134: Slide Motor Feed System

    NMEA Server Enable Choice Core "No", "Yes" Enables or disables the NMEA server on the controller NMEA Server Interval Integer Core 0 to 65536 NMEA server broadcast interval in seconds The source of the NMEA messages sent to the configured “Controller”, NMEA Server Message Source Choice...

  • Page 135: Wing System

    Vector Compass parameters are included to configure and manage the optional high-precision Vector Compass offered on some AvL antenna systems. The Enable parameter is persistent and when set insures that the Vector Compass is always powered on and available to the system. When set and Saved, the Reset parameter causes the Vector Compass to be re-initialized.

  • Page 136: Auto-Point Antenna Basics

     Light-weight, very stiff drive system, suitable for high stability requirements such as Ka Band  Method used to wrap the capstan results in a minimum free length of cable  The load in the cable on the main drum is exponentially reduced as it is wrapped around the drum, minimizing elongation of the cable under load ...

  • Page 137: Antenna Drive System

    All three of the axes are motorized and equipped with position feedback sensors that quantify positioner / antenna pointing in the pedestal coordinate system. Additional sensors on the antenna system such as GPS, magnetic compass and tilt sensors provide critical information that determines the antenna pedestal’s location and orientation relative to the Earth and its geosynchronous communication satellites.
  • Page 138 The cables are sized to last the life of the positioner. No replacement from wear is expected. The spring packages at one end will automatically compensate for any elongation of the cables. Cable position and stiffness should be checked as per a periodic maintenance schedule. Azimuth Cable Anchors Figure 7.2.1b - Az Cable Drive Assy.
  • Page 139 The low backlash is achieved by the selective fit of the worm and worm gear. The gearbox contains synthetic grease to help prevent wear in the gears. Because of the design capacity of the gearbox and low rpm, no maintenance is required. 7.2.1.2 Azimuth Position Feedback The directional sense of azimuth movement is defined as clockwise (CW) or counter-clockwise...
  • Page 140 7.2.1.4 Motor Shaft Encoders The shaft encoder mounts to the output shaft of the motor, providing a more precise feedback on Azimuth position. The controller uses the output of the azimuth encoder to determine the range of motion from axis point A to point B. The information is then processed by the AAQ and displayed as distance and angular position.
  • Page 141 7.2.1.6 Azimuth Stow switch The controller uses the Az. potentiometer voltage to determine limits. Therefore, the AvL positioner is equipped with only an azimuth stow position switch to determine the stow position. The azimuth stow switch should trigger magnetically at the azimuth physical zero position. The azimuth stow switch is mounted on the azimuth platform and is accessible under the Az/El cover.

  • Page 142: Elevation Positioning

    7.2.2 Elevation Positioning The elevation cable drive produces a drive system with zero backlash, high stiffness, no wear, no lubrication, and maximum reliability. The system consists of stainless steel aircraft control cables reverse wrapped twice around the grooved capstan, and once around the drum, with solid connections on one end and high force Belleville springs on the other end.
  • Page 143 7.2.2.4 Elevation Motor The elevation drive motor is typically a DC motor with an optical encoder mounted to the motor output shaft, to provide real time positional information to ACU. Elevation Motor Elevation Clam Shell Elevation Gear Box Figure 7.2.2.4 - Elevation Gear Box and Motor Since the low backlash worm gear drive isolates the backlash from the motor, any backlash between the shaft adapter, coupler, or motor gear train will not be seen by the reflector bore sight.
  • Page 144 If a cable becomes damaged during usage, remove the cable and continue to use the positioner. The positioner is designed to operate using a single cable if necessary. When time permits the damaged cable should be repaired by an authorized service facility. The cables are sized to last the life of the positioner.
  • Page 145 7.2.2.8 Elevation Resolver (optional) The on axis resolver may be used for more precise motion control. Resolvers are generally used for the elevation and azimuth axis. The resolver is an on-axis sensor and is generally located on the pivot points of the unit to provide highly accurate angular data. This sensor is primarily used in precision movements such as peaking.

  • Page 146: Feed And Polarization Positioning

    Figure 7.2.2.9a – Elevation Limit (or Stow) Switch Elevation Cam Elevation Stow Switch Elevation Capstan Typical as installed Figure 7.2.2.9b - Elevation Stow Switch 7.2.3 Feed and Polarization Positioning Polarization movement is defined, in the directional sense as CW or CCW, as seen by an observer standing behind the reflector looking at the satellite.
  • Page 147 Delrin bushings and shoulder bolts as pivot fasteners. Position feedback is generated with similar sensors as used on the Az and El axis. 7.2.3.1 Polarization Drive The feed/polarization drive can found underneath the pol mounting plate. The actual arrangement is model dependent. The worm gear on the feed horn extends through a slot and mates with the drive worm gear.
  • Page 148 Typical as installed Figure 7.2.3.2 – Pol Potentiometer 7.2.3.3 Polarization Encoder The Polarization encoder, when installed, is mounted to the output shaft of the motor providing a more precise feedback on Pol position. The controller uses the output of the encoder to determine the range of motion from axis point A to point B.
  • Page 149 7.2.3.5 Feed Assembly The feed assembly consists of the feed, the polarization drive and position sensors. The feed is mechanically accurate to within 1/8” of the theoretical focal point of the reflector. This assures the RF System functions In Accordance With FCC compliance as stated in the specifications. Main Beam Side Lobe...

  • Page 150: Aaq Controller System Detailed Description

    AAQ Controller System Detailed Description AvL produces a wide variety of transportable antenna products with a vast array of capabilities tailored for different customers and market segments. Aperture sizes range from a fraction of a meter up to many meters. Operating frequencies range from L-band (1.5 GHz) up to Ka-band (30 GHz). The AAQ antenna controller must be able to interface with a wide variety of equipment for position sensing and signal monitoring purposes.

  • Page 151: Operator Access Levels

    These configuration parameters also play a critical role, determining precisely how higher level functions like acquisition and tracking behave and how they may be optimized for a particular satellite and frequency band. The parametric aspect of our AAQ software design provides the flexibility necessary to optimally control any AvL antenna model and tailor its behavior to best meet the needs of a particular application or even an individual satellite.

  • Page 152: Aaq Configuration Items

    At Level 4, the satellite terminal integrator has access to all of the features and functions necessary to configure service and maintain the AvL AAQ antenna system. Note - Privilege Levels 7 and 9 are reserved for AvL Service, Production and Engineering purposes, only.

  • Page 153: Antenna System Calibration

    accurate estimate of Pedestal Azimuth angle by these parameters. All of these parameters are determined during the manufacture of the antenna system and verified during final system test. Many of the sensors in the antenna system are either a Line Replaceable Unit (LRU) or part of one. By definition, an LRU is a customer serviceable item.

  • Page 154: Power-On Calibration

    of testing at AvL, all of the configuration parameters and files for every antenna system are recorded and stored by the Service group for future reference. 7.3.6 Power-On Calibration Calibration is not a process that occurs only once during the factory assembly and test of AvL antenna systems.

  • Page 155: Aaq Controller Functional Description

    AAQ Controller Functional Description 7.4.1 Pedestal Base Heading Every AvL antenna system ships with an Electronic Compass that is used to determine an initial heading for the antenna system’s base platform. This information, along with the antenna’s geographic location (latitude and longitude), is essential to determine a pointing solution (antenna pedestal azimuth, elevation, and polarization angles) for the target satellite.

  • Page 156: Sattant

    7.4.2 SATTANT SATTANT is the name AvL has assigned to a novel approach developed to refine the antenna base heading provided by the electronic compass using satellite received signal power, only. Unlike methods employed by other antenna controllers to refine the compass heading, SATTANT does not require a DVB receiver or an extensive, up-to-date satellite location database.

  • Page 157: Reference Satellite Function

    Figure 7.4.2 – SATTANT Process AvL’s SATTANT algorithm takes several factors into consideration when it selects the elevation angle for its satellite acquisition scan and the east / west intercept point. Every effort is made to insure that a reliable heading update is made at the end of this process. It should be emphasized here that the SATTANT process used to improve your heading accuracy is a mathematical process as opposed to the Reference satellite method which takes advantage of knowledge of location and or carrier information to provide more reliable data for acquisition.

  • Page 158: Pedestal Tilt Compensation

    The second type of reference satellite uses a “DvB” carrier on a known satellite location and of a known frequency, bandwidth etc. While this offers a generally lower power carrier than the DBS type, the specifics of the carrier make it very unlikely that an adjacent satellite will be acquired. Use of a Reference Satellite requires the creation of a separate profile for each Reference chosen.

  • Page 159: Acquiring The Satellite Signal

    Pedestal Coordinates - These are the AZ/EL spherical coordinates of the pointing vector, in the pedestal reference system. AZ is measured clockwise (when looking down on the antenna) from the AZ Home Position. The antenna boresight will be parallel to the frame of the antenna at the Home Position.
  • Page 160 Figure 7.4.6 - AAQ Acquisition Scan The required AZ width parameter is substantially influenced by the accuracy of the pedestal heading source used for acquisition purposes. The standard magnetic compass included with all AvL antenna systems is a moderately accurate device. However, like any magnetic compass, its reading is subject to significant errors when the antenna system is located close to large ferrous objects like metal framed buildings and large commercial vehicles or the electromagnetic fields generated by underground utility cables.

  • Page 161: Signal Source = Rsl

    7.4.7 Signal Source = RSL A Received Signal Level (RSL) broadband power detector comes standard on all AAQ equipped AvL antennas. It is designed to detect power in the standard L-band used by most satellite terminals, specifically 950 – 2150 MHz. AvL antennas are typically wired to provide the RSL with a sample of the satellite signal available on the cable running from the customer provided LNB to the modem via an AvL provided in-line signal splitter or coupling device.
  • Page 162 Figure 7.4.7a – Wide Az. Line Scan Example When the difference between the longitude of the target satellite and the terminal is small, the target satellite will appear near the top of the geosynchronous satellite arc when viewed from the terminal’s location (Satellite B in Figure 7.4.7a).

  • Page 163: Signal Source, Modem Or Beacon Receiver

    Figure 7.4.7b – Narrow Az. Line Scan Example Even with these extra precautions, it is difficult to successfully acquire a target satellite with a relatively weak broadband signal when it is located next to a newer, higher power satellite. In this case, it is desirable to use a more selective satellite signal source such as a modem, DvB or beacon receiver.

  • Page 164: Peaking On The Signal

    When one of these signal sources is selected for acquisition, the AAQ will move directly to the “AZ Line Scan” starting point based on the pointing solution for the target satellite and initiate a raster scan. The AZ line scan is stopped immediately upon target satellite signal detection (modem/receiver lock indication) and the AAQ shifts directly into peaking mode.
  • Page 165 Figure 7.4.10 – Cross Scan Example As noted in the figure, the axes of the cross scan (two orthogonal line scans) align with the antenna’s Ped-AZ and Ped-EL axes. After the first line scan is completed, the AAQ commands the antenna to the scan angle corresponding to maximum received signal level.

  • Page 166: Fine Peaking

    7.4.11 Fine Peaking Optimal pointing of the antenna at the target satellite is usually achieved by a Ped-AZ and Ped-EL step scan technique. A series of small, equal changes in antenna pointing are made in one direction (Ped-AZ). After each small step, the received satellite signal is measured and compared to the level recorded at the end of the previous step.

  • Page 167: Linear Polarization Optimization

    7.4.12 Linear Polarization Optimization It is critical that the linearly polarized satellite ground antenna align its polarization vector closely with that of the satellite. Any mismatch between satellite and terminal antennas will reduce signal power on the forward and return links. Even a small misalignment of the polarization vector will significantly increase cross-polarized interference and further degrade the communications link between satellite and terminal.

  • Page 168: Step Track

    The popularity of satellite services using inclined geosynchronous satellites is growing and becoming a more frequent exception to the stationary rule. These satellites typically start their service lives in stationary orbits. As their station keeping fuel supply dwindles, the satellite operator decides to extend the life of the satellite by moving the satellite into an inclined orbit that requires much less fuel to maintain.

  • Page 169: Position Hold

    The AAQ’s TLE Track software module includes a TLE propagator program that takes a user provided TLE set and calculates the antenna Ped-AZ and Ped-EL angles versus time necessary to reliably acquire and accurately track the target satellite. The TLE set for a particular satellite will be updated from time to time based on NORAD tracking data and infrequent maneuvers performed by the satellite operator to maintain the satellite’s inclined orbit.

  • Page 170: Signal Sources

    command the antenna to dwell for some time at the end of each step and average several short duration measurements to filter out the always present scintillation “noise.” 7.4.19 Rain Fade Rain Fade refers to the absorption of an RF signal by atmospheric rain, snow, or ice. It is most prevalent at frequencies above 11 GHz.

  • Page 171: Profile System

    With no clear winner, the AAQ is designed to work with all three. Special provisions are made in the design of the AAQ software and available configuration parameter settings to compensate for their short-comings. Scan speeds can be varied to account for variation in response time and the rate at which new measurements are provided.

  • Page 172: The Acquisition Process

    The Acquisition process This section describes the normal operations of the AAQ controller from power on to acquisition of the target. For each step, the “command response” indicated on the GUI will also be included. 7.5.1 Power on and Boot The AAQ controller is a Linux based operating system.
  • Page 173 begin moving to the defined value based on the azimuth potentiometer position sensor. Once detected, the azimuth will follow the logic below to derive the center of the azimuth magnetic switch. After the position sensors (i.e. Magnetic reed switch and/or potentiometer) have found the physical center, the precision feedback sensors are initialized (i.e.
  • Page 174 the antenna from the stowed position to a point where azimuth movements are allowed. Once in the home position the elevation precision feedback sensors can be initialized (i.e. encoders). After setting the Az. Encoders, the antenna moves elevation to within a valid range (core config) to then set El encoders Command Response: initializing elevation encoder 7.5.2.3...

  • Page 175: Acquisition Sequence

    7.5.2.4 Initializing Sensors Now that the azimuth and elevation are in the proper homed position, the precision feedback encoders are initialized based on the analog sensor position. From this point forward, axis movements are based on the motor encoders and analog inputs are used to signal an alarm in the event a sensor fails or the readout is incorrect.

  • Page 176: Peaking Sequence

    Compass Scan Width Target Satellite Initial Scan Point Figure 7.5.3.2 - Satellite Arc Command Response Message: Moving to begin scanning in Az for Target Sat Signal 7.5.3.2 Move to Second Scan Point The positioner now moves through the scan width searching for data satellite. Once the system or external signaling device (i.e.
  • Page 177 At this point, it will compare the current signal level to the previous signal level. If the signal level difference is greater than the “Coarse Peak Signal Difference Threshold” setting value and meets the minimum number of peaking cycles specified by the “Coarse peaking cycles” setting, then “Cross Pattern, Coarse Peaking”...

  • Page 178: Chapter 8 - Troubleshooting

    Chapter 8 - Troubleshooting There are many interfaces between the AAQ and positioner including sensors, limit switches, the mechanical components of the antenna and ancillary satellite equipment, etc. Some issues are due to interactions that are not always readily apparent. A review of symptoms and faults will be given in this section. Alarms &...
  • Page 179 AzCCWLimitSwitch The azimuth counter-clockwise limit switch cannot be read. The azimuth RIOM reports this error. This does not indicate the counter-clockwise limit switch is broken, it indicates the digital input cannot be read by the RIOM. AzMotor The azimuth motor had entered an error state. The azimuth RIOM reports this error.

  • Page 180: Error Messages

    The GPS device on the NAV RIOM cannot be read or the GPS device is not functioning. Compass The compass device on the NAV RIOM cannot be read or the compass device is not functioning. VectorCompass The vector compass device cannot be communicated to. AvLCompass The heading device configured as the AvL Compass cannot be communicated with.

  • Page 181: Prompts

    The crosspol command cannot be performed Check hardware or “feedbit” read issue. with this feed. Invalid operation Invalid operation for the current hardware 8.1.3 Prompts The following table lists user prompts and their descriptions as shown on the AAQ GUI: Message Comment Mount reflector and select OK to continue...
  • Page 182 0x000C "Waiting" "Waiting on modem to allow move." 0x000D "Performing Move To" "Moving to commanded position" 0x000E "Moving to Home" "Moving to Home Position" 0x000F "Stowing" "Stowing" 0x0010 "Compass Cal" "Performing compass calibration." 0x0011 "X-Pol (H/V) moving" "Cross Pol (H/V) moving Pol" 0x0012 "Initializing Sensors"...
  • Page 183 0x0116 "Ref Fail Calibrating" "Ref. Satellites Failed, Calibrating Heading" 0x0117 "Moving to target" "Moving to target satellite" 0x1001 "Has Alarm" "Cannot execute command while alarm is active." 0x1002 "Invalid GPS" "GPS Coordinates are not valid." 0x1003 "Location Alarm" "GPS or compass is in Alarm state." 0x1004 "No modem target"...

  • Page 184: Communicating With The Gui

    0x3002 "Stow Confirm" "Warning stow may cause elevation to move to the deploy range. Press OK to continue." 0x3003 "Connect RIOMs" "Connect all RIOMs and select OK to continue" 0x3004 "Remove RIOMs" "Disconnect all removable RIOMs and select OK to continue"...

  • Page 185: Verifying Connections

    8.2.3 Verifying Connections If the Addressing appears to be correct, continue with the following steps: 1. Verify the Ethernet cable from the pedestal to the PC is present. 2. Open the client computers command prompt (cmd). 3. Ping the ACU, i.e. (ping 192.168.129.51. , Service IP) 4.

  • Page 186: Modem Signal Source Not Found On Scan

    If system has external RIOM modules, Verify connections from ACU to external RIOM (i.e. Tyco connections) are secure. If all connections appear to be correct, contact AvL Customer Support to verify correct RIOM software is installed. Modem Signal Source not found on scan When during the initial acquisition scan, a signal was not detected by the ACU’s external device (i.e.

  • Page 187: Elevation And Azimuth Alignment

    Figure 8.3.2 – Version Info If the external device is recognized in the Device Window, manually point the antenna to verify the external device can recognize the intended signal. Should the signal then be recognized, verify the Azimuth and Elevation alignment are correct for the intended Target Satellite. Elevation and Azimuth alignment Incorrect offsets in both azimuth and elevation are the most common inaccuracies when acquiring a satellite.

  • Page 188: Azimuth Offset

    Predicted Target ELEVATION Actual Target AZIMUTH Figure 8.4 - Errors in the Elevation Calibration (El Offset) WARNING - Anytime the “elevation offset” value is changed, the elevation limit switches (UP, DN, and STOW) should be checked. 8.4.2 Azimuth Offset If a consistent error in actual vs. predicted azimuth is observed, an offset in the compass may need to be applied.

  • Page 189: Recognizing A Failed Compass

    8.4.3 Recognizing a Failed Compass Manual Compass is required when the compass module fails and the readout does not change from default (zero), regardless of the true heading. The compass readout will remain zero during the compass routine and continue the acquiring process. The ACU assumes the compass heading of zero is correct and continues the acquiring process.

  • Page 190: Changing The Compass Heading Sources

    8.4.4 Changing the Compass Heading Sources The “Heading Source” configuration item is located in the “Configuration” window VIEW>CONFIGURATION, Core tab. Keyword search was used to find heading related items. Figure 8.4.4 – Heading Sources to Manual Selecting “Manual” from the pull downs for both primary and secondary heading sources, will direct the AAQ controller to use the value listed under “Heading for Manual Compass”...

  • Page 191: Recognizing A Failed Gps

    Recognizing a Failed GPS A “GPS Coordinates are not valid” error will occur when “zero” values are displayed in the “Lat” and “Long” readout positions. Figure 8.5 - Main GUI, GPS Coordinates AvL Proprietary and Confidential Content is Subject to Change without Notice Page 191 of 195...

  • Page 192: Changing To Manual Gps

    8.5.1 Changing to Manual GPS The “GPS Source” configuration item is located in the “Configuration” window under, VIEW> CONFIGURATION>Core Tab. Figure 8.5.1 – GPS Source to Manual Selecting “Manual” from the “GPS Source” pull down menu will direct the AAQ controller to use the values listed under “Manual Latitude”...

  • Page 193: Maintenance

    Figure 8.5.1b - Manual Lat and Long entry Maintenance AvL Antenna systems are designed such that any wear should never degrade performance below specifications and essentially no maintenance should ever be required. However, since it is impossible to ascertain or test for all possible environments, the following checkup is recommended each year. If any problems are observed, refer to section 8.6 in order to contact Customer Service.

  • Page 194: Contacting Customer Service

    Elevation  Hand crank in elevation - the unit should hand crank easily.  Unit should hand crank with approximately 50-75 in-lbs. torque depending on model.  Check for unusual noise in the elevation pivot bearings and the elevation gearbox. ...

  • Page 195: Priority Telephone & Fax Support

    8.7.2 Priority Telephone & Fax Support In case of an emergency or relating to matters of a more pressing nature, telephone and fax support is available per incident to AvL customers throughout the world. General telephone support - (Monday - Friday 8am - 5pm EST): 1-828-250-9950 After hours/emergency customer service (Weekends and Holidays): 1-828-250-9140, then follow prompts to page Custom...
